Installation and Maintenance Manual IM 1119-1
Group: WSHP
Part Number: 910154889
Date: June 2014
T9000 Wireless 24VAC Thermostat
Remote Control Node (RCN)
For use with any Daikin unit that is able to utilize a standard, single-stage
24VAC remote wall thermostat
•T9000 Wireless RCN Assembly Kit Part No: 910108604
For use with Console Water Source Heat Pump Models WMHC & WMHW
•Heat Pump Kit Part No. 668898501
For Water Source Heat Pumps - Vertical Stack Models WVHC & WVHF
•Heat Pump Kit Part No. 910139783
T9000 Wireless RCN Assembly Kit No. 910108604
Console Model Heat Pump Kit Part No. 668898511
www.DaikinApplied.com 2 IM 1119-1
...........................2
.3
.3
.4
T9000 Wireless RCN Kit No. 910108604 – Parts Included .......4
Console Water Source Heat Pump Models WMHC &
WMHW - RCN Installation ...........................8
Heat Pump Kit Part No. 668898501 – Parts Included ...........8
Vertical Stack Water Source Heat Pump Models WVHC &
WVHF - RCN Installation ...........................10
Heat Pump Kit Part No. 910139783 – Parts Included ..........10
RCN Application – Conguration ....................12
RCN Conguration Table for All WSHP Units ..........13
Installing and Removing Nodes .....................16
Installing Nodes .......................................16
Control Logic Tables ..............................20
Frequently Asked Questions........................21
T9000 Programmable Wireless Thermostat Button
Descriptions .....................................23
Manufacturers Statement
Safety Information ................................
Introduction......................................
RCN Installation ..................................
Manufacturers Statement
The manufacturer is not responsible for any radio or TV
interferencecausedbyunauthorizedmodicationstothis
equipment.Suchmodicationscouldvoidtheuser'sauthority
to operate the equipment.
This equipment complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) This
devicemaynotcauseharmfulinterference,and(2)thisdevice
mustacceptanyinterferencereceived,includinginterference
that may cause undesired operation.
The original equipment manufacturer (OEM) must ensure that
FCC labeling requirements are met. This includes a clearly
visiblelabelontheoutsideofthenalproductenclosurethat
displays the following:
Contains FCC ID: TGD12200/IC: 6120A-12200
IM 1119-1 3 www.DaikinApplied.com
Safety Information
The installation of this equipment shall be in accordance
withtheregulationsofauthoritieshavingjurisdictionandall
applicable codes. It is the responsibility of the installer to
determine and follow the applicable codes. This equipment is
to be installed only by an experienced installation company
which employs trained personnel.
CAUTION
DANGER
Installation and maintenance is to be performed only by qualied
personnelwhoarefamiliarwith,andincompliancewithstate,local
andnationalcodesandregulations,andexperiencedwiththistype
of equipment. Sharp edges and coil surfaces are potential injury
hazards.Avoidcontactwiththem.
Toavoidelectricalshock,personalinjuryordeath:
1. Installermustbequalied,experiencedtechnician.
2. Disconnect power supply before installation to
preventelectricalshockanddamagetoequipment.
WARNING
!
Disconnect all electrical power before servicing unit.
Electricalshockwillcausesevereinjuryordeath.
!
!
Introduction
ThefactorysuppliedWirelessTemperatureControlKitisaeld
installedoption,whichrequiresunitssetupforremote24V
thermostat control. The stand-alone kit consists of a unit-mounted
RemoteControlNode(RCN)assembly,andeitheraDaikinT9000
Wireless Programmable (#68898001) or Daikin T9000 Wireless
Non-Programmable(#68898101)thermostat,asnoted.
Note: No other thermostats will function with the T9000 RCN.
IM 1119-1 4 www.DaikinApplied.com
RCN Installation
T9000 Wireless RCN Kit No. 910108604 – Parts Included
1. Metal RCN Housing Box 4. (8) Industrial Tape Strips
2. RCN 5. (4) Self-Tapping Screws
3. BezelwithOverlay
Tools Required
• WireStrippers-Cutter ▪1/4"HexNutdriver
• SmallScrewdriver ▪ Low-VoltageThermostatWiring
1. Disconnect all power from the unit by: switching off power
atthedisconnectswitch,circuitbreakerorunpluggingthe
power cord from the receptacle.
2. RemovetheRCNhousingassemblyscrewstoaccessthe
control module & terminal strip.
3. RemovetheRCNboxtop,bezel/overlay&controlmodule
as one piece.
Figure 1: Remove RCN assembly screws to access control
module and terminal strip
ScrewLocations(3) SeparatedAssembly
4. Attach the RCN housing back-plate to a temperature
sufcientlocation.
a. AttachRCNhousingback-platetoasuitablelocation,
preferablyavoidingextremetemperatureconditionsand
ranges.
Note: If mounting the RCN to the Daikin HVAC product, be
cautious when drilling holes, as not to damage any internal unit
components.
Figure 2: Mounting RCN box with screws
b. Daikinhasalsoprovideddouble-sidedindustrial
adhesivetapethatmayalternatelybeusedtosecure
theRCNhousingback-plate.Besuretosufciently
clean both mating surfaces before applying the tape to
achievealonger-lastingbond.Usageofthisfastening
method may further limit the temperature range of the
unit-mating surface.
IM 1119-1 5 www.DaikinApplied.com
Figure 3: Adhesive tape used to secure the RCN box
It is recommended that the terminal block on the RCN control
moduleberemovedwhenmakingterminalconnections,toavoid
excessivehandlingofthestaticsensitiveRCNcontrolmodule.
NOTICE
5. RemovethegreenterminalblockfromtheRCNcontrol
module,bypullingup&awayfromthecontrolmodule.
Figure 4: Remove terminal block from RCN control module
6. WireallappropriateterminalsontheremovedRemoteControl
Nodeterminalblock(RCN),usingappropriatelengthsofeld-
suppliedlowvoltagewiring.Makesuretofollowallnational
andlocalcoderequirementswhenroutinglowvoltagecontrol
wires.
7. Feedthestrippedleadsofthethermostatlow-voltagewires
throughthebushingoftheRCNhousing,toconnecttothe
unitcontrolboardorterminalstrip/block.
Figure 5: Feed stripped wire leads through bushing on the
RCN housing
IM 1119-1 6 www.DaikinApplied.com
8. Removescrewsand/orpanelsthatwillallowaccessto
theinsideoftheunitcontrolbox,orlocatetheremote
thermostatterminalstrip/block,toconnecttheRCNtothe
unit control board.
9. Connect the stripped wire leads from the RCN assembly
to the appropriate terminals on the unit control board or
remotethermostatterminalstrip/block.
Figure 6: RCN wire connections to the MicroTech III unit
controller terminal plug
Figure 7: Connect wire leads from RCN to the appropriate
terminals on the unit control board
Terminal connections on unit control board or remote
thermostatstrip/block
10. Aftermakingallwireconnections,plugtheRCNterminal
blockbackontotheRCNboard,oppositeofremoval,in
step 5.
Figure 8: Plug the RCN terminal block back onto RCN board
IM 1119-1 7 www.DaikinApplied.com
11. Power must be restored to the unit in order for the RCN to
belinkedtotheT9000WirelessThermostat,oriftheRCN
is to be custom programmed.
Notes:
1. Refer to "RCN Conguration Table for All WSHP Units" on
page 13 for instructions on how to link the RCN(s) to a
T9000 Wireless Thermostat.
2. Refer to "RCNCongurationTableforAllWSHPUnits"on
page 13.for instructions on how to program the RCN.
12. After the RCN has been linked with a T9000 Wireless
Thermostat,andanyRCNapplication-conguration
programming is completed; re-attach the RCN box top (with
bezel,overlay,wireharness&controlmodule)totheunit-
mountedRCNbackplate,withthe3previouslyremoved
screws(2-top/1-bottom)fromstep2.
Figure 9: Re-attach the RCN box top to the RCN back-plate
The Remote Control Node allows for a degree of customized
programming byfollowingthe"RemoteControlNode(RCN)
Application–See"RCNCongurationTable forAllWSHP Units"
onpage13.RCNmustbeconguredforapplicationpriorto
completion of installation.
NOTICE
IM 1119-1 8 www.DaikinApplied.com
Console Water Source Heat Pump Models
WMHC & WMHW - RCN Installation
Heat Pump Kit Part No. 668898501 – Parts Included
1. RCN
2. WirelessOverlay
Introduction
Although the wireless temperature control kit is factory supplied
itmayalsobeeldinstalled,whichrequiresunitssetupfor
unit-mounted 24V thermostat control. The kit consists of a
battery powered wireless remote thermostat and a unit-mounted
Remote Control Node (RCN) and wireless remote control decal.
NOTE: The Remote Control Node is congured at the factory.
See factory default congurations for Part Number 668898501
Tools Required
• Phillipsheadscrewdriver
• SmallPhillipsheadscrewdriver
• Small(athead)screwdriver
Procedure
1. Disconnect all power from the unit by unplugging the power
cord from the receptacle.
2. Liftcontrolaccessdoor.
3. Removethefour(4)screwssecuringthetouchpad
controller (Figure 10).
Figure 10: Remove four (4) screws
Screws (4)
4. Removethetouchpadcontrolfromtheunitandcarefully
release the board from the clips on the bezel holding it
(Figure 11).
Figure 11: Release the board from the clips on the bezel
IM 1119-1 9 www.DaikinApplied.com
5. Usingasmallregularscrewdriver,loosenthesetscrews
holding the wires to the terminal plug on the touchpad
board (Figure 12).
NOTE: Remove one wire at a time and reconnect to the
corresponding terminal on the RCN terminal plug. The terminal
plug may be removed from the RCN to avoid excessive
handling of the board while making wire connections.
Figure 12: Remove wires one at a time and reconnect to
corresponding terminals on RCN board terminal plug
Touchpad Control
Board
RCN Board
Terminal Plug
6. Aftermakingallwireconnections,plugtheRCNterminal
plug onto the RCN board.
7. Applytheprovidedwirelessremotecontroldecaloverthe
face of the touchpad control (Figure 13).
Figure 13: Apply wireless remote control decal
8. Restore power to the unit.
9. Introduce the RCN and the wireless temperature control
thermostattoeachother,followingtheprocedurefor
“Installing Nodes” in OM 897. Instructions can also be
found on the inside of the wireless temperature control
thermostat casing.
IM 1119-1 10 www.DaikinApplied.com
Vertical Stack Water Source Heat Pump
Models WVHC & WVHF - RCN Installation
Heat Pump Kit Part No. 910139783 – Parts Included
1. RCN 3. Wire harness to MTIII Board
2. BezelwithOverlay 4. Wire harness to RCN Board
Introduction
Although the wireless temperature control kit is factory
supplieditmayalsobeeldinstalled,whichrequiresunitsset
up for unit-mounted 24V thermostat control. The kit consists
of a battery powered wireless remote thermostat and a unit-
mounted Remote Control Node (RCN) and wireless remote
control decal.
NOTE: The Remote Control Node is congured at the factory.
See factory default congurations for Part Number 910139783.
Tools Required
• Phillipsheadscrewdriver
• SmallPhillipsheadscrewdriver
• Small(athead)screwdriver
Procedure
1. Disconnect all power from the unit by unplugging the power
cord from the receptacle.
2. Disconnect all power from the unit by unplugging the unit
power cord from the receptacle.
3. Removethelterandthenthefrontpanel/lterrack(Figure14).

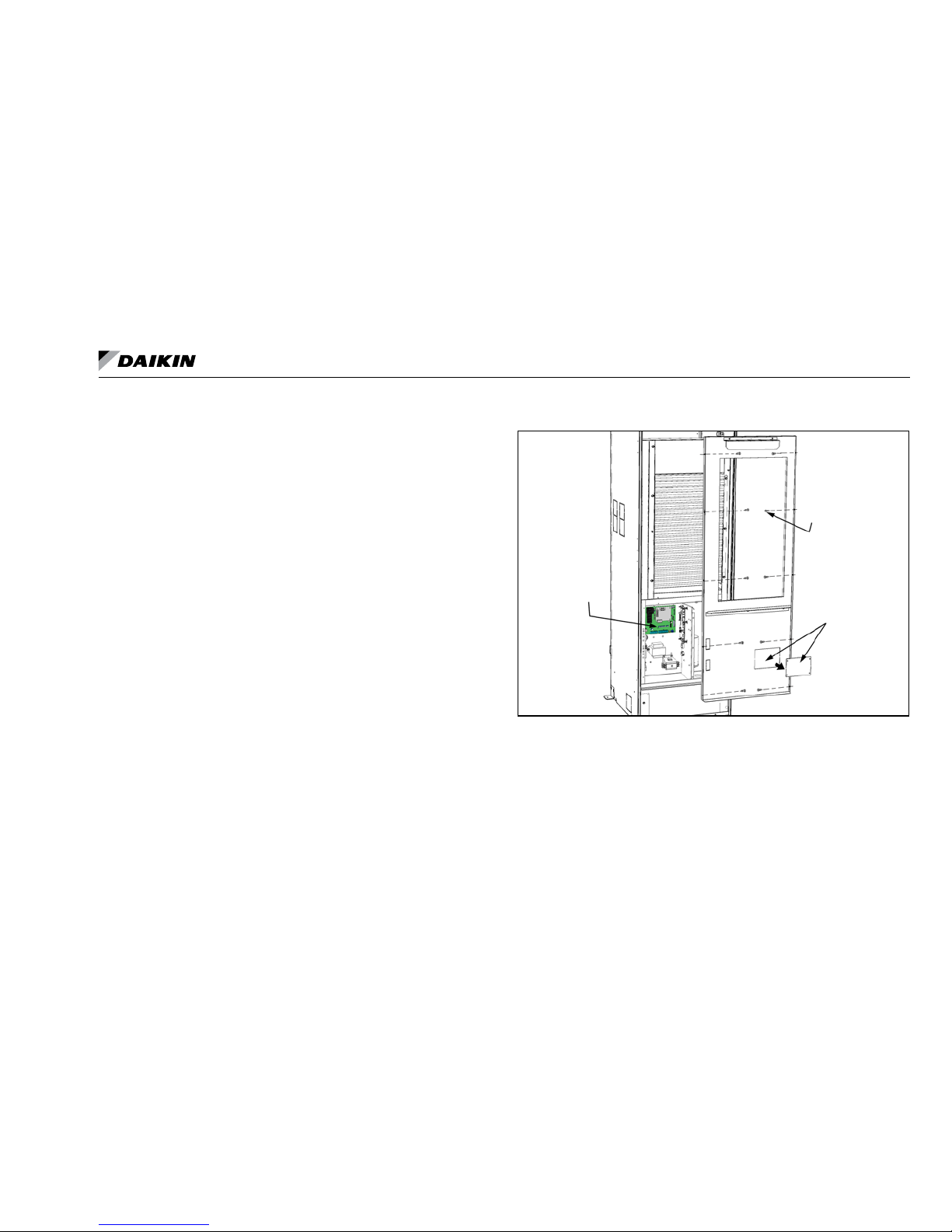

Figure 14: Remove filter and front panel/filter rack
MicroTech III
UnitController
Removefront
panel knockout
for RCN board
and bezel
Removefront
panel screws
(10) (Number of
screwsmayvary,
depending on
unit size)
4. Removetheknockoutplateinthefrontpanel/lterrackandcut
away the insulation within the knockout opening (Figure 14).
NOTE: For clarity, not all unit components are shown in
illustrations.
Table des matières
Autres manuels Daikin Télécommande
Daikin
Daikin RXN-L9 Manuel utilisateur
Daikin
Daikin BRC1H71W Manuel utilisateur
Daikin
Daikin MicroTech II Manuel utilisateur
Daikin
Daikin BRC1D61 Manuel utilisateur
Daikin
Daikin BRC1E63 Manuel utilisateur
Daikin
Daikin Madoka BRC1H82K Guide de l'utilisateur
Daikin
Daikin DCS302C71 Manuel utilisateur
Daikin
Daikin BRC52B61 Manuel utilisateur
Daikin
Daikin BRC7C51W Manuel utilisateur
Daikin
Daikin OM-GS02-0112 Manuel utilisateur
Daikin
Daikin BRC1E62 Manuel utilisateur
Daikin
Daikin BRC1H519K Guide de l'utilisateur
Daikin
Daikin BRC1D528 Manuel utilisateur
Daikin
Daikin ARC447A3 Manuel d'instructions
Daikin
Daikin BRC1H63K Manuel utilisateur
Daikin
Daikin ARC417A14 Manuel utilisateur
Daikin
Daikin BRC082A43 Manuel utilisateur
Daikin
Daikin Madoka Simplified Manuel utilisateur
Daikin
Daikin ARC433B46 Manuel utilisateur
Daikin
Daikin BRC1E62 Manuel utilisateur
Manuels Télécommande populaires d'autres marques
Panasonic
Panasonic EUR7622KB0 Manuel utilisateur
Bang & Olufsen
Bang & Olufsen Beo4 Manuel utilisateur
Sunwave Tech.
Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur
Multiplex
Multiplex PROFI TX 9 Manuel utilisateur
One Remote
One Remote RMB4 Manuel utilisateur
FUTABA
FUTABA 9ZAP - PART2 Manuel utilisateur
