Wired Remote

Controller

Operation Manual

• Thank you for purchasing this wired remote controller.

• This manual describes safety measures which should be considered during the use of

this product.

Read this manual carefully and be sure you understand the information provided

before using the product.

Keep this manual where it is readily accessible to all current and future operators.

MODEL BRC1H63W/BRC1H63K

Contents

Safety Precautions ............................................................. 2

Button Locations and Descriptions..................................... 4

Overview of Screens .......................................................... 5

Setting Screen List ............................................................. 7

Names and Functions ........................................................ 8

Information Screen ........................................................... 10

Setpoint ............................................................................ 14

Ventilation Rate ................................................................ 15

User Menu........................................................................ 16

Operation Mode................................................................ 17

Fan Speed ........................................................................ 19

Airow............................................................................... 21

Energy Recovery Ventilator (ERV).................................... 24

Off Timer........................................................................... 26

LED Brightness Light Ring On ......................................... 28

LED Brightness Light Ring Off ......................................... 29

Dual Setpoint.................................................................... 30

Fahrenheit/Celsius............................................................ 31

Administrator Menu .......................................................... 32

Backlight Brightness/Contrast .......................................... 33

Clock Setting .................................................................... 34

Bluetooth .......................................................................... 36

About ................................................................................ 39

Administrator Password Setting........................................ 40

Maintenance..................................................................... 42

Filter Sign ......................................................................... 43

Troubleshooting ................................................................ 46

Safety Precautions

This product is not intended for use by children or inrm persons without supervision.

Children should be supervised to ensure that they do not play with the product.

Read the “Safety Precautions” carefully for the proper use of the product.

• This manual classies the precautions into WARNINGS and CAUTIONS.

Be sure to follow all the precautions below: They are all important for ensuring safety.

WARNING Indicates a potentially hazardous situation which, if not avoided, could

result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injury.

It may also be used to alert against unsafe practices.

WARNING

• Do not install the remote controller by yourself.

Improper installation may result in electric shocks or a re.

Consult your local dealer.

• Do not modify or repair the remote controller.

It may result in electric shocks or a re.

Consult your local dealer.

• Do not relocate or reinstall the remote controller by yourself.

Improper installation may result in electric shocks or re.

Consult your local dealer.

•

Do not use ammable materials such as hairspray or insecticide near the product.

It may result in electric shocks or a re.

• Do not wipe the product with benzine, thinner, chemical dust cloth, etc.

The product may get discoloured or the coating peeled off.

The use of organic solvents may cause cracking of the product, electric shocks or a re.

CAUTION

• Do not allow children to play with the remote controller.

Accidental operation by children may result in health impairment.

• Do not disassemble the product.

Touching the interior parts may result in electric shocks or a re.

Consult your local dealer for internal inspections and adjustments.

• Do not press the button of the remote controller with a hard, pointed object.

The remote controller may be damaged.

• Do not pull or twist the electric wire of the remote controller.

It may cause the unit to malfunction.

• Do not operate with wet hands to avoid electric shocks or a re.

• Do not wash the remote controller.

It may cause electric leakage and result in electric shocks or a re.

• Do not locate the remote controller wherever there is a risk of wetting.

If water gets into the remote controller there is a risk of electric leakage and damage to electronic

components.

It may result in electric shocks or a re.

— Items to be Strictly Observed —

Disposal requirements

Your product and the batteries supplied with the controller are marked with this symbol. This symbol

means that electrical and electronic products and batteries shall not be mixed with unsorted household

waste.

For batteries, a chemical symbol can be printed beneath the symbol. This chemical symbol means that

the battery contains a heavy metal above a certain concentration.

Possible chemical symbols are:

Pb: lead (>0.004%)

Do not try to dismantle the system yourself: the dismantling of the product, treatment of the refrigerant,

of oil and of other parts must be done by a qualied installer in accordance with relevant local and

national legislation.

Units and waste batteries must be treated at a specialized treatment facility for re-use, recycling and

recovery.

By ensuring correct disposal, you will help to prevent potential negative consequences for the

environment and human health.

Please contact the installer or local authority for more information.

Precautions when using wireless communication in Taiwan

根據 NCC LP0002低功率射頻器材技術規範_章節3.8.2：

取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變

更原設計之特性及功能。

低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，

並改善至無干擾時方得繼續使用。

前述合法通信，指依電信管理法規定作業之無線電通信。

低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

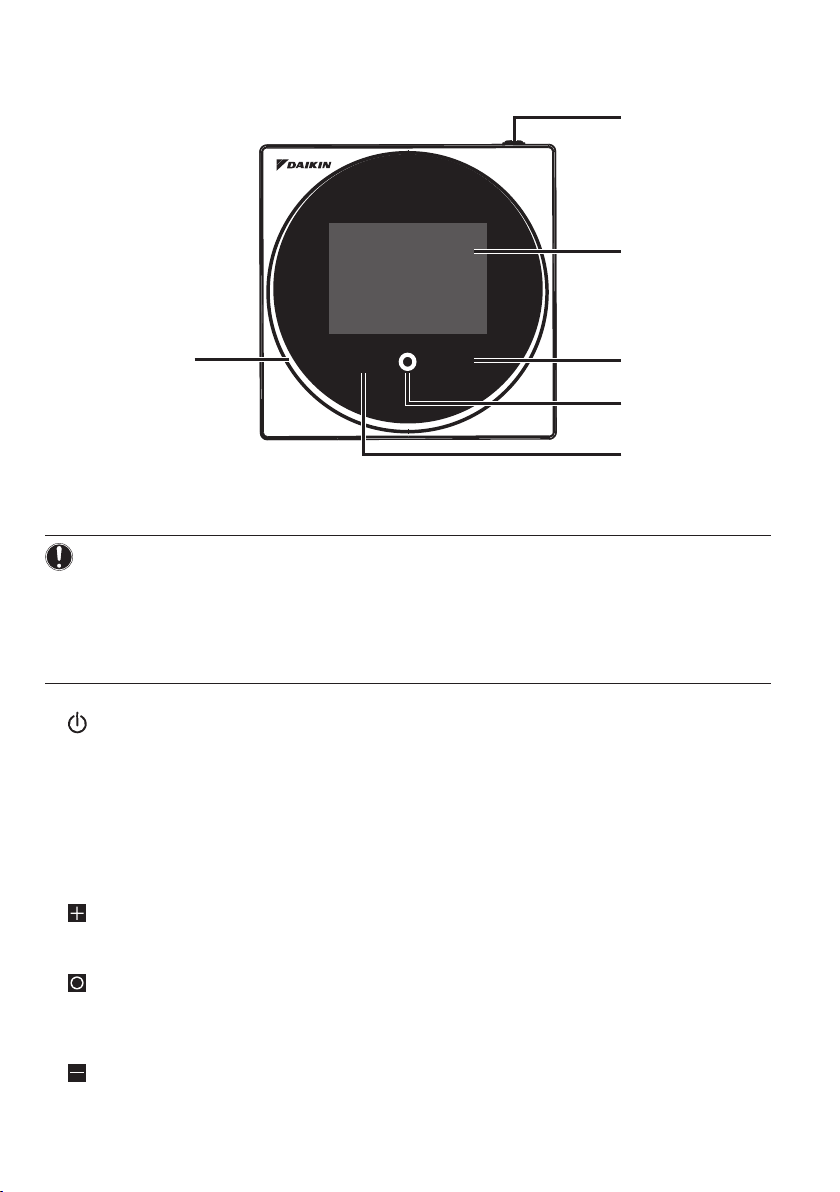

Button Locations and Descriptions

Functions items (i.e., Operation Mode, Fan Speed, and Setpoint) are set from the menu

screen.

NOTICE

• Do not install the remote controller in places exposed to direct sunlight. The LCD may be

damaged.

• Do not pull or twist the remote controller cord. The remote controller may be damaged.

• Do not use objects with sharp ends to press the buttons on the remote controller. Damage may

result.

a ON/OFF button

• Press this button to turn on the system.

• Press this button again to turn o the system.

b Status indicator (LED)

• During operation, the light ring around the display lights up blue/red/green.

Lights up blue: Operating, Blinks red: Error is occurring, Lights up/blinks green: Bluetooth connecting

c LCD (Refer to “Names and Functions”.)

• Displays the current setpoint and air conditioner operation status.

d NAVIGATE/ADJUST button

• Navigate right.

• Adjust a setting.

e SELECT/ACTIVATE/SET button

• From the home screen, enter the user menu.

• From the user menu, enter one of the submenus.

• From their respective submenu, activate an operation/ventilation mode.

f NAVIGATE/ADJUST button

• Navigate left.

• Adjust the setting.

Overview of Screens

How to display the screen (Standard mode)

The following is just an example. The items available for setting vary depending on the

indoor unit you are using. If there is no button operation for about 10 seconds, the screen

returns to the home screen.

Home screen

˚C

Press

User menu

This screen is a

menu for the user.

See “Setting Screen

List” for items which

can be selected.

Administrator menu

This screen is a menu

for the administrator.

See “Setting Screen

List” for items which

can be selected.

Information screen

Sensor view

12:34

˚C

1050PPM

A3-01 (Unit 00)

This screen displays the sensor values.

If there are no sensors, a horizontal bar (“–”) is

displayed.

Choose which items are displayed by setting from

the remote controller.

This screen is not displayed by factory default. If it

is not displayed, the icon view will be shown instead.

Icon view

12:34

A3-01 (Unit 00)

This screen displays the time and the status of

the remote controller and the system. If an error

occurs, the error code is displayed.

Select , then press .

Press

Select , then

press .

Press and hold

for 5 seconds.

Press and hold

and for 5seconds.

Press

How to display the screen (Hotel mode)

Hotel mode can be enabled via the DAIKIN APP. For details, refer to the DAIKIN APP

manual.

The following is just an example. The items available for setting vary depending on the

indoor unit you are using.

Home screen

˚C

Pressing cycles through the

operation modes, as in the figure

below, and the relevant screen for

each operation mode is displayed.

Auto CoolHeat

Fan Dry

User menu

INFORMATION

There are 2 screen display modes, text mode and icon mode.

Change the mode according to your preference.

This manual explains functions and operations in icon mode.

* Please refer to the Web installation manual for instructions on how to switch screen displays.

Text mode Icon mode

Press and hold for 5seconds. Select , then press .

Setting Screen List

Setting list User

Administrator

Icon Name Description

Depends on

current setting Operation Mode Operation mode setting 

Depends on

current setting Fan Speed Airflow rate setting 

Depends on

current setting Airflow Direction Airflow direction 1 setting 

Depends on

current setting Vertical Airflow Airflow direction 2 setting 

Depends on

current setting Ventilation Mode Ventilation mode setting 

Depends on

current setting Ventilation Rate Ventilation rate setting 

Off timer Turns off the unit after a time set by

the user. 

Adjust LED (ON) LED brightness adjustment when

backlight lights up 

Adjust LED (OFF) LED brightness adjustment when

backlight lights up dimly 

Sign Reset Filter sign reset 

Celsius/Fahrenheit Fahrenheit/Celsius changeover 

Setpoint Setpoint setting when in auto

operation mode 

Bluetooth Setting Bluetooth setting 

Backlight Backlight brightness setting 

Contrast Contrast setting 

Clock Setting Clock setting 

About Administrator information 

Admin Password Administrator password setting 

Names and Functions

Home screen

˚C

OFF

Information screen

12:34

A3-01 (Unit 00)

Icon view

12:34

˚C

1050PPM

A3-01 (Unit 00)

Sensor view

c Centralized Control

• Displayed when under centralized management.

d Operation mode

• Displays the current operation mode.

e Ventilation mode

f Room temperature

• Displays the current room temperature.

g Setback

• Blinks during setback operation.

• Displayed during setback setting.

h Bluetooth*

• Indicates that the controller is communicating

with a mobile device, for use with the app.

i Changeover Under Control

• Displayed when controller is unauthorized to

select heating/cooling operation.

j Fahrenheit/Celsius

• Depending on the setting, Fahrenheit/Celsius

display can be selected.

k Air Purifying

l Set temperature

• Displays setpoint temperature.

m Clock (24 hours time display)

n MAIN/SUB remote controller sign

• : Main controller, : Sub controller

o Status

• Noties the status.

p Error display

• If an error occurs, the icon, an error code and unit

number are displayed.

q Information icon

r Bluetooth/Zigbee icon

• Bluetooth and Zigbee icons are displayed.

: Bluetooth, : Zigbee

s Sensor values

• Zigbee sensor values are displayed when normal

values are received and Zigbee sensor settings

have been congured.

• If Zigbee sensor values cannot be received,

sensor values will be displayed as per original

settings.

• If there are no sensors, a horizontal bar (“–”) is

displayed.

Screen display explanation

a OFF

• Displayed when operation is

stopped.

b Error/Filter/Test/Streamer/

Zigbee icon*

• Error, lter, test, streamer and Zigbee

icons are displayed.

: Error : Filter : Test

: Streamer : Zigbee

• The streamer icon is displayed when

Mold Proof operation is active.

• The Zigbee icon will ash when

sensor connection is lost.

User menu/Administrator menu/

Installer menu

User menu

Administrator menu/Installer menu

* The Bluetooth® and Zigbee™ word mark

and logos are registered trademarks

owned by the Bluetooth SIG, Inc and

Zigbee Alliance, respectively, and the

use of such marks by Daikin Industries

LTD. is under license. Other trademarks

and trade names are those of their

respective owners.

t Settings menu icon

INFORMATION

Depending on the connected model, some items may not be displayed.

The controller is equipped with a power-saving function that darkens the display if there is no operation

for a certain period of time. To make the screen light up again, press one of the buttons.

Note that pressing one of the buttons will only make the display bright again, not cause remote

controller operation.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Daikin Télécommande

Daikin

Daikin BRC1H81K Manuel utilisateur

Daikin

Daikin BRC4C61 Manuel utilisateur

Daikin

Daikin Madoka Simplified Manuel utilisateur

Daikin

Daikin BRC1E73 Manuel utilisateur

Daikin

Daikin BRC1H82W Manuel utilisateur

Daikin

Daikin Madoka Manuel utilisateur

Daikin

Daikin ARC433B46 Manuel utilisateur

Daikin

Daikin BRC1H519K7 Guide de l'utilisateur

Daikin

Daikin BRC1H81W7 Guide de l'utilisateur

Daikin

Daikin BRC1D52 Manuel utilisateur

Daikin

Daikin BRC7C510W Manuel utilisateur

Daikin

Daikin DCS303A51 Manuel utilisateur

Daikin

Daikin BRC315D7 Manuel utilisateur

Daikin

Daikin VRVWII RWEYQ10MY1 Manuel utilisateur

Daikin

Daikin BRC230Z4 Manuel utilisateur

Daikin

Daikin BRC7EA628 Manuel utilisateur

Daikin

Daikin BRC4C61 Manuel utilisateur

Daikin

Daikin BRC1E71 Manuel utilisateur

Daikin

Daikin BRC1H51W Guide de l'utilisateur

Daikin

Daikin BRC7CB58 Manuel utilisateur

Daikin

Daikin Madoka BRC1H82K Guide de l'utilisateur

Daikin

Daikin MicroTech II Manuel utilisateur

Daikin

Daikin BRC073A4 Fiche d'information produit

Daikin

Daikin BRC7EA631 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
