Daikin GS02 Manuel utilisateur

TURBO

QUIET SLEEP

MODE

TIMER

CANCEL

ON OFF

SWING FAN

CANCEL

CLOCK

OPERATING

MANUAL

English

Operating Manual

Handset Wireless

OM-GS02-0211(0)-DAIKIN (SASO)

Part No.: R08019036067

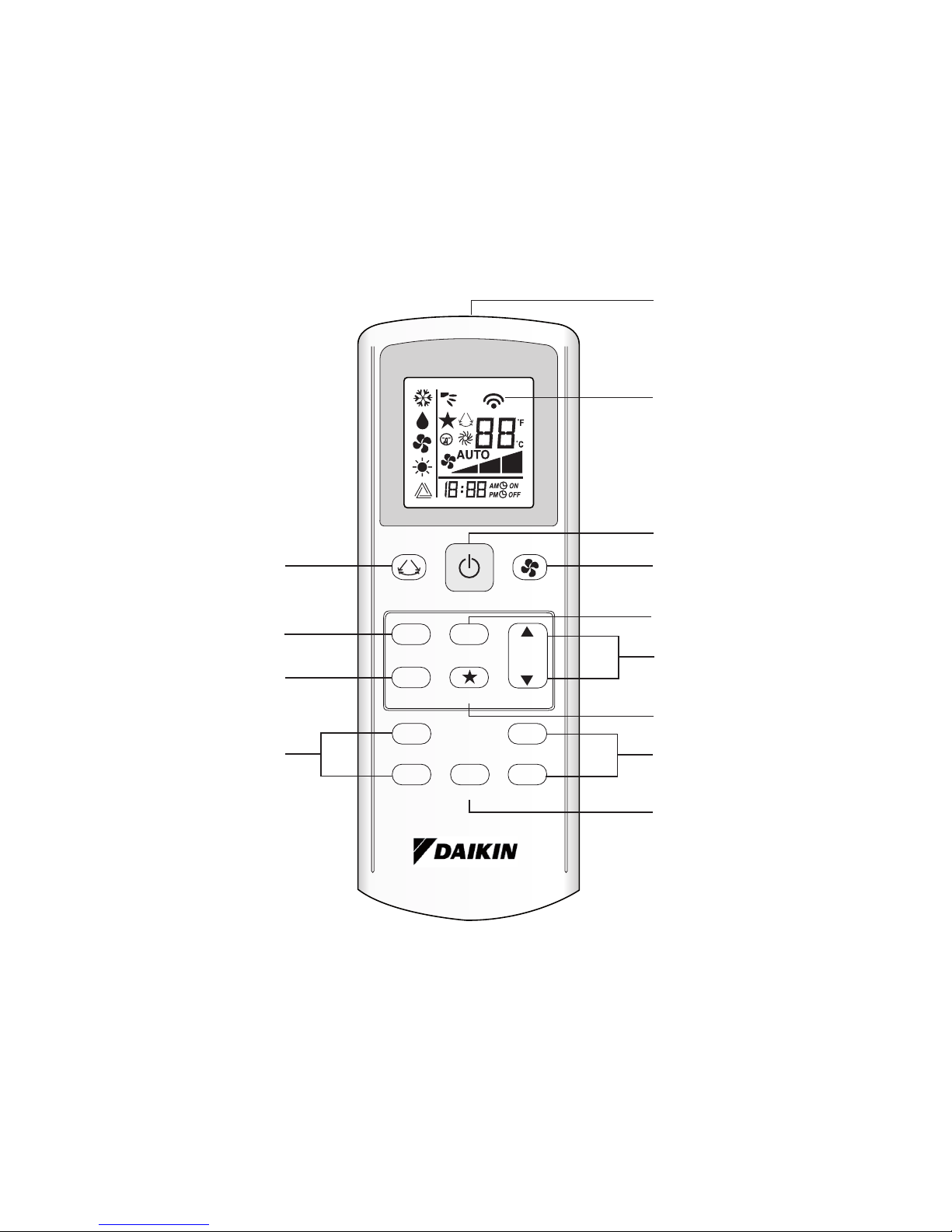

GS02 Remote Control Indication

TURBO

QUIET SLEEP

MODE

TIMER

CANCEL

ON OFF

SWING FAN

CANCEL

CLOCK

HOW TO MOUNT ONTO THE WALL

TO INSERT BATTERIES (AAA.R03)

TURBO

QUIET SLEEP

MODE

TIMER

CANCEL

ON OFF

SWING FAN

CANCEL

CLOCK

TURBO

QUIET SLEEP

MODE

TIMER

CANCEL

ON OFF

SWING FAN

CANCEL

CLOCK

R03 / AAA 1.5V

Remove batteries if the air conditioner

is not in use for a long period of time.

Use 2 "AAA" 1.5V Batteries.

REMOTE CONTROLLER LOSS PREVENTION WITH BALL CHAIN

(OPTIONAL)

Remote controller

Screw Wall attachment screw

Holder

Ball chain (350mm)

iii

Installation

1. Match the ring at the end of the ball chain with the screw hole on the back of the remote

controller and secure it with the screw.

2. Attach the holder and the ball chain as above at the position where signals from the

remote controller can be received easily.

3. Pass the ball chain through the back of the holder and match the ring at the end of the

ball chain to the upper hole of the holder. Fix the holder to the wall by putting through

2 screws across it.

ENGLISH

OPERATING GUIDE

1. Transmission source

• The source where the signal will be transmitted.

2. Signal transmission indication

• Blink to conÞrm that the last setting has been transmitted to the unit.

3. “ON/OFF” Button

• Press once to start the air conditioner unit.

• Press again to stop the unit.

4. Fan speed selection

• Pressing the

button continuously will toggle the fan speed in the following

order:

Low Med High Auto

• Stop pressing when the desired fan speed appears on the display screen.

5. Operation mode

• Press the MODE button to select the type of operating mode.

• For cooling only unit, the available modes are: COOL ( ), DRY ( ) and

FAN ( ).

• For heat pump unit, the available modes are: AUTO ( ), COOL ( ), DRY ( ),

FAN ( )and HEAT ( ).

• The AUTO ( )mode is unavailable for chilled water system.

6. Automatic air swing

• Press the SWING button to activate the automatic air swing function.

• To distribute the air to a speciÞc direction, press the SWING button and wait

until the louver move to the desired direction and press the button once again.

Swing mode selection method (for CK-E model)

• Press SWING ( ) button for 4 seconds to enter Þeld setting mode. While in Þeld

setting mode, it will only show SWING MODE ( ).

• Press temperature and button to select SWING MODE ( ) rotation from

Swing Mode 1 to Swing Mode 3.

• There are 3 different SWING MODE, which are:

Swing mode 1 Swing mode 2 Swing mode 3

SWING MODE will not activate unless SWING is activated.

Swing is indicated by the logo:

• If no mode changes within 4 seconds, unit will operate according to the selected

SWING MODE ( ).

7. Turbo function (model dependent)

• Press for fast cooling or heating operation.

• Fan speed turn to maximum speed.

• Press again to deactivate the function.

• Available under HEAT and COOL modes only.

• Any change of fan speed will deactivate this function.

• The Turbo function ( ) is unavailable for chilled water system and remote control

with SWING MODE ( ) function.

Original Instruction

+2 C

+1 C

- 1 C

- 2 C

0 0.5 1 1.5 2

- 3 C

8. OFF timer setting

• Press the OFF TIMER button will activate the off timer function.

• Set the desired off time by pressing the OFF TIMER button continuously.

• Press the CANCEL button to cancel the off timer setting.

9. Quiet function (model dependant)

• Press for quiet operation.

• Fan speed turn to minimum speed.

• Press again to deactivate the function.

• Any change of fan speed will deactivate this function.

• The Silent function ( ) is unavailable for chilled water system.

10. Clock time setting

• Press and hold button to set the clock time.

11. ON timer setting

• Press the ON TIMER button will activate the on timer function.

• Set the desired on time by pressing the ON TIMER button continuously. If the

timer is set to 7.30am, the air conditioner will turn on at 7.30am sharp.

• Press the CANCEL button to cancel the on timer setting.

12. Sleep mode setting

• Press the button will activate the sleep mode function.

• This is an energy saving option. When the

unit is operating under cooling mode, the set

temperature is increased by 0.5°C after the Þrst

half an hour, another 0.5°C after the second half

an hour and 1°C after the following 1 hour.

• When the unit is operating under heating

mode, the set temperature is decreased by

1°C after the Þrst half an hour, another 1°C

after the second half an hour and 1°C after the

following 1 hour.

• This function is available under COOL,

HEAT and AUTO mode.

13. Temperature setting

• To set the desired room temperature, press the or button to increase or decrease

the set temperature.

• The temperature setting range is from 16°C to 30°C (Optional setting 20°C to

30°C).

• Press both buttons and simultaneously to toggle from °C to °F setting.

MEMO

Head ofﬁce:

Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,

Kita-ku, Osaka, 530-8323 Japan

Tokyo ofﬁce:

JR Shinagawa East Bldg., 2-18-1, Konan,

Minato-ku, Tokyo, 108-0075 Japan

http://www.daikin.com/global_ac/

Lot 60334, Persiaran Bukit Rahman Putra 3,

Taman Perindustrian Bukit Rahman Putra,

47000 Sungai Buloh,

Selangar Darul Ehsan,

Malaysia.

In the event that there is any conﬂict in the interpretation of this manual and any translation of

the same in any language, the English version of this manual shall prevail.

The manufacturer reserves the right to revise any of the speciﬁcation and design contain herein

at any time without prior notiﬁcation.

•
