D-Link DWL-6700AP Manuel utilisateur

This document will guide you through the

basic installation process for your new

D-Link Unied Wireless Access Point.

DWL-6700AP

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

802.11n Unied Access Point

2  D-Link DWL-6700AP Quick Install Guide

ENGLISH

About This Guide

This installation guide provides basic instructions

for installing the DWL-6700AP Wireless Access

Point on your network. For additional information

about how to use the Access Point, please see

the User Manual, which is available on the CD

included in this package or from the D-Link

support website.

Unpacking the Product

System Requirements

Open the shipping carton and carefully unpack its

contents. Please consult the packing list below to

make sure all items are present and undamaged.

If any item is missing or damaged, please contact

your local D-Link reseller for a replacement.

-DWL-6700AP 802.11n Unied Access Point

-Power Cord

-PoE adapter (24 V / 1 A)

-Shielded Cat 5E Ethernet Cable

-Mounting Ties (Qty. 2)

-CD-ROM

-Grounding Wire

Note: Using a different PoE adapter from the

one included with the DWL-6700AP may cause

damage and will void the warranty for this product.

Optional Accessories

-N/A

Note: These accessories are not included in

the package. If any of these items are required,

please contact your reseller to order it.

-CD-ROM Drive

-Windows®, Macintosh®, or Linux-based

operating system

-Ethernet port or installed Ethernet adapter

-Internet Explorer 7.0, Safari 5.0, Firefox 4.0,

or higher

Hardware Overview

Figure 1. DWL-6700AP LEDs

LEDs

Status (Green):

LED1 (red):

LED2 (amber):

LED3 (green):

LED4 (green):

LED1 (red):

LED2 (amber):

LED3 (green):

LED4 (green):

2.4 GHz (green):

LAN1 (PoE in)

(green):

LAN2 (PoE in)

(green):

Blinks if there is a system error.

When the completes booting,

the LED will be solid green.

5 GHz WiFi Strength

WDS Mode:

Signal strength 20%

Signal strength 40%

Signal strength 60%

Signal strength 80%

AP Mode:

The radio is up, LED is solid

red, and blinks whenever is

data transmitting/receiving.

Off

The radio is up, LED is solid

green, and blinks whenever is

data transmitting/receiving.

The physical connection is up,

LED is solid green, and blinks

whenever is data transmitting/

receiving.

The physical connection is up,

LED is solid green, and blinks

whenever is data transmitting/

receiving.

D-Link DWL-6700AP Quick Install Guide 3

ENGLISH

Power on the access point

To power on the DWL-6700AP, you can only use

the proprietary PoE adapter included with the

DWL-6700AP.

1. Connect the supplied PoE adapter and power

cord to the AC power source.

2. Plug one end of an Ethernet cable into the

LAN1 (or LAN2) port of the DWL-6700AP

and the other end into a PoE out from a PoE

adapter.

• Manage the access point from the computer:

Connect the access point and your computer

directly via a straight-through Ethernet cable.

Installation

ComputerDWL-6700AP

Switch or Router

Reset Button

LAN (Data in)

LAN1 Port (PoE in)*

LAN2 Port (PoE in)*

PoE out

(Connect to DWL-

6700AP's LAN1 or LAN2

Congure the access point

To set up and manage the DWL-6700AP, use one

of the following methods:

• LAN1 or LAN2 on DWL-6700AP to Ethernet

Port labeled POE on PoE Adapter

• Connect the Power Cord to the PoE Adapter

and a power outlet

• Connect Computer to Ethernet Port labeled

LAN on PoE Adapter

Figure 2. DWL-6700AP Rear Panel

Interfaces

• Manage the access point from the computer

via the Switch or Router: Connect the access

point and your computer to the same switch

or router.

* DWL-6700AP can be powered by the included PoE

adapter from either LAN1 or LAN2

Figure 3. PoE Adapter Panel

Figure 4. Deployment Example

LAN

Power Active

POE

RST

LAN1 or LAN2

on DWL-6700AP

to Ethernet Port

labeled PoE on

PoE Adapter

Connect the

Power Cord to

the PoE Adapter

and a power

outlet

Connect Computer to

Ethernet Port labeled

LAN on PoE Adapter

LAN

PoE

POWER IN

Computer

DWL-6700AP

4  D-Link DWL-6700AP Quick Install Guide

ENGLISH

ComputerDWL-6700AP

Unied Wireless Switch

Wireless Controller

Mounting Options

Pole mount is the only option for the DWL-6700AP.

Cable Requirement

Use a Cat 5 cable with an even sheath.

The Ethernet ports on the DWL-6700AP access

point cannot accept a Cat 5 cable that has an

uneven sheath; the RJ-45 connector on the cable

will not fit properly into the receptacle on the access

point.

Warning: The DWL-6700AP is designed to receive

PoE power only from the proprietary PoE adapter

(24 V/1 A) included with the DWL-6700AP. The

DWL-6700AP is NOT an 802.3af-compliant device.

Connecting an access point to a Power over

Ethernet (PoE) device that is not approved by

D-Link can damage the equipment.

• Manage the access point from the computer

via the Unied Wireless Switch or Wireless

Controller: Connect the access point to a

Unied Wireless Switch or Wireless Controller.

Connect your computer to the same network

as that of the Unied Wireless Switch or

Wireless Controller.

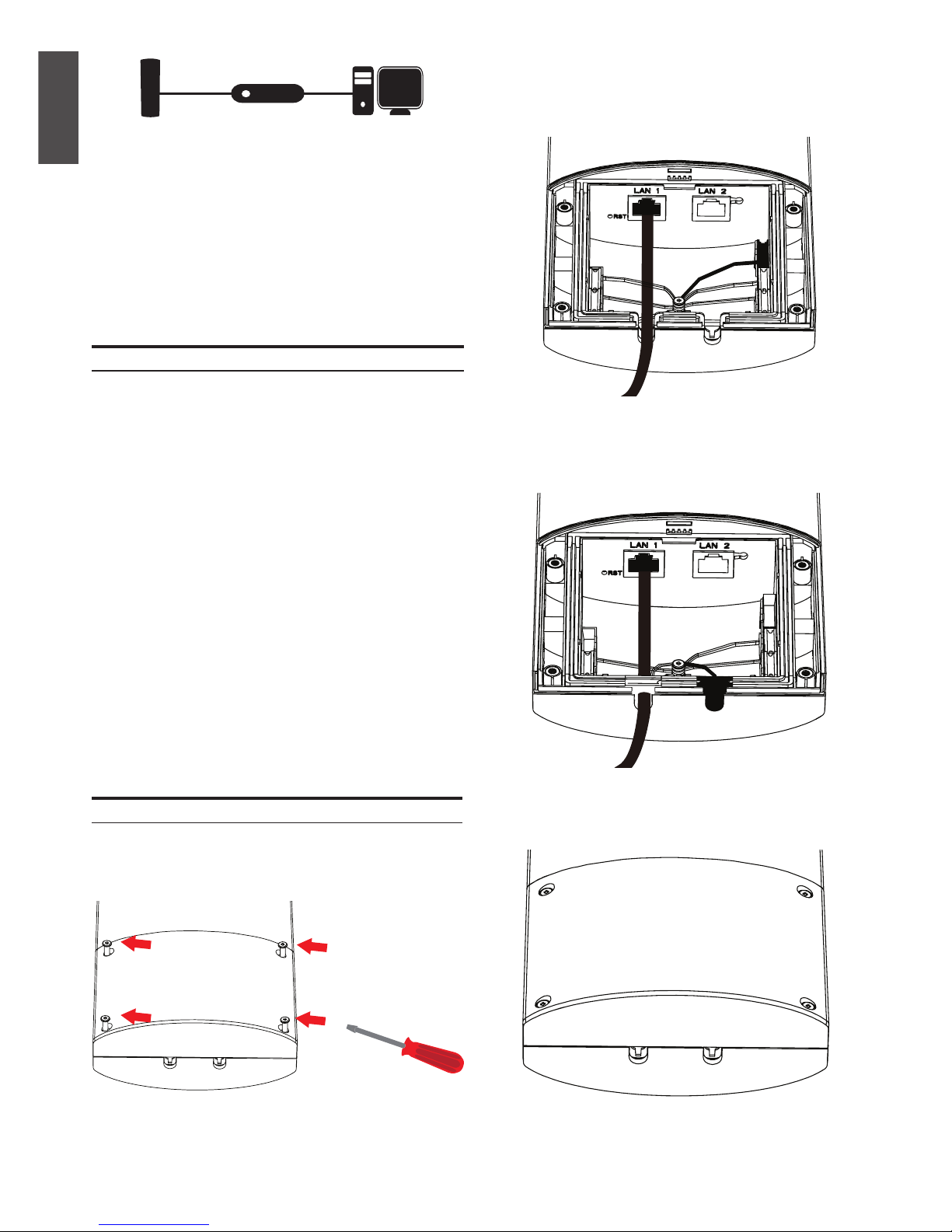

Pole Mounting Installation

1. Open the bottom panel with a Hex screwdriver

(T8).

2. Plug the one end of Cat 5 cable into the

LAN1 or LAN2 port on DWL-6700AP, and the

other end to the port labeled POE on the PoE

Adapter.

3. Choose a gasket (6 mm or 4 mm) to t the

Ethernet cable; if LAN2 is not in-use, please

take off the black gasket.

4. Close the bottom panel with a Hex screwdriver

(T8).

Installation

ComputerDWL-6700AP

D-Link DWL-6700AP Quick Install Guide  5

ENGLISH

5. (Optional) Attach a grounding wire.

6. Attach access point to a pole

7. Fasten the mounting ties.
