D-Link AirPlus DWL-900AP Manuel utilisateur

If any of the above items are missing,

please contact your reseller.

Requirements

The computer you are using must have the following:

• A functional USB port. (Note: Please see Appendix A for more

information on the USB Configuration Utility and the SNMP

Configuration Utility. SNMP stands for Simple Network

Management Protocol.)

• The operating system must be Microsoft Windows XP, 2000, ME,

98SE, or 98

When you are networking your DWL-900AP with other D-Link Air Wireless

products, no configuration is needed! Your DWL-900AP has default settings that

will work with other D-Link Air products, right out of the box.

If there is a need to change the configuration, you may use the USB Configuration

Utility or the SNMP Utility. In order to use the SNMP Utility, the DWL-900AP

must first be assigned an IP address. Please complete the steps below to install and

configure the DWL-900AP with the USB Configuration Utility.

Package Contents

• DWL-900AP

• AC Power Adapter

• USB Cable

• Installation CD

• User’s Manual

• Quick Installation Guide

Installing the USB Drivers

Connect the power adapter cable to the access point and to a suitable power source

(power strip or electric outlet). Use a Cat 5 Ethernet straight-through cable to

connect the RJ-45 LAN port on the DWL-900AP to a hub, switch, or residential

gateway. Connect the DWL-900AP’s USB port to the USB port on your computer

using the USB cable provided. When the USB link is established, the computer will

automatically detect the connection and begin the installation of the USB driver.

The "Add New Hardware Wizard"

window will be displayed.

Insert the Installation CD in the

CD-ROM drive.

Click “Next.”

Select "Search for the best driver…"

by clicking inside the circle to the

left of it.

Click “Next.”

Choose “Specify a location,”

Click “Browse.”

Select your CD drive, then select the

“usb-drv” directory.

Click “OK.”

Click “Next” in the window shown to

the right.

-2-

A window will inform you that the

device driver is ready for installation.

Click “Next” to install the USB driver.

After the driver has been installed, you

will be presented with a window

informing of its completion.

Click “Finish.”

-3-

Note: Before installing the

Configuration Utilities, close all

other windows that are open and

quit any programs that may

interfere with installation before

you continue.

Insert the Installation CD into

your CD-ROM drive. The screen

at right will appear.

Click the “Install Config

Utilities” button.

Installing the Configuration Utilities

(If this screen does not appear go to

Start>Run, and type in D:\Setup.exe (replace

D: with the drive letter of your CD-ROM)

Click “OK.” The above screen will appear.)

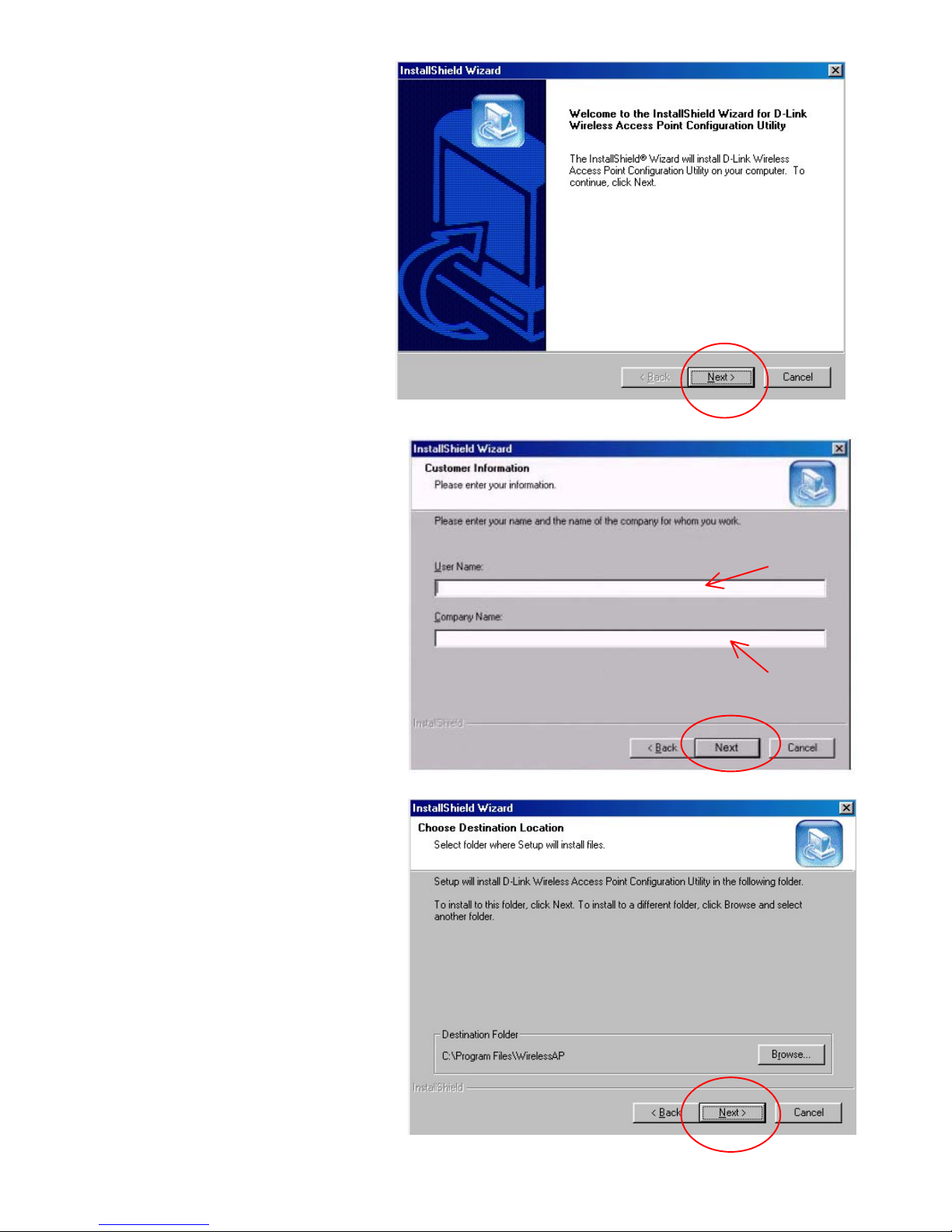

The “Welcome” screen

informs you that the Wireless

AP Setup program is ready to

begin.

Click “Next.”

In the “Customer Information”

screen, enter a “User Name”

and “Company Name.”

Click “Next.”

In the “Choose Destination

Location” screen you are asked

to confirm the “Destination

Folder” for the application

software.

Click “Next.”

-4-

The “Select Program Folder” screen

will appear.

Click “Next.”

When the files have been copied, the

“Install Shield Wizard Complete”

screen will appear.

Click “Finish.”

Configuring the DWL-900AP with the

USB Configuration Utility

To launch the USB Configuration

Utility, go to Start> Programs>

D-Link Wireless Access Point>

USB Configuration Utility

-5-

The “Admin Password” screen

will appear. Type the default

password “public” (all lower case)

in the empty field.

Click “OK.”

The “USB Configuration Utility” management interface will appear displaying

system information about the Wireless Access Point. Please read the User’s Manual

for a description of the information displayed in this screen.

Under the “Wireless Setting” tab, the

“Wireless ESSID” and the “Wireless

Channel” numbers are set to “default”

and “Channel 6” respectively. This is

the default configuration for

interoperability with D-Link Air

Wireless products.

Note: If you already have a wireless network running, you may change the

“Wireless Settings” to match that of your wireless network.

-6-

Select the “IP Config” tab to configure

the IP settings of the access point.

By default, the DWL-900AP is set as a

“DHCP Client.” If there is a DHCP

server such as a residential gateway on

your network (LAN port,) it will

automatically receive an IP address from

the DHCP server.

If there is no DHCP server,

you may want to manually assign an IP

address to the DWL-900AP. You must

“Disable” the “DHCP Client” function

and set the IP address and subnet mask

that is appropriate for your network. If

necessary, you can assign a “Gateway” IP

address here as well.

(Example: If your computer has an IP address of 192.168.0.5, you can assign the

DWL-900AP an IP address of 192.168.0.100.)

Once you have made your selection, click on “Apply” for the settings to take effect.

You have now assigned an IP address to the DWL-900AP. You may continue to

configure the wireless settings through the USB Configuration Utility, or you may

now access the device with the SNMP Utility. Please refer to the User’s Manual

for more information.

-7-

Appendix A

For ease of wireless use, we suggest using the USB Configuration Utility to obtain an IP

Address for the DWL-900AP. Follow the instructions in this Quick Install Guide to obtain

an IP address with the USB Configuration Utility. We suggest that, once you have

obtained the IP Address, you then use the SNMP Utility to manage your network. See

the manual for detailed information. If you elect to use the USB Configuration Utility to

manage your network, you will need to connect the DWL-900AP to a network computer

using the USB cable, during the management session. You will not need to connect the

USB cable, between your computer and the DWL-900AP, in order to use the SNMP

Utility to manage your network, once you have obtained an IP Address.

Appendix B

By default, WEP (Wired Equivalent Privacy) encryption is disabled. For data encryption, you

may enable either 64-bit or 128-bit WEP. All wireless devices on your network must use

the same WEP encryption in order to communicate with each other. Please refer to the

User’s Manual for a detailed explanation of WEP encryption.
