D-Link DSB-C320 Manuel utilisateur

D-Link VisualStream™

330K Pixel PC Camera

Manual

Ver. 2.00

Package Contents--------------------------------------------------------------------------- 3

Introduction --------------------------------------------------------------------------------- 3

Getting To Know Your VisualStreamTM PC Camera ---------------------------------- 4

Features and Benefits------------------------------------------------------------------------ 4

How to Use Your D-Link VisualStreamTM Camera ------------------------------- 4

How to Install MSN Messenger ---------------------------------------------------- ----- 5

Using Your PC Camera with MSN Messenger------------------------------------------- 5

How to Install and use Arcsoft Software----------------------------------------------- 6

Contents of Package

zD-Link DSB-C320 330K Pixel PC Camera

zUSB 1.1 Cable

zCD-ROM (containing Drivers, Installation Guide, Manual, Application Software and

Warranty)

zD-Link Quick Installation Guide

If any of the above items are missing, please contact your reseller.

System Requirements

zPentium III 500 MHz, Celeron, AMD Athlon processor, or higher

z64MB RAM (or minimum OS requirement whichever is higher)

zMicrosoft Windows XP/2000/ME/98SE

zMicrosoft DirectX 8.1b or higher

zUpdate Service Pack

z200MB free hard drive space

zCD-ROM drive

zUSB Port (USB specification version 1.1)

z24Bit color display adapter

zWindows compatible sound card and speakers (full duplex sound card recommended)

Introduction

Thank you for purchasing the D-Link DSB-C320 PC Camera. The DSB-C320 is a complete

audiovisual solution for all of your e-communications. Talk to your family, friends, and colleagues

face-to-face over the Internet, create videos, digital photo albums, and more, all the software needed

to start creating digital content and enabling video communication is included. This manual will

guide you through the features of your new PC Camera and provides step by step instructions for

getting you started with the bundled Arcsoft Software.

Getting To Know Your VisualStreamTM PC Camera

Features and Benefits

zResolution 648x480 Pixels

zSnapshot Button For Easy Still Image Capture

zVersatile Clip Base Design For Notebook and Desktop PC

zArcsoft Software Included

How to Use Your D-Link VisualStreamTM Camera

zChoose the mode of “50Hz” or “60Hz” according to your power source environment or video

output signal system to avoid the blurry image.

zTurn the manual focus ring to adjust the image.

zPress the snapshot button to capture a single frame.

How to Install MSN Messenger

Please log on to http://messenger.msn.com to download.

zFor Windows 98Second Edition/Me/2000 Users

After the installation package is downloaded to your computer, follow the instructions to

install MSN Messenger.

After the installation is completed, click Start, point to Programs, and click Windows

Messenger.

zFor Windows XP Users

Click Start, point to Programs, and click Windows Messenger.

After you run Messenger for the first time, you can add friends to your list and send

instant messages.

Using Your PC Camera with MSN Messenger

Plug the PC camera into your PC first.

zFor Windows 98Second Edition/Me/2000 Users

Click “Messenger” to go to the main screen. You are now ready to have a Video

Conversation with MSN Messenger.

zFor Windows XP Users

Click “Messenger” to go to the main screen, click Actions, click Start a

Video Conversation and you are ready to have a Video Conversation with Messenger.

If you need more information or instructions on how to use a specific feature or tool,

click the “Help” button in the upper right-hand corner of the screen.

Click OK

Amcap ÆOption ÆVideo Capture Filter

How to Install Arcsoft Software

Simply put the provided software CD into your CD drive. The set-up software will automatically

start, prompting you through the steps to install the video and photo software. You may enter the

selection for the destination folder, the Start menu, Programs group and other set-up options. The

set-up process will copy the applications to the destination folder. Note if Windows auto-run

feature has been turned off on your computer, you will need to start the Setup.exe application on the

software CD.

How to use Arcsoft Software

Getting Started

All applications can be started from the Application Panel. The Application Panel can be started

by clicking on the Web cam Companion icon.

Welcome. Click anywhere on the image below for details:

Click Install Arcsoft Software

The program is divided into two main sections: My Captures, and the camera preview area. You

can adjust which section is larger by simply clicking and dragging the area in between the two

sections.

Application Menu

FILE

Refresh Contents - Refreshes the screen to update any changes to your captured thumbnails.

Page Setup - View and modify your printer settings.

Print - Prints selected images.

Stop Web Camera - Turns off your cam.

Quit - Closes the application.

EDIT

Cut - Removes the selected files from their current location and stores them in memory for pasting

in another location.

Copy - Copies the selected files and stores them in memory for pasting in another location.

Paste - Places the contents of the clipboard memory into the current location.

Select All - Selects all thumbnails in the current location.

PREFERENCES

Web Camera Settings - View and modify the camera options (brightness, contrast, etc.; dependent

on the device).

Capture Settings - View and modify your capture settings (snapshot and video resolution).

Media Folder - Change the directory that stores newly captured files.

Upgrade Software - Search for updates to the program.

HELP

This menu contains links to various help resources, including this Help file.

Slide Show Button

Click this button to run a slide show of the selected images. A slide show dialog will appear.

Choose the amount of time that each slide will be displayed before changing to the next slide.

Check the "Loop Slide Show" button to have your presentation continually loop over and over.

Press ESC to exit your slide show at any time.

Rotate Button

Click this button to rotate the selected files 90 degrees.

Email Button

Click this button to attach the selected files to an email.

Print Button

Click this button to print the selected images. Each image will print on a separate page.

New Folder Button

Click this button to create a new folder in the "Folders" section of My Captures.

Delete Button

Click this button to delete the selected files or folder.

My Captures

This section sorts your captures so you can view them in a variety of ways. View all captures,

images only, videos only, or by folder. The contents of the section you select will be displayed in the

thumbnails area.

Double-click a thumbnail to view it. Arrows on either side let you browse the various files (no

arrow will appear on the left side when the first file is displayed; no arrow will appear on the right

side when the last file is displayed). Playback controls will appear beneath videos.

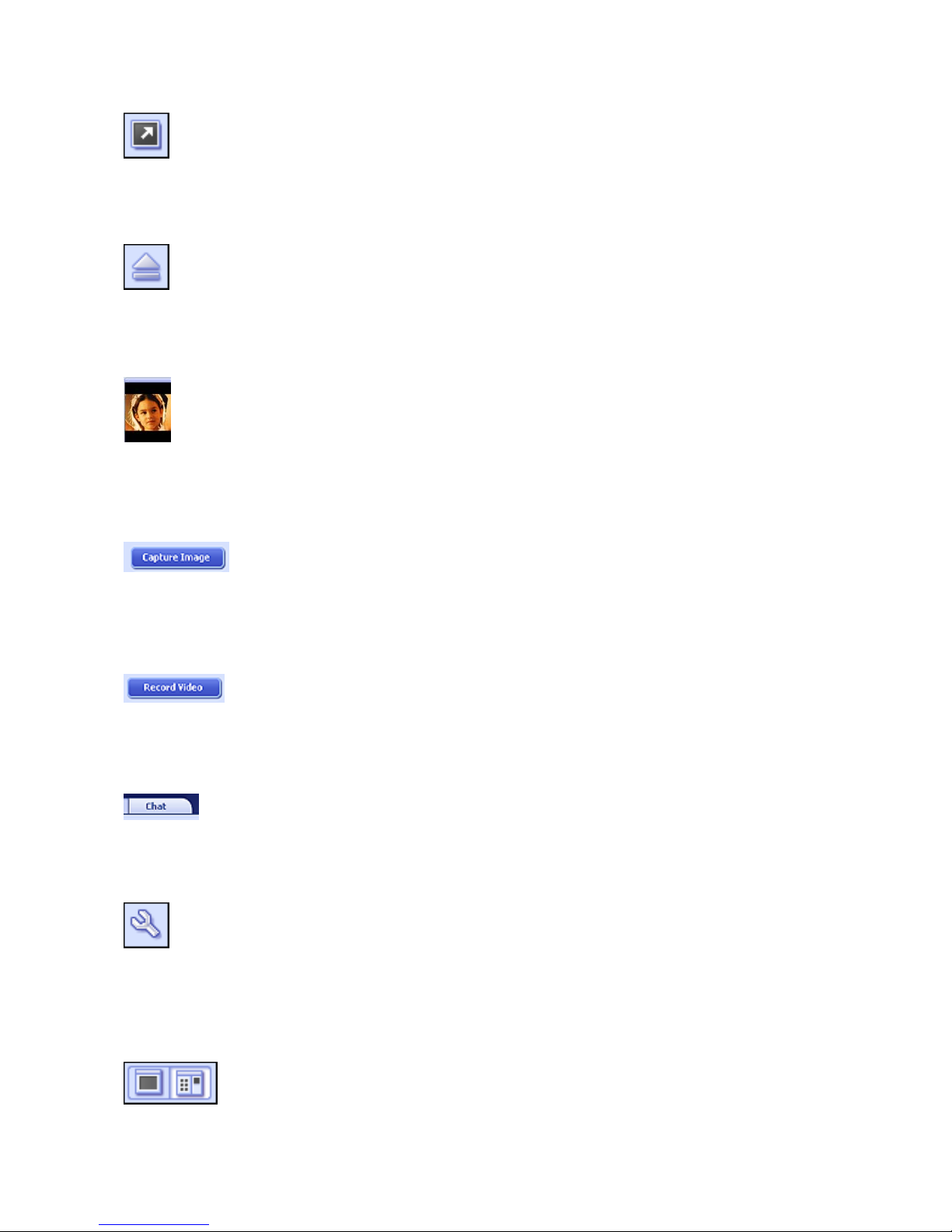

Full Screen Button

Click this button to display your camera over the entire screen. Press ESC to exit full screen mode.

Disconnect Button

Click this button to disconnect your camera.

Camera Preview

This area shows you a live stream from your camera

Capture Image

Click this button to capture a still image from your cam.

Capture Video

Click this button to begin capturing video from your cam. Click it again to stop.

Chat Tab

This tab offers shortcuts and/or links for a variety of video and instant messaging programs.

Web Camera Settings

Click this button to view and modify your camera settings/properties. The options here will vary

depending on your device.

Show/Hide My Captures

These buttons hide and display the My Captures section, respectively. Hide the My Captures

section if you'd like to focus more on your cam stream.

Capture Settings Button

Click here to adjust the resolution for both captured still images and video clips. Simply select the

resolution from the respective pull-down.

If you’re looking for an easy way to create and share home videos, VideoImpression is perfect for

you. By creating a VCD, your movie is burned onto a CD, ready for playback on most

commercial DVD players, right on your TV! Even if you’re new to computers and don’t know

much about “files” and “hard drives” and whatnot, you’ll scrape by just fine. In fact, this program

is designed specifically for general consumers like yourself.

If you’re the type that likes to dive right into things, by all means go for it! Playing around with

the various buttons and commands is one of the best ways to learn how programs work. However,

if you want to take it slow, take some time to go through this quick start guide. Also, don’t forget

to use the Help file that’s built into the program. It closely defines each command on every screen.

This guide is more of a practical tutorial.

VideoImpression lets you create two types of projects: video and slide show. We’ll walk through

the creation of both types.
