2D-Link DCS-5610 Quick Install Guide
System Requirements
• Internet Explorer 6.x or above
• Windows®XP or Windows Vista™
• 1.7GHz processor or better and at least 256MB of RAM
• An available Ethernet connection
CAT5 Ethernet Cable
Package Contents
DCS-5610
PTZ PoE Internet Camera
System Requirements
If any of the above items are missing, please contact your reseller.
CD-ROM with Manual and
Setup Wizard
Camera Stand 12V 1.25A AC Power Adapter
3 D-Link DCS-5610 Quick Install Guide
Hardware Overview
Hardware Overview

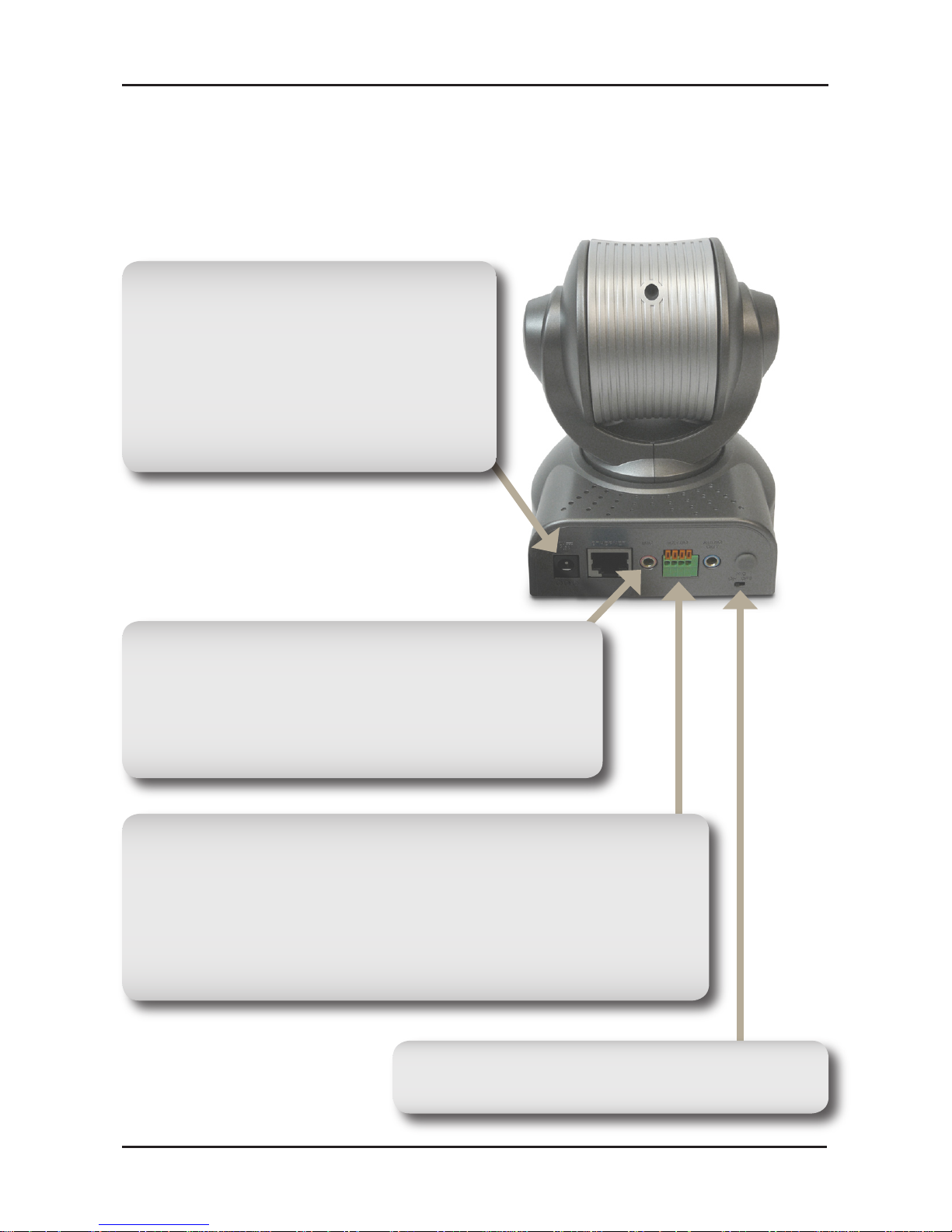

Connections
DC Power Connector
The DC power input connector is
located on the DCS-5610 Internet
Camera’s back panel and is labeled
12V DC with a single socket
to supply power to the Internet
Camera.
I/O Connector
The DCS-5610 provides a terminal block with two pairs
of connectors situated on the back panel. One pair is
for input and the other is for output. The I/O connectors
provide the physical interface to send and receive digital
signals to and from a variety of external devices.
Microphone Connector
The DCS-5610 Internet Camera has an internal
microphone built-in. However, you have the
option of using an external microphone by
plugging it into the microphone connector.
MIC On/Off Switch
Used to turn the microphone on or off.
4D-Link DCS-5610 Quick Install Guide
Hardware Overview
Ethernet Cable Connector (PoE)
The Internet Camera’s back panel features an RJ-45 connector
for connections to 10Base-T Ethernet cabling or 100Base-TX Fast
Ethernet cabling. This network port supports the NWay protocol,
allowing the Internet Camera to automatically detect or negotiate
the transmission speed of the network.The Ethernet port can also
be used to power the camera using a PoE switch.
Audio Out Connector
The DCS-5610 provides an Audio Out
connector to be used for 2-way audio.
Speakers (not included) may be
connected to the camera to provide
audio for 2-way communication.
Reset Button
Reset will be initiated when the
reset button is pressed once
and held 30 seconds until the
Power LED flashes through its
cycle twice.
5 D-Link DCS-5610 Quick Install Guide
Hardware Overview
LEDs
Power/MIC LED
The power LED is at the front
base of the camera. As soon as
the power adapter is connected
to the camera, the LED will
turn red.
Activity LED
Once a connection has been established via
Ethernet port, the Activity LED will turn solid
green. If traffic is passing to the camera the
Activity LED will blink. If no Ethernet connection
is detected the Activity LED will not light up.
6D-Link DCS-5610 Quick Install Guide
Hardware Installation
Hardware Installation
Connect the Ethernet Cable
Connect an Ethernet cable to the network
cable connector located on the Internet
Camera’s back panel and attach it to the
network.
Attach the External Power Supply
Attach the external power supply to the
DC power input connector located on the
Internet Camera’s back panel (labeled
DC 12V) and connect it to an AC power
outlet.
Note: When you have a proper connection, the LED will turn
green. The light may cycle on and off and your computer may show
an intermittent loss of connectivity, this is normal until you have
configured your Internet Camera.
Connect Using Power-Over-Ethernet
Once you connect an Ethernet cable to your PoE switch or adapter,
the Power LED on the DCS-5610 will turn green to indicate a proper
connection.
7 D-Link DCS-5610 Quick Install Guide
Software Installation
Turn on the computer and Insert the D-Link DCS-5610 Autorun CD
in the CD-ROM drive. The step-by-step instructions that follow are
shown in Windows®XP. The steps and screens are similar for the
other Windows operating systems.
Software Installation
Click on Installation Wizard
Click Next to continue.
Click I Agree to accept the License
Agreement.
Click Next
Click I Agree
8D-Link DCS-5610 Quick Install Guide
Software Installation
Click Finish to complete the
installation.
To start the installation click
Install.
Note: The installation may take
several minutes to complete.
Click Install
Click Finish
9 D-Link DCS-5610 Quick Install Guide
Configuration
Configuring Your Camera with
the Installation Wizard
Click on the D-Link Installation Wizard icon that was created in your
Windows Start menu.
The Installation Wizard will appear and show the MAC address of
the DCS-5610 and an IP Address (which may or may not be correct
depending on what you have your DCS-5610 connected to). If
you have a DHCP server on your network, there will be a valid IP
Address displayed here.
Note: A DHCP server is a device that supplies the same IP address.
Click Manual Setup
Enter the admin ID and password.
Note: The default Admin ID is admin
with the password left blank.
Click Next
10D-Link DCS-5610 Quick Install Guide
Configuration
Select DHCP if you want to obtain
a new IP address every time the
camera boots up.
Click Next
Click Next
Click Next
Choose UPnP Port Forwarding if
your router supports it. Otherwise,
choose Manual to enter your port
numbers manually. Click Next to
continue.
Enable DDNS and setup your
DDNS service here. Click Next to
continue.
