D-Link DGS-3130-30PS Manuel utilisateur

D-Link

DGS-3130-30PS

24 10/100/1000Base-T PoE ports + 2 10GBase-T ports + 4 10 GbE SFP+ ports

L3 Stackable anaged Switch

Управляемый L3 стекируемый коммутатор с 24 портами 10/100/1000Base-T,

2 портами 10GBase-T и 4 портами 10GBase-X SFP+ (24 порта PoE 802.3af/at,

PoE-бюджет 370 Вт; 740 Вт с DPS-700)

Quick Installation Guide

Краткое руководство по установке

Infor ation in this docu ent is subject to change without notice.

Package Contents

Open the shipping carton of the Switch and carefully unpack its contents. The carton

should contain the following items:

One DGS-313 -3 PS switch

One AC power cord

One console cable (RJ-45 to RS-232)

One rack mounting kit (two brackets and screws)

Four rubber feet with adhesive backing

One power cord retainer set

One Quick Installation Guide

LEDs

LED Status Description

Power Solid green Device power on.

Light off Device power off.

Console Solid green Console on.

Light off Console off.

MGMT Solid green Link presents but not sending or receiving data.

Blinking Port is sending or receiving data.

Light off No link or port was administratively shutdown.

USB Solid green USB disk is connected.

Blinking Data is transmitting.

Light off No device is connected.

RPS Solid green RPS in using.

Light off RPS off.

Fan Error Solid yellow The fan has run time failure and is brought offline.

Light off All fans work normally.

Stack ID Capable 1-8 The Box ID is assigned in the stack.

When the box becomes stacking master, the box ID and «H»

will be shown by turn. That is boxID -> H -> boxID -> H … off.

Link/Activity/Speed

(per 1 /1 /1 Base-T

port)

Solid green When there is a secure 1 Mbps connection at the port.

Blinking green When there is reception or transmission occuring at the port.

Solid amber When there is a secure 1 /1 Mbps connection at the port.

Blinking amber When there is reception or transmission occuring at the port.

Light off No link.

Link/Activity/Speed

(per 1 GBase-T port)

Solid green When there is a secure 1 Gbps connection at the port.

Blinking green When there is reception or transmission occuring at the port.

Solid amber When there is a secure 1 /1 Mbps connection at the

port.

Blinking amber When there is reception or transmission occuring at the port.

Light off No link.

Link/Activity/Speed

(per 1 GBase-X SFP+

port)

Solid green When there is a secure 1 Gbps connection at the port.

Blinking green When there is reception or transmission occuring at the port.

Solid amber When there is a secure 1 Mbps connection at the port.

Blinking amber When there is reception or transmission occuring at the port.

Light off No link.

PoE Status

(per 1 /1 /1 Base-T

port in PoE mode)

Solid green PD device insert and power feeding.

Solid yellow PD device insert but failur occurs.

PSE can't provide power to PD due to PD error or power

budget is not enough.

Light off No PD device insert.

Installation Guidelines

This section will discuss the hardware installation guidelines that the user must follow in

order to properly and safely install this switch into the appropriate environment.

Visually inspect the power cord and see that it is fully secured to both the power

connector, on the Switch, and the electrical outlet that supplies power.

Install the Switch in a fairly cool and dry place within the acceptable operating

temperature and humidity ranges.

Install the Switch in a site free from strong electromagnetic field generators such as

motors, vibration, dust, and direct exposure to sunlight.

Installing the Switch without a Rack

This section is used to guide the user through installing the Switch in an area other than a

switch rack. Attach the included rubber feet to the bottom of the Switch. Take note that

there should be marked blocks on the bottom of the Switch to indicate where to attach the

rubber feet. These markings are usually found in each corner on the bottom of the device.

The rubber feet cushion the Switch, protecting the casing from scratches and preventing it

from scratching other surfaces.

Figure 1 — Attaching rubber feet to the Switch

Install the Switch on a sturdy, level surface that can support the weight of the Switch. Do

not place any heavy objects on the Switch. The power outlet should be within 1.82 meters

(6 feet) of the Switch. Make sure that there is proper heat dissipation from and adequate

ventilation around the Switch. Leave at least 1 cm (4 inches) of space at the front, sides,

and rear of the Switch for ventilation.

Installing the Switch in a Standard 19'' Rack

This section is used to guide the user through installing the Switch into a switch rack. The

Switch can be mounted in a standard 19"(1U) rack using the provided mounting brackets.

Fasten the mounting brackets to the sides of the Switch using the screws provided.

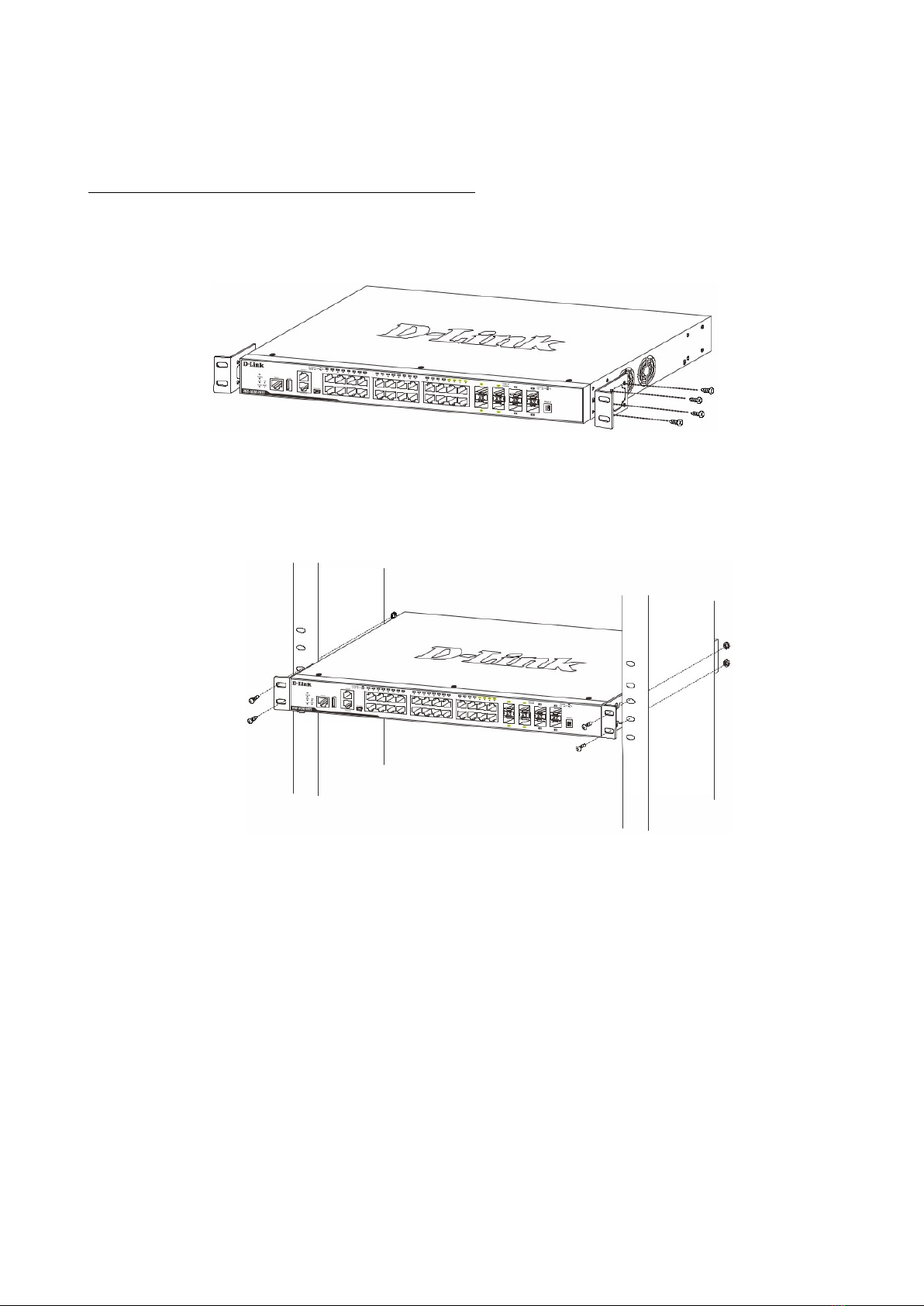

Figure 2 — Attaching rack- ount brackets to the Switch

Fasten the mounting brackets in any available open space in the rack using the screws

provided.

Figure 3 — Installing the Switch in a Rack

Installing Transceivers into the Transceiver Ports

The Switch is equipped with Small Form-factor Pluggable (SFP) and Enhanced Small

Form-factor Pluggable (SFP+) ports that can be used to connect various other networking

devices to this switch that do not support the standard RJ-45 wiring connection. These

ports are generally used to connect this switch to optical fiber connections and can be

used to connect devices to the Switch over great distances. The maximum distance that

the RJ-45 wiring connection can reach is 1 meters. Fiber optic connections can span

several kilometers.

Figure 4 — Inserting transceivers into the transceiver ports

Power On (AC Power)

Plug one end of the AC power cord into the power socket of the Switch and the other end

into the local power source outlet. After the system is powered on, the LED will blink green

to indicate that the system is booting up.

Power Failure (AC Power)

In the event of a power failure, just as a precaution, unplug the power cord from the

Switch. After the power returns, plug the power cord back into the power socket of the

Switch.

Installing Power Cord Retainer

To prevent accidental removal of the AC power cord, it is recommended to install the

power cord retainer together with the power cord.

With the rough side facing down, insert the tie wrap into the hole below the power socket.

Figure 5 — Insert Tie Wrap into the Switch

Plug the AC power cord into the power socket of the Switch.

Figure 6 — Connect the power cord to the Switch

Slide the retainer through the tie wrap until the end of the cord.

Figure 7 — Slide the Retainer through the Tie Wrap

Circle the tie of the retainer around the power cord and into the locker of the retainer.

Figure 8 — Circle around the power cord

Fasten the tie of the retainer until the power cord is secured.

Figure 9 — Secure the power cord

Installing the Redundant Power Supply (RPS)

The Redundant Power Supply (RPS) is designed to conform to the wattage requirements

of D-Link’s Ethernet and Gigabit switches. It is an external RPS unit enclosed in solid

metal case with sockets to connect AC or DC power sources on one end, and to connect

to a switch’s internal power supply on the other end. The RPS provides a low-cost, simple

solution to the problem of an inadvertent failure of the internal power supply of an Ethernet

switch, which can result in the shutdown of that switch, the devices attached to its ports, or

an entire network.

CAUTION: Do not connect the RPS to AC power before the DC power cable is

connected. This might damage the internal power supply.

CAUTION: Leave at least 15 cm (6 inches) of space at the rear of the Switch when

an RPS is installed to prevent cable damage.

DPS-700 Redundant Power Supply

This RPS (DPS-7 ) is connected to the Master Switch using a 22-pin DC power cable. A

standard, three-pronged AC power cable connects the RPS to the main power source.

Figure 10 — Connecting a DGS-3130 Series Switch to the DPS-700

CAUTION: Do not connect the DPS-7 to the switch by using the 14-pin DC power

cable. It may cause damage when using the wrong DC power cable. ONLY use the

22-pin DC power cable.

anagement Options

This switch provides multiple access platforms that can be used to configure, manage, and

monitor networking features available on this switch. Currently there are three

management platforms available which are described below.

Co and Line Interface (CLI)

This switch can be managed, out-of-band, by using the console port or the MGMT port on

the front panel of the Switch. Alternatively, the Switch can also be managed, in-band, by

using a Telnet connection to any of the LAN ports on the Switch. The command line

interface provides complete access to all switch management features.

SNMP-based Manage ent

The Switch can be managed with an SNMP-compatible console program. The Switch

supports SNMP v1, SNMPv2c and SNMPv3.

Web User Interface (Web UI)

The Web UI can be accessed from any computer running web browsing software from its

MGMT port, or LAN port when it is connected to any of the RJ-45 or SFP/SFP+ ports. The

Web UI on the Switch can also be accessed using an HTTPS (SSL) connection. This

management interface is a more graphical representation of the features that can be

viewed and configured on this Switch. Most of the features available through the CLI can

be accessed through the Web UI. Web browsers like Microsoft’s Internet Explorer, Mozilla

Firefox, or Google Chrome can be used.

Connecting to the Console Port

The front panel of the Switch provides an RJ-45 console port to connect a remote system

for monitoring and configuring the Switch.

To use the RJ-45 console port, the following equipment is needed:

A terminal or a computer with both an RS-232 serial port and terminal emulation

software

A console cable with a male DB9 connector on one end and an RJ-45 connection

on the other

To connect the RJ-45 console port on the Switch to the computer:

Connect the male DB9 connector on the console cable (shipped with the Switch) to

the RS-232 serial port on the computer running terminal emulation software then

insert the RJ-45 connector into the RJ-45 console port on the front of the Switch.

To configure the terminal emulation software as follows:

Select the appropriate serial port (COM1 or COM2).

Set the data rate to 1152 baud.

Set the data format to 8 data bits, 1 stop bit, and no parity.

Set flow control to none.

Figure 11 — COM Port Configuration

To be able to view the boot procedure, the Switch needs to be rebooted. The simplest way,

at this stage, to reboot the Switch is to unplug and re-insert the power cable from and into

the power receptacle on the back of the Switch. After correctly configuring the terminal

settings and re-inserting the power cable, the boot procedure will appear in the terminal.

After the boot sequence has been completed, the console login screen will be displayed.

Connecting to the Switch for the First Ti e

By default, there is no Userna e and Password configured in the account settings of this

switch. This will allow the user to simply connect to this Switch for the first time by pressing

the ‘Enter’ key. After pressing Enter, access will be given to enter commands after the

command prompt (Switch>) appears.

NOTE: The first user automatically gets Administrator level privileges. At least one

Administrator-level user account must be created for the Switch.

NOTE: It is highly recommended to create a user account containing a username

and a password on the Switch to prevent unauthorized access to the management

interface.

Connecting to the G T Port

The front panel of the Switch features an Out-Of-Band (OOB) RJ-45 MGMT port which can

be used to connect to a computer using a standard Ethernet cable. A web browser or

Telnet client can be used to connect to the Switch using the MGMT port. To use the MGMT

port, connect one end of an Ethernet cable to a computer and the other end to the Switch.

The default IP address of the MGMT port is 192.168. .1 and the subnet mask is

255.255.255. . Make sure that the computer being used for the switch management has a

non-conflicting IP address in the 192.168. . /24 network.

To view the IP settings of the MGMT port, use the following command:

Table des matières

Langues :

Autres manuels D-Link Changer

D-Link

D-Link DGS-510 Manuel utilisateur

D-Link

D-Link DES-1026G Manuel utilisateur

D-Link

D-Link DMS-3130 Series Manuel

D-Link

D-Link DUB-H4 - Hub - USB Manuel utilisateur

D-Link

D-Link DUB-1340 Manuel utilisateur

D-Link

D-Link DGS-1510-28XMP Manuel utilisateur

D-Link

D-Link DGS-1008P Manuel utilisateur

D-Link

D-Link DES-3828 - xStack Switch - Stackable Manuel utilisateur

D-Link

D-Link DES-7000 Series Manuel utilisateur

D-Link

D-Link xStack DGS-3600 Series Manuel utilisateur

D-Link

D-Link DXS-3227P - xStack Switch - Stackable Manuel utilisateur

D-Link

D-Link DWS-3024 Manuel utilisateur

D-Link

D-Link xStack DGS-3120-48PC Manuel utilisateur

D-Link

D-Link xStack DGS-3420 Series Manuel utilisateur

D-Link

D-Link 3100 24P - DGS Switch - Stackable Manuel utilisateur

D-Link

D-Link DES-1228 - Web Smart Switch Manuel utilisateur

D-Link

D-Link DUB-H7 - Hub - USB Manuel utilisateur

D-Link

D-Link DGS-3130-54TS Manuel utilisateur

D-Link

D-Link DGS-3100 SERIES Manuel utilisateur

D-Link

D-Link xStack Manuel utilisateur

D-Link

D-Link xStack DES-3228PA Manuel utilisateur

D-Link

D-Link DXS-5000-54S Manuel utilisateur

D-Link

D-Link DES-3225G Series Manuel de service

D-Link

D-Link DWS-1008 Mode d’emploi

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
