D-Link SECURICAM DCS-6511 Manuel utilisateur

This document will guide you through the

basic installation process for your new

D-Link Network Camera.

DCS-6511

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

Full HD Day & Night Vandal-Proof Fixed Dome Network Camera

Quick Installation Guide

Installationsanleitung

Guide d’installation

Guía de instalación

Guida di Installazione

Краткое руководство по установке

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

D-Link DCS-6511 Quick Installation Guide 1

ENGLISH

Quick Installation Guide

This installation guide provides basic instructions for installing the DCS-6511. For

additional information about how to use the camera, please see the User Manual

which is available on the CD included in this package or from the D-Link support

website.

Package Contents

DCS-6511 Full HD Day & Night Vandal-Proof Fixed Dome Network Camera

Ethernet Cable

Extension Adapter

Mounting Plate and Screws

Sun Shield

Side Cover

Alignment Sticker

Manual and Software on CD-ROM

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certified technicians so as to conform

to all local codes and prevent voiding your warranty.

D-Link DCS-6511 Quick Installation Guide

ENGLISH

Hardware Overview

1IR LEDs Provide illumination for low-light environments.

2Tilt Lock Screw Can be loosened to adjust the camera's tilt angle.

3Camera Lens Camera lens to record video of the surrounding area.

4Power/Status

LED Indicates the camera's current status.

5Light Sensor Measures lighting conditions and switches between day and

night mode accordingly.

6Horizontal Lock

Screw

Can be loosened to adjust the horizontal rotation of the

camera.

7microSD Card

Slot

Accepts a microSD card for onboard storage of snapshots and

video.

8Ethernet Jack Connects to an RJ45 Ethernet port. Can be used with PoE to

provide power to the camera.

9Cable Channels Allow cables to exit the camera from the back or side.

10 Cable Harness

Port

Connects to the optional cable harness for DI/DO, audio, and

power connectors.

D-Link DCS-6511 Quick Installation Guide 3

ENGLISH

14 15

11 Cable Harness

Connector

Connects to the DCS-6511. For more details on connecting the

A/V cable, refer to the User Manual.

12 DI/DO

Connector

I/O connectors for external devices.

(12 V DC output not supported for the DCS-6511)

13 Reset Button Press and hold the button for 10 seconds to reset the camera

back to the factory default settings.

14 24 V Power

Connector Not supported for the DCS-6511.

15 Power

Connector Power connector for a 12 V DC power adapter (not included).

16 Audio Out

(Green) Connects to a speaker.

17 Audio In

(Red) Connects to a microphone.

18 BNC Connector Not supported for the DCS-6511.

Optional Cable Harness (not included)

D-Link DCS-6511 Quick Installation Guide

ENGLISH

Connecting the Optional Cable Harness

Remove the sun shield by lifting it off of the camera.

Use the included security wrench to remove the 4

screws from the top of the camera, then remove the

camera cover.

Remove a waterproofing plug from the side or bottom

of the camera depending on how you want the cables

to exit the camera.

Connect the camera connector to the camera.

Reattach the camera cover using the security wrench

to tighten the 3 screws, and reattach the sun shield.

Push the camera connector and cable through the

hole, and insert the cable's waterproofing plug.

Make sure the plug is inserted properly to ensure a

good seal.

For side cable exit:

Attach the side cover via the provided screws.

Slide the cover over the cable ports.

For bottom cable exit:

Attach the protective side cover via the provided

screws.

D-Link DCS-6511 Quick Installation Guide 5

ENGLISH

microSD Card Installation

Remove the sun shield by lifting it off of the camera.

Use the included security wrench to remove the 4

screws from the top of the camera, then remove the

camera cover.

Insert the microSD card with the gold contacts facing

the outside of the camera. To eject the microSD card,

push the card into the slot.

Reattach the camera cover using the security wrench

to tighten the 4 screws, and reattach the sun shield.

Mounting the Camera on the Ceiling

Locate a suitable position on the ceiling that is capable

of supporting the weight of the camera. Attach the

alignment sticker to the ceiling or wall.

Align the mounting plate to the drilled holes in the

ceiling surface then tighten the screws.

Align the camera to the mounting plate and screw the

camera body to the plate tightly.

Adjust the Camera’s Lens gimbal; Turn the lens module left and right, up and down

and the orientation until the desired position is achieved. Tighten the pan, tile and

the adjustment screw once completed.

Adjusting the Camera's Lens

Ceiling

Wire hole

Drill hole

Drill holeDrill hole

D-Link DCS-6511 Quick Installation Guide

ENGLISH

Installing the Pendant Mount (Optional)

Attach the mounting plate to the bracket cap using the

three included screws.

Locate a suitable position on the ceiling for a 34 mm

(+2 / -0 mm) hole to be cut. Use the included template

to mark and cut the mounting holes.

Locate a suitable position on the ceiling for a 34 mm

(+2 / -0 mm) hole to be cut. Use the included template

to mark and cut the wiring hole.

Drill four 6 mm holes corresponding to the holes in the

mounting template and insert the plastic anchors into

these holes.

Place the rubber seal between the pendant bracket

and the ceiling to ensure a waterproof seal between

the ceiling and the bracket.

Attach the pendant bracket to the ceiling using the

screws provided.

Attach the bracket cap to the bottom of the pendant

bracket by rotating the cap counterclockwise to tighten

it into place.

Insert the screw into the base of the pendant bracket

at the top of the bracket cap to secure the bracket cap

into place.

D-Link DCS-6511 Quick Installation Guide 7

ENGLISH

Thread an Ethernet cable and the power cable through

the pendant bracket.

Place the camera body onto the bracket cap and

attach the dome to the base of the camera using the

four long screws and the security screw.

Installing the Right-Angle Mount (Optional)

Attach the mounting plate to the bracket cap using the

included three screws.

Locate a suitable position on the ceiling for a 34 mm

(+2 / -0 mm) hole to be cut. Use the included template

to mark and cut the mounting holes.

Drill four 6 mm holes corresponding to the holes in the

mounting template and insert the plastic anchors into

these holes.

Bracket

Cap

Mounting

Plate

D-Link DCS-6511 Quick Installation Guide

ENGLISH

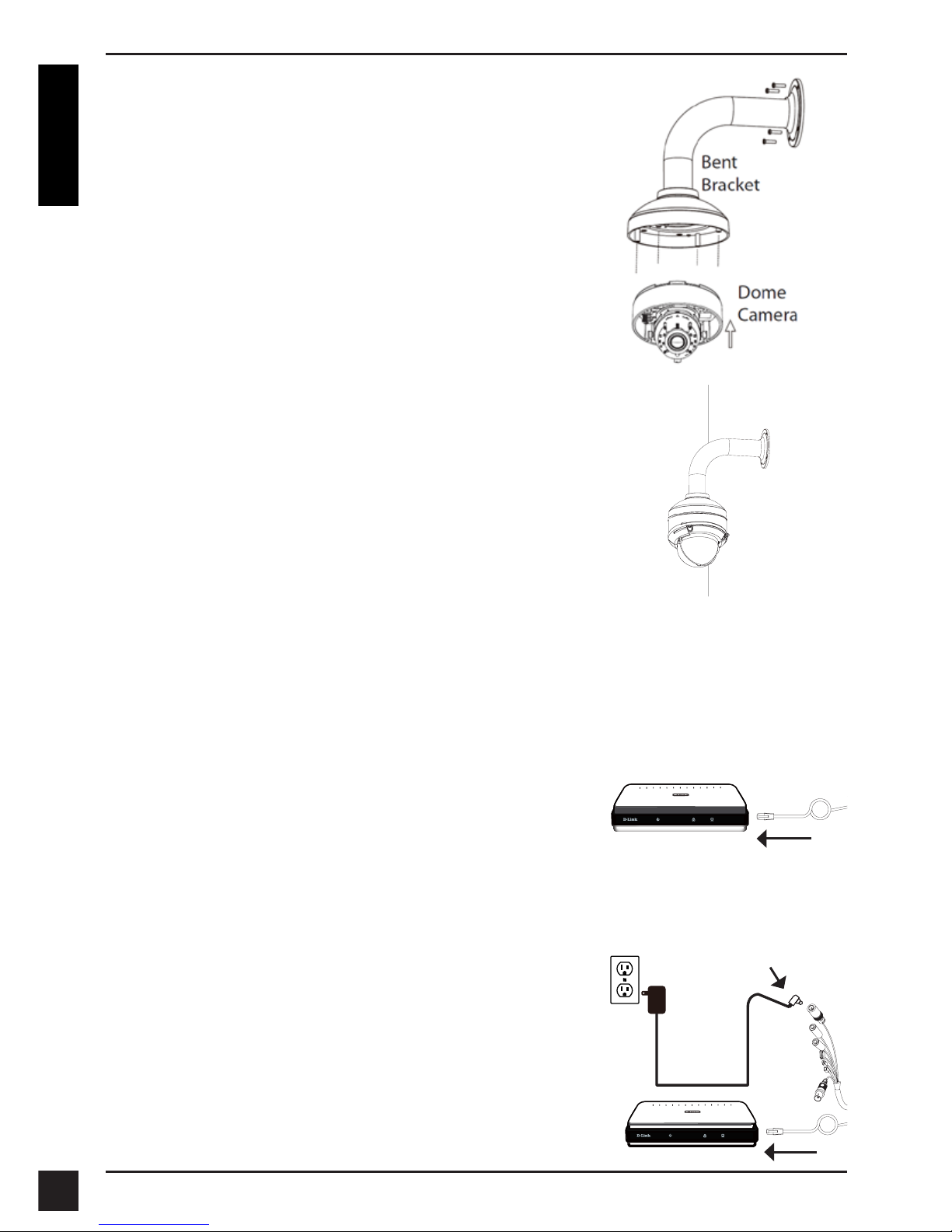

Connecting the Camera

General Connection Using 12 V DC Power Adapter

(not included)

Connect the Ethernet cable to your network.

Connect your power adapter to the camera's

power connector, then plug in the power

adapter.

Connection with a PoE Switch

Connect the Ethernet cable to your PoE switch

or injector. The Ethernet cable will provide

the camera with both power and a network

connection.

If you have the optional cable harness, you can also

use the following connection method:

Place the rubber seal between the right-angle bracket

and the ceiling to ensure a waterproof seal between

the ceiling and the bracket.

Attach the right-angle bracket to the ceiling using the

screws provided.

Attach the bracket cap to the bottom of the right-angle

bracket by rotating the cap counterclockwise to tighten

it into place.

Insert the screw into the base of the right-angle bracket

at the top of the bracket cap to secure the bracket cap

into place.

Thread an Ethernet cable and the power cable through

the pendant bracket.

Place the camera body onto the bracket cap and

attach the dome to the base of the camera using the

three long screws and the security screw.
