User Manual
Full HD Outdoor Wi-Fi Camera
Hardware: A1
Manual Version: 1.00
08/29/2018
iD-Link DCS-8600LH User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes. Information in this document may become obsolete as our services and
websites develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Overview
Revision Date Description
1.00 July 24, 2018 Initial release
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2018 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Manual Revisions
iiD-Link DCS-8600LH User Manual
Table of Contents
Table of Contents
Product Overview..............................................................1
Package Contents......................................................................... 1
Introduction ................................................................................... 2
System Requirements.................................................................2
Hardware Overview..................................................................... 3
Front .......................................................................................... 3
Side ............................................................................................4
Bottom......................................................................................5
Back............................................................................................6
Power Adapter....................................................................... 7
Safety ................................................................................................8
Before you Begin...........................................................................8
Wireless Installation Considerations...................................... 9
Getting Started................................................................10
Mounting the Camera...............................................................10
Mounting the Power Supply ..................................................12
Setting up the Canera Through mydlink App..................14
Using the mydlink App....................................................16
Controlling Your Device ...........................................................16
Troubleshooting..............................................................21
Regulatory Information ..................................................24
1D-Link DCS-8600LH User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with your produce will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DCS-8600LH
Full HD Outdoor Wi-Fi Camera
Power adapter
Quick Installation Guide
2D-Link DCS-8600LH User Manual
Section 1 - Product Overview
Introduction
The D-Link DCS-8600LH Full HD Outdoor Wi-Fi Camera boasts a wide-angle lens that easily captures your entire room, wall-to-wall, in high-quality
1080p. You will know what is happening day or night with built in night vision, motion and sound detection sending notications to the mydlink™
app. The rotatable head makes discrete installations easy even on ceilings.
Network Requirements • Activated SIM card with cellular data or Wi-Fi
App-based Conguration
Utility Requirements
Smartphone with the following:
• iOS or Android-based operating system
OS Requirements:
• iOS 9.0 or higher1
• Android 4.3 or higher1
1 For iPhone, iPad, or Android, smartphones or tablets (please refer
to the mobile app's store page to check whether your device is
compatible)
System Requirements
3D-Link DCS-8600LH User Manual
Section 1 - Product Overview
Hardware Overview
Front
1Microphone Records audio of the surrounding area.
2 Status LED
Solid Green: Camera has successfully bounded to a Wi-Fi network. Setup is complete.
Flashing Green: Live view active.
Solid Red: Powered on.
Flashing Red: Upgrading rmware. Recovery mode.
Solid Orange: Bluetooth activated.
Flashing Orange: Bluetooth pairing.
3 Camera Lens Records video of the surrounding area. An IR LED encircles it.
4 Light Sensor The IR-Cut Removable sensor monitors lighting conditions and switches between
color and infrared accordingly.
Camera Lens
Microphone
Light Sensor
Status LED
4
1
2
3
4D-Link DCS-8600LH User Manual
Section 1 - Product Overview
Side

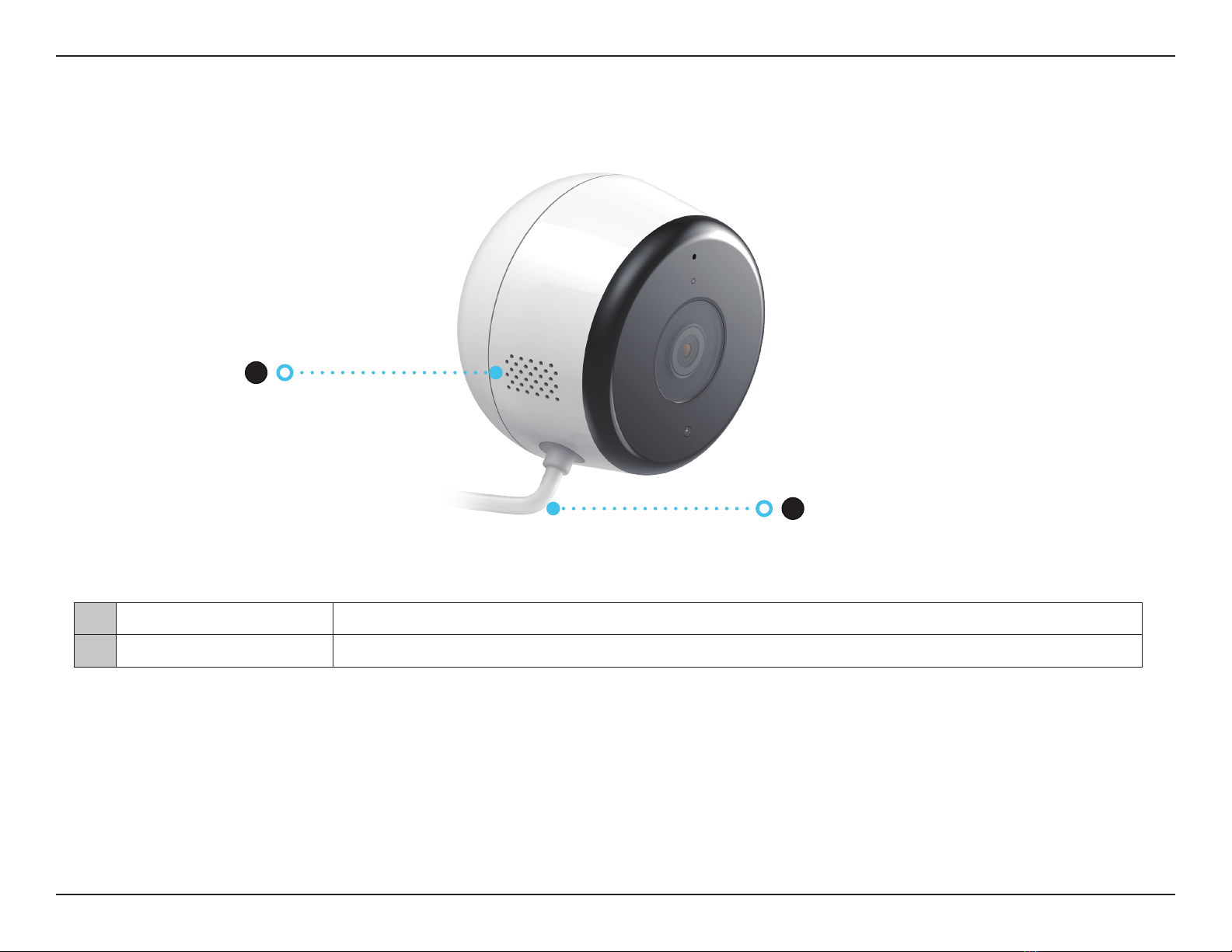

1Speaker Provides audio playback for the two-way audio feature.
2Power Cord Supplies power to the camera.
Speaker 1
Power Cord
2
5D-Link DCS-8600LH User Manual
Section 1 - Product Overview
Bottom
1Reset Button Holding this recessed button down for at least 10 seconds resets the camera to factory default settings.
2microSD Card Slot Where a microSD card can be inserted.
3Mounting Thread 1/4x20 UNF mounting thread
Reset Button
1
microSD Card Slot
2
Mounting Thread 3
6D-Link DCS-8600LH User Manual
Section 1 - Product Overview
Back
1Snap Mount
Indentation Where the snap mount is attached.
Snap Mount Indentation
1
7D-Link DCS-8600LH User Manual
Section 1 - Product Overview
Power Adapter
1
2
3
