This document will guide you through the

basic installation process for your new D-Link

Network Camera.

DCS-6616

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

12X Speed Dome Network Camera

Quick Installation Guide

Installationsanleitung

Guide d’installation

Guía de instalación

Guida di Installazione

D-Link DCS-6616 Quick Install Guide 1

ENGLISH

DCS-6616 Quick Install Guide

This installation guide provides basic instructions for installing the DCS-6616 Network

Camera on your network. For additional information about how to use the camera,

please see the User’s Manual which is available on the CD included in this package or

from the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. Hardware Installation

4. Conguration with Wizard

1. Package Contents

DCS-6616 Network Camera

Manual and Software on CD-ROM

Quick Install Guide

Power Adapter

AV & Power Cables

Mounting Bracket and Screws

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians so as to conform to all

local codes and prevent voiding your warranty.

D-Link DCS-6616 Quick Install Guide

ENGLISH

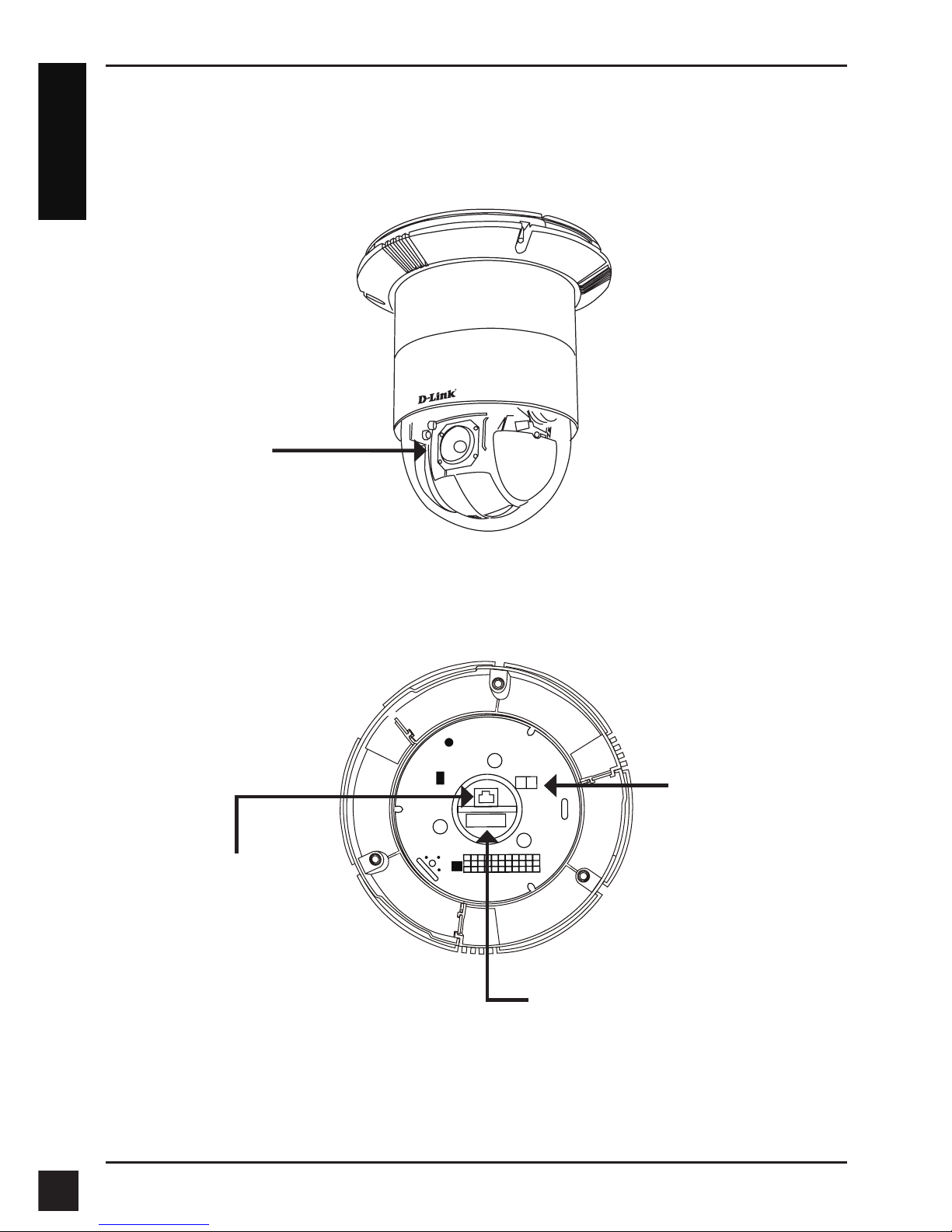

2. Hardware Overview

Camera Lens

Motorized varifocal

autofocus lens

Ethernet 10/100

RJ45 Socket

Reset Button

Press and hold the

reset button for

approximately 10

seconds to reset to

factory default settings

Cable Connector Socket

D-Link DCS-6616 Quick Install Guide 3

ENGLISH

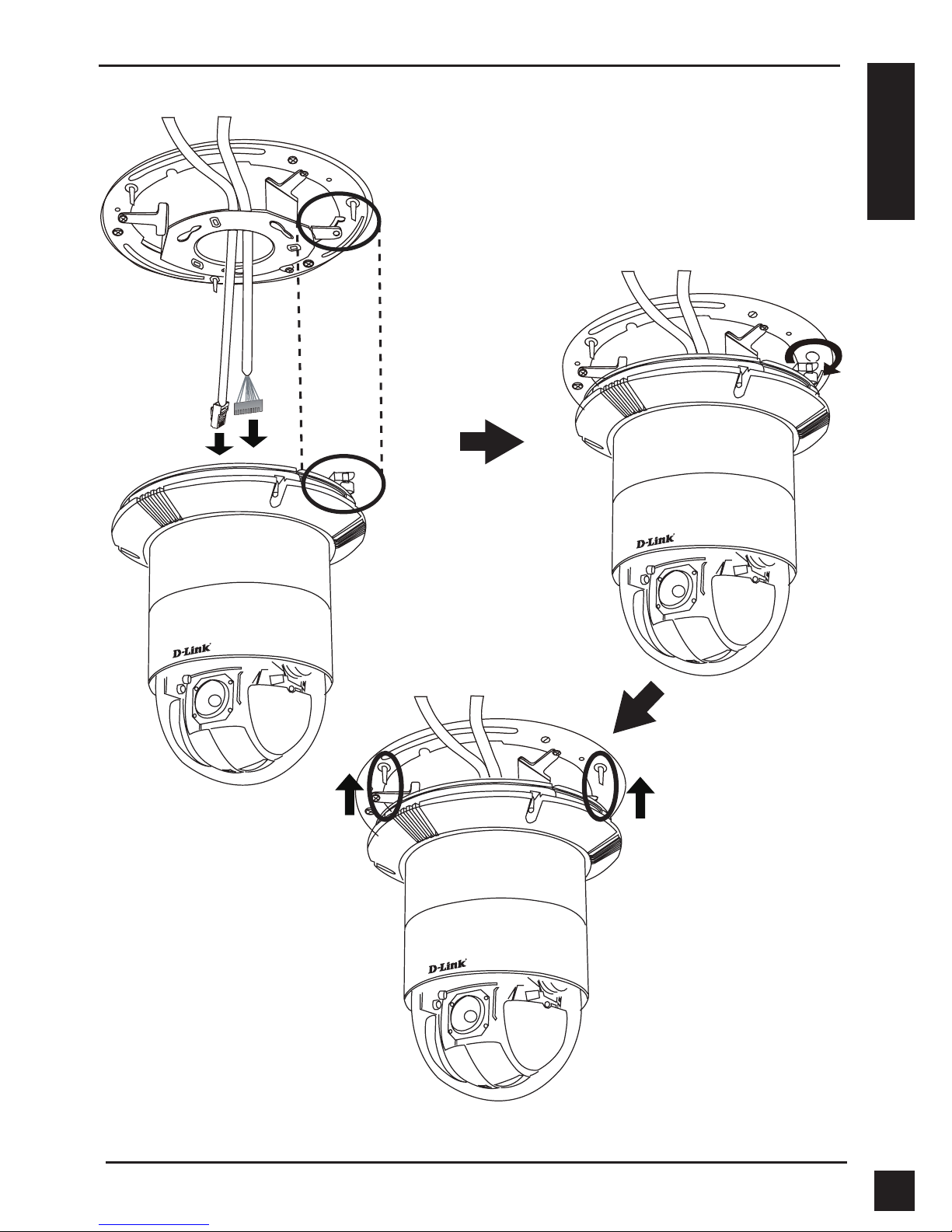

3. Mounting Instructions

Detach the Decoration Ring from

the Hard Ceiling Mount Bracket.

Align the three holes on the

Mount Bracket, mark the screws

locations on the ceiling

Drill three pilot holes into the

ceilling and hammer the plastic

anchors into the holes

Fix the Mount Bracket with three screws

D-Link DCS-6616 Quick Install Guide

ENGLISH

Insert the xing plate into the

groove as shown below

Align the three holes to screw

the xing plate to the dome bas

Connect the cable connector and

Ethernet cable to the dome base

Align plate A and plate B, then

use those three hole to hook the

Network Camera on the ceiling

mount bracket

D-Link DCS-6616 Quick Install Guide 5

ENGLISH

Tighten the screw on the xing plat

Align the three holes to mount the decoration ring.

D-Link DCS-6616 Quick Install Guide

ENGLISH

General Connection Using 12 V DC Power Adapter

1. Connect the network camera to a hub via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6616 Quick Install Guide 7

ENGLISH

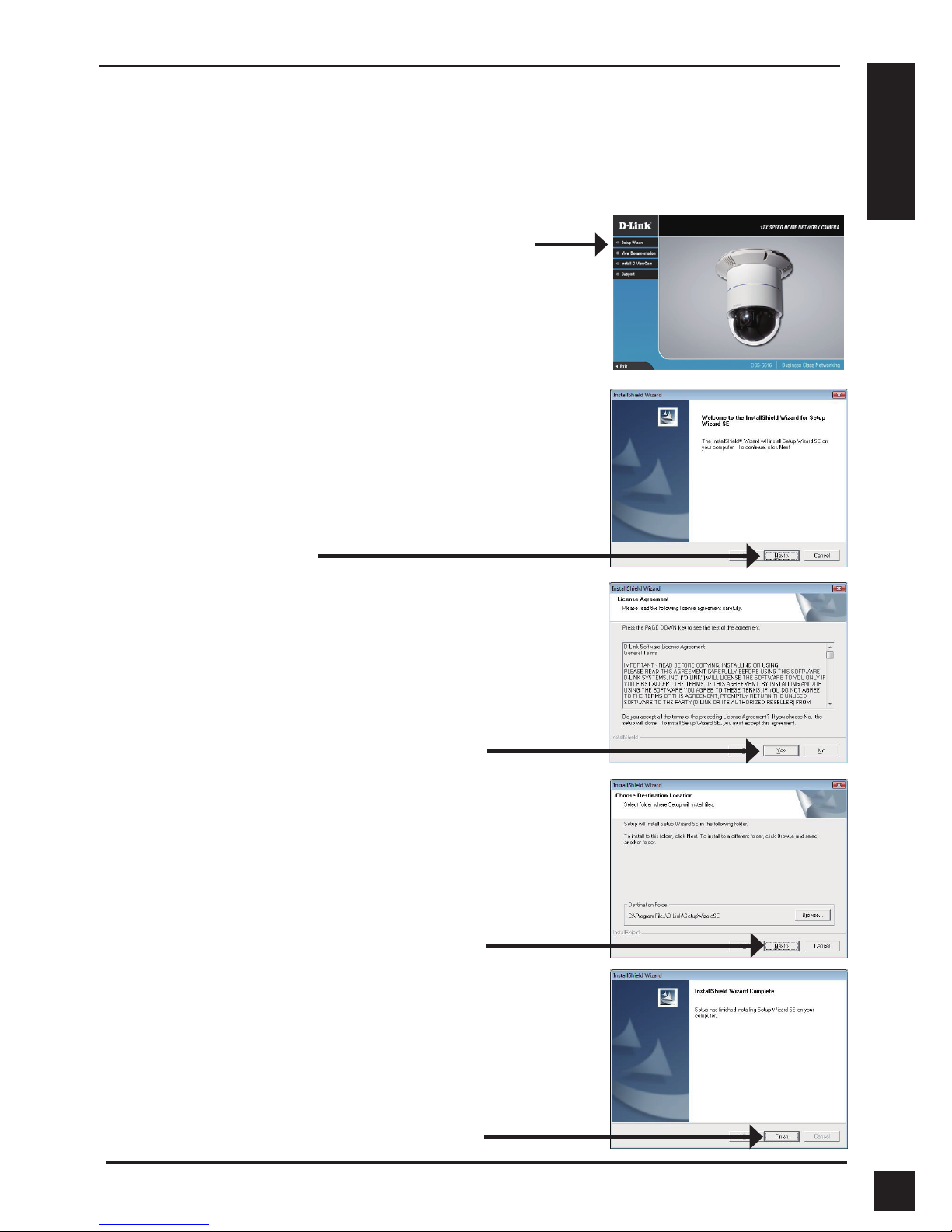

4. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-6616 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

After clicking Setuop Wizard, the following window will

open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to

nish.

D-Link DCS-6616 Quick Install Guide

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select static IP if the

camera will use the same IP address each time it is

started.

Click Next, to proceed to the next page.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next, to proceed to the next page.

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have

a DHCP server on your network, a valid IP Address

will be displayed. If your network does not use a

DHCP server, the network camera's default static IP

192.168.0.20 will be displayed.

Click the Wizard button to continue.
