D-Link DCS-6517 Manuel utilisateur

DCS-6517

Quick Installation Guide

Краткое руководство по установке

Quick Installation Guide

5 Megapixel Day & Night Outdoor Dome Network Camera

This document will guide you through the

basic installation process for your new

D-Link Network Camera.

D-Link DCS-6517 Quick Install Guide

ENGLISH

DCS-6517 Quick Installation Guide

This installation guide provides basic instructions for installing the DCS-6517 Network

Camera on your network. For additional information about how to use the camera,

please see the User’s Manual which is available on the CD include in this package or

from the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. SD Card Installation

4. Assembly and Installation

5. Configuration with Wizar

6. Adjusting the lens 3-axis angle

1. Package Contents

° DCS-6517 Network Camera

° User Manual and Software on CD-ROM

° Power Adapter*

° Mounting Screws and Allen wrench

° Quick Installation Guide

° CAT5 Ethernet Cable

° Alignment Sticker

° Sunshield

° RJ-45 Extension connector

° Mounting Adapter

If any of the above items are missing, please contact your reseller.

*Depending on your region, a power adapter may not be included.

D-Link DCS-6517 Quick Install Guide

ENGLISH

2. Hardware Overview

Install the SD Card

Push the SD card into the camera with the

gold contacts oriented towards the base of

the camera. To eject the SD card, push the

SD card into the slot.

3. SD Card Installation

Disassemble the Camera

Open the camera enclosure by loosen the

4 screws. Lift the dome off the base of the

camera.

Power Connector

Connects to 12 V DC power

RJ-45 Extension connector

RJ-45 connector for Ethernet

which can also be used to power

the camera using Power over

Ethernet (PoE)

Reset Button

Resets camera to factory

default settings

Audio In

Connects to a microphone

DI/DO Wiring

I/O connectors for external

devices

Audio Out

Connects to speakers

Micro SD Slot

D-Link DCS-6517 Quick Install Guide

ENGLISH

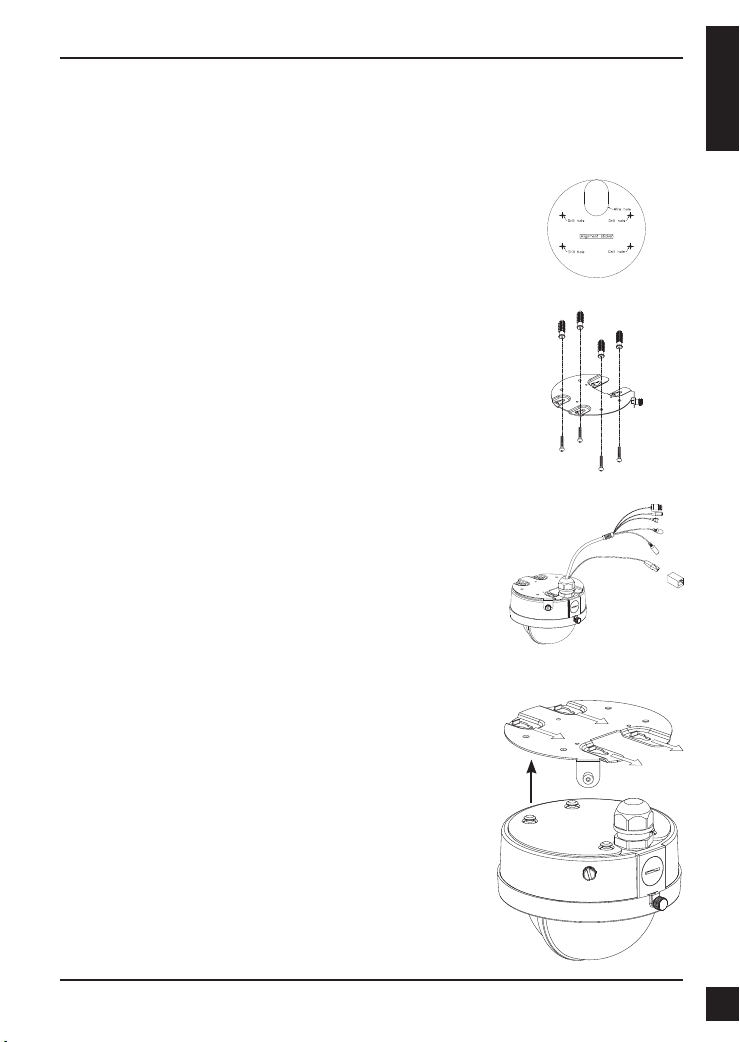

4. Assembly and Installation

Mounting Installation

Please see the User Manual for detailed instructions regarding installation and mounting

of the camera using a mounting plate or bracket.

Attach the alignment sticker to the ceiling or wall.

Drill holes corresponding to the mounting template and

insert the plastic anchors in the holes.

Attach the cables to the corresponding cable

connectors.

Attach the dome up with the mounting template latch,

then push forward lock the latch. Using the bolt for

security lock the Camera.

D-Link DCS-6517 Quick Install Guide

ENGLISH

Pendant Mount (DCS-34-2)

Pendant

Bracket

Cap

Rubber

Seal

Bracket

Cap

Mounting

Plate

D-Link DCS-6517 Quick Install Guide

ENGLISH

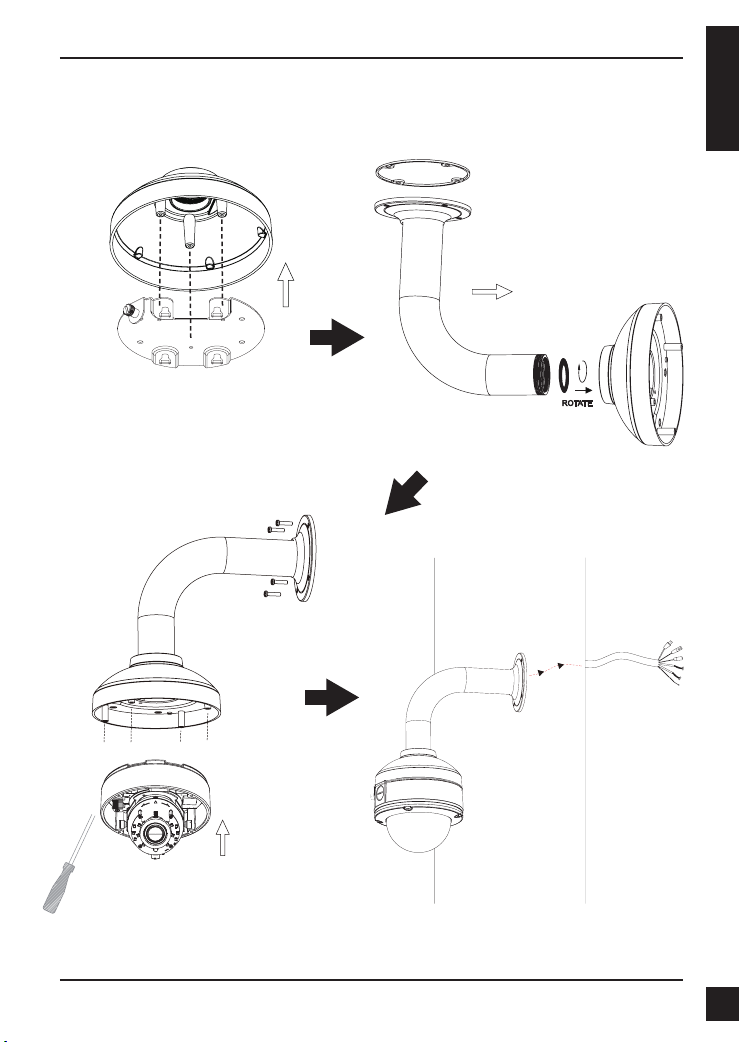

Bent Mount (DCS-34-3)

Bracket Cap

Bent

Bracket

Cap

Mounting

Plate

Dome

Camera

Bent

Bracket

D-Link DCS-6517 Quick Install Guide

ENGLISH

Connection with a PoE Hub

If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable,

which will provide transmission of both power and data over a single cable.

General Connection Using 12 V DC Power Adapter

1. Connect the network camera to a hub via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6517 Quick Install Guide

ENGLISH

5. Conguration with Wizard

Insert the DCS-6517 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

After clicking Setup Wizard, the following window will open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to

nish.

D-Link DCS-6517 Quick Install Guide

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select static IP if the

camera will use the same IP address each time it is

started.

Click Next to proceed to the next page.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next to proceed to the next page.

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have

a DHCP server on your network, a valid IP Address

will be displayed. If your network does not use a

DHCP server, the network camera's default static IP

192.168.0.20 will be displayed.

Click the Wizard button to continue.

D-Link DCS-6517 Quick Install Guide

ENGLISH

DCS-6517

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section shows your camera’s live video. You

can select your video prole and view or operate

the camera. For additional information about web

conguration, please refer to the user manual

included on the CD-ROM or the D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Select the camera and click the button labeled

"Link" to access the web conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

DCS-6517
