D-Link DCS-6513/E Manuel utilisateur

This document will guide you through the

basic installation process for your new D-Link

Network Camera.

DCS-6513

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

Full HD WDR Day & Night Outdoor Dome Network Camera

Quick Installation Guide

Installationsanleitung

Guide d’installation

Guía de instalación

Guida di Installazione

D-Link DCS-6513 Quick Install Guide 1

ENGLISH

DCS-6513 Quick Install Guide

This installation guide provides basic instructions for installing the DCS-6513 Network

Camera on your network. For additional information about how to use the camera,

please see the User’s Manual which is available on the CD included in this package or

from the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. SD Card Installation

4. Hardware Installation

5. Conguration with Wizard

6. Adjusting the lens 3-axis angel

1. Package Contents

DCS-6513 Network Camera

Manual and Software on CD-ROM

Quick Install Guide

Power Adapter

Security Wrench

Extension Adapter

Cable Cover

Screws

Rubber Plug

Weather Shield

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians so as to conform to all

local codes and prevent voiding your warranty.

D-Link DCS-6513 Quick Install Guide

ENGLISH

2. Hardware Overview

Install the Micro SD Card

Push the Micro SD Card into the camera

with the gold contacts oriented towards the

base of the camera. To eject the Micro SD

Card, push the Micro SD Card into the slot.

3. Micro SD Card Installation

Disassemble the Camera

Open the camera enclosure by loosen the

4 screws. Lift the dome off the base of the

camera.

Power Connector

Connects to 12 V DC power

24 V Power Connector

Connects to 24 V AC power

BNC

Analog video output

Ethernet Jack

RJ-45 connector for Ethernet whichcan also be used to

power the camera using Power over Ethernet (PoE)

Reset Button

Resets camera to factory

default settings

Audio In

Connects to a microphone

DI/DO Wiring, 12V DC output

I/O connectors for external

devices

Audio Out

Connects to speakers

D-Link DCS-6513 Quick Install Guide 3

ENGLISH

4. Standard Mounting Instructions

Mounting Installation

Please see the User Manual for detailed instructions regarding installation and mounting

of the camera using a mounting bracket.

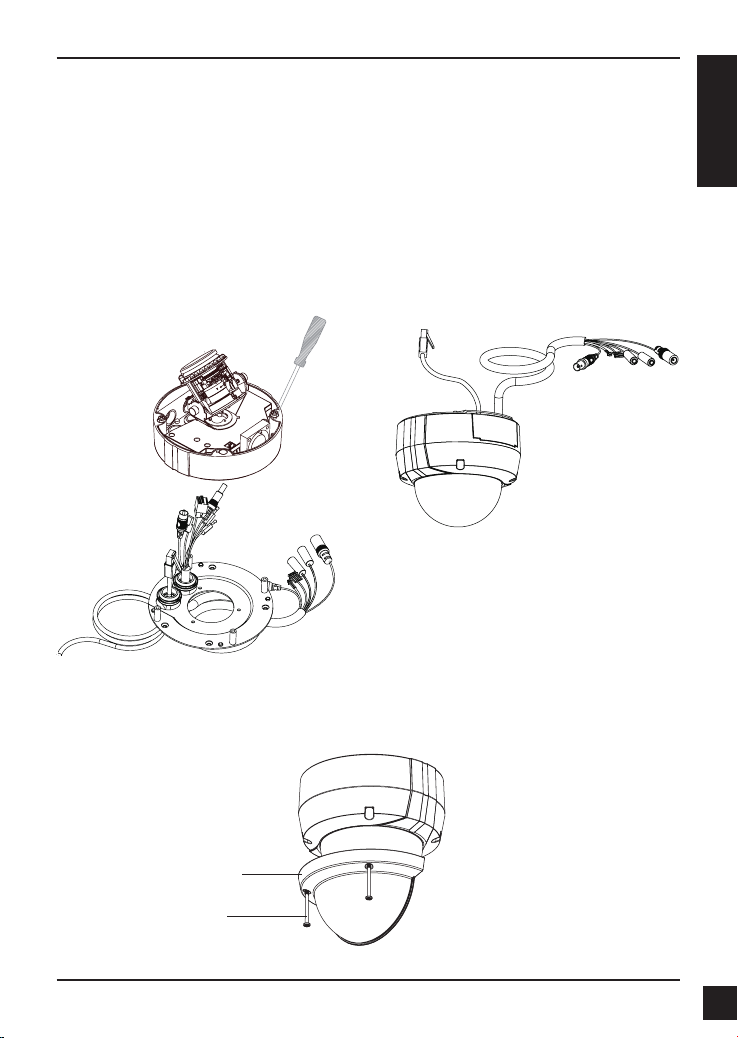

Style 1 - Concealed Cable Installation

Height: 23 mm (0.9 inches)

Diameter: 183 mm (7.2 inches)

Weight: 400 g (0.9 lbs)

Figure 2.2

Figure 2.1

Weather Shield

Weather shield

37mm screw

D-Link DCS-6513 Quick Install Guide

ENGLISH

Style 2 - Exposed Cable Installation

Height: 23 mm (0.9 inches)

Diameter: 183 mm (7.2 inches)

Weight: 400 g (0.9 lbs)

Figure 2.3 Figure 2.4

Figure 2.6

Figure 2.5

D-Link DCS-6513 Quick Install Guide 5

ENGLISH

Pendant Mount (DCS-34-2)

Height: 201 mm (7.9 inches)

Diameter: 150 mm (5.9 inches)

Weight: 665 g (1.45 lbs)

Figure 3.4

Pendant

Bracket

Cap

Rubber

Seal

Figure 3.2

Figure 3.3

Figure 3.1

Bracket

Cap

Mounting

Plate

D-Link DCS-6513 Quick Install Guide

ENGLISH

Bent Mount (DCS-34-3)

Height: 253 mm (9.96 inches)

Diameter: 150 mm (5.9 inches)

Weight: 770 g (1.7 lbs)

Bracket Cap

Bent

Bracket

Figure 4.2

Figure 4.4

Figure 4.3

Figure 4.1

Bracket

Cap

Mounting

Plate

Dome

Camera

Bent

Bracket

D-Link DCS-6513 Quick Install Guide 7

ENGLISH

Connection with a PoE Hub

If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable,

which will provide transmission of both power and data over a single cable.

General Connection Using 24 V AC Power Wiring

1. Connect the network camera to a hub via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power source such as your

building's emergency power.

General Connection Using 12 V DC Power Adapter

1. Connect the network camera to a hub via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6513 Quick Install Guide

ENGLISH

5. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-6513 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

After clicking Setup Wizard, the following window will open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to

nish.
