D-Link DSL-504 Manuel utilisateur

DSL-504 for PPPoEDSL-504 for PPPoE

ADSL RouterADSL Router

Quick Install GuideQuick Install Guide

DSL-504 for PPPoE

ADSL Router

Quick Install GuideQuick Install Guide

for Windows 98/SE/ME/2000

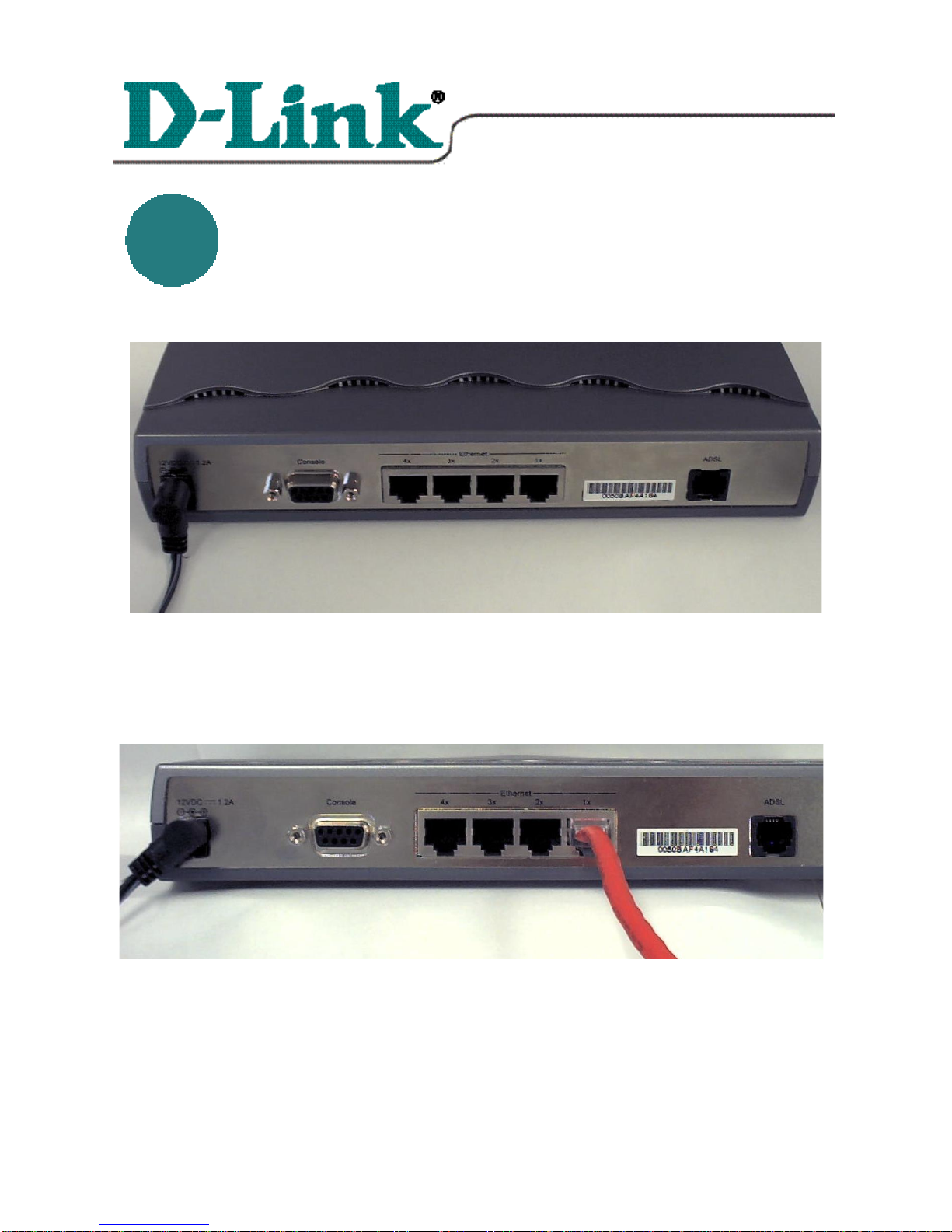

Connecting the DSL-504Connecting the DSL-504

To setup the DSL-504, begin by connecting it to a power source.

Once the unit power is on, connect one end of the included Ethernet cable to

the DSL-504’s ethernet port and connect the other end of the cable into the

NIC which is installed in your computer.

If the cable connection is good, a green LED on the front of the DSL-504

labeled Ethernet/Link will glow steadily.

* Please refer to the Manual on the CD-ROM for more detailed information.

When you have completed all the connections, your DSL-504 will look

like this:

Now connect the phoneline cable from the DSL-504 to your phone jack.

Power Cord

(Plug the other

end of the power

cord into the

power outlet.)

Ethernet Cable

(Plug the other end of the

Ethernet cable into the

Ethernet port on the NIC,

which is installed in your

computer.)

Phone line cable

(Plug the other end of

the phone line cable

into the phone jack.)

Connecting the DSL-504Connecting the DSL-504 continued

22 Setting up the ComputerSetting up the Computer

Right-Click the Network

Neighborhood (Win 98/98SE) or

My Network Places (Win ME/2000)

icon on your desktop.

Select Properties

22 Setting up the ComputerSetting up the Computer continued

Highlight the line that

reads TCP/IP and

points to your installed

Ethernet NIC.

Click Properties

Click OK

At this screen, select

the IP Address tab.

Select Obtain an IP

Address

Automatically.

You will be prompted to reboot in Win 98/98SE or ME,

For Windows 2000, Restart your computer manually.

Click Yes

When your computer restarts, you will automatically receive an

IP address from the DSL-504.

33 Accessing the DSL-504’s Web BasedAccessing the DSL-504’s Web Based

ManagementManagement

The DSL-504 requires Internet

Explorer 4.0 or higher, or

Netscape Communicator 4.0 or

higher.

Please open your Web Browser

and enter this URL:

http://192.168.0.1 This will

launch the DSL-504’s integrated

web-based management system.

Click on Login to the web-based management module.

The default User Name is

admin

and the default Password

is also admin.

Click OK

This Enter Network

Password screen will appear.

44 Configuring the DSL-504Configuring the DSL-504

At this window,

Select PPPoE Configuration in

the left column.

Enter the Login User Name and

Password, provided to you by

your Internet Service Provider.

Authentication is set to detect

automatically. If your current

selection does not work, select

the other option whether it

would be “pap” or “chap.”

Please contact your ISP for

your correct authentication set-

ting.

Please be certain that enabled is

displayed in the Connect On

Demand field.

Make sure PVC settings are

entered correctly:

VPI: “0”

VCI: “35”

Click OK

Note: VPI: “0” and VCI: “35” settings are most common among DSL

providers. This will not work for others who have different VPI and VCI

settings. Please contact your service provider for the correct VPI and

VCI settings.

44 Configuring the DSL-504Configuring the DSL-504 continued

Click OK

Click on Save

Configuration

Click on Save

Changes in the

left column of

the screen.

Note: Do not manually restart the modem. It will automatically restart by

itself. Once you are finished with your installation, you should be able to

access the Internet.

You have completed the installation of the DSL-504.

Click on Restart
