D-Link DIR-625 Router Manuel utilisateur

Quick Start Guide

Securespot 2.0 Quick Start Guide for the DIR-625 Router

Quick Start Guide

Table Of Contents

Introduction ...................................................................................................................................................3

Getting Started..............................................................................................................................................4

Securespot 2.0 Activation and Registration................................................................................................13

Network Map...............................................................................................................................................15

Appendix A..................................................................................................................................................16

Quick Start Guide

INTRODUCTION

Securespot 2.0 services are a complete, managed Internet security solution that is now integrated with

your D-Link DIR-625 router to protect your family, computer, data and personal information from the many

dangers and security threats of the Internet. Key features include:

EASY TO INSTALL AND USE

Securespot 2.0 Security Services install in a

fraction of the time that it takes for traditional PC-

based products. The Firewall, anti-SPAM, and

Parental Controls are pre-configured on the router

to provide automatic, out-of-the-box protection for

all connected devices in the home. When a

computer is added to the network, Securespot

detects it, and loads a Thin-Client application (25X

smaller than leading security suites) that protects

PCs and MACs from viruses, spyware, ID theft and

pop-up windows within the network and while on

the road.

UNIQUE, GRAPHICAL REMOTE-MANAGEMENT CONSOLE

At the heart of the system is an industry first – a web-based, graphical management console that

remotely communicates with the router and protected computers. Eliminating the need to physically log in

to each and every device in your home, this easy-to-use remote management console allows you to view

all protected devices, and monitor or configure Securespot services, even when you’re away from home.

WORLD CLASS PARENTAL CONTROLS

Safeguarding your entire home with parental controls not only prevents objectionable content from

entering, but protects all users from malicious web sites that may infect your computers or steal your

family’s personal and financial information. Securespot utilizes a database of 63M URLs representing

billions of pages, updated daily to provide comprehensive protection that keeps pace with the dynamic

nature of the Internet. An industry leading 81 categories provides unprecedented ability to customize the

pre-configured settings. Alerts can notify parents via e-mail or text messages when pages are blocked at

home. Embedded in the router, Securespot offers tamper proof, world class parental controls.

Quick Start Guide

GETTING STARTED

The Quick Start Guide will lead you through a 3-step process to install Securespot 2.0 Services on your

D-Link DIR-625 router consisting of:

1. Upgrading the firmware for your DIR-625 router

2. Activating your Securespot 2.0 services and creating your Securespot 2.0 account

3. Completing an initial configuration of Securespot services

The total time for this process is approximately 5 minutes.

BEFORE YOU BEGIN

1. Check the Hardware Version of your DIR-625

Securespot 2.0 will only run on Revision C1 of the DIR-625 router. Please verify the version

number of your router by checking the sticker on the back (see picture below). Attempting to

upgrade a DIR-625 router that is not H/W Ver C1 can damage it.

2. Ensure that you are connected to the router with an ethernet cable

Do NOT attempt a firmware upgrade from a wireless connection. You could damage your router

due to the increased packet loss from a wireless connection. Be sure you are connected to your

DIR-625 with an Ethernet cable.

3. Make sure that your router is connected to the Internet

This guide is intended for previously installed DIR-625 routers. For new routers, it is

recommended that you first install your DIR-625 using its installation CD, and ensure it is

operating correctly and communicating with the internet.

Quick Start Guide

4. Locate the Username and Password for your router’s administrator account

To upgrade your router’s firmware, you will need to log in to the router’s local user interface by

typing http://192.168.0.1/ into your browser. The factory default username is admin, and there is

no password. If you changed the default login for the administrative account, you will need your

new username and password. If you have forgotten your password or username and are unable

to log in to your router, you can perform a hardware reset that will change all settings back to

factory defaults (Appendix A).

Backup and Firmware Upgrade

To install the Securespot 2.0 Security Services to your D-Link DIR-625 router, you must upgrade your

router firmware. Use the following steps to upgrade your firmware:

1. Ensure your PC has a wired connection to the router.

2. Locate the zip file that contained this Quick Start Guide (dir625_fw.zip). Extract the firmware file

and save to your desktop (dir625_fw.bin)

3. Log in to the local router User Interface by typing http://192.168.0.1/ into a browser entering your

username and password (for help, see above in “Getting Started”).

Quick Start Guide

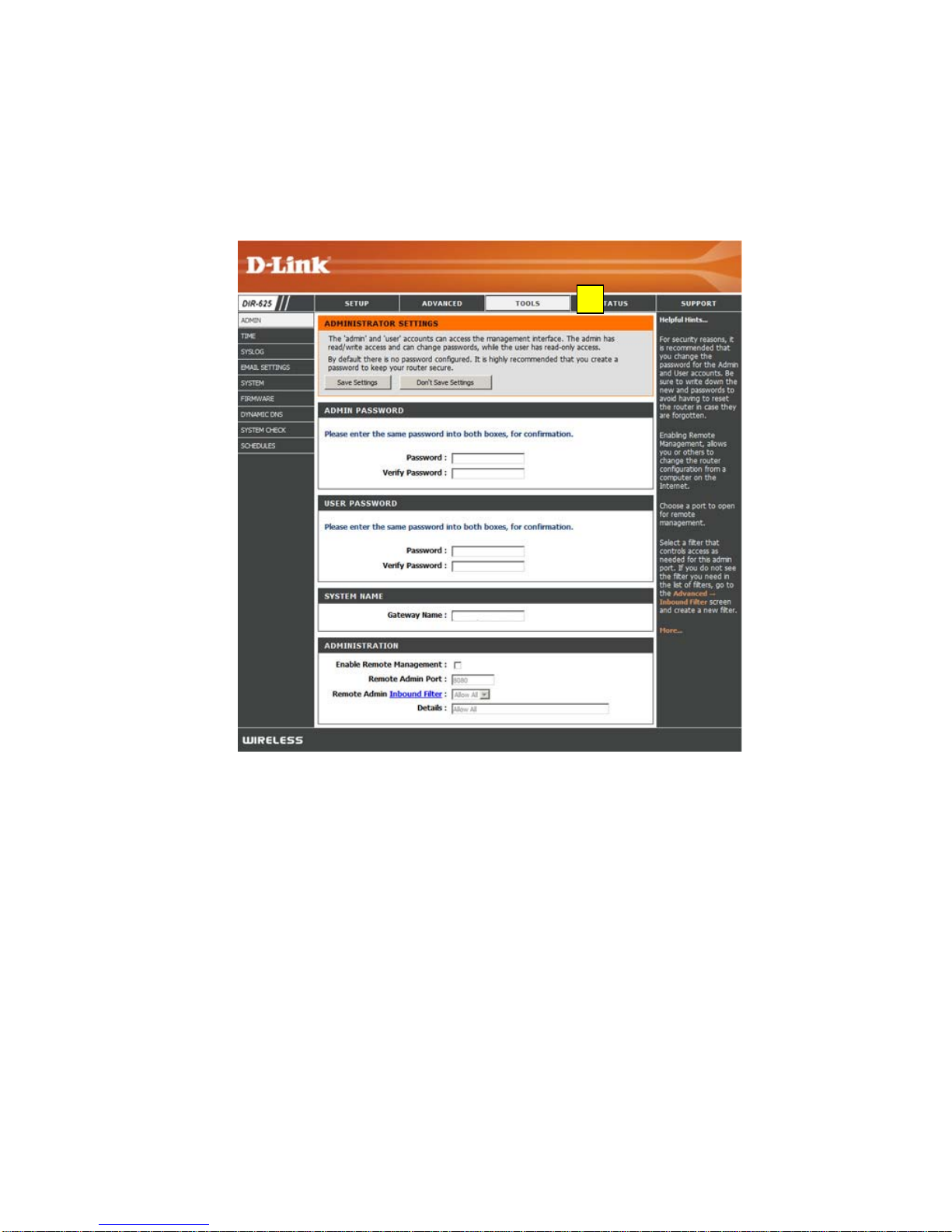

4. Select the Tools menu.

5. Select the System link on the Tools menu.

6. Click the Save Configuration button. (To retain your existing router configuration settings, you

must manually save these settings before you upgrade the router firmware.)

Quick Start Guide

7. A File Download pop-up window appears on your screen. Click the Save button. You may

rename the file to something easy to remember, or save it as the default name

“gateway_settings.gws”.

8. Click the Save button to save this file to your desktop.

Quick Start Guide

9. Select the Firmware link on the Tools menu.

10. Click the Browse button in the Firmware Upgrade section.

11. Select the appropriate firmware file (dir625_fw.bin) that you extracted to your desktop, and then

click the Open button.

12. It may take up to 30 seconds for the upgrade to complete. Click on Continue when it appears.

The firmware is now upgraded.

13. While the firmware is being upgraded, an Upload Succeeded pop-up window appears on your

screen.

Quick Start Guide

14. Once the process is complete, you are redirected to the D-Link DIR-625 Product Login page.

Quick Start Guide

Restore Configuration Settings

This section describes the procedure to restore all configuration settings back to their original state before

upgrading your firmware. We recommend that you now restore your router to the configuration file

settings that were saved earlier in steps 6 and 7.

1. Click the Tools menu.
