D-Link DSL-502T Manuel utilisateur

Before You Begin

1. If you purchased this Router to share your high-speed Internet connection with

other computers, you must have an established Internet account from an

Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your ISP for configuring

the DSL-502T Wireless ADSL Router. The DSL-502T acts as a DHCP server and

will assign all the necessary IP address information on your network. See at the

Quick Installation Guide or the Manual on the CD-ROM for setting each network

adapter to automatically obtain an IP address.

Check Your Package Contents

•ADSL Cable (Standard telephone cable)

•DSL-502T

•Ethernet Cable

(CAT5 UTP Straight-Through)

•12V, 1.2A

Power Adapter

•USB Cable

This product can be setup using

any current web browser, i.e.,

InternetExplorer6orNetscape

Navigator 6.2.3. DSL-502T

DSL Route

Using a power adapter with

a different voltage rating

will damage and void the

warranty for this product.

•CD-ROM

Containing Manual and Warranty

Connecting the Router to your

Computer

For Ethernet

1. First, connect the power adapter to the power input at the back

panel of the DSL-502T and then plug the other end of the

power adapter to a wall outlet or power strip. Press the On/Off

button. On the front of the device, the Power LED will turn ON

to indicate proper operation.

2. Insert one end of the Ethernet cable into the Ethernet port on

the back panel of the DSL-502T and the other end of the cable

to an Ethernet Adapter or available Ethernet port on your

computer.

3. Insert the telephone cable included with the Router into the

ADSL port, and then connect the cable to your telephone line.

(Line must be activated for ADSL use)

4. Check the LED display on the front of the Router to confirm

that the connections have been made. (This will be shown with

solid lights for the corresponding port)

ADSL Port

Connect to

your ADSL

hone line

USB Port

Connect

USB Cable

here

Ethernet Port

Connect to

Ethernet cable

Power input

Connect to

ower ada

ter

Reset

Push to return to

factor

settin

On / Off

Push to turn

ower on or of

Connecting the Router to your

Computer cont…

For USB

IMPORTANT: Do not connect the USB cable to the computer before

completing the below steps.

Insert DSL-502T CD-ROM into the CD-ROM drive. Within a few seconds

you should see the dialog box shown below. If you do not see the

auto-run dialog box shown below, explore the CD-ROM and double-

click the setup application file autorun.exe. The auto-run USB driver

setup must be completed before connecting the router to your PC with

the USB cable. To install the driver follow these instructions:

1. Click the Install DSL-502T link to launch the USB driver

installation software.

Connecting the Router to your

Computer cont…

For USB

2. Click Next on the installshield dialog box.

3. Click Install to begin the installation.

Connecting the Router to your

Computer cont…

For USB

4. Click Finish to complete the Installshield wizard.

When the USB driver has been installed, insert one end of the USB

cable included with the router into the DSL-502T router’s USB port.

Insert the other end of the USB cable into a USB port on your PC.

Connect the power adapter to the power input at the back panel of the

DSL-502T and then plug the other end of the power adapter to a wall

outlet or power strip. On the front of the device, the Power LED will

turn ON to indicate proper operation. Insert the telephone cable

included with the Router into the ADSL port, and then connect the

cable to your telephone line. Check the LED display on the front of the

Router to confirm that the connections have been made.

Configure IP Settings

To connect to the network, make sure the network adapter in your

computer is configured properly. The following section describes

how to configure the network adapter to obtain an IP address

automatically for the DSL-502T ADSL Router.

For Microsoft Windows XP

Double-click on

Network Connections

Go to Start > select

Settings > click

Control Panel >

Double-click on the

Network

Connections icon

Right-click the

Local Area

Connection icon,

and then select

Properties.

Select Properties

Configure IP Settings cont…

The dialog box displays with

a list of currently installed

network items.

Click Properties

Click Internet Protocol

(TCP/IP)

Make the choice to get IP

settings assigned

automatically.

Select Obtain an IP

address automatically

Click OK

Configuring the Router

To use your Web browser to access the web pages used to setup the

Router, your computer must be configured to “Obtain an IP address

automatically”, that is, you must change the IP network settings of

your computer so that it is a DHCP Client. If you are using Windows

XP and do not know how to change your network settings, refer to

Step 2. You may also read the User Manual for instructions on

changing IP settings for computers running Windows operating

systems.

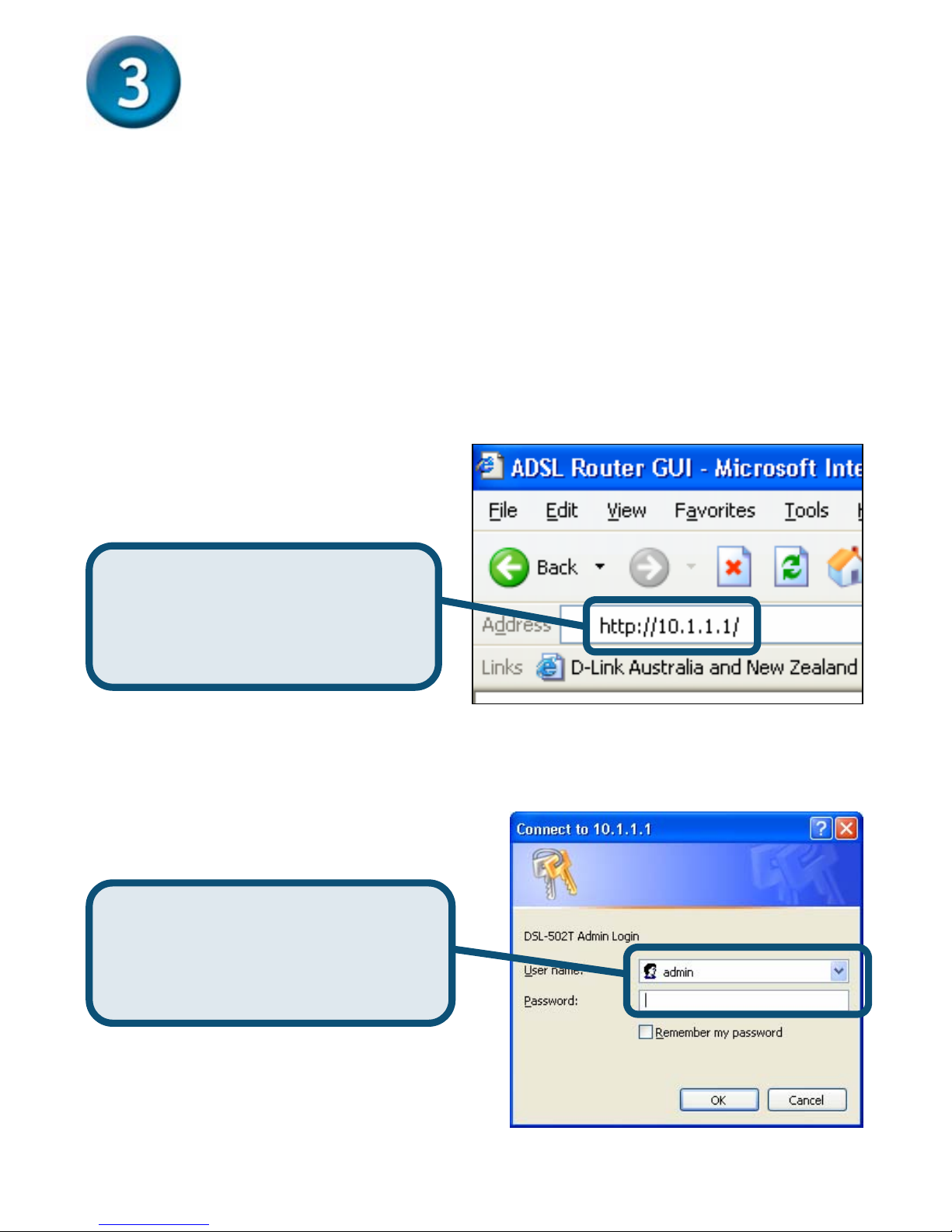

The Login page appears

Open your Web browser and

type http://10.1.1.1 into the

RL address box. Press Enter or

Return.

When you first log in, your Login

ame is admin; your password is

also admin. These may be

changed later.

Configuring the Router cont…

Once you have logged in, the Home directory tab is prominent with

the setup Wizard menu displayed. Most users will be able to use the

setup wizard to establish the ADSL connection to your ADSL Internet

Service Provider (ISP). To begin using the setup wizard, click on the

Run Wizard button in the middle of the web page.

Click the Run Wizard button.

A pop-up menu will appear. This pop-up menu is the Setup Wizard.

The Setup Wizard procedure consists of four general steps:

1. Set your new password

2. Choose your time zone

3. Set Internet connection

4. Save & Restart

When you setup the Internet connection, you will need to enter the

information provided to you from your ISP. The type of information you

need depends on the type of connection you are setting up.

Configuring the Router cont…

The first Setup Wizard menu lists a summary of the steps required to

complete the setup. Click the Next button to begin setup.

Click the Next button.
