D-Link DSL-504G Manuel utilisateur

Before You Begin

Make sure you have all the necessary information and equipment on hand before beginning

the installation.

Check Your Package Contents

This product can be set up

using any current web

browser, i.e., Internet

Explorer 6 or Netscape

Navigator 6.2.3.

DSL-504G

ADSLRouter

specifications subject to change without notice.

DSL-504G ADSL Router

CD-ROM (containing User Manual)

Ethernet (CAT5 UTP) Cable

Telephone Cable

Power Adapter

If any of the above items are missing, please contact your reseller

Using a power supply

with a different voltage

rating will damage and void

the warranty for this product.

Connecting the Router to Your Computer

A. First, connect the power adapter to the receptor at the back panel of the DSL-504G

Router and then plug the other end of the power adapter to a wall outlet or power strip.

The Power LED will turn ON to indicate proper operation.

B. Insert one end of the Ethernet cable into any Ethernet port on the back panel of the

DSL-504G and the other end of the cable to an Ethernet Adapter or available Etherne

port on your computer.

C. Insert one end of the Telephone cable into the ADSL port on the rear panel of the

Router and insert the other end into the ADSL phone line wall socket. If you need to install

a low pass filter, follow the instructions come with the filter or from your ISP.

ADSL port -

connect to

ADSL phone line

Ethernet ports -

connect to

Ethernet cable

Factory

Reset

button

Power input -

connect to power

adapter

Configuring the Router

To use your Web browser to access the web pages used to setup the Router, your computer

must be configured to “Obtain an IP address automatically”, that is, you must change the

IP network settings of your computer so that it is a DHCP Client. If you are using Windows

XP and do not know how to change your network settings, skip ahead to Appendix at the

back and read the instructions provided. You may also read the User Manual for instructions

on changing IP settings for computers running Windows operating systems.

Open your Web browser and type

“http://10.1.1.1” into the URL address box.

Then press the Enter or Return key.

The Login page appears.

Type “admin” for the

User Name and

“admin” in the

Password field. Click OK

Configuring the Router (continued)

Once you have logged in, the Home directory tab is prominent with the Setup Wizard menu

displayed. Most users will be able to use the Setup Wizard to establish the ADSL connection

to your ADSL Internet Service Provider (ISP). To begin using the Setup Wizard, click on the

Run Wizard button in the middle of the web page. A pop-up menu will appear. This pop-up

menu is the Setup Wizard. The Setup Wizard procedure consists of four general steps:

1. Set the system admin password

2. Set the time zone

3. Set the Internet connection

4. Restart the Router

When you setup the Internet connection, you will need to enter the information provided to

you from your ISP. The type of information you need depends on the type of connection you

are setting up.

Click on the Run Wizard button.

Configuring the Router (continued)

The first Setup Wizard menu lists a summary of the steps required to complete the setup.

Click the Next button to begin setup.

Set the new Password used by the administrator to configure the Router. You have already

used the default Password “admin” to access the web manager. You can choose another

Password. The login User Name “admin” cannot be changed. Type in the new Password and

type it a second time to Verify Password. Click Next to continue.

Click the Next button.

Type the new Password

used by the Router

administrator and type it

again in Verify Password.

Click the Next button.

Configuring the Router (continued)

Now configure the Time Zone used for the Router’s system clock. Select the appropriate time

zone and Daylight Saving Time setting for your location.

Next you will Set the Internet Connection Type for the WAN interface. Your ISP should have

given this information to you. If you do not know what type of connection to use, exit the Setup

Wizard and contact your ISP for the information. The Setup wizard menu that appears when

you click the Next button depends on what connection type you select.

Select the Time Zone you are located

and set the appropriate Daylight

Savings Time (On/Off).

Select the Connection Type

used for your ADSL service.

Click the Next button.

Configuring the Router (continued)

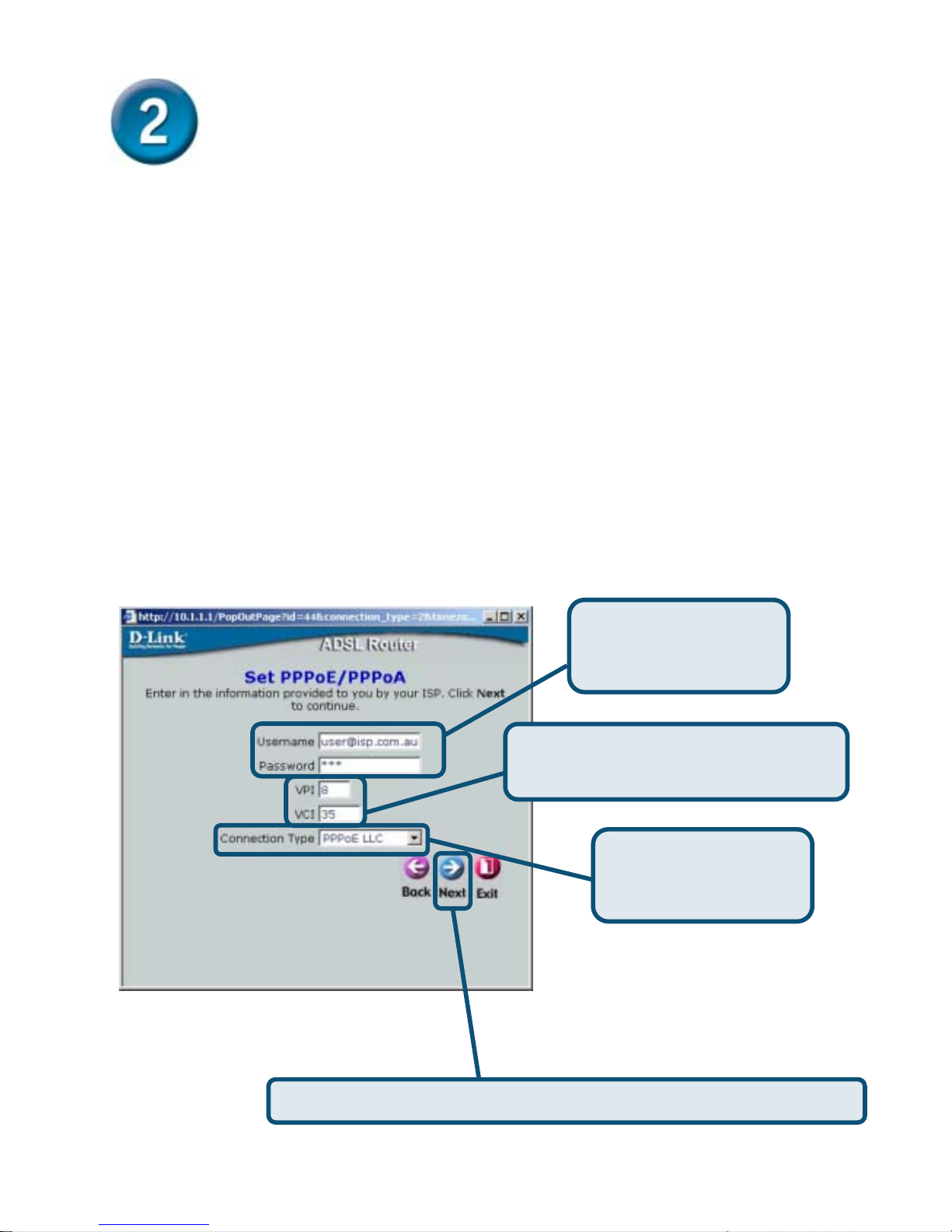

PPPoE/PPPoA Connections

If you selected the PPPoE/PPPoA connection type in the previous menu, you will see the

Setup Wizard menu pictured here. Type in the Username and Password used to identify and

verify your account to the ISP. The VPI number and VCI number should not be changed

unless you have been instructed to change them. Select the Connection Type used for

encapsulation on your ADSL service. Click Next when you are ready to proceed to the Setup

Completed menu.

In Australia, the most common settings for PPPoE/PPPoA are:

VPI = 8, VCI = 35 and Connection Type = PPPoA VC-Mux

VPI = 8, VCI = 35 and Connection Type = PPPoE LLC.

In New Zealand, the most common settings for PPPoE/PPPoA are:

VPI = 0, VCI = 100 and Connection Type = PPPoA VC-Mux

If you are not sure what Connection Type,VPI and VCI to use, please check with your ISP.

Type the Username and

Password for your ISP

account.

If you have been told to change the VPI

or VCI number, Type the new values.

Select the Connection

Type as instructed by

your ISP account.

Click the Next button. Skip ahead to the Setup Completed menu below.

Configuring the Router (continued)

Dynamic IP Address Connections

If you selected the Dynamic IP Address connection type, select the Connection Type used

for encapsulation and if you have been instructed to change the VPI number and VCI number,

type in the new values. In Australia, most users will use the default values VPI = 8 and

VCI = 35. In New Zealand, most users will use VPI = 0 and VCI = 100. Click Next when you

are ready to proceed to the Setup Completed menu.

Select the Connection Type.

Click the Next button. Skip ahead to the Setup Completed menu below.

If you have been told to change the VPI

or VCI number, Type the new values.

Configuring the Router (continued)

Static IP Address Connections

If you selected the Static IP Address connection type, change the WAN IP Address, WAN

Subnet Mask, WAN Gateway Address, Primary DNS Server and (if available) Secondary

DNS Server IP address as instructed by your ISP. Select the Connection Type used for

encapsulation and if you have been instructed to change the VPI number and VCI number,

type in the new values. In Australia, most users will use the default values VPI = 8 and

VCI = 35. In New Zealand, most users will use VPI = 0 and VCI = 100. Click Next when you

are ready to proceed to the Setup Completed menu.

Select the Connection Type.

Click the Next button. Skip ahead to the Setup Completed menu below.

If you have been told to change the VPI

or VCI number, Type the new values.

Type the IP addresses for the

WAN IP Address, WAN Subnet

Mask, WAN Gateway Address,

Primary DNS Server and

Secondary DNS Server.

Configuring the Router (continued)

Bridge Connections

If you selected the Bridge Mode connection type, select the Connection Type used for

encapsulation and if you have been instructed to change the VPI number and VCI number,

type in the new values. In Australia, most users will use the default values VPI = 8 and

VCI = 35. In New Zealand, most users will use VPI = 0 and VCI = 100. Click Next when you

are ready to proceed to the Setup Completed menu.

Select the Connection Type.

Click the Next button. Skip ahead to the Setup Completed menu below.

If you have been told to change the VPI

or VCI number, Type the new values.
