D-Link DIR-506L Manuel utilisateur

Quick Installation Guide

DIR-506L

Pocket Cloud Router

Version 1.10 | September 05, 2012

Installationsanleitung

Guide D’installation

Guía de Instalación

Guida di Installazione

Installatiehandleiding

Instrukcja Instalacji

Instalační Příručka

Telepítési Segédlet

Installasjonsveiledning

Installationsvejledning

Asennusopas

Installationsguide

Guia de Instalação

Οδηγο Γρηγορη Εγκατασταση

Vodič za Brzu Instalaciju

Kratka Navodila za Uporabo

Ghid de Instalare Rapidă

DIR-506L

ENGLISH

Package Contents

1. The battery must be installed for the device to operate. Slide o

the cover and insert the battery. Make sure the gold contacts align

with the gold terminals. Slide the cover back on.

2. Connect the USB cable to the DIR-506L and then connect to a USB

port on your computer.

Note: Charge the device using the USB cable for at least 4 hours

or until it is fully charged before usage. Alternatively a USB

Mains Charger Adapter can be purchased separately.

LAN

OFF

LAN

OFF

Insert and Charge the Battery

USB Cable (for power and charging battery only)

Rechargeable Battery

Pocket Cloud Router

DIR-506L

ENGLISH

SharePort Mobile - Sharing Made Easy

Stream movies, music, photos, and documents from a USB drive

plugged into the DIR-506L right to your iPhone, iPad, or Android

device, or to a PC; you don’t even need to be connected to the

Internet! SharePort Mobile transforms any USB drive into your own

personal shared le space that you can access with all your devices.

Supported File Formats for iOS and Android:

• Video: .mp4, .mov

• Music: .mp3, .wav

• Image: .bmp, .gif, .jpg, .png

•

Document: .doc, .xls, .ppt, .pdf, .pages, .numbers, .key, .txt, .html, .ref

Download the SharePort Mobile App

Use a barcode scanner app such as Bakodo or RedLaser on your iOS

or Android device to scan the corresponding code for your device

below. If you do not have a scanning app, just search for SharePort

Mobile in the App Store or Google Play. Please make sure you have a

working Internet connection before downloading the app.

DIR-506L

ENGLISH

Plug In a USB Flash Drive and Turn On

the DIR-506L

Insert your USB drive into the USB port on the DIR-506L. Slide the

power switch to the ON position and wait until the power, USB, and

wireless LEDs turn green. Please allow 3-4 minutes for the boot-up

process to complete.

Connect to the DIR-506L Wirelessly

Use the following information to connect to your DIR-506L wirelessly:

• DefaultWiFi SSID: dlink_DIR-506L

• Default Password: 0266000123

LAN

OFF

DIR-506L

ENGLISH

Using The SharePort Mobile App

1. Open the SharePort Mobile app.

2. Make sure the Wireless icon at the

bottom of the screen is blue, then

you’re ready to use SharePort Mobile!

If you set the device password for the DIR-506L, or if you want to use

a specic user account, tap on the gear icon in the top right corner of

the screen to open the settings page, then tap Edit to enter your User

Name and Password. By default, the User Name is admin, and the

Password should be left blank.When you’re nished, tap Done.

Using a PC with SharePort Mobile

Youcan use a PCtoaccessleson a USB drive pluggedintotheDIR-506L

by opening a web browser and going to http://dlinkrouter.local:8181

By default, the User Name is admin, and the Password should be left

blank.When you’re nished, tap Done.

If you want to use a specic user account, enter your User Name and

Password for that account.

DIR-506L

ENGLISH

Getting Connected to the Internet

Whether you’re at home or at a hotel, the Pocket Cloud Router makes

it easy to share your Internet connection with all your devices. Just

plug your modem or Internet connection cable into the Ethernet port

on the Pocket Cloud Router to share your connection wirelessly.

Wireless Router Mode

Share a wired Internet connection

At a café or at the airport, you can share access to a wireless hotspot

with all your friends and devices with the Pocket Cloud Router’sWiFi

Hotspot Mode.The Pocket Cloud Router connects to the hotspot, then

shares access through a private wireless network you control.

WiFi Hotspot Mode

Share a hotspot connection with friends

Hote lHote l

Coffee shop Coffee shopCoffee shopCoffee shop

DIR-506L

ENGLISH

Connection Setup with QRS Mobile

If you wish to useWireless Router Mode, you can congure your

DIR-506L with the handy QRS Mobile app for iOS and Android mobile

devices.

Use a barcode scanner app such as Bakodo or RedLaser on your iOS

or Android device to scan the corresponding code for your device

below. If you do not have a scanning app, just search for QRS Mobile

in the App Store or Google Play. Please make sure you have a working

Internet connection before downloading the app.

After downloading the app, connect to the DIR-506L wirelessly using

the following information:

• DefaultWiFi SSID: dlink_DIR-506L

• Default Password: 0266000123

You can now open the QRS Mobile app and follow the on-screen

instructions to congure your DIR-506L.

DIR-506L

ENGLISH

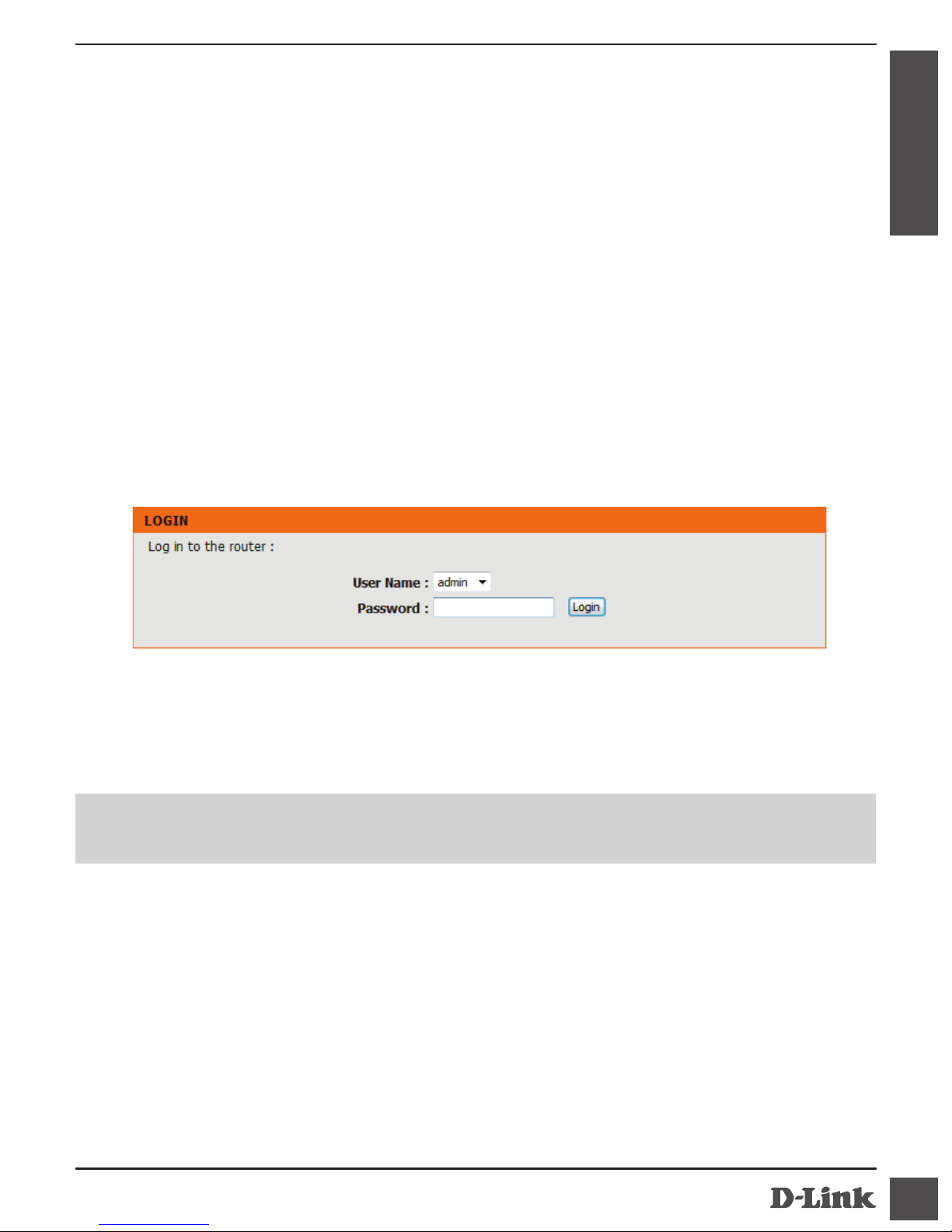

Connection Setup Through a Browser

You can use a web browser on your PC or mobile device to congure

your DIR-506L forWireless Router andWiFi Hotspot mode, as well as

repeater mode and settings.

1. Connect to the DIR-506L wirelessly using the following information:

• DefaultWiFi SSID: dlink_DIR-506L

• Default Password: 0266000123

2. Open a web browser, and go to http://dlinkrouter.local. By

default, the User Name is admin, and the Password should be left

blank.

3. After logging in, click on Setup at the top, then click on Internet

Connection SetupWizard and follow the on-screen instructions.

Technical Support

United Kingdom (Mon-Fri) website: http://www.dlink.co.uk FTP: ftp://ftp.dlink.co.uk

Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)

Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm)

(BT 10ppm, other carriers may vary.)

Ireland (Mon-Fri)

All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)

Phone rates: €0.05ppm peak, €0.045ppm o peak times

DIR-506L

DEUTSCH

Packungsinhalt

1. Die Batterie muss eingelegt werden, damit das Gerät funktioniert.

SchiebenSiedieAbdeckungaufundlegenSiedieBatterieein.Achten

Siedarauf,dassdiegoldenenKontaktmitdengoldenenAnschlüssen

ausgerichtetsind.SchiebenSiedieAbdeckungwiederzu.

2. Schließen Sie das USB-Kabel an den DIR-506L und anschließend

an einen USB-Anschluss am Computer an.

Hinweis: Laden Sie das Gerät vorVerwendung mithilfe des USB-Kabels

mindestens 4 Stunden lang oder bis es vollständig

aufgeladen ist. Als Alternative kann ein USB-Netzadapter/

Ladegerät gesondert erworben werden.

LAN

OFF

LAN

OFF

Batterie einlegen und laden

USB-Kabel (nur für Strom und das Auaden der Batterie)

Auadbare Batterie

Pocket Cloud Router

DIR-506L

DEUTSCH

SharePort Mobile – Freigabe einfach

gemacht

Streamen Sie Filme, Musik, Fotos und Dokumente von einem an den

DIR-506L angeschlossenen USB-Laufwerk direkt auf Ihr iPhone, Ihr iPad

oder Ihr Android-Gerät oder einen PC. Sie müssen dazu nicht einmal

mit dem Internet verbunden sein! SharePort Mobile verwandelt jedes

USB-Laufwerk in Ihren eigenen persönlichen Platz für freigegebene

Dateien, auf die Sie mit allen Ihren Geräten zugreifen können.

Unterstützte Dateiformate für iOS und Android:

• Video: .mp4, .mov

• Musik: .mp3, .wav

• Bild: .bmp, .gif, .jpg, .png

• Dokument: .doc, .xls, .ppt, .pdf, .pages, .numbers, .key, .txt, .html, .ref

SharePort Mobile App herunterladen

Verwenden Sie einen Barcode-Scanner wie Bakodo oder RedLaser auf

Ihrem iOS- oder Android-Gerät, um den entsprechenden Code für Ihr

Gerät unten einzuscannen.Wenn Sie keine Scan-App haben, suchen

Sie einfach nach SharePort Mobile im App Store oder auf Google Play.

Vergewissern Sie sich, dass Sie eine funktionierende Internetverbindung

haben, bevor Sie die App herunterladen.
