D-Link DI-634M Manuel utilisateur

5V DC Power Adapter

speciﬁcations subject to change without notice. DI-634M. 12302004

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with other

computers, you must have either an Ethernet-based Cable or DSL modem with an

established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for conﬁguring

the DI-634M 108G MIMO Wireless Router. The DI-634M acts as a DHCP server and

will assign all the necessary IP address information on your network. See Appendix

at the end of this Quick Installation Guide or the Manual on the CD-ROM for

setting each network adapter to automatically obtain an IP address.

Check Your Package Contents

DI-634M 108G MIMO Wireless Router

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP/Straight Through) Cable

Using a power supply with

a different voltage rating will

damage and void the warranty

of this product.

If any of the above items are missing, please contact your reseller.

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 7.

DI-634M

108G MIMO

Wireless Router

Connecting The DI-634M Wireless

Router To Your Network

First, connect the power adapter to the receptor at the back panel of the

DI-634M and then plug the other end of the power adapter to a wall outlet or power

strip. The Power LED will turn ON to indicate proper operation.

B. 1. Power off your Cable or DSL modem; some devices may not have a on/off

switch and will require you to unplug the power adapter. Now, the DI-634M should

be powered on and the Cable / DSL modem should be turned off.

2. Cable / DSL modem (Power Off) – DI-634M (Power On)

Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL modem.

After the Ethernet cable is securely connected, power on the Cable / DSL modem

by turning on the unit or plugging in the power adapter.

3. Cable / DSL modem (Power On) – DI-634M (Power On)

Insert the other end of the Ethernet cable to the WAN PORT on the back panel of

the DI-634M. The WAN LED light will illuminate to indicate proper connection. If the

WAN LED is not illuminated, please go back to step B1 and repeat the instructions.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-634M and

an available Ethernet port on the network adapter in the computer you will use

to conﬁgure the DI-634M. The LED light for LAN Port 1 will illuminate to indicate

proper connection. (Note: The LAN Ports on the DI-634M are Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover Ethernet cable to the LAN

Ports.)

D. Computers equipped with 802.11g wireless adapters will be able to connect to the

DI-634M. The DWL-G650M 108G MIMO Wireless Cardbus Adapter and the DWL-

G520 AirPlus Xtreme G Wireless PCI Adapter will be able to connect out of the box

with the router using their default wireless settings.

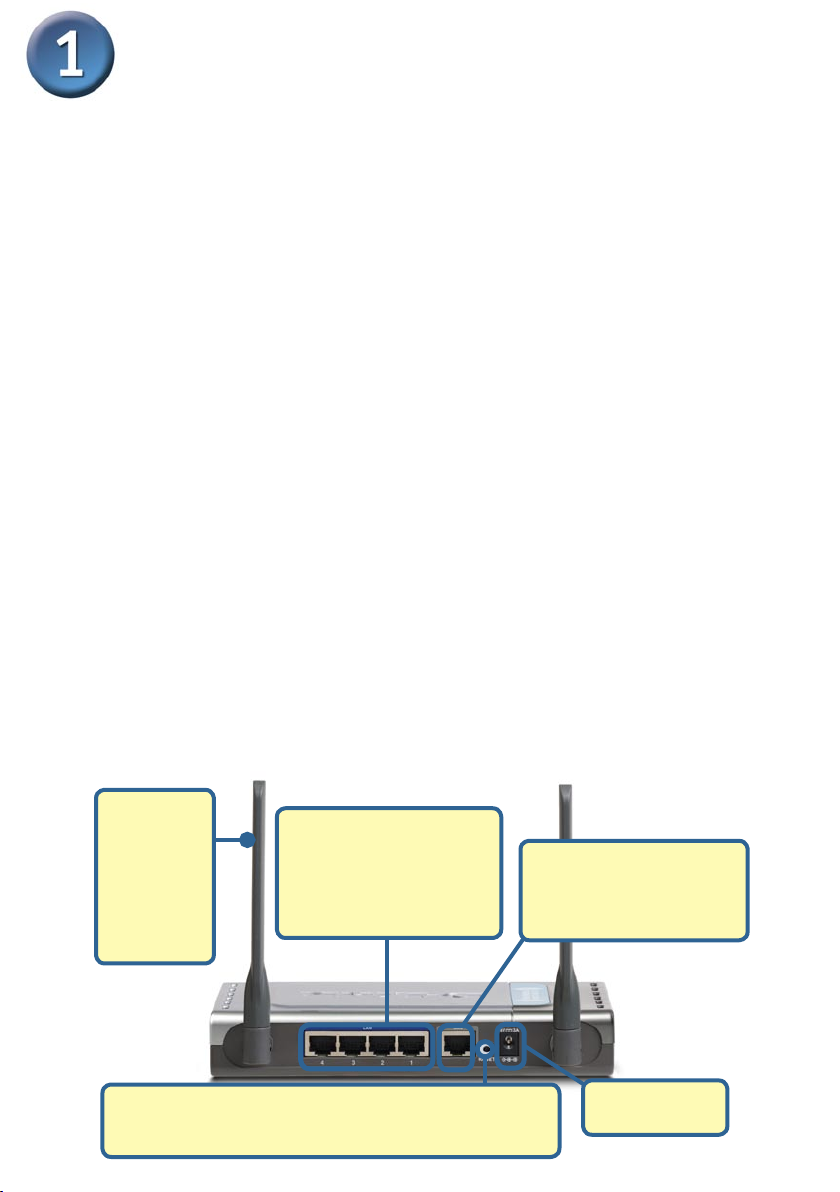

B. WAN PORT

This is for the connection

of an Ethernet cable to the

Cable or DSL modem

D. Antennas

Used to

wirelessly

connect to

802.11g or

802.11b

adapters.

C. LAN PORTS

These are the

connections for Ethernet

cables to Ethernet

enabled computers.

A. Receptor for

Power Adapter.

Reset Button

Pressing this button restores the Router to its original

factory default settings.

Restart Your Computer

Connecting Additional Computers

To The DI-634M

When you have completed the steps in this Quick Installation Guide, your connected

network should look similar to this:

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped computers

to the remaining Ethernet LAN ports on the back panel of the DI-634M.

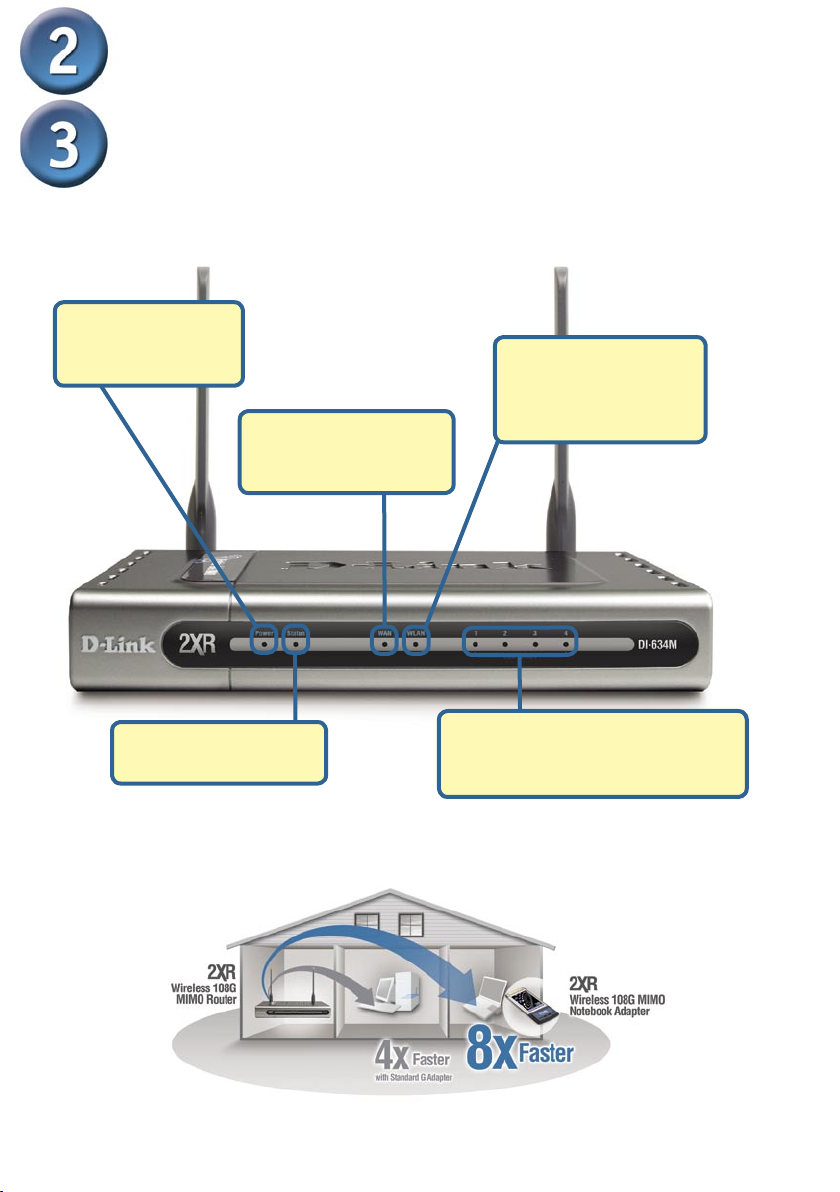

LOCAL NETWORK LEDs – a solid light

on the port indicates a connection to an

Ethernet enabled computer on ports 1-4.

This LED blinks during data transmission.

Power LED – a solid

light indicates a proper

connection to the power

supply.

WLAN LED – a solid light

indicates that the wireless

segment is ready. This LED

blinks during wireless data

transmission.

Status LED – a blinking light

indicates that the DI-624 is

functioning properly.

WAN LED – a solid light

indicates connection on the

WAN port. This LED blinks

during data transmission.

Once you have logged in, the

Home screen will appear.

Using The Setup Wizard

The logon pop-up screen will appear.

Open your Web browser and

type “http://192.168.0.1” into the

URL address box. Then press the

Enter or Return key.

Type “admin” for the username and

leave the password ﬁeld blank.

Click OK

Click Run Wizard

The Setup Wizard (continued)

You will see the following screens

Set up your new password.

You have the option to establish

a password.

Click Next

Choose your time zone from

the drop down list.

Click Next

If you selected Dynamic IP Ad-

dress, this screen will appear:

(Used mainly for Cable Internet

service.)

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network adapt-

er in your computer. You can also

manually type in the MAC address.

The Setup Wizard (continued)

Select your Internet Connection.

You will be prompted to select the

type of Internet connection for your

router.

If you are unsure of which setting

to select, please contact your Internet

Service Provider.

Click Next

This setup should be done on

the computer that is registered

on the ISP’s network.

Please continue to Wireless Setup.

A this point, the setup wizard will try

to auto-detect your Internet connec-

tion type. If you have a Dynamic

or PPPoE connection, you will be

brought to the corresponding page.

Otherwise, you will see the following screen:

The Setup Wizard (continued)

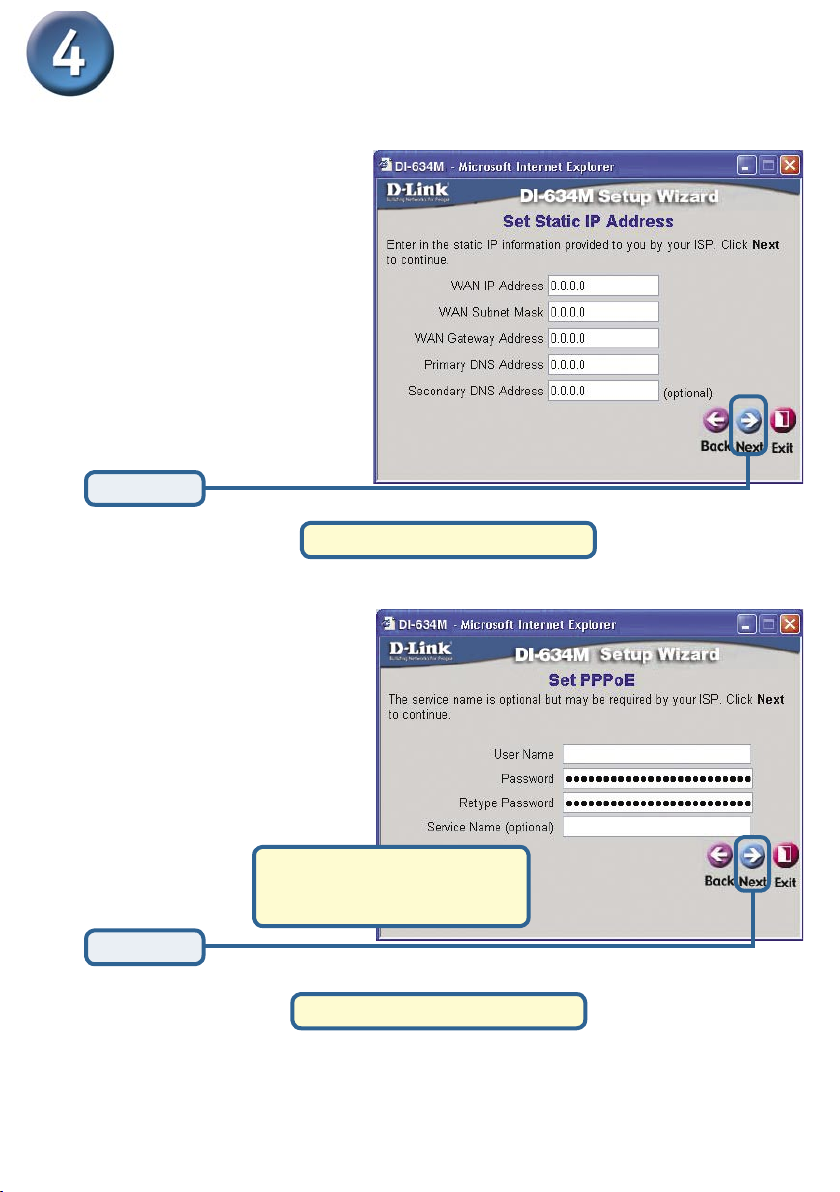

If your ISP requires a Static

IP Address, and this option is

selected, then this screen will

appear:

Enter the IP address information

originally provided to you by your

ISP. You will need to complete all

the required ﬁelds.

Click Next

Please continue to Wireless Setup.

If your ISP uses PPPoE (Point-to-

Point Protocol over Ethernet), and

this option is selected, then this

screen will appear: (Used mainly

for DSL Internet service.)

Please be sure to remove any

existing PPPoE client software

installed on your computers.

Enter in the username and pass-

word provided to you by your ISP.

Click Next

Please continue to Wireless Setup.

If you wish to use encryption for

your 802.11g network, the DI-634M

is capable of two levels of wire-

less encryption - 64-bit and 128-

bit. By default the encryption

is disabled. You can change the

encryption settings for more secure

wireless communication.

The Setup Wizard (continued)

The default wireless settings for

your 802.11g wireless network are:

SSID = default

Channel = 6

You can change these settings to

match an existing wireless network.

Click Next

Wireless Setup

Click Next

Your Setup is Complete!

Click Restart

Click Close

Test Internet Connection

For additional settings or information, refer to the Advanced, Tools, or Status tabs on

the web-management interface; or to the Manual located on the CD.

You will be returned to the Home tab. Close the web browser window and relaunch

your Web browser (i.e., Internet Explorer or Netscape Navigator), to link to your favor-

ite Web site to test your Internet connection.

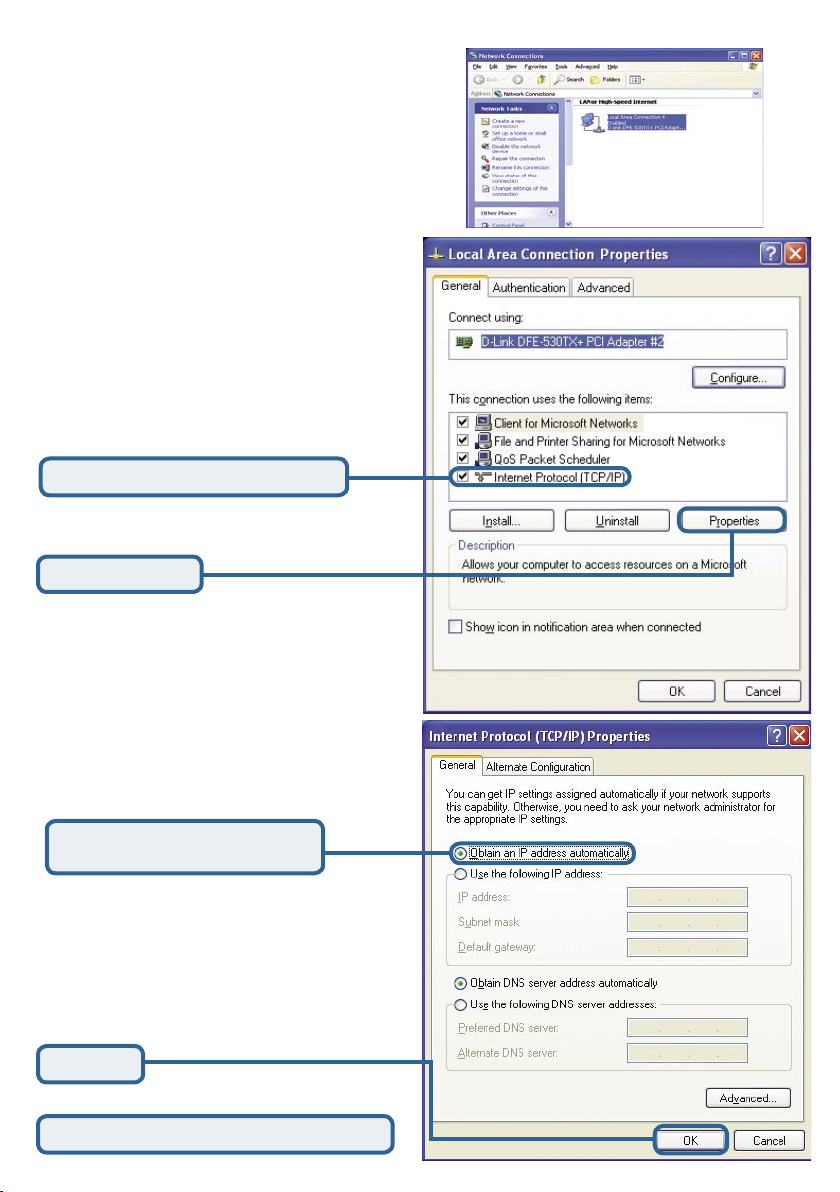

To connect to the network, make sure the

network adapter in your computer is conﬁgured

properly. Here’s how to conﬁgure the network

adapter to obtain an IP address automatically

for the DI-634M Wireless Broadband Router.

APPENDIX (continued)

Restart your computer (if necessary)

Click OK

Select Obtain an IP address

automatically

Click Internet Protocol (TCP/IP)

Click Properties

For Microsoft Windows XP: Go to Start

> right click on My Network Places >

select Properties > Right click on the

Network Connection associated with the

Ethernet adapter and select Properties

(i.e., D-Link DFE-530TX+).
