D-Link DVG-2001S Manuel utilisateur

their respective holders.Software and specifications subject to change without notice.DVG-2001S VoIP

Terminal Adapter

Using a power adapter with

a different voltage rating

will

damageand void the

warranty for this product.

Before YouBegin

1. If you purchasedthis VoIP Terminal Adapterto share your high-speed Internet

connection with other computers, you must have an established Internet account from

an Internet ServiceProvider (ISP).

2. It’s best tousethe samecomputerthat is connected toyour router for configuringthe

DVG-2001S VoIP Terminal Adapter. The DVG-2001S acts as a DHCP server and will

assignallthe necessary IP address informationon your network. See the Quick

Installation Guide or the Manual on the CD-ROMfor setting each network adapter to

automatically obtain an IP address.

Check Your Package Contents

DVG-2001S

VoIP Terminal Adapter

This product can

be set up

using anycurrent web

browser, i.e., Internet

Explorer 6 or Netscape

Navigator 6.2.3.

DVG-2001S

Ethernet Cable

12V,1.2APower

Adapter

CD-ROM

ADSL Cable

If any of the above items is missing,

please contact your reseller

Connecting the VoIP TerminalAdapter to

your Computer

A. First, connect the power adapter to the power input at the back

panel ofthe DVG-2001Sand then plug the other end ofthe

power adapter toa wall outlet or power strip. On the front ofthe

device, the Power LED will turn ON toindicate proper operation.

B. Insert one end ofthe Ethernet cable into theEthernet (LAN) port

on the backpanel ofthe DVG-2001S andtheother end ofthe

cable to an Ethernet Adapter or availableEthernet port on your

computer.

C. Insert a telephone cable into thePhoneport,then connect the

cable to your telephoneline.

D. Checkthe LED displayon the front ofthe Router to confirmthat

the connections have been made.

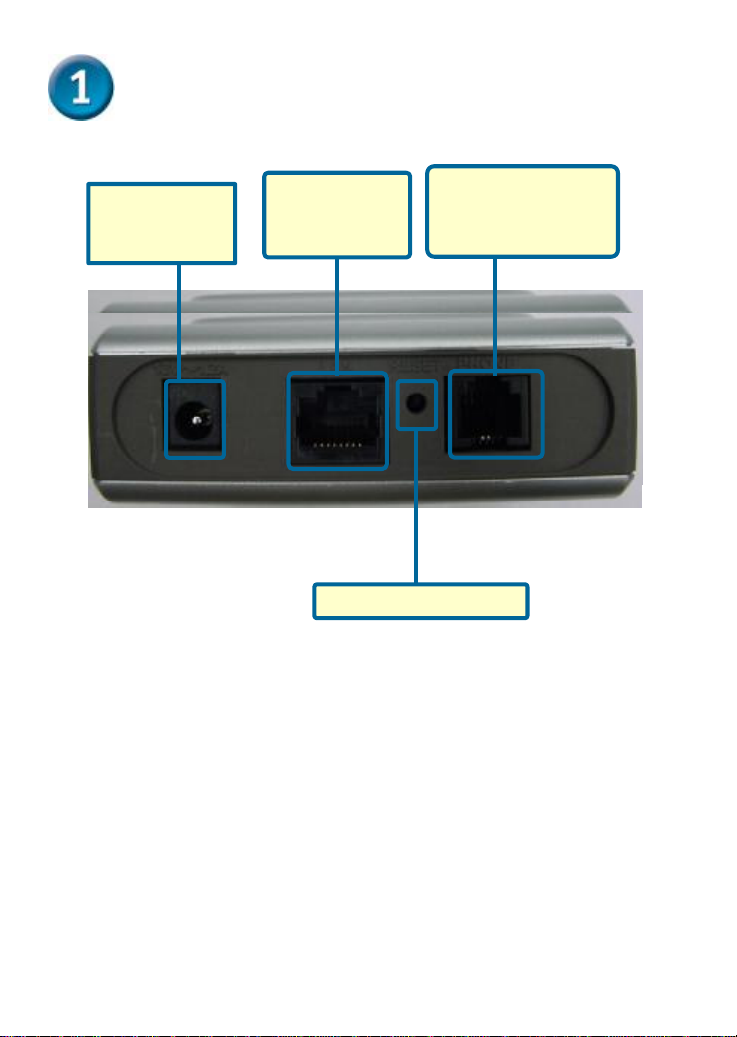

Power I

nput

Connect to AC

Adapter

LAN Ports

Connect to the

LAN and other

computers

Phone Connections

Connect to your phone

using standard phone

cabling

FactoryReset button

Configure IP Settings

For Microsoft Windows XP

To connect to the network, make sure the network adapter in your

computer is configured properly. Here s howto assign a static IP

address to your PC.

Go to

Start

click

Control Panel >

click on the

Network

and Internet

Connections icon

Click

Networkand

Internet Connections

ight

click

the

Local Area

Connection icon,

and thenselect

Properties.

Select Properties

Click

on the

Network

Connections icon

Click

Network

Connections

The dialog box displays alist

ofcurrentlyinstalled network

items.

Click

Internet Protocol

(TCP/IP)

Make the choice to get theIP

settings assigned manually.

Select

Use thefollowing

IP address

Click OK

Using additional Ethernet (CAT5UTP) cables,connect your Ethernet-

equipped computers to the LAN port on the backpanel ofthe

DVG-2001S.

When you have completedthe steps in this Quick Installation Guide,

your connected networkshould looksimilar to this:

Connecting Additional Computers

to theDVG-2001S VoIPTerminal

Adapter

Initial Web Configuration

Open your Webbrowser and

type http://10.1.1.1 intothe

URL address box. PressEnter or

Return.

The login dialogbox

appears:

When you first log in, the

User name is admin and

the Password is also

admin. Thesemay be

changed later.

Click OK.

The Home window appears:

Clicking a hyperlinkon themenu on the upper left sideofthe window

brings up a detailedconfiguration window.

Click Run Wizard.

Configuring the WAN (Internet)

Connection

Click Run Wizard on the menu above to viewthe following Wizard

window:

Click the Next button.

Enter a newpassword for the DVG-2001S in the Password

field.

Confirm the newpassword byentering it again into the

VerifyPassword field.

Click the Next button to continue.

Click the Next button.

The windowabove allowsyou to select between the three

most common ways to connect to your ISP’s WAN(Internet).

Select Dynamic IP Address if your ISP automatically

assigns you an IP address. This is the most common wayof

connecting the DVG-2001S to another modem, such asa

Cable modem.

Select Static IP Address ifyour ISP provided you with IP

address information that will not change.

Select PPPoE ifyour ISP uses the Point-to-Point over

Ethernet (PPPoE) protocol to make the connection. This is

the most common connection type for DSL users.

Click the Next button to continue.

Click the Next button.
