D-Link DFE-690TXD Manuel utilisateur
-1-
This Installation Guide includes instructions for:
Windows XP
Windows 2000
Windows Me
Windows 98/98se
Macintosh OS 8/9
Installation Guide Contents:
Section 1: Pre-Installing the Windows XP, 2000, Me and 98/98se Driver
Section 2: Pre-Installing the Macintosh OS 8/9 Driver
Section 3: Finishing Insert the DFE-690TXD into your Laptop
Section 4: Finishing the Windows Installation
Section 5: Finishing the Macintosh Installation
Section 6: Technical Support
Package Contents:
Verify that your D-Link DFE-690TXD package contains the following items. If
any items are missing, please contact your reseller.
D-Link DFE-690TXD
Drivers on CD-ROM
Manual on CD-ROM
! For Windows XP/2000/Me/98: Run the Install CD
BEFORE installing the DFE-690TXD into your laptop.
Macintosh users: Proceed to Section 2: Pre-Installing the
Macintosh OS 8/9 Driver
D-Link DFE-690TXD
32-bit Fast Ethernet Adapter
Installation Guide
-2-
Pre-Installing the Windows XP, 2000, Me
and 98/98se Driver
Macintosh users: Proceed to Section 2: Pre-
Installing the Macintosh OS 8/9 Driver
With your computer ON, insert the Driver CD of the DFE-690TXD into
your CD-ROM Drive.
The Autorun Screen will appear as
shown here.
Select “Install Drivers” to pre-
install the drivers onto your
computer.
After a few moments, the “Install Finish” screen
will appear. Select “OK”.
Select “Yes,” if you are prompted to restart your computer. Restart the
computer manually if the prompt does not occur. (Go to Start > Shut
down > Restart.)
Windows XP/2000/Me/98 users: Continue to Section 3.
Macintosh users: Continue to Section 2.
-3-
Double-
Click
Pre-Installing the Macintosh OS 8/9 Driver
Insert the Driver CD into your CD-ROM drive.
When the CD-ROM icon appears on the Desktop, double-click it to
open the contents of the CD.

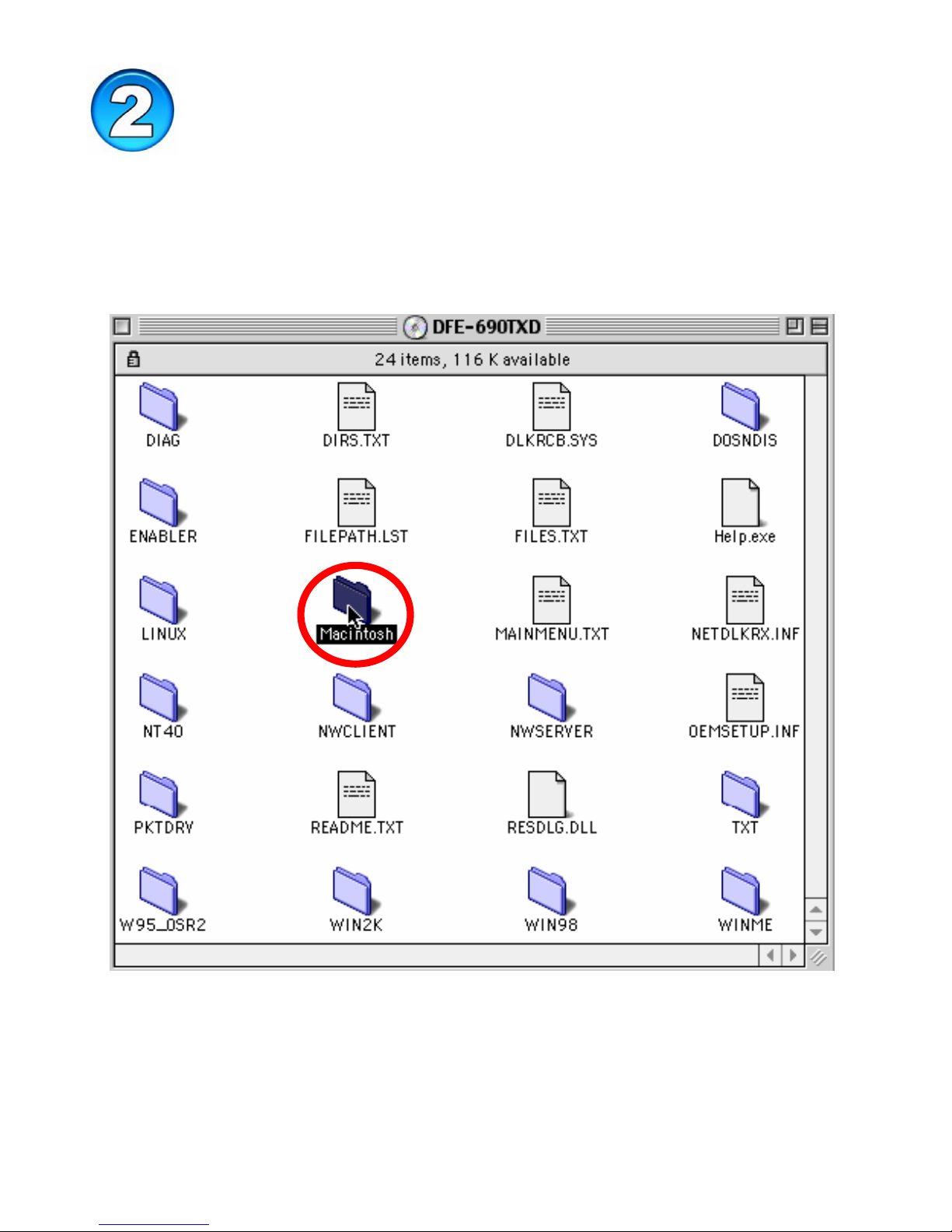

The window below will appear. Double-click the Macintosh folder.
-4-
Drag & Drop the “DFE-690TXD Driver for Mac OS” driver onto your
Desktop and double-click the copied folder.
Double-click the “Installer” icon to begin the installation.
Click the “Install” button to install the driver.
Click “OK” to restart your computer.
Proceed to Section 3.
-5-
You must first install the drivers as explained in Section 1 (for Windows
users), or Section2 (for Macintosh users). If you have not done this and
you have inserted the DFE-690TXD into the Cardbus slot, you will need
to cancel the New Hardware Wizard (for Windows users), and start over
at the beginning of this installation guide (for Windows or Macintosh).
Insert the DFE-690TXD into your Laptop
This section refers to all users, regardless of
which operating system you use.
Insert the DFE-690TXD into the Cardbus slot of your laptop.
Gently insert the front end of the DFE-690TXD into the Cardbus slot on
your laptop until it is firmly seated. Make sure that the card is face-up, as
shown. Do not force the insertion.
Connect an Ethernet Cable (CAT5) from a switch or hub to the DFE-
690TXD.
Windows users: Continue to Section 4.
Macintosh users: Continue to Section 5.
PC Card Slot
-6-
Finishing the Windows Installation
To complete the installation of the DFE-690TXD:
Make sure that the DFE-690TXD CD-ROM is inserted in the CD-ROM
drive
The DFE-690TXD is inserted into your laptop
The laptop is turned ON
See the section below that corresponds to your Operating System to
complete the installation:
Windows XP Users
Windows XP completes the installation of the DFE-690TXD
automatically. A “Found
New Hardware” message
will appear in the task bar
to indicate that the
installation is complete.
Windows 2000 Users
Windows 2000 completes the installation of the DFE-690TXD
automatically. When the “hour glass” disappears, the installation is
complete.
Windows Me & 98/98se Users
Windows Me & 98/98se installs the drivers automatically.
If a “Version Conflict” screen appears, select “Yes” to use the newer file
and continue.
A screen will appear asking you to restart your computer. Select “Yes” to
restart your computer and complete the installation.
-7-
Finishing the Macintosh Installation
After the Macintosh restarts, the driver will be installed. To check that
the driver was installed correctly, open the Apple Menu, choose
“Control Panel” and then choose “Extensions Manager”. When it
opens, you will see an “Extensions Manager” heading. Scroll down to the
“Extensions” heading and look for an extension labeled “DFE-690”.
Make sure that the On/Off box to the left of the driver is checked to
enable the DFE-690TXD.
You must now configure the network adapter in order to access the
network. From the Desktop, open the Apple Menu, choose Control
Panel and click TCP/IP.
Click the “Connect via” list box arrow and select “Ethernet slot D-
Link”. Do not choose “DFE-690 Ethernet”.
Next, click on the “Configure” list box. Choose “Manual” (For Static
Addressing, you set the IP address manually) or “Using DHCP Server”
(for Dynamic Addressing, your computer receives an IP address from the
server). If you choose “Manual”, please specify the IP address in the box
provided.
-8-
Choose “Quit” from the File Menu. When prompted to save the new
settings, Click “Save.”
Restart your Macintosh one more time for your changes to take effect.
Your adapter is now ready to network with other computers.
-9-
-10-
Technical Support
You can find software updates and user documentation on the D-Link websites.
D-Link provides free technical support for customers within Canada,
the United Kingdom, and Ireland.
Customers can contact D-Link technical support through our websites,
or by phone.
For Customers within
The United Kingdom & Ireland:
D-Link UK & Ireland Technical Support over the Telephone:
08456 12 0003 (United Kingdom)
+44 8456 12 0003 (Ireland)
Monday to Friday 8:00 am to 10:00 pm GMT
Sat & Sun 10.00 am to 7.00 pm GMT
D-Link UK & Ireland Technical Support over the Internet:
http://www.dlink.co.uk
ftp://ftp.dlink.co.uk
For Customers within Canada:
D-Link Canada Technical Support over the Telephone:
1-800-361-5265 (Canada)
Monday to Friday 7:30 am to 12:00 am EST
D-Link Canada Technical Support over the Internet:
http://support.dlink.ca
email: support@dlink.ca
