D-Link DHP-601AV Manuel utilisateur
DHP-601AV
User Manual
PowerLine AV2 600 Gigabit Starter Kit
Version 1.0 | 07/17/2013
2D-Link DHP-601AV User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 July 17, 2013 • Initial release for hardware A1
Preface
3D-Link DHP-601AV User Manual
Table of Contents
Preface................................................................................ 2
Manual Revisions.......................................................................... 2
Trademarks ..................................................................................... 2
Product Overview.............................................................. 4
Package Contents......................................................................... 4
Minimum Requirements............................................................ 4
Introduction ................................................................................... 5
Features............................................................................................ 5
Hardware Overview..................................................................... 6
LEDs........................................................................................... 6
Connection ............................................................................. 7
Hardware Installation ....................................................... 8
Push Button Security.................................................................11
PowerLine Installation Considerations ...............................13
Safety ..............................................................................................14
Troubleshooting ..............................................................15
Technical Specications ..................................................16
Contacting Technical Support ........................................17
Warranty...........................................................................18
Registration .....................................................................23
Table of Contents
4D-Link DHP-601AV User Manual
Section 1 - Product Overview
Two PowerLine AV2 600 Gigabit Adapters (DHP-600AV)
Two Ethernet Cables
Quick Install Guide
If any of the above items are missing, please contact your reseller.
Minimum Requirements
Product Overview
Package Contents
Network Requirements
• Windows® 7, Vista® or XP (with Service Pack 3)
• Ethernet Network Interface (10/100/1000 Mbps)
• PC with 1.5GHz Processor
• Router with Internet Connection
• An available electrical outlet
5D-Link DHP-601AV User Manual
Section 1 - Product Overview
Features
• Transforms Your Home’s Electrical Wiring into a Home Network Using Existing Power Outlets
• Fast Data Transfer Rate of Up to 600Mbps*
• One Gigabit Ethernet Port
• Plug & Play, Easy Installation
• Push Button Security
Note: Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition
and conguration, may aect the performance of this product. Additional D-Link PowerLine AV series products are required to add new devices to the
network. A minimum of two D-Link PowerLine AV series products are required to create a network. Connecting this product to a power strip with a surge
protector may adversely aect the performance of this product. For best results, plug the adapter directly into a wall outlet.
* Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of trac
and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect
the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other PowerLine devices that
do not follow the HomePlug AV standard.
Introduction
The DHP-601AV is D-Link’s PowerLine AV2 600 Gigabit Starter Kit. It contains two DHP-600AV adapters.The DHP-600AV is a fast, 600Mbps* PowerLine
AV2 600 Gigabit Adapter, which allows you to connect your home computers, networking devices, and video game consoles using the most pervasive
medium in your home - the existing electrical wiring.
6D-Link DHP-601AV User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1Power LED
• Solid Green: The device is receiving electrical power.
• Blinking Green (1time/1 second): The Simple Connect button was pressed.
• Blinking Green (1 time/2 seconds): The device is in Power Saving Mode
• O: The device is not receiving electrical power.
2PowerLine LED
• Solid: The device is connected to a PowerLine network.
• O: The link is not established with another PowerLine device.
The color indicates the PowerLine link rate:
• Green: The PowerLine link rate is best.
• Amber: The PowerLine link rate is better.
• Red: The PowerLine link rate is good.
3Ethernet LED • Solid Green: The Ethernet port is linked.
• O: There is no Ethernet connection.
112
3
7D-Link DHP-601AV User Manual
Section 1 - Product Overview
Hardware Overview

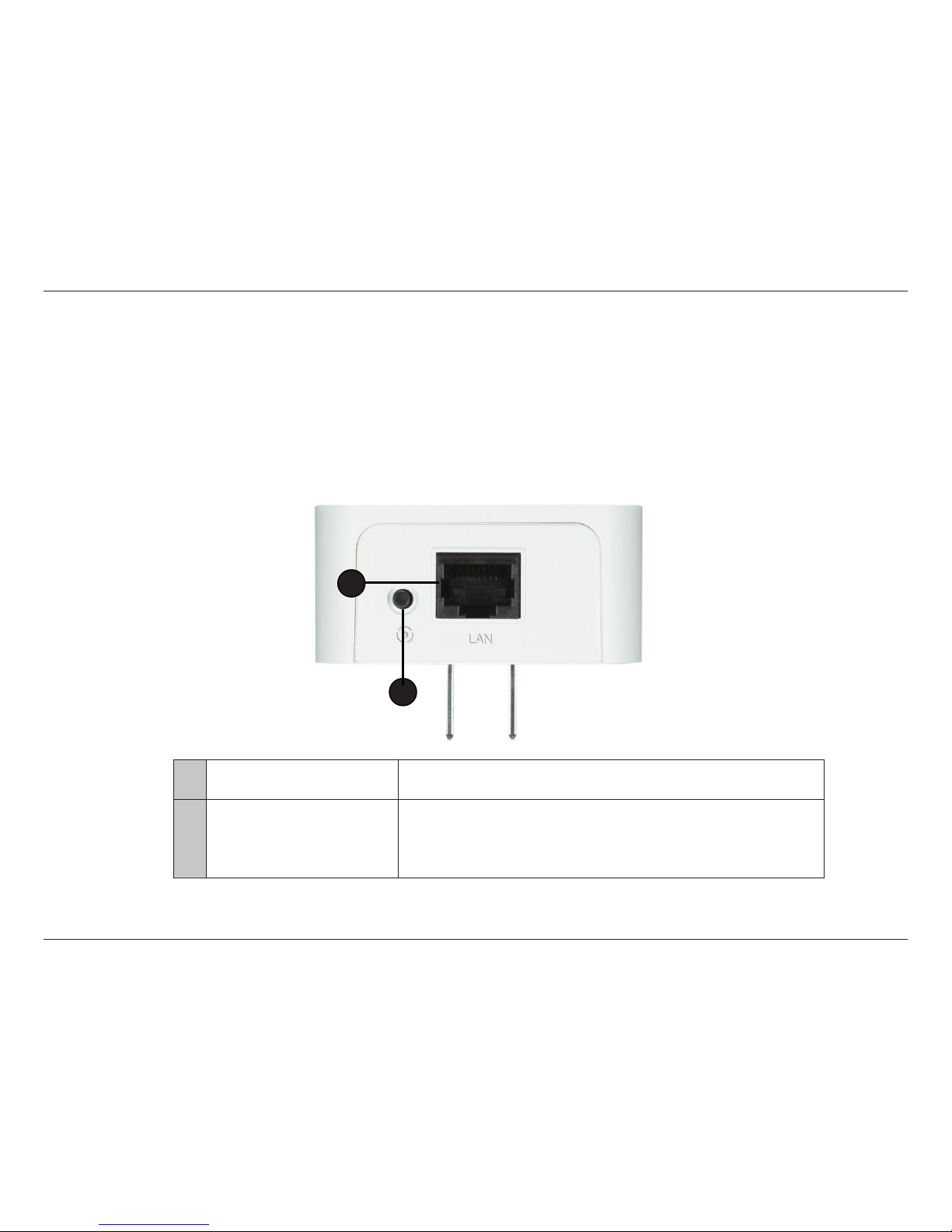

Connection
1Gigabit Ethernet Port Connect to an Ethernet device such as a router, computer, video game
console, network storage device, or a media player.
2Simple Connect Button/Reset
Button
Press and hold the button for two seconds to secure your network.
(Refer to “Push Button Security” on page 11 for more information.)
Hold the button for 10 seconds to reset the device back to the factory
default settings.
2
1
8D-Link DHP-601AV User Manual
Section 2 - Hardware Installation
Hardware Installation
Installation
1. Plug in one of the DHP-600AV adapters and connect to your router with an Ethernet cable. The Power and Ethernet LEDs should both light up.
Recommendations
• For best results, use in a regular wall outlet without any other devices plugged in. Connecting this product to a power strip or a surge protector
may adversely aect the performance of this device.
• Avoid using the PowerLine adapters in an electrical outlet that is located near an appliance that uses a lot of power such as a washer, dryer,
refrigerator, microwave, hair dryer, or air conditioning unit.
• If you are having connection problems, plug in both adapters within the same room to determine whether your home’s electrical wiring is
contributing to the issue. The adapters’ PowerLine LED indicators will illuminate if the connection is established. Once congured, you may
move an adapter to another location.
5V
2.5A
USB
WPS
1
2
3
4
INTERNET
POWER
DHP-600AV
Router
Internet
DHP-600AV
9D-Link DHP-601AV User Manual
Section 2 - Hardware Installation
2. Plug in the other DHP-600AV adapter in the room that you want to extend your network to. The Power LED will light up.
DHP-600AV
3. Verify that the PowerLine LEDs on both adapters are lit. If they are, the adapters are connected. If not, try another wall outlet (closer to the other
PowerLine adapter).
DHP-600AV DHP-600AV
4. To secure your network, press the Simple Connect button for two seconds on one of the adapters. The Power LED will start to blink. Then, within two
minutes, press the Simple Connect button on the other adapter for two seconds. Once the Power LEDs stop blinking, verify that the PowerLine LEDs on
both adapters are lit (as in Step 3). This indicates that your adapters are properly connected to each other.
DHP-600AV DHP-600AV
DHP-600AV DHP-600AV
Simple Connect ButtonSimple Connect Button
10D-Link DHP-601AV User Manual
Section 2 - Hardware Installation
5. You may now connect another device to the DHP-600AV adapter, using an Ethernet cable. Verify that the Ethernet LED is lit. Your hardware
installation is complete.
Power Saving Mode
The DHP-600AV will automatically go into Power Saving Mode when there is no activity for ve minutes. The Power LED will blink intermittently
while the device is in Power Saving Mode.
Note: D-Link PowerLine devices can not be congured while in Power Saving Mode.
