CYP CP-302M Manuel utilisateur

HDMI Scaler and Format

Converter - ID# 976

Operation Manual

Introduction

The HDMI to HDMI Scaler is designed to scale HDMI source signal to HDMI signal. The

device is HDMI & DVI 1.0 compliant and it features many great functions such li e

motion adaptive 3-D de-interlacing, 3D noise reduction, frame rate conversion,

adaptive contrast enhancement… and etc. Further, a simplify OSD function is

available allowing user with easy viewing on the displaying status.

Applications

●PC timing converted into HD timing

●HD timing converted into PC timing

System

Requirements

Input source equipment such as PC/laptop or Blu-ray player and output to HDTV or HD

monitor with HDMI connection cables.

Features

●HDMI, HDCP1.1 and DVI1.0 compliant

●Upscale video signal from HDMI source up to 1080p@50/60

●Accepts a wide range of input resolutions from 480i ~ 1080p and PC from VGA ~

WUXGA

●Supports audio sampling rate up to 192 Hz

●Motion adaptive 3-D deinterlacing algorithm

●3-D noise reduction in both temporal and spatial domain

●Frame rate conversion

●Adaptive contrast enhancement

Operation Controls

and Functions

Front Panel

1. HDMI In

This slot is where you plug in your input source device such as PC/laptop or Blu-ray

player with an HDMI cable.

2. DC 5V

This slot is where you plug the 5V DC power supply included in the pac age into the

unit and connect the adaptor to an AC outlet.

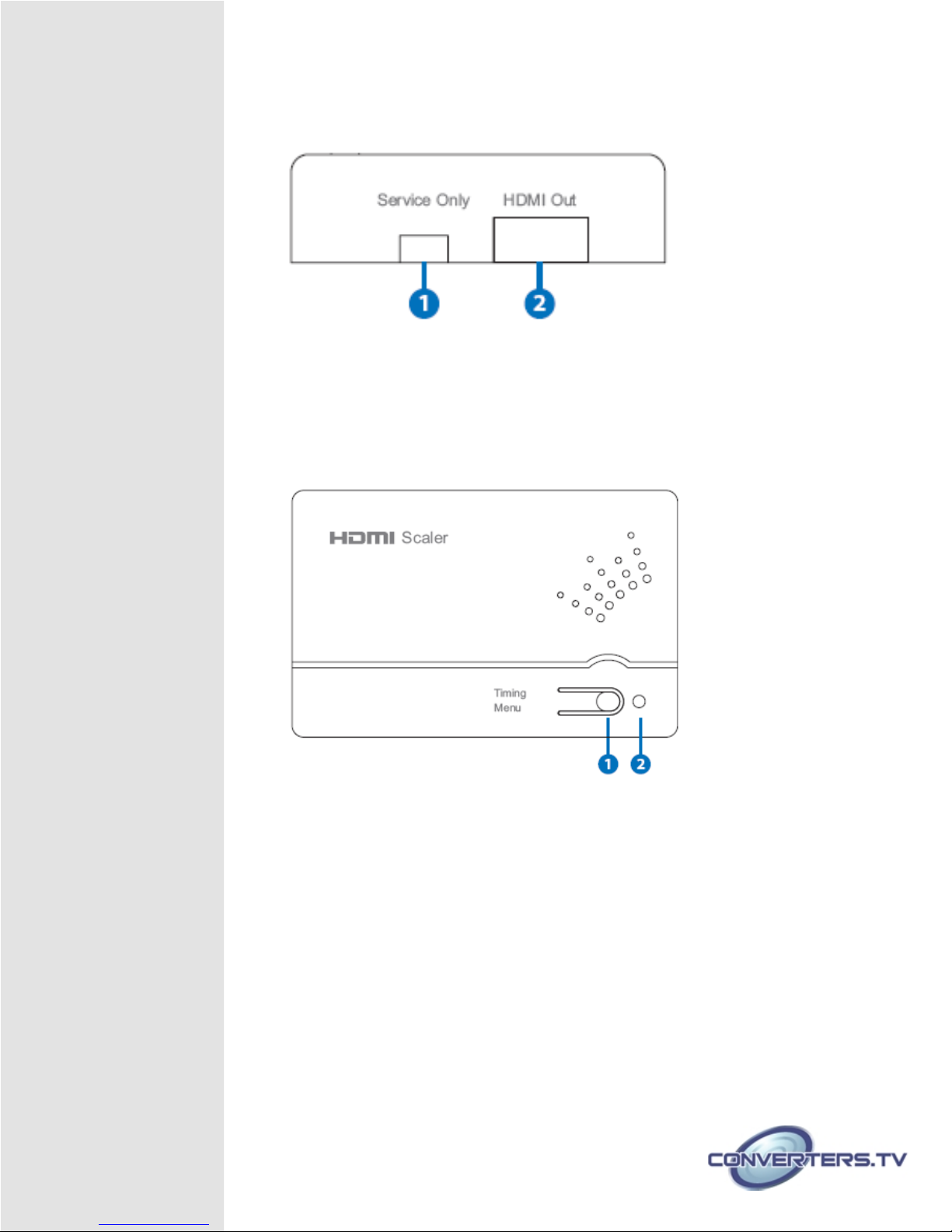

Rear Panel

1. Service Only

This slot is specifically made for factory usage. It does not support any signal

transmission or power supply.

2. HDMI Out

This slot is to connect to an HD TV/display with a HDMI cable for displaying your

sources content.

Top Panel

1. Timing button

Press this button once to show the OSD menu and while OSD is still on press it again

to select the output resolution leave it for 3 seconds and output will switch to the

selected timing accordingly. Press and hold for 5 seconds the LED will blin twice and

switch output timing to 720p@60

2. Power ED

This LED will illuminate when the device is connected with power supply.

OSD Menu

1. Current input output timing

2. Output timing selection.

3. Select output display's native resolution. The device will read native 1's EDID first and

then native 2, if both native timings are not supported the device will output 720p@60.

4. Display both source and sin 's information and the device's firmware version.

Connection

Specifications

Ma imum Pi el Rate 165MHz

Input Ports 1 x HDMI, 1 x USB (for serv ce only)

Output Ports 1 x HDMI

Audio Sampling Rate 44.1, 48, 96,192kHz

HDMI Cable In 1080p 8-b t/ 15M

HDMI Cable Out 1080p 8-b t/ 15M

ESD Protection Human body model:

± 8 kV (A r-gap d scharge)

±4 kV (Contact d scharge)

Power Supply 5V/1A l near power adaptor (US/EU

standards, CE/FCC/UL cert f ed)Or

5V/ 1.2A sw tch ng power adaptor (w th

un versal plug, CE/FCC/UL cert f ed)

Dimensions 63.5mm(W) × 99.5mm(D) × 25mm(H)

Weight 120 g

Chassis Material Plast c

Silkscreen Colour Wh te

Operating Temperature 0 ˚C~40 ˚C / 32 ˚F~104 ˚F

Storage Temperature −20 ˚C~60 ˚C / −4 ˚F~140 ˚F

Relative Humidity 20~90 % RH (non-condens ng)

Power Consumption 5.5 W

* Cable tested w th 24AWG cable, us ng cables of another type may result n a

d fferent operat ng d stance.

* F gures prov ded n th s manual are reference f gures only, actual

f gures may depend on source and d splay use w th cable.
