CYP CP-251F Manuel utilisateur

PC/HDTV to PC/HDTV converter

(CP-251F)

Operation Manual

Please browse our online catalogue to view our full product range.

44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]

Phone +61 249689313 Fax +61 249689314

www.converters.tv

Introduction

This unit combines the functions of a video-scaler, scan-converter, and format

transformer into a compact and durable metal housing with easy-to-use touch buttons.

Precaution

1. Do not expose this product to direct sunlight.

2. Keep the unit away from radiator, heat sources and magnetic field.

3. Do not place it in very dusty or humid locations.

4. Use this unit in a horizontal position only.

5. Do not put heavy objects on top of the converter.

6. Put the unit in an open space that has good ventilation.

7. If the unit is acting abnormally keep the unit away from TV or other electronic

equipment.

8. Unplug the unit from the power supply when it is not to be used for a long period

of time.

Feature

•The unit is not only is a video scaler it is also a scan converter and a format

transformer.

•The resolution of any PC or HDTV inputs can be scaled up or scaled down to any

other PC or HDTV resolution, along with its frame rate converted to a selectable

frequency.

•48 MB frame memory for frame rate conversion.

•Signal format conversion between RGBHV and YPbPr.

•Input: PC (VGA/SVGA/XGA/SXGA), HDTV

(480i/576i/480p/567p/720p/1080i), FH: 60 to 85 Hz

•Output: PC (VGA/SVGA/XGA/SXGA), HDTV (480p/576p/720p)

•Input mode auto detection.

•Input Setup allows for fine-tuning the output picture to a best condition through

the adjustment of ADC sampling clock, and phase.

•Easy to use push buttons and OSD menu control.

Please browse our online catalogue to view our full product range.

44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]

Phone +61 249689313 Fax +61 249689314

www.converters.tv

Operation Control and Function

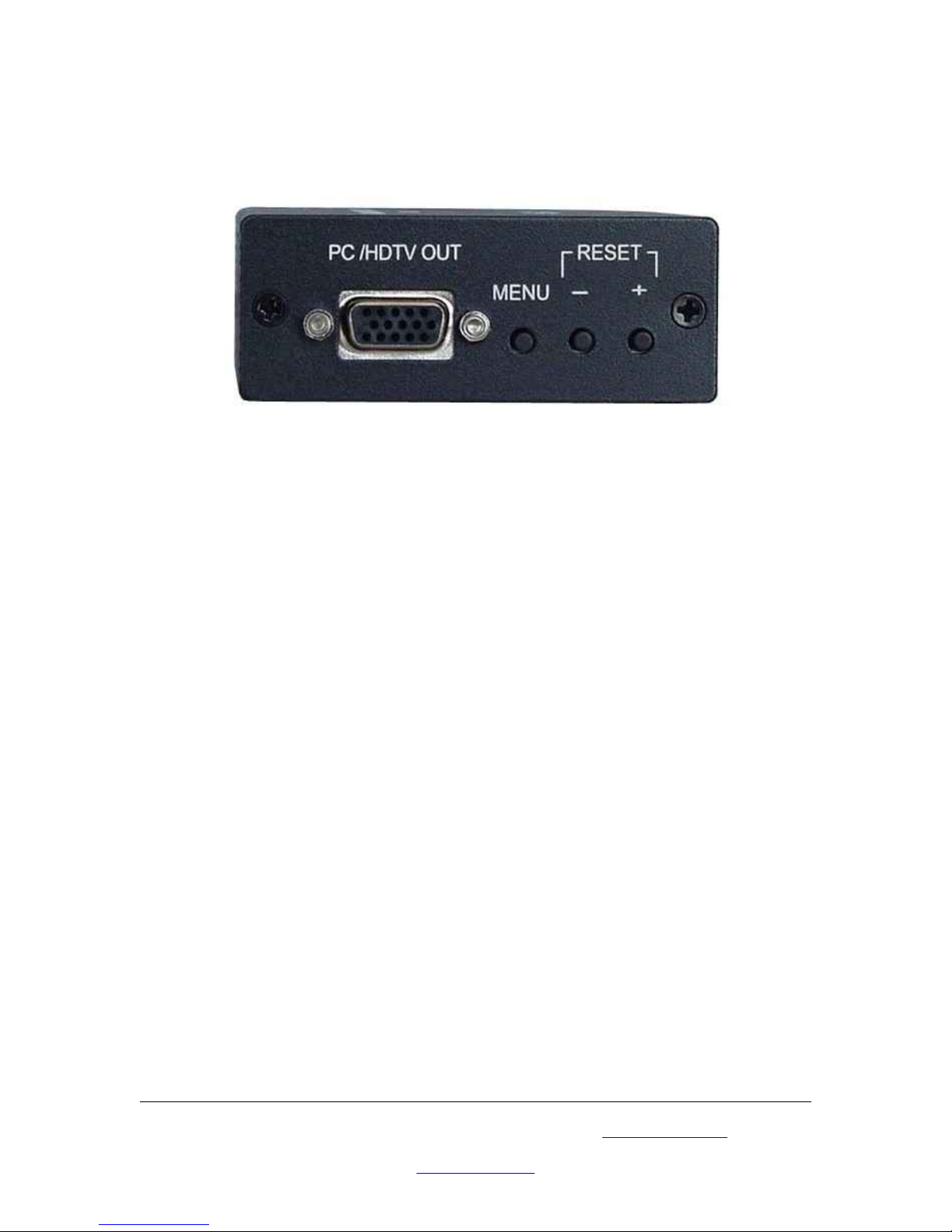

Front Panel

1. Re et/ – and +- The – and + keys are used to adjust the selected parameter values.

Pressing + and – simultaneously resets the settings to the factory default values.

2. PC/HDTV Out- This is the PC/HDTV Output port

3. Menu (Enter)- The menu button brings up the OSD menu controls:

- Input etup

- Output etup

- Picture adju t

- HV adju t

- OSD Adju t

- Sy tem Information

- Auto Adju t

- Exit

Use + or – to move the arrow cursor to your desired selection, then press Menu

(Enter) to confirm your selection and enter into sub menu.

•Input etup- hen it is selected, a sub-menu of clock and phase adjust will appear.

Use + or – to choose the parameter you want to adjust and then press the menu (enter)

button to highlight your selection. Once a parameter is highlighted, use + and – to

increase or decrease the value of the setting.

Press Menu again to leave the setting. Move the arrow to exit then press Menu/Enter

to exit.

•Output Setup- hen it is selected use the + and – buttons to choose your desired PC

or HDTV output (choose desired output resolution).

•Picture Adju tment- hen it is selected the following appear:

- Contrast- use the + and – buttons to adjust the picture contrast level.

- Bright- Use the + and – buttons to adjust the picture brightness level.

- Colour- Use the + and – buttons to adjust the level of colour saturation.

Please browse our online catalogue to view our full product range.

44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]

Phone +61 249689313 Fax +61 249689314

www.converters.tv

- Red- Use the + and – buttons to enhance or decrease the level of red colour.

- Green- Use the + and – buttons to enhance or decrease the level of green colour.

- Blue- Use the + and – buttons to enhance or decrease the level of blue colour.

- Reset- Press this button to reset all adjustments back to factory-preset values.

-Exit- Press this button to exit this sub-menu.

•HV Adju t- hen this sub-menu is selected, H-position and V-position appear on

the screen. Use the + and – buttons to adjust the best horizontal and vertical position

of the OSD menu.

•Sy tem Information- hen it is selected, it shows the input/output resolution and

their vertical refresh rate on the screen.

•Auto Adju t- hen it is selected the unit will automatically adjust all the parameters

to the factory-preset values.

•Exit- Select to exit from the current menu page.

NOTE- The default output re olution i XGA @ 60 Hz. The unit ha la t memory

capability, thu can memorize all cu tomer ’ etting before power off and recall

tho e etting on the next power on.

At any time of u ing the unit pre + and – imultaneou ly and it will re et the

output re olution to XGA @ 60 Hz, and other etting to their factory default value.

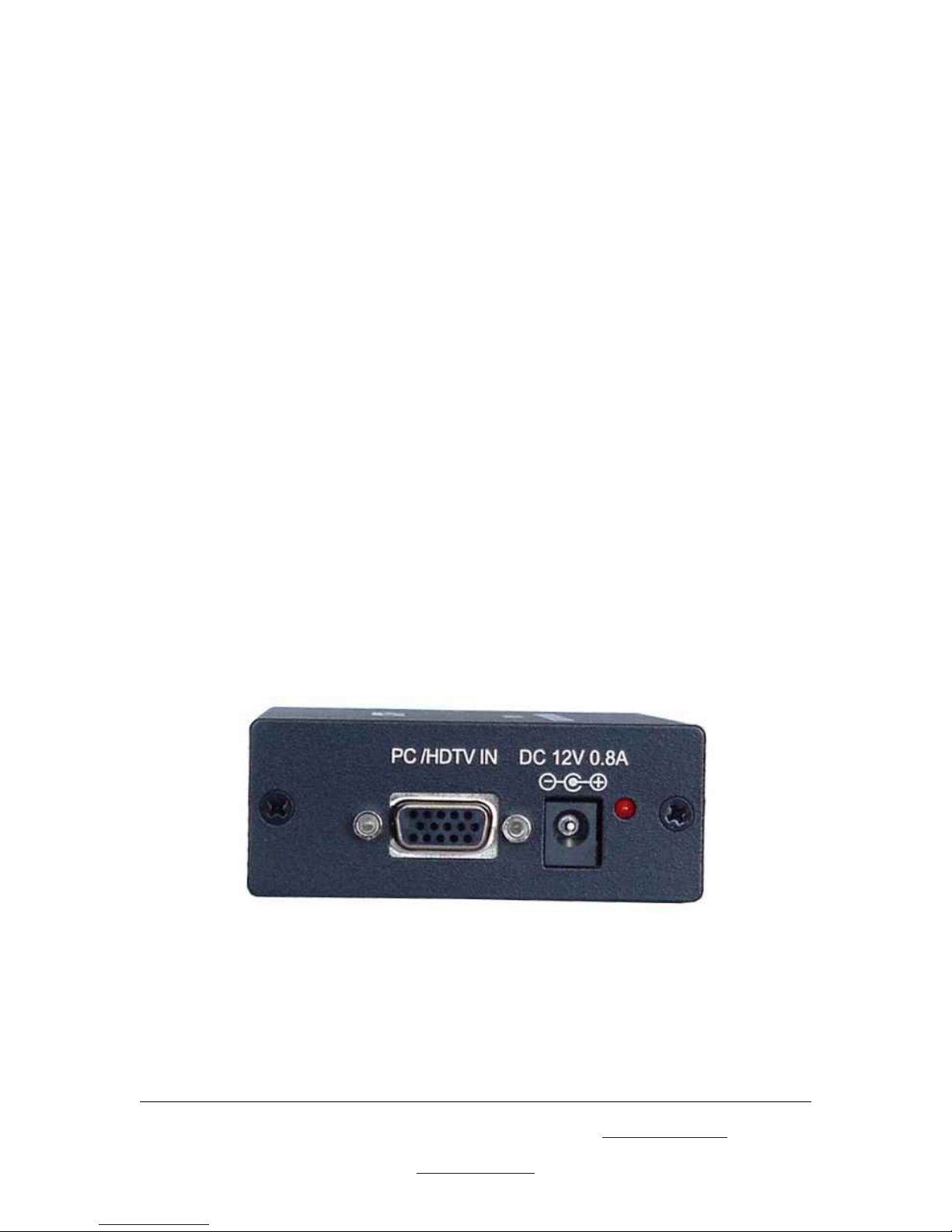

Rear Panel

1. DC 12V 0.8A- This is the power supply input port.

2. PC/HDTV In- This is the PC/HDTV input port.

Please browse our online catalogue to view our full product range.

44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]

Phone +61 249689313 Fax +61 249689314

www.converters.tv

Connection and In tallation

-hen accepting a PC input use the 15-pin D-Sub cable to connect the output of a PC

device to the input connector (Number 2 on rear panel).

-hen accepting a HDTV input use the 15-pin D-Sub to YPbPr/3 RCA cable to

connect the YPbPr/Output (or YCbCr) of a HDTV device to the PC/HDTV input

connector (Number 2 on the rear panel).

-The unit can automatically detect the mode and resolution of the PC/HDTV input.

-hen one of the PC resolutions is selected as output, use the 15-pin D-Sub VGA

cable to connect the PC/HDTV output (Number 2 on the front panel) to the VGA

input of a display monitor.

-hen one of the HDTV resolutions is selected as output, the 15-pin D-Sub to

YPbPr/3 RCA adapter cable to connect the PC/HDTV output (Number 2 on the front

panel) to the YPbPr input of a HDTV device.

Once all connections are complete please connect the power supply provided to the

power socket.

Specification

Input Format RGBHV, YPbPr, YCbCr

Input Signal Level RGB @ 0.7Vp-p, 75 ohm. H & V Sync @

3-5Vp-p, TTL Y @ 1Vp-p, 75 ohm. Pb,

Cb, Pr, Cr @ 0.7 Vp-p, 75 ohm.

Output Format RGBHV, YPbPr

Output Signal Level RGB @ 0.7Vp-p, 75 ohm. H & V Sync @

3-5Vp-p, TTL Y @ 1Vp-p, 75 ohm. Pb,

Pr, @ 0.7 Vp-p, 75 ohm.

Input/Output connector type HD 15 Female

Control Front Panel Buttons

Information Di play On Screen Display

Video Adju tment Brightness, Contrast, Colour, R-G-B levels

Weight 280 grams

Dimen ion 30 x 75 x 140 mm

Power Source DC 12V 800mA Center positive

Please browse our online catalogue to view our full product range.

44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]

Phone +61 249689313 Fax +61 249689314

www.converters.tv

Output Signal Specification

PC Re olution Vert Rate Format Scan Type

VGA 640 x 480

VESA85 640 x 400 720 x 400

VGA70 800 x 600

SVGA 1024 x 768

XGA 1152 x 864

Mac 1280 x 768

XGA 1280 x 960

1280A 1280 x 1024

SXGA

60, 72, 75, 85 Hz

85 Hz

70 Hz

60, 72, 75, 85 Hz

60, 70, 75, 85 Hz

70, 75 Hz

60 Hz

60, 75 Hz

RGBHV

Progressive

HDTV Re olution Vert Rate Format Scan Type

480p 720 x 480

576p 720 x 576

720p 1280 x 720

60 Hz

YPbPr, RGBHV

Progressive

Please browse our online catalogue to view our full product range.

44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]

Phone +61 249689313 Fax +61 249689314

www.converters.tv
