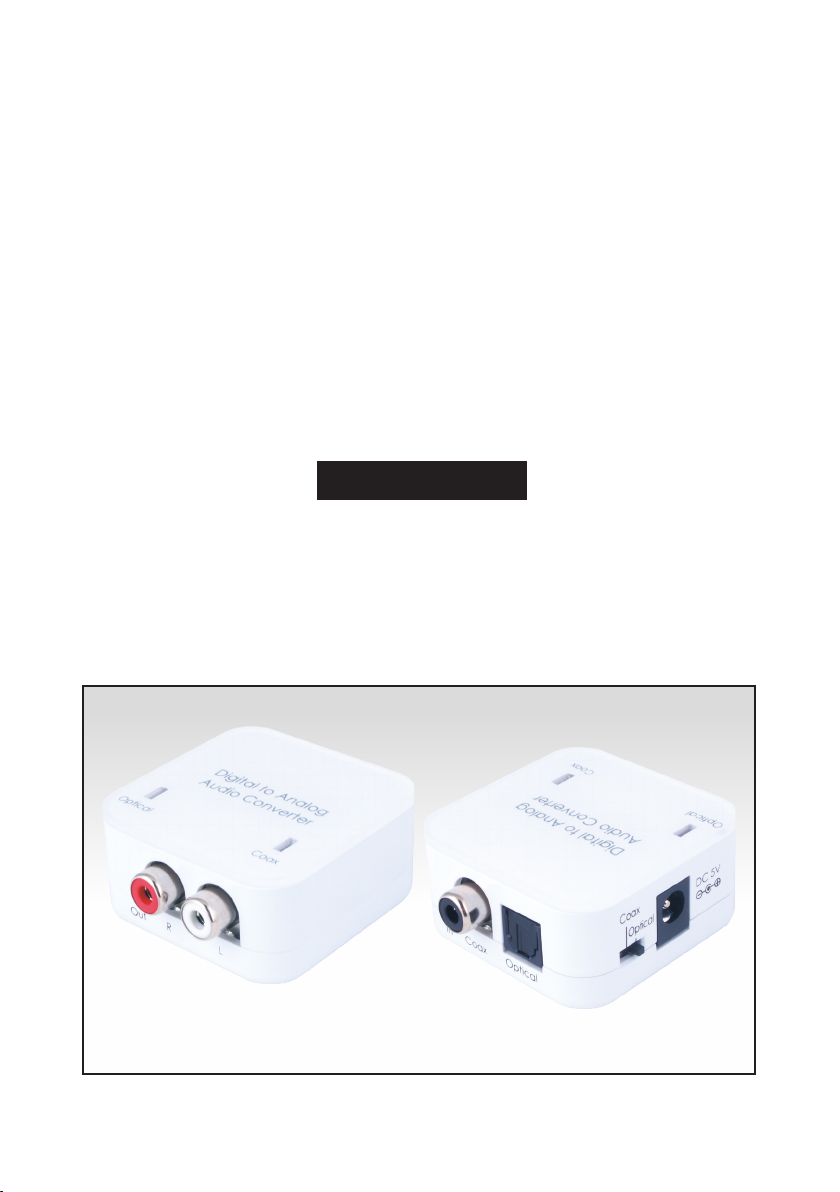

CYP DCT-3A Manuel utilisateur
DCT-3A
Digital to Analog
Audio Converter
Operation Manual
DCT-3A
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
VR0 20110722 Preliminary Release
Table of Contents
1
1
1
1
1
2
3
3
3
4
5
6
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………………………………......……........……
3. Package Contents ………………………………...……..........…....….
4. System Requirements ………………………………...……............….
5. Features ………………………………...……............…........................
6. Specications ………………………………...……............…..............
7. Operation Controls and Functions..................................................
7.1 Front Panel ..............................................................................
7.2 Rear Panel .…………………………………..…….......…...…...
7.3 Top Panel .…………………………………..…….........…...…...
8. Connection and Installation ….………………….........…..…..…......
9. Acronyms …......................................................................................
1. Introduction
The Coaxial/Optical to R/L audio converter is an easy to use product that
converts Coaxial or Optical audio signals into R/L audio. Accepting digital
audio signals from either Coaxial or Optical sources, this gadget features a
well-designed switch that determines which digital input signal is active and
thus converted into an analog audio signal (L/R). With its compact, elegant
and LED design that makes easier for users to link up and make an useful of
the device instantly.
2. Applications
Digital Coaxial input to analog audio output
Digital Optical input to analog audio output
3. Package Contents
Digital to Analog Audio Converter
5V / 1A DC Power adaptor
Operation Manual
4. System Requirements
Input source equipment such as DVD/Blu-ray player or audio amplifier and
output active speaker or headphone with connection cables.
5. Features
Supports digital audio input (Coaxial/Optical) and analog audio
output (R/L).
Integrated digital interpolator filter and Digital to Analog Converter (DAC).
Supports non-compression digital stereo audio input.
Compact size and easy to install.
Supports SPDIF 192K/24 bits of data for the left and right channel.
1
6. Specications
Input Ports Coaxial and Optical
Input Format SPDIF LPCM 2 CH, 24 bit
Sample Frequency 32kHz, 44.1 KHz, 48 KHz, 88.2KHz, 96 KHz, 176.4KHz
up to 192KHz
Output Ports R/L stereo
Output Level 2Vrms
Output Impedance 600Ω
Power Supply
5V/1A DC linear power adaptor (US/EU standards,
CE/FCC/UL certified)
Or 5V/1.2 switching power adaptor (with universal
plug. CE/FCC/UL certified)
Dimensions (mm) 42(W) x 40.5(D) x 22(H)
Weight(g) 25
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0°C ~ 40°C
Power Consumption 0.74W
2
7. Operation Controls and Functions

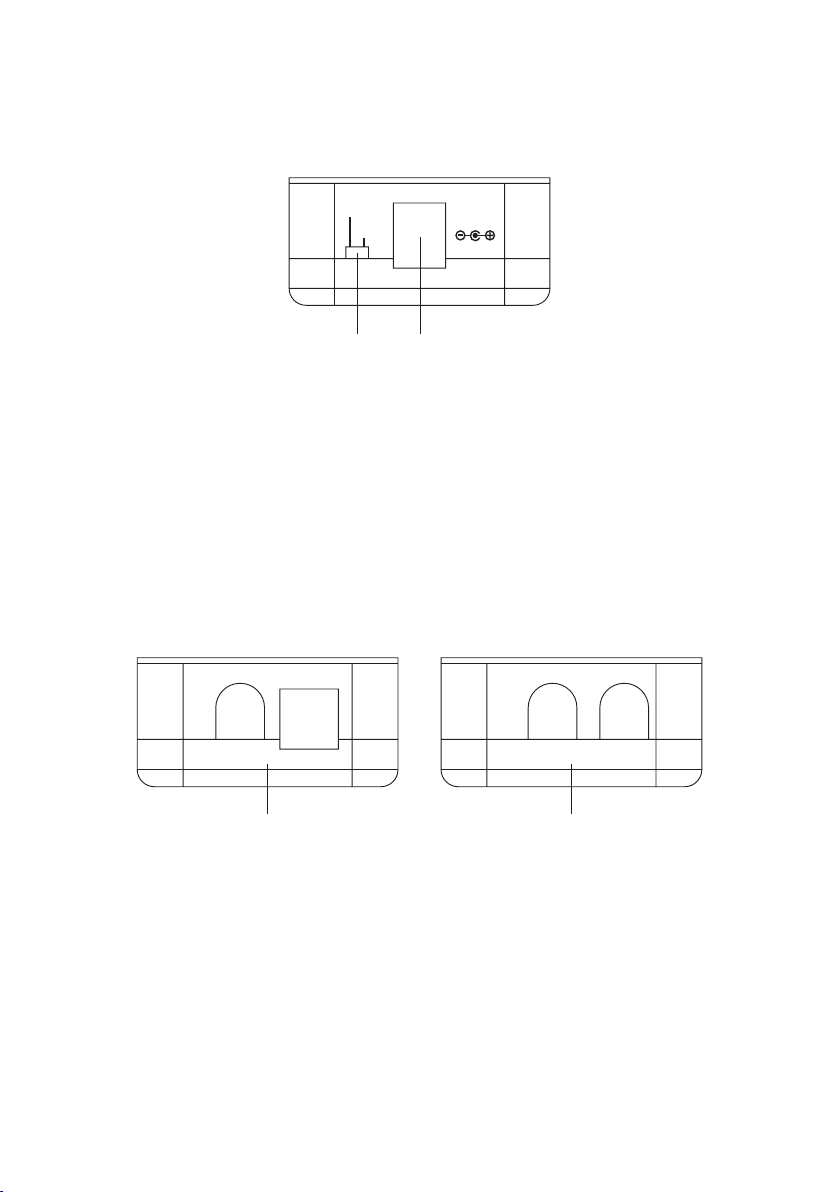

7.1 Front Panel
②①
DC 5V
Coax
Optical
① Coaxial/Optical switcher: Moving the switch determines which input
Audio source is active and will be converted to R/L audio.
② Power: Plug 5V DC power supply into the unit and connect the adaptor
to AC wall outlet.
7.2 Rear Panel
①
Coax OpticalIn
②
Out LR
① Coaxial/Optical input: Connect the Coaxial/Optical inputs into the
Coaxial/Optical audio source, such as a DVD player or Set Top Box.
② R/L output: Connect the R/L audio output to the input of your audio
device or display.
3
7.3 Top Panel
①
Digital to Analog
Audio Converter
Optical Coax
① Coaxial/Optical input LED: The LED light will illuminate according to the
fall of input selection swtich. The right side LED represent Optical input and
the left side LED represent Coaxial input.
4

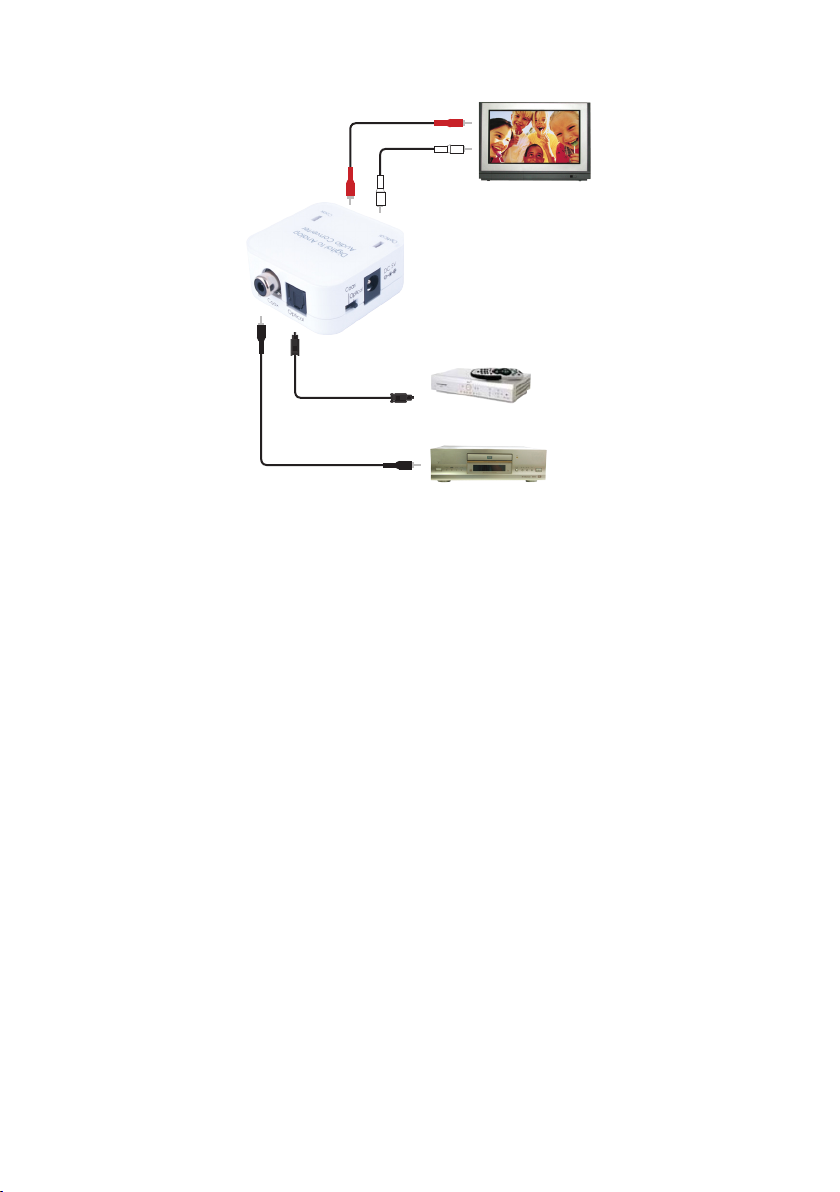

8. Connection and Installation
LCD TV
DVD
STB
R/L
COAXIAL
OPTICAL
5
Acronyms A
Acronym Complete Term
6
