CYP SM-4X4-HDMI-LC Manuel utilisateur
TABLE OF CONTENTS
1. Introduction................................................................................ 1
2. Features...................................................................................... 1
3. Package Contents.................................................................... 1
4. Operation Controls and Functions........................................... 1
4.1 Front Panel........................................................................... 1
4.2 Rear Panel........................................................................... 2
4.3 Remote Control................................................................... 3
4.4 RS-232 Protocol.................................................................... 3
4.4.1 Pin Definition................................................................... 3
4.4.2 Commands..................................................................... 4
5. Specifications............................................................................ 4
5.1 General Specification........................................................ 4
5.2 Support Resolution.............................................................. 5
6. Connection and Installation.................................................... 5
1
1. Introduction
CHMX-44 is a high performance HDMI Matrix with remote control. It
offers you maximum convenience in HDMI signal distribution when you have
multiple HDMI sources and displays to connect together. Each of the four HDMI
sources can be directed to any one of the four outputs, so four displays can
show 4 identical or 4 different sources at the same time. CHMX-44 provides a
maximum of 16 possible connection scenarios between sources and displays.
When HDMI signal progresses through CHMX-44, it is re-timed, levelcompensated,
phase error corrected, and data jitter eliminated, so the output is a regenerated
brand new HDMI signal that can run for another 25 meters and can be
cascaded.
1. HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.
2. HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the
output is a well tuned standard HDMI signal.
3. Input source LED indicators on each output select.
4. Ideal for home theater integration, conference room and retail stores.
5. Compatible with all HDMI sources and displays.
6. Supports high resolution input/output:
PC: VGA, SVGA, XGA, SXGA and UXGA (1600X1200) &
HDTV: 480i, 576i, 480p, 576p, 1080i, and 1080p
7. RS-232 control.
8. IR remote control.
2. Features
1. CHMX-44 HDMI Matrix
2. 5VDC Power Supply Adaptor
3. Operation Manual
3. Package Contents
2 3 4 5 61
POWER
HDMI OUT HDMI OUT
INPUT
2
1 3 4
INPUT
2
1 3 4
INPUT
2
1 3 4
INPUT
2
1 3 4
CHMX-44
4X4 HD Matrix
ABCD
4. Operation Controls and Functions

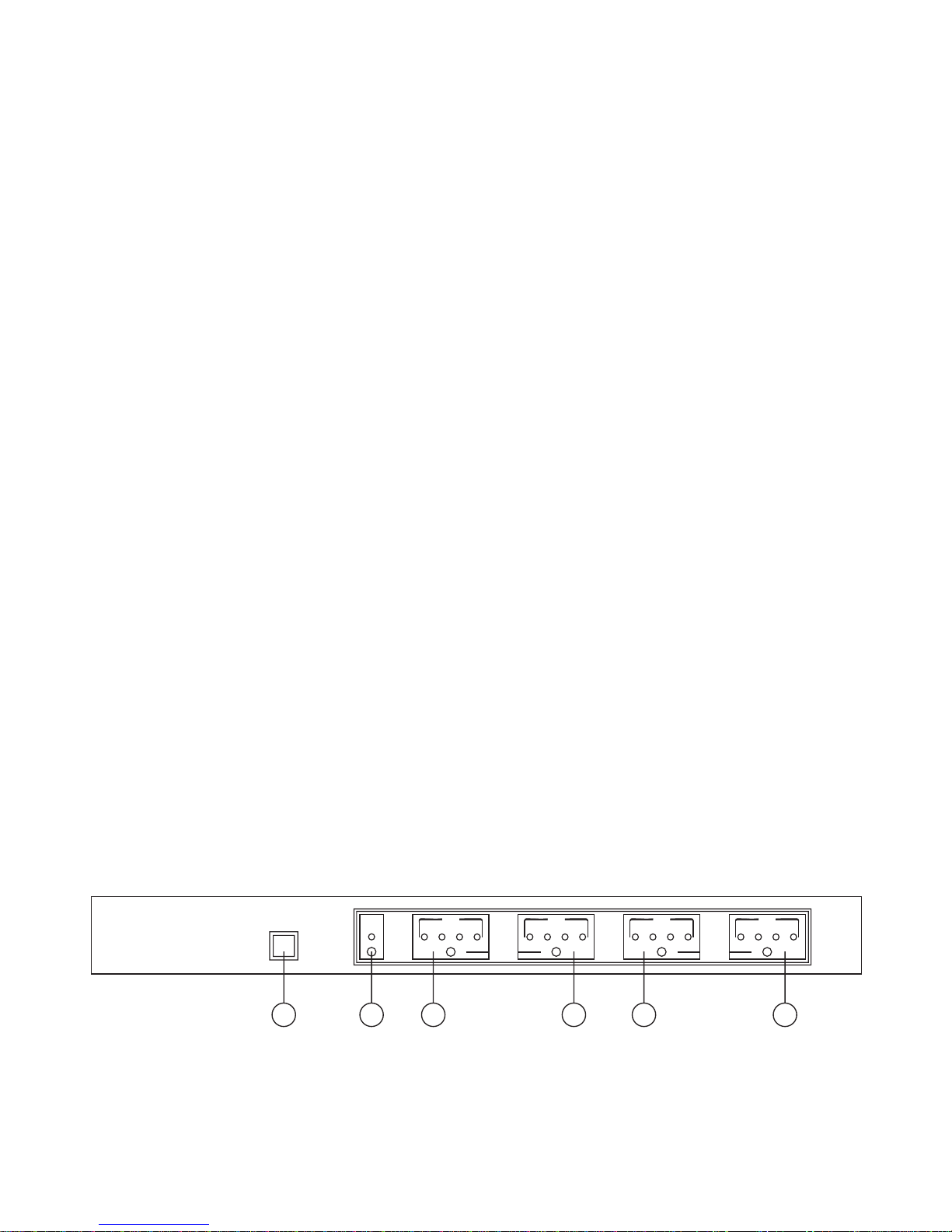

4.1 Front Panel
1. Remote control sensor.
2. Power Switch & LED Indicator:
The LED will illuminate when the power is turned on.
2

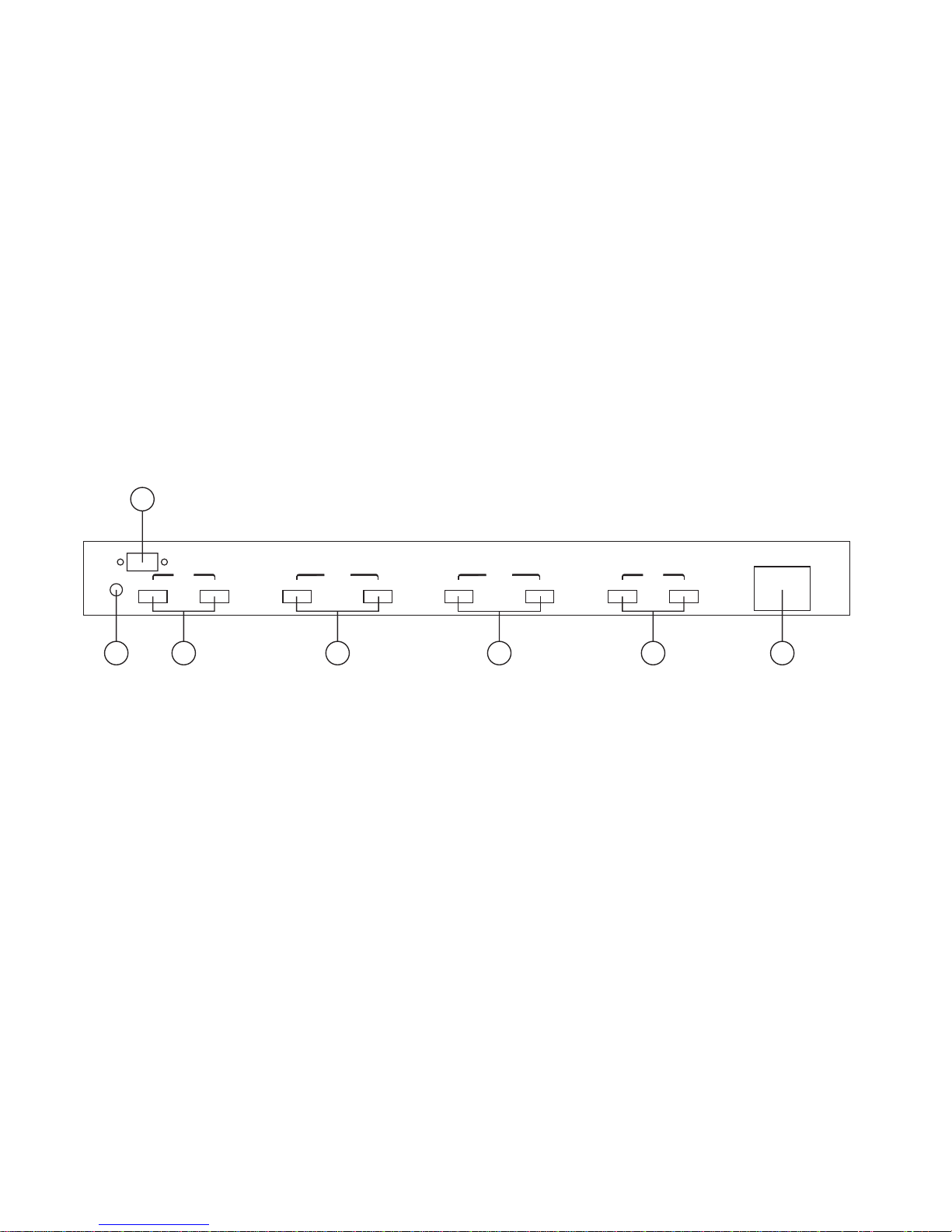

4.2 Rear Panel
3 64 5
RS-232
IR IN
INPUT
1 2
INPUT
3 4
OUTPUT
A B
OUTPUT
C D
AC 110~240V
50~60Hz
1 7
2
1. IR IN Socket:
Plug the IR extender sensor (optional) into the socket for IR extension
control.
2. RS-232 Communication Port:
Connect to the COM port of your PC for the distant control over RS-232
channel.
3. HDMI inputs 1 and 2:
Connect to the HDMI output of your source equipment such as DVD player
or set-top-box.
4. HDMI outputs A and B:
Connect each of these output ports to the HDMI input of an HDMI display.
5. HDMI outputs C and D:
Connect each of these output ports to the HDMI input of an HDMI display.
6. HDMI inputs 3 and 4:
Connect to the HDMI output of your source equipment such as DVD player
or set-top-box.
7. Power:
Plug the 5VDC power supply into the unit and connect the adaptor to AC
wall outlet.
3. Input Select/Indicators (A):
Press the "HDMI OUT A" button repeatedly to switch to your desired source,
and the LED will illuminate to indicate which input source is being selected,
and routed to HDMI A display.
4. Input Select/Indicators (B):
Press the "HDMI OUT B" button repeatedly to switch to your desired source,
and the LED will illuminate to indicate which input source is being selected,
and routed to HDMI B display.
5. Input Select/Indicators (C):
Press the "HDMI OUT C" button repeatedly to switch to your desired source,
and the LED will illuminate to indicate which input source is being selected,
and routed to HDMI C display.
6. Input Select/Indicators (D):
Press the "HDMI OUT D" button repeatedly to switch to your desired source,
and the LED will illuminate to indicate which input source is being selected,
and routed to HDMI D display.
3
OUTPUT
A
OUTPUT
D
OUTPUT
C
OUTPUT
B
POWER
CR-33
1
2
3
4
5

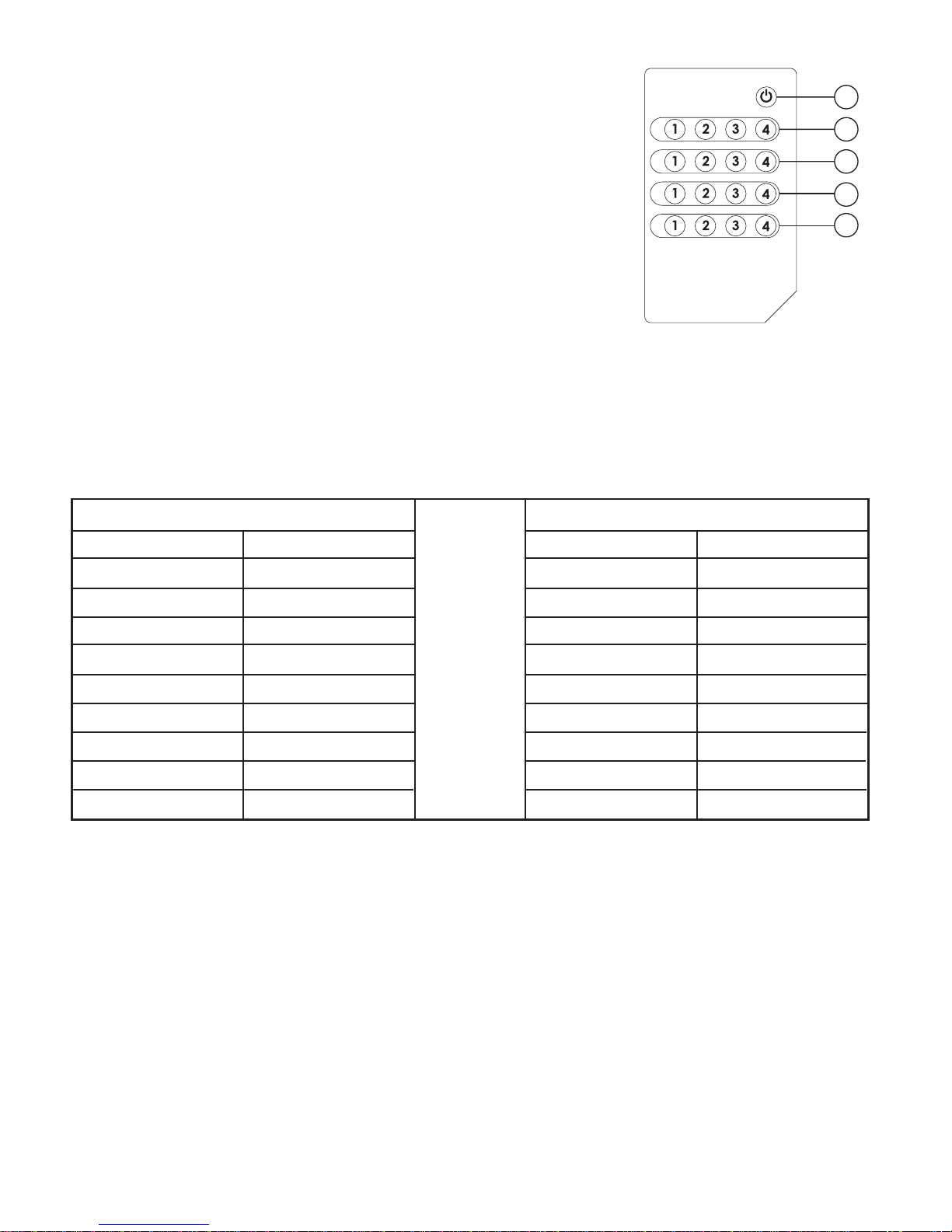

1. Power:
Press the button to turn on/off the unit.
2. Input Select for HDMI OUT A:
Press 1, 2, 3 or 4 to select the desired input source for
HDMI OUT A.
3. Input Select for HDMI OUT B:
Press 1, 2, 3 or 4 to select the desired input source for
HDMI OUT B.
4. Input Select for HDMI OUT C:
Press 1, 2, 3 or 4 to select the desired input source for
HDMI OUT C.
5. Input Select for HDMI OUT D:
Press 1, 2, 3 or 4 to select the desired input source for
HDMI OUT D.
4.3 Remote Control
PIN
1
2
3
4
5
6
7
8
9
Definition
NC
Tx
Rx
NC
GND
NC
NC
NC
NC
PIN
1
2
3
4
5
6
7
8
9
Definition
NC
Rx
Tx
NC
GND
NC
NC
NC
NC
CHMX-44 Remote Control Console
4.4 RS-232 Protocol
4.4.1 Pin Definition
*RS-232 transmission format:
Baud Rate: 9600 bps
Data bit: 8 Bits
Parity: None
Stop Bit: 1 bit
4
4.4.2 Commands
COMMAND
P0
P1
ST
VR
A1
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
D1
D2
D3
D4
ACTION
Power Off (standby)
Power On *
System Status *
Firmware Version
Output A select Input1
Output A select Input2
Output A select Input3
Output A select Input4
Output B select Input1
Output B select Input2
Output B select Input3
Output B select Input4
Output C select Input1
Output C select Input2
Output C select Input3
Output C select Input4
Output D select Input1
Output D select Input2
Output D select Input3
Output D select Input4
5. Specifications
5.1 General Specification
* Frequency bandwidth: 1.65Gbps (single link)
* Input/Output: 4-in to 4-out HDMI female ports
* 5V DC power supply
* Dimensions: 438 (W) x 175 (D) x 49 (H)mm
* Weight: 3.1Kgs
VGA, SVGA, XGA, SXGA, UXGA
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
VGA, SVGA, XGA, SXGA, UXGA
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
OUTPUT
PC
TV
INTPUT
PC
TV
5.2 Support Resolution
5

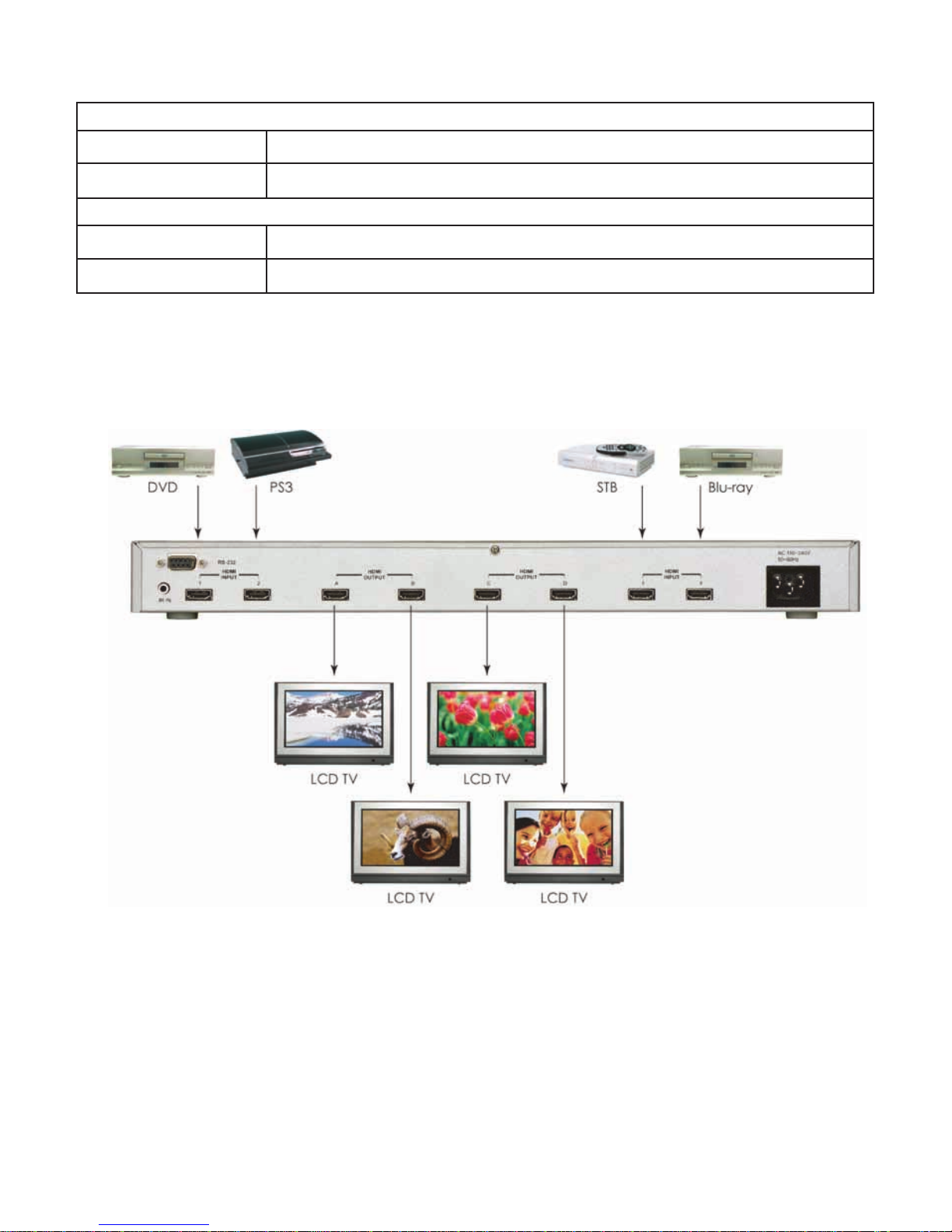

6. Connection and Installation
