CYP PU-424HBTL-KIT Manuel utilisateur

PU-424HBTL-KIT

4 x 4 HDMI HDBaseT™ LITE Matrix (with 2 simultaneous

HDMI outputs) including 4x PU-514L-RX Receivers

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.00 29/01/13 First release

CONTENTS

1. Introduction ...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................7

5. Features ..................................................7

6. Operation Controls and Functions .......8

6.1 Transmitter Front and Rear Panels ....... 8

6.2 Receiver Front and Rear Panels ............ 9

6.3 Side Panel ...................................................10

6.4 Remote Control ........................................10

6.5 IR Pin Assignment ....................................11

6.6 RS-232 Pin Assignment..........................11

6.7 RS-232 & Telnet Commands .................12

6.8 Telnet Control ............................................13

6.9 Web GUI Control ......................................15

7. Connection Diagram .......................... 17

8. Specications ...................................... 18

9. Acronyms ............................................. 19

1. INTRODUCTION

This 4 by 4 HDMI HDBaseT™ Lite Matrix with two additional simultaneous

HDMI outputs supports the transmission of video (resolutions up to

1080p Full HD and 1920x1200@60Hz), multi-channel digital audio, and

control via IR, RS-232, or Web GUI/Telnet IP, from four high denition

sources to four HDBaseT outputs over a single CAT5e/6/7 cable (up to

60m) for each output. Output A and C have additional mirrored HDMI

outputs, for added installation exibility.

The PU-424HBTL-KIT is supplied with 4x PU-514L-RX receivers which

utilise the 2-way IR control capabilities of the matrix.

Use the IP control feature to enable users to access and control the matrix

remotely and also allow additional options for integration of third-party

control systems. CYP provide control drivers for control systems such as

Control 4, RTI, Crestron, AMX, Control FX, and RTI. These are available at

no extra cost.

2. APPLICATIONS

Domestic HDMI Matrix system

Video/TV wall display and control

Security surveillance and control

Commercial advertising, display and control

University Lecture hall display and control

Retail Sales and demonstration

3. PACKAGE CONTENTS

4×4 HDMI Matrix over 4 CAT5e/6/7 with 2 HDMI outputs

4× PU-514L-RX Receivers

5×IR Extender

5×IR Blaster

1×24V/3.75A DC adaptor

1×Remote control

Operation manual

4. SYSTEM REQUIREMENTS

HDMI equipped source devices, connect with HDMI cables or DVI

equipped source, connect with DVI to HDMI cables

HDMI equipped displays (TVs or monitors) or HDMI equipped AV

receivers, connect with HDMI cables

Industry standard CAT5e/6/7 cables

5. FEATURES

Supports all v1.3 HDMI resolutions

Supports uncompressed video/audio up to 10.2Gbps

Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i,

1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.

HDMI, HDCP and DVI complaint

High Denition Audio supported: Dolby TrueHD, Dolby Digital Plus

and DTS-HD Master Audio plus LPCM (up to 192kHz)

Uncompressed data transfer over single CAT cable (60m - CAT5e/6/7)

Supports third-party control systems, with drivers available for: Control

FX, AMX, Crestron, RTI, Control 4

Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit.

Supports RS-232, 2-Way IR, Manual Selection Buttons, and HDMI CEC

control pass through

Selectable EDID settings - TV (downstream) and STD (xed)

Compact 1U Rack mount design

Supports 3D signals

Supports additional IR Control via a master (ALL) Input/Output

Supports full IP control

Supplied with 4x PU-514L-RX receivers

Note:

1. Do not connect the CONTROL port to the CAT outputs of this device.

6. OPERATION CONTROLS AND FUNCTIONS

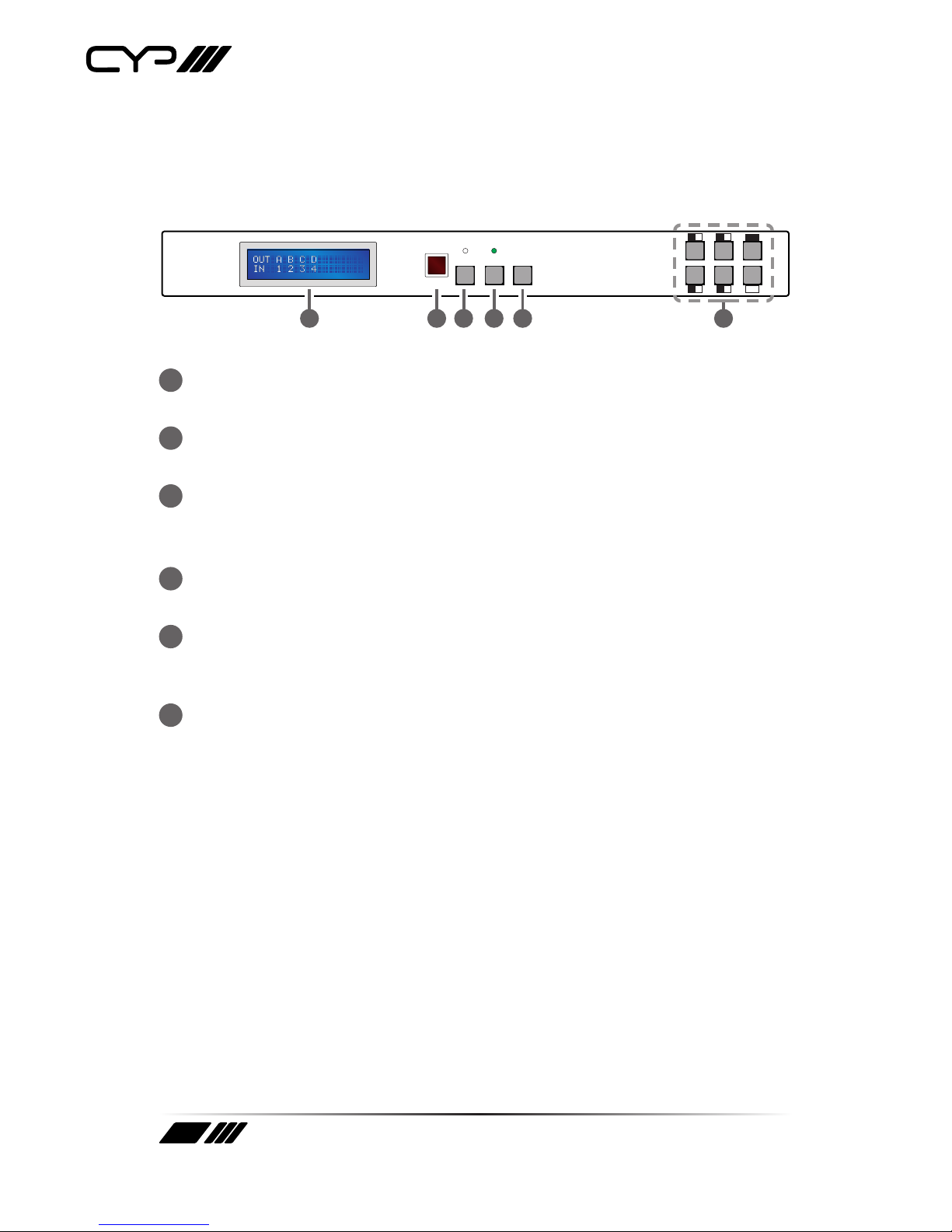

6.1 Front Panel

OUT

34IN

CMSI-424E

4X4 HDMI MATRIX

POWER LOCK MENU

61 2 3 4 5

1 LCM : Displays the setting information of each input and output

setting.

2 IR: IR Receiver window (accepts the remote control signal of this

device only).

3 POWER: Press this button to power the device on/o. The LED will

illuminate green when the power is on, red when it is in 'Standby'

mode.

4 LOCK: Press this button to lock all the buttons on the panel; press

again to unlock. The LED will illuminate when locked.

5 Menu: Press once to select EDID setting from STD (internal) 1 or TV

(external) 2 then press it again to conrm the selection. Press the the

'MENU' button to conrm the input or output selection

6 1~4/A~D and Out/In: Press the Out or In button to select the output

or input mode and then press the required number or letter button to

change the selection.

For example, if outputs A~B need to be set to input 1 and outputs

C~D need to be set to input 2, then the following sequence of button

presses need to be performed:

Press: Out →A→B→In→1→Menu,

and then press: Out→C→D→In→2→Menu.

Note: If the menu button is not pressed the selection will not be changed.

6.2 Rear Panel

IR IN IR OUT

HDMI OUT CAT5e/6 OUT

CAT5e/6 OUT

HDMI OUT CAT5e/6 OUT

CAT5e/6 OUT

HDMI IN 1 HDMI IN 2 HDMI IN 3 HDMI IN 4

CONTROL

RS232

DC 24V

V+

GND

GND GND

V+

IR OUT

IR IN

ALL

SERVICE

2 3

51110

7 9

1 RS-232: Connect to a PC or control system with D-Sub 9-pin cable for

RS-232 control.

2 CONTROL: Connect to an active network for Telnet/Web GUI control

(refer to Section 6.8).

Warning: Please do not connect this port directly to the PC/Laptop

as the Telnet function will not work.

3 SERVICE: Manufacturer use only.

4 HDMI OUT & CAT5e/6/7 OUT A/C: Simultaneous HDMI and HDBaseT

CAT5e/6/7 output. The HDMI output can be connected directly to a

display or to a point transmitter/receiver set. Connect the CAT5e/6/7

output to a compatible receiver unit to extend the signal up to 60 m.

5 CAT5e/6/7 OUT B/D: Connect from these CAT outputs to the CAT input

port of the receiver units with a single CAT5e/6/7 cable for HDMI Audio/

Video and IR control signal transmission.

6 HDMI IN 1~4: Connect to the HDMI input source devices such as a

DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.

7 IR IN 1~4: Connect the IR extenders for IR signal reception. Ensure

that the remote being used is within the direct line-of-sight of the IR

extender.

8 IR OUT 1~4: Connect the IR blasters for IR signal transmission. Place the

IR blaster in direct line-of-sight of the equipment to be controlled.

9 ALL IR OUT: Connect to the IR blaster for IR signal transmission of the

source or display equipment. Place the IR blaster in direct line-of-sight

of the equipment to be controlled.

10 ALL IR IN: Connect to the IR extender for IR signal reception of the remote

control of this device or the source and display equipment. Ensure that

remote being used is within the direct line-of-sight of the IR extender.

11 DC24V: Connect the 24 V DC power supply to the unit and plug the

adaptor into an AC outlet.

6.3 Side Panel

1 Ventilator: These are fan ventilation areas, DO NOT block these areas

or cover them with any object. Ensure there is adequate space around

the unit for air to circulate.

6.4 Remote Control

1 Power:

Press this button to switch on the device or set it to standby mode.

2 IN:

Input ports selection 1~4.

3 OUT:

Output ports selection A~D.

Note: IR Matrix control from Zones only require the user to select the

desired input.

1 A

CR-121

IN OUT
