Cub Cadet 18.5HP Z-Force 42 Guide de configuration

HydrostaticZero-Turn

ResidentialRidingMower

Turf Equipment

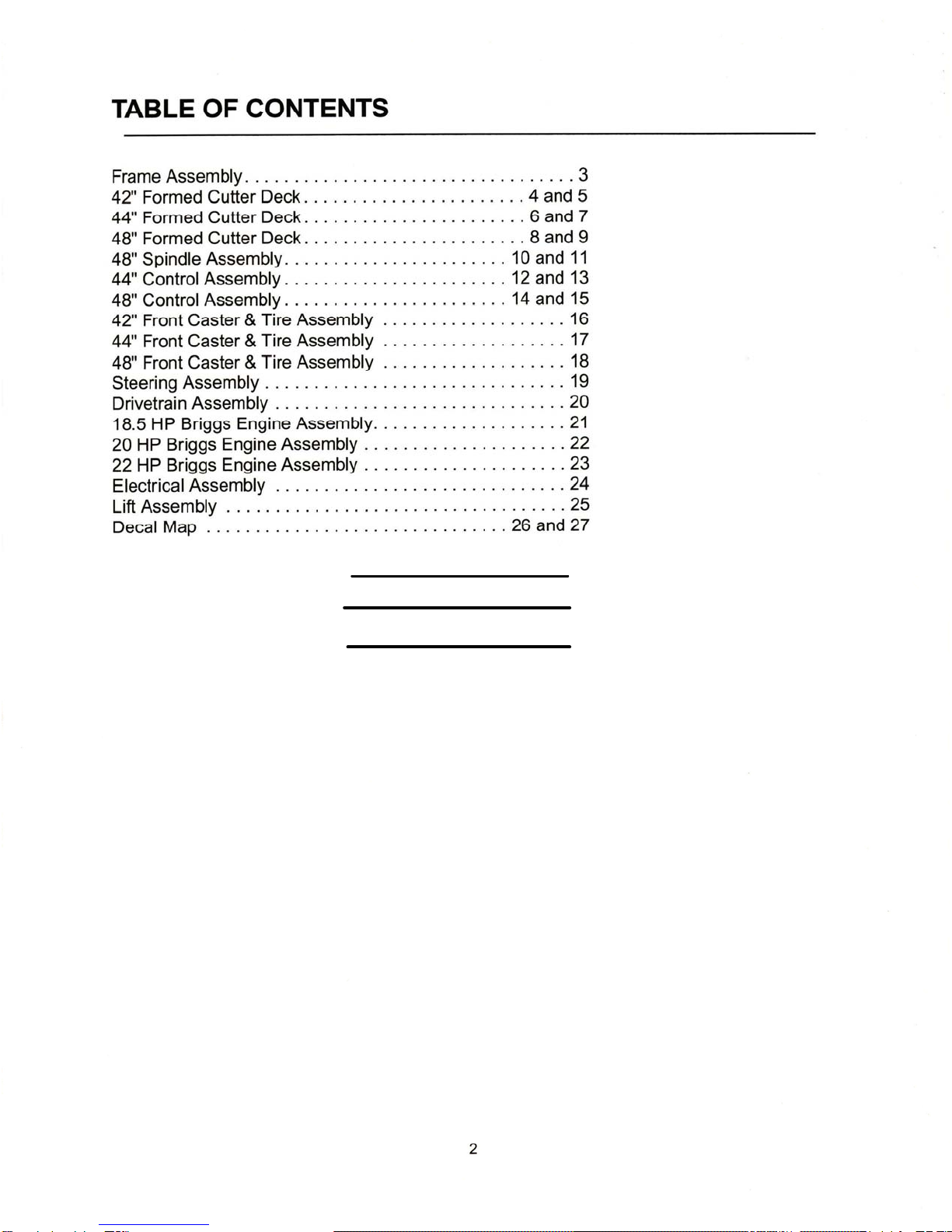

ILLUSTRATED PARTS LIST

MODEL

18.5HP Z-Force 42

20HP Z-Force 44

22HP Z-Force 48

18 5 HP Engine Parts Breakdown

Engine

Parts

Breakdown

20 HP Engine Parts Breakdown

22 HP Engine Parts Breakdown 48

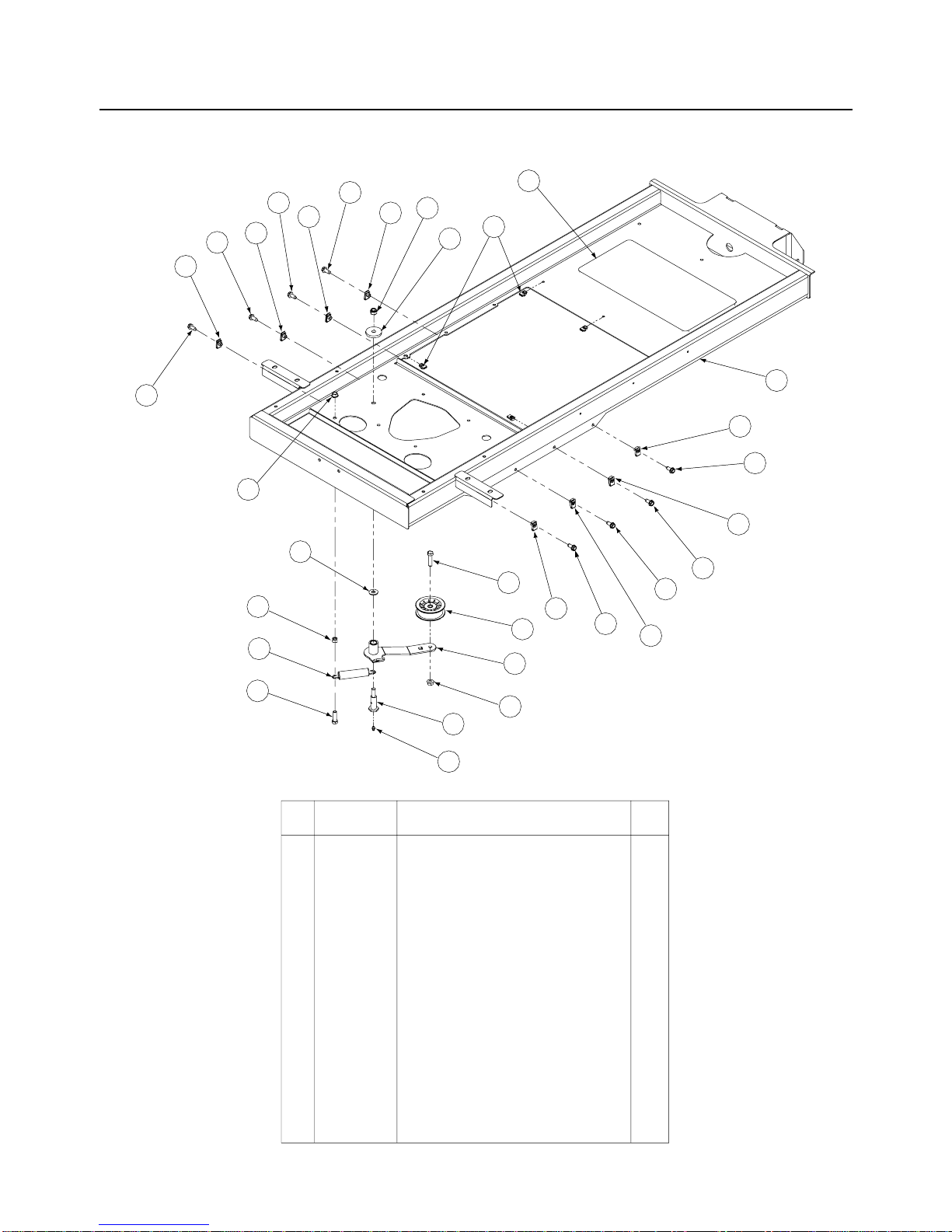

Frame Assembly- Figure 1 and Parts List

Ref.

No. Part No. Description Qty.

1 00012166 Hex Nut, 5/16-18 1

2 00011438 Hex Cap Screw, 3/8-16 x 1-1/2 1

3 00013116 Hex Cap Screw, 5/16-18 x 1-1/4 1

4 00006168 Flat Washer, 3/8 zinc 1

5 00022560 Hex Nut, 3/8-16 Flange Lock 1

6 00027279 Nylock Nut, 7/16-14 1

7 00030782 Flat Idler Pully w/ adaptor 1

8 00060078 Grease Fitting, 1/4-28 x 3/16 1

9 01000505 Shoulder Bolt 1

10 01002874 Extension Spring, .865 OD x 4.68 lg 1

11 01003269 Flat Washer, 7/16 ID x 1.75 OD 1

12 01003563 U-Nut, 5/16-18 8

13 01008480 Frame Assembly Weldment 1

14 01008399 Idler Arm Assembly 1

15 01008764 Hex Washer Screw 5/16-18 x .750 8

16 01000635 Nut, 5/16-18, Hexflange Lock 1

17 01006528 Abrasive Foot Pad 1

18 01008539 U-Nut, 1/4-20 5

15 12

12 15 12

GD: 01008104-P00

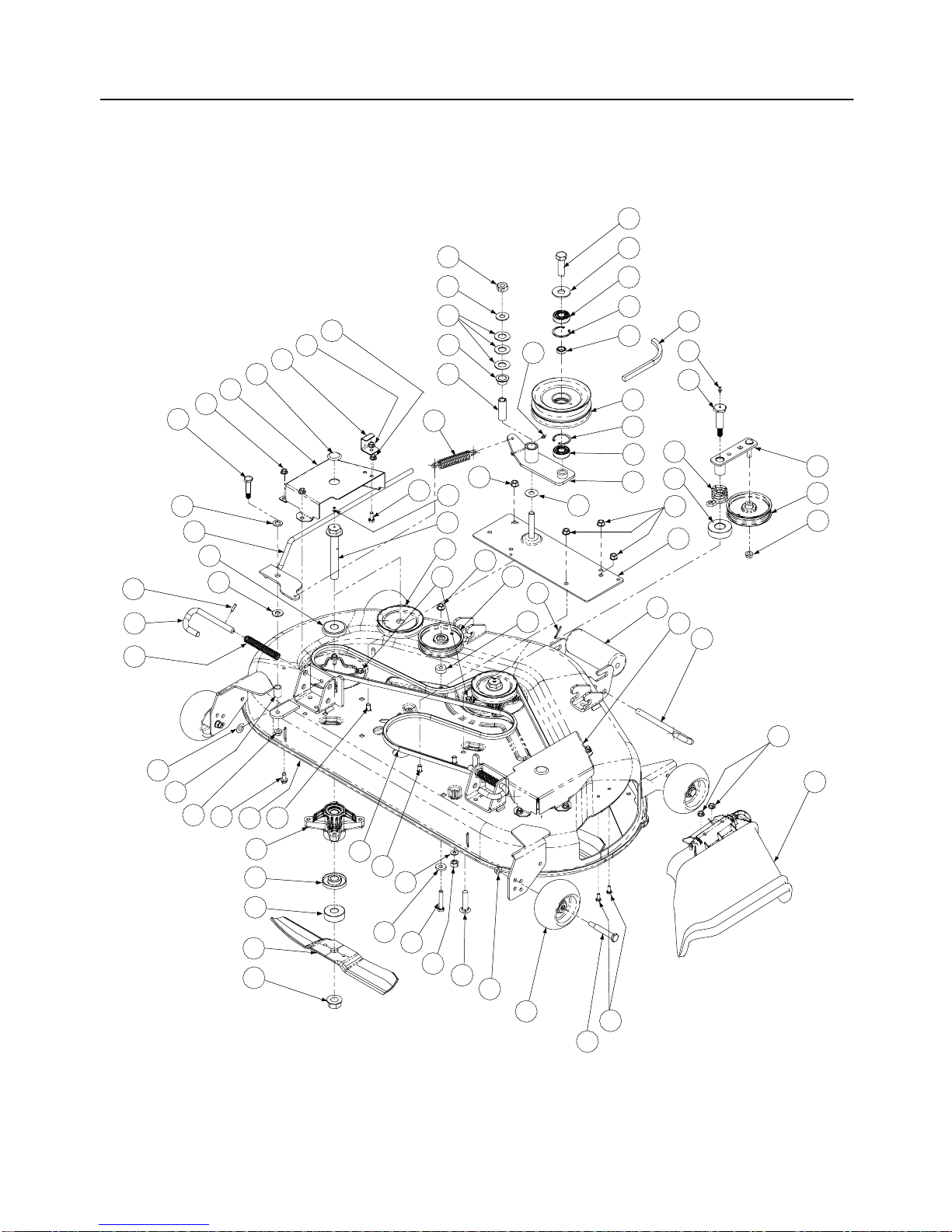

42" Formed Cutter Deck - Figure 2

31 13

10 16 29 51

43 21

GD: 01009714-P02

42" Formed Cutter Deck - Parts List for Figure 2

Ref.

No. Part No. Description Qty. Ref.

No. Part No. Description Qty.

1 -- 42" Spindle Assembly 2 27 00003107 Cotter Pin, .125 Dia. x 1.0 1

618-3129B Blade Spindle Assembly 2 28 00010958 Washer, 1/2 Zinc 1

710-1336A Blade Bolt 2 29 00013291 Nut, 1/4-20 3

712-3078 Flange Nut 2 30 00013406 Hex Cap Screw, 5/16-18 x 3/4 1

737-3000 Grease Fitting 2 31 00022560 Nut, 3/8-16 6

748-3065 Spacer 4 32 00023287 Nut, 1/2-20, Center Lock 1

756-3106 Pulley 2 33 01000338 Hex Cap Screw, 1/4-20 x.620 2

2 01004863 Stop Bracket 1 34 01000372 Carriage Bolt, 3/8-16 x .75 2

3 710-0136 Hex Cap Screw, 1/4-20 x 1.75 1 35 01000375 Roller Pin, 1/2 Dia. x 7.31 1

4 710-0650 Self Tapping Screw, 5/16-18 x 7/8 8 36 01000385 Front Roller 1

5 710-1238 Hex Screw w/ washer, 5/16-18 x 7/8 137 01000635 Nut, 5/16-18 3

601000960 Bell Washer, .325 x .930 x .045 1 38 01000873 Washer, .536 ID x .930 OD x .05 1

7 712-0324 Nut, 1/4-20 1 39 01000930 Washer, .508 ID x 1.0 OD x .020 2

8 715-3003 Heavy Duty Spirol Spring Pin 2 40 00010980 Hex Cap Screw, 3/8-16 x 1.50 1

9 716-3020 Internal Snap Ring 2 41 01002874 Extension Spring, .865 OD x 4.68 2

10 731-1032B Chute Assembly 1 42 01005338 Blade, 21.0, Hi-Lift, .756 ID 2

11 732-0802 Compression Spring. .63 OD x 6.3 2 43 01008404 Spacer, .635 ID x .28 1

12 734-0973 Deck Wheel, 5.0 x 1.38 2 44 01008530 Hex Cap Screw, 5/8-18 x 2.00 1

13 736-0100 Washer, .531 ID x 1.25 OD 1 45 01008538 Deck Handle Weldment 1

14 736-0179 Washer, .531 x 1.25 x .10 1 46 01008620 Self Tapping Screw, 5/16-18 x 3/4 4

15 736-0188 Washer, .76 x 1.49 x .06 4 47 01008590 Deck Mount Plate Assembly 1

16 736-0270 Bell Washer, .265 x .75 x .062 2 48 01008589 Idler Assembly 1

17 737-3000 Grease Fitting 1 49 01009711 Idler Bracket 1

18 738-0372B Spacer, 1.0 x .38 x .38 1 50 01009723 Left Hand Belt Cover 1

19 738-0373 Screw, .498 x 1.53, 3/8-16 2 51 01009719 Belt, V-Section 1

20 738-0213 Screw, .498 x 1.445 1 52 01009742 Right Hand Belt Cover 1

21 741-0338 Flange Bearing, 3/4 ID x .52 2 53 01009791 Deck Weldment 1

22 741-0524 Bearing, .625 ID x 1.574 OD x .47 2 54 01009904 Double Pulley 1

23 747-3013 Support Pin 2 55 01009907 Belt, V-Section 1

24 750-0150 Spacer, .550 ID x .75 OD 1 56 01009937 Washer, 5/16 x 1.06 1

25 750-0656 Spacer, .50 OD x .75 ID x 2.25 1 57 00013092 Hex Cap Screw, 5/16-18 x 1.0 1

26 756-0542 Idler Pulley 1

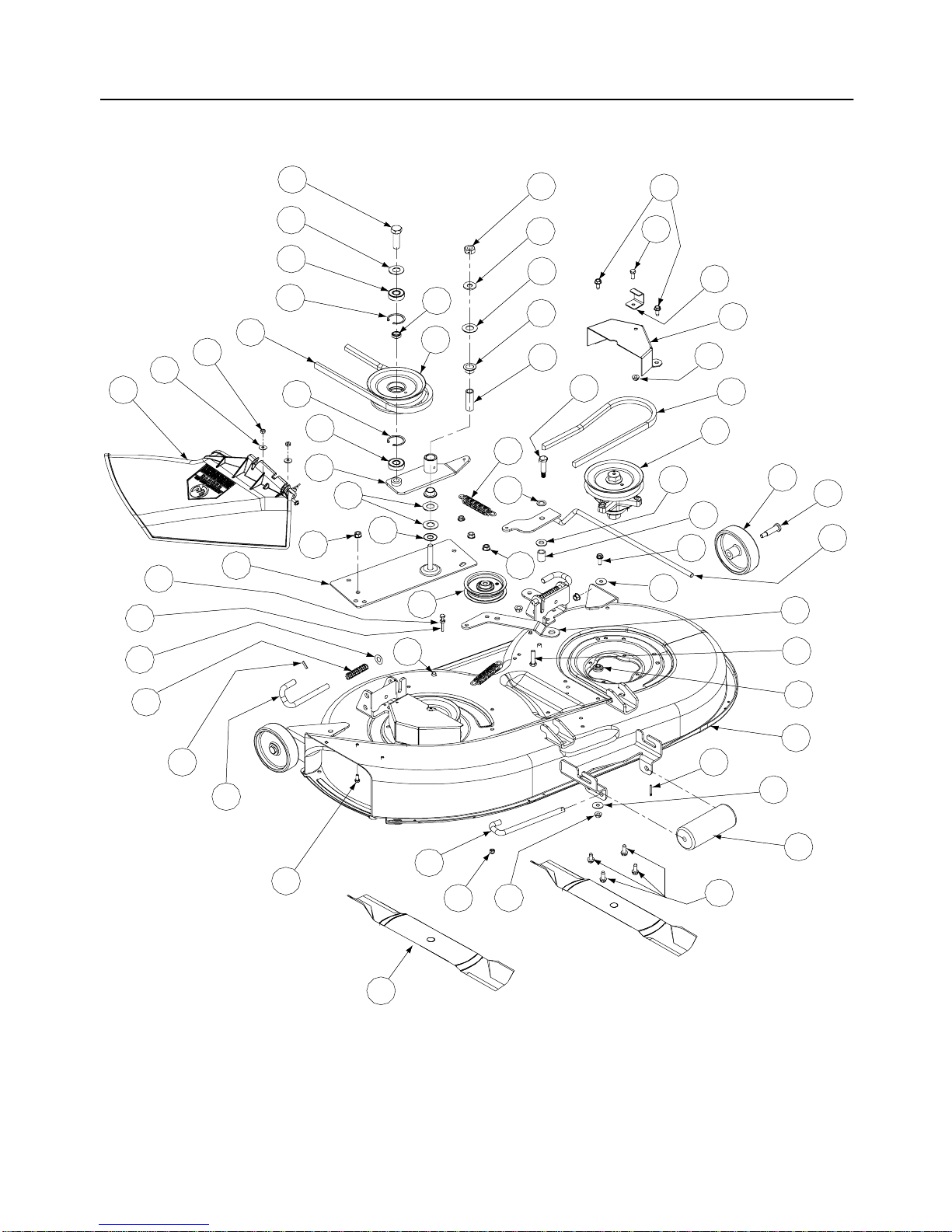

44" Formed Cutter Deck - Figure 2

59 26

52 6

43 17

GD: 01008112-P02

44" Formed Cutter Deck - Parts List for Figure 2

Ref.

No. Part No. Description Qty. Ref.

No. Part No. Description Qty.

1 01008590 Deck Mounting Plate Assembly 1 33 750-0656 Spacer .50 OD x .75 ID 1

2 01008593 Idler Arm Assembly 1 34 750-0150 Spacer .550 ID x .750 OD 1

3 01008589 Idler Assembly 1 35 750-3119 Spacer .406 ID x 1.0 OD 1

4 618-3129B Spindle Assembly 3 36 754-3039 Belt 1

5 631-0094A Chute Assembly 1 37 756-3089 Pulley 3

6 01008587 Belt Cover Right Hand 1 38 01004081 Flat Pulley 2

7 703-1890 Deck Wheel 4 39 00002528 Hex Cap Screw 3/8-16 x 2.00 1

8 01008481 Deck Assembly 44" 1 40 00003107 Cotter Pin .125 Dia x 1.0 1

9 01008586 Belt Cover Left Hand 1 41 00027279 Nut 7/16-14, Nylock 1

10 01008620 Self Tapping Screw 5/16-18 x .750 18 42 00010958 Flat Washer .50 ID x 1.065 OD 1

11 01008530 Hex Cap Screw 5/8-18 x 2.00 1 43 00013406 Hex Cap Screw 5/16-18 x .75 1

12 710-1852 Spindle Bolt 3/4-16 x 5.37 3 44 01002766 Nut, 1/4-20, hexflange Lock 2

13 715-3003 Pin 2 45 00022560 Hex Nut, 3/8-16, Flange Lock 11

14 716-3020 Internal Snap Ring 2 46 00023287 Nut, 1/2-20, Center Lock 1

15 726-3045 Button Plug 2 47 00083192 Idler Washer 1

16 732-0802 Compression Spring .63 OD x 6.3 2 48 01000338 Hex Cap Screw 1/4-20 x .620 2

17 736-0100 Flat Washer .531 ID x 1.25 OD 1 49 01000372 Carriage Bolt 3/8-16 x .75 3

18 736-0188 Flat Washer .76 ID x 1.49 OD 4 50 01000375 Roller Pin 1/2 x 7.31 1

19 736-0179 Flat Washer .50 ID x 1.25 OD 1 51 01000380 Nut, 3/4-16, Hex Flange 3

20 01000873 Flat Washer .536 ID x .93 OD 1 52 01000385 Front Roller 1

21 01008538 Deck Handle Weldment 1 53 732-3067 Idler Torsion Spring 1

22 737-3000 Grease Fitting 5 54 01000393 Flat Washer, .469 ID x .875 OD x .105 1

23 738-3056 Shoulder Screw 1/2 x 2.5 4 55 01000635 Lock Nut 5/16-18 Hex Flange 1

24 738-3172 Shoulder Screw .68 x 2.11 1 56 01000930 Flat Washer .508 ID x 1.0 OD 2

25 738-0213 Shoulder Screw .498 x 1.445 1 57 01002391 Belt 1

26 741-0338 Flange Bearing .75 ID x .52 2 58 01002874 Extension Spring .865 OD x 4.68 1

27 741-0524 Bearing .625 ID x 1.574 OD 2 59 01004863 Tension Rod Stop Bracket 1

28 01008616 Blade 3 60 01008376 Double Pulley 1

29 747-3013 Support Pin 2 61 01008404 Spacer .635 ID x .88 OD 1

30 748-3065 Spindle Spacer 6 62 00030276 Carriage Bolt 3/8-16 x 1.50 1

31 748-3020 Blade Spacer 3 63 00012166 Hex Nut, 5/16-18 6

32 01008456 Spacer .760 ID x 1.5 OD 1

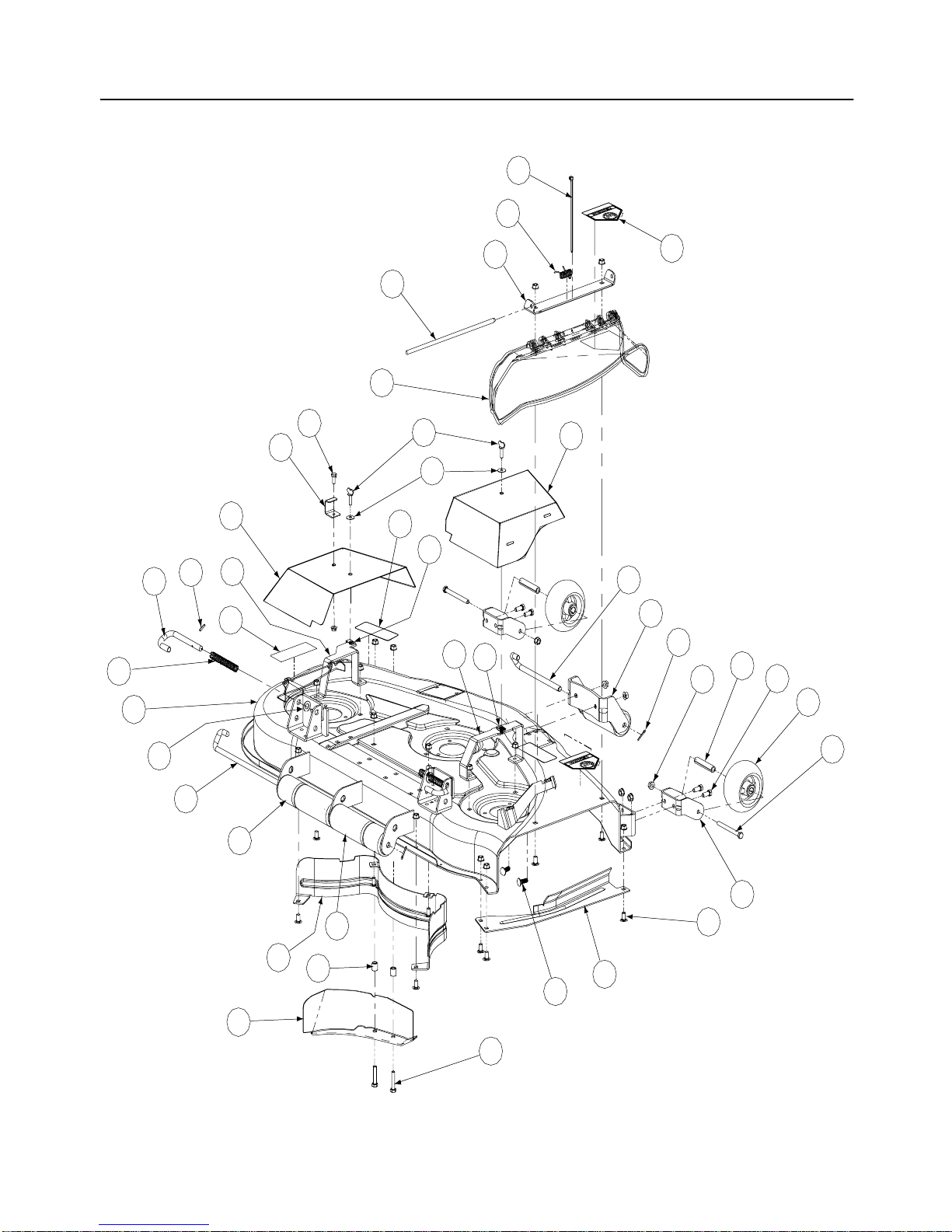

48" Formed Cutter Deck - Figure 3

GD: 01009779-P02

48" Formed Cutter Deck - Parts List for Figure 3

Ref.

No. Part No. Description Qty.

1 00003107 Cotter Pin .125 Dia x 1.0 2

2 00008495 Capscrew, 3/8-16 x 1-3/4 2

3 00011925 Capscrew, 3/8-16 x 4.00 2

4 00012470 Cable Tie, 3/16 x .05 x 7.4 1

5 00013406 Hex Cap Screw 5/16-18 x .75 1

6 00022560 Hex Nut, 3/8-16, Flange Lock 24

7 00030633 Decal, Rotating Blade 1

8 00030635 Decal, Warning Shield Missing 2

9 01000343 Complete Wheel, 5.00 Dia. 2

10 01000368 Hex Cap Screw, 3/8-16 x .88 4

11 01000372 Carriage Bolt 3/8-16 x .75 10

12 01000375 Roller Pin 1/2 x 7.31 1

13 01009102 Hinge Pin, .375 x 14.06 1

14 01000385 Front Roller 3

15 01009705 Chute Deflector 1

16 01003253 Torsion Spring 1

17 01000398 Wheel Spacer 2

18 01000635 Lock Nut 5/16-18 Hex Flange 1

19 01000643 Carriage Bolt, 3/8-16 x 1 2

20 01000960 Washer, .325 x .930 x .045 2

21 01001169 Grass Catcher Roller 2

22 01006574 Front Roller Bracket 1

23 01006575 Chute Mounting Bracket 1

24 01006576 Castor Bracket 2

25 01006577 Left Hand Belt Cover 1

26 01006578 Right Hand Belt Cover 1

27 01002166 Decal, Danger Hands & Feet 2

28 01006581 Baffle 1

29 01003560 Thumb Screw, 5/16-18 x 1.0 2

30 01003563 U-Nut, 5/16-18 2

31 01004751 Roller Rod 1

32 01006583 Finger Guard 1

33 01006490 Right Hand Belt Cover Support Bracket 1

34 01006492 Left Hand Belt Cover Support Bracket 1

35 01006530 Deck Baffle 1

36 01006573 Spacer, .437 ID x .625 OD x .75 2

37 01009780 48" Deck Weldment 1

38 01004863 Tension Rod Stop Bracket 1

39 01000930 Washer, .508 ID x 1.00 OD x .020 2

40 715_3003 Heavy Duty Spring Pin 2

41 732_0802 Compression Spring, .63 OD x 6.3 Lg 2

42 747_3013 Support Pin 2

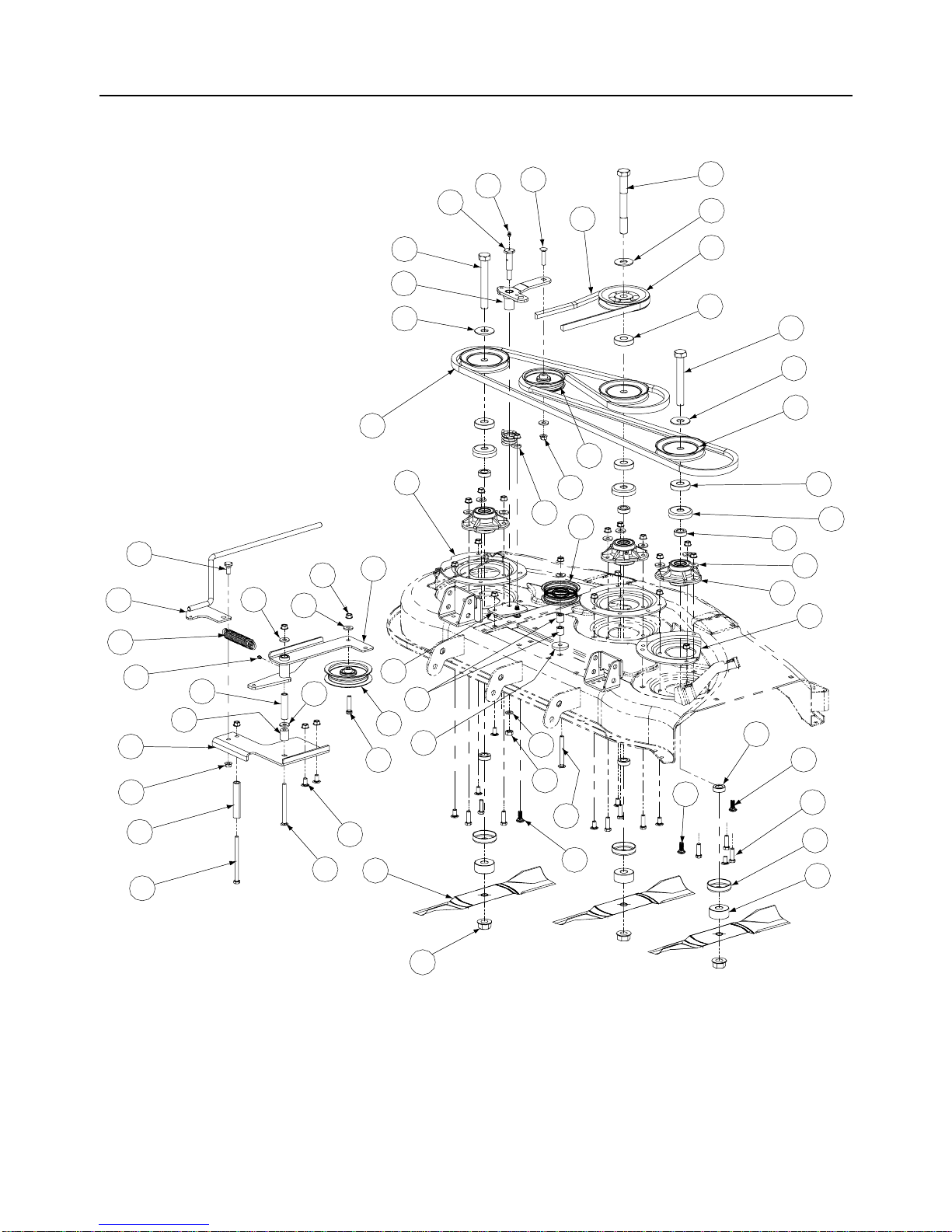

48" Spindle Assembly - Figure 4

647 7

GD: 01009778-P00
