Cub Cadet 28HP Tank 53AB5JEX750 Guide de configuration

Hydrostatic Zero-Turn

Commercial Riding Mower

Professional Turf Equipment

ILLUSTRATED PARTS LIST

60” & 72” Fabricated Deck

InDirect Injection Diesel

TABLE OF CONTENTS

60" Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

72" Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

60" Fabricated Cutter Deck. . . . . . . . . . . . . . . . . . . . . 6 and 7

60" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 8 and 9

72" Fabricated Cutter Deck. . . . . . . . . . . . . . . . . . . 10 and 11

72" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . 12 and 13

Hydro Hose and Pump Assembly. . . . . . . . . . . . . .14 and 15

Fuel Tank Assembly . . . . . . . . . . . . . . . . . . . . . . . . 16 and 17

60" Front Caster Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 18

72" Front Caster Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 19

Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Floor Panel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Control Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 22 and 23

Radiator Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 24 and 25

28.2 HP Caterpillar Engine Assembly . . . . . . . . . . 26 and 27

Electrical Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Seat Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

60" Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 30 and 31

72" Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 32 and 33

Foot Pedal Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

MODELS LISTED IN THIS MANUAL

28HP Tank, 28HP Tank,

53AB5JEX750 53AB5JEZ750

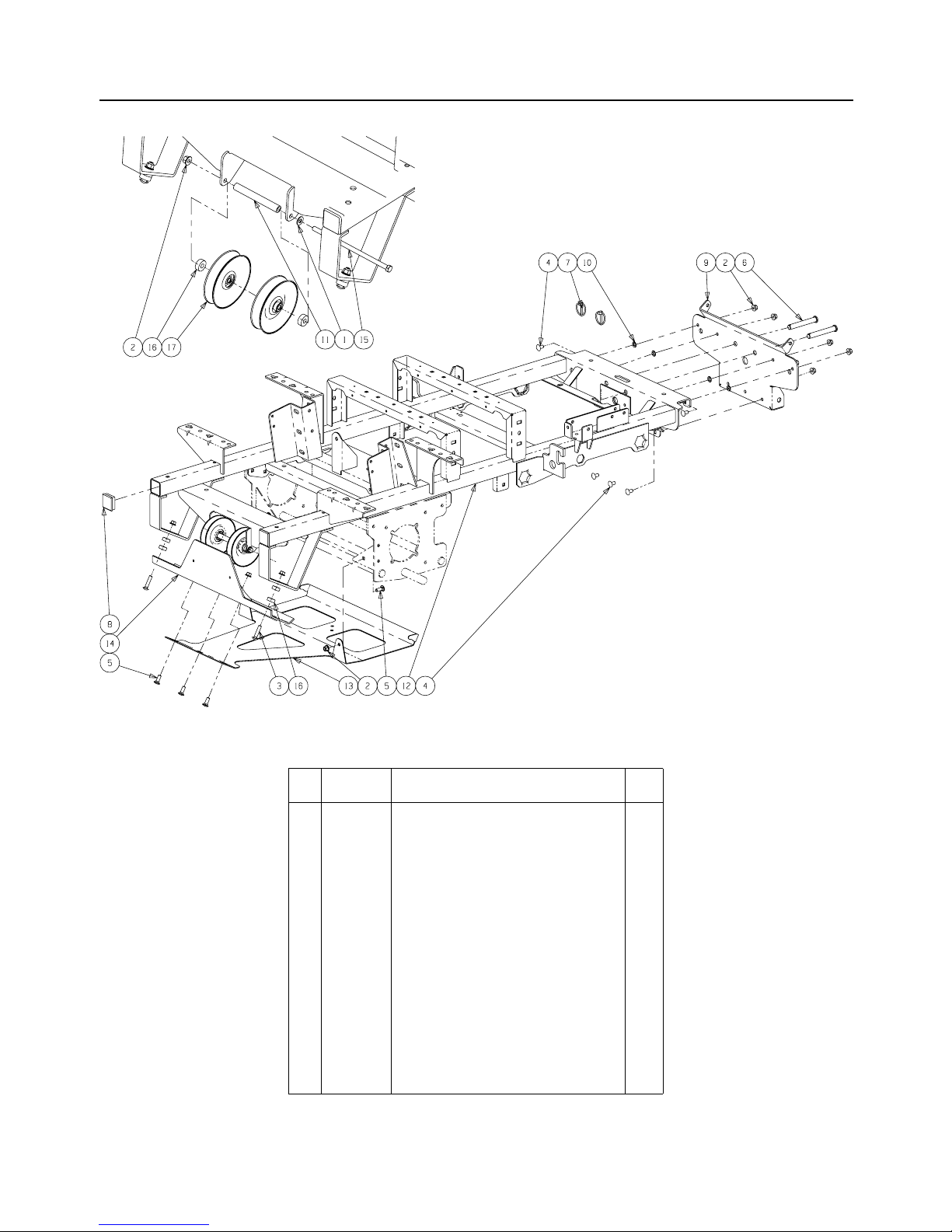

60" Frame Assembly- Figure 1 and Parts List

Ref.

No. Part No. Description Qty.

100012158

Flat Washer, 3/8

200022560 Hex Nut, 3/8-16 Flange Lock 15

300083192 Idler Washer 6

401000364 Hex Carriage Screw, 3/8-16, 1.75 2

501000372 Carriage Bolt, 3/8-16 x .75 Long 5

601000643 Carriage Bolt, 3/8-16 x 1 5

701001713 Bracket Assembly, Frame, Front 1

801003282

Clevis Pin, .625 Dia x 4.375 Long

901003993 Linch Pin, 3/16 Dia. 2

10 01005160 Plug, Square Tube 2

11 01008049 Carriage Bolt, 3/8-16 x 4.0 2

12 01008225 Push Retainer, 3/8"-Thread Stud 6

13 01009604 Spacer, .385 ID x .625 OD x 4.89 1

14 02001012 Frame Assembly 1

15 02002282 Skid Plate 1

16 02002281 Guard Bracket 1

17 02002426 Bar Weight 2

18 710-3248 Hex Head Cap Screw, 3/8-16 x 8.50 1

19 750-3119 Spacer .406 ID x 1.0 OD 6

20 756-3045 Idler Pulley, 5.06 Dia. 2

GD: 02001001-04/11/06

72" Frame Assembly- Figure 2 and Parts List

Ref.

No. Part No. Description Qty.

100012158

Flat Washer, 3/8

200022560 Hex Nut, 3/8-16 Flange Lock 15

301000364 Hex Carriage Screw, 3/8-16, 1.75 2

401000372 Carriage Bolt, 3/8-16 x .75 Long 7

501000643 Carriage Bolt, 3/8-16 x 1 5

601003282

Clevis Pin, .625 Dia x 4.375 Long

701003993 Linch Pin, 3/16 Dia. 2

801005160 Plug, Square Tube 2

901007779 Bracket Assembly, Frame, Front 1

10 01008225 Push Retainer, 3/8"-Thread Stud 4

11 01009604 Spacer, .385 ID x .625 OD x 4.89 1

12 02001012 Frame Assembly 1

13 02002282 Skid Plate 1

14 02002281 Guard Bracket 1

15 710-3248 Hex Head Cap Screw, 3/8-16 x 8.50 1

16 750-3119 Spacer .406 ID x 1.0 OD 6

17 756-3045 Idler Pulley, 5.06 Dia. 2

GD: 02002434-04/11/06

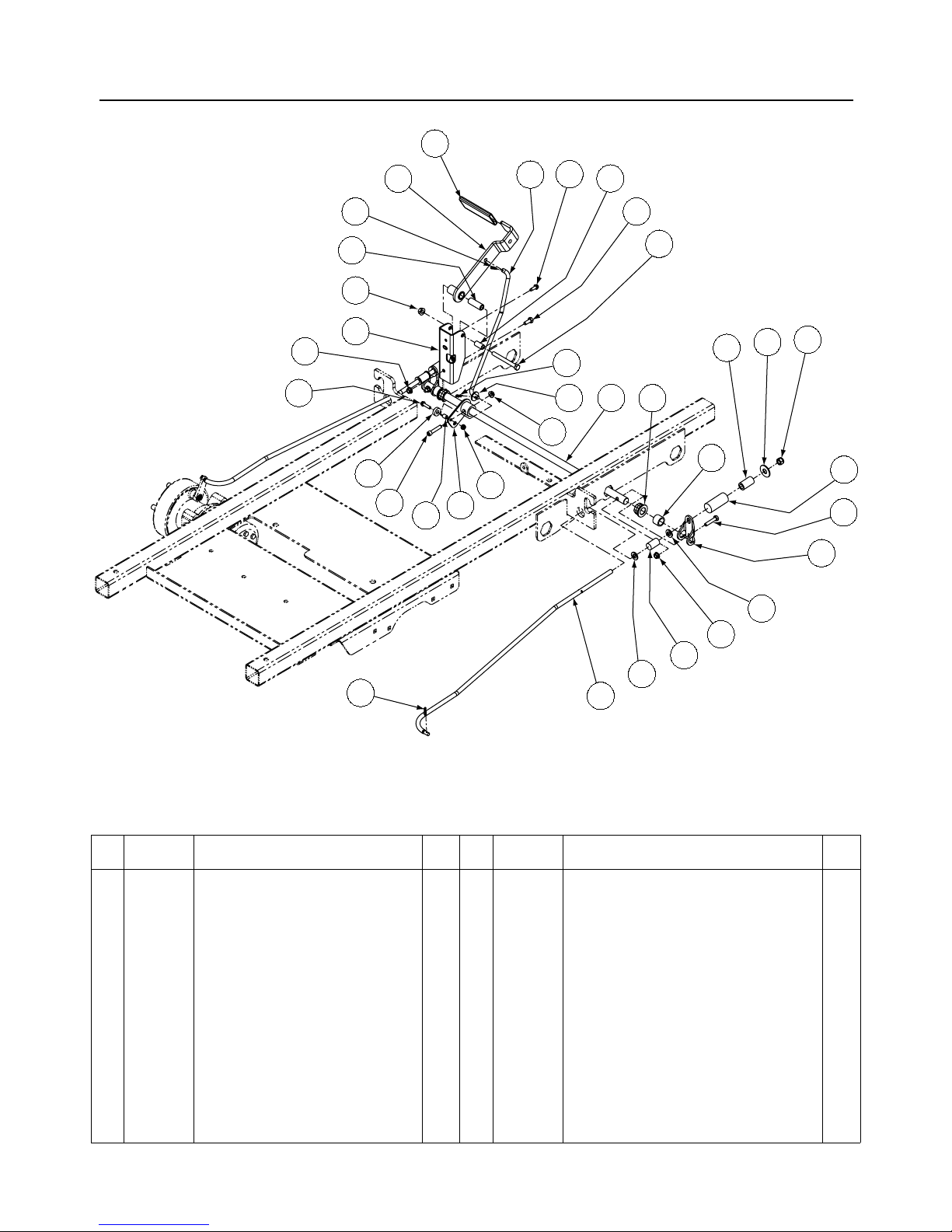

Brake Assembly - Figure 3 and Parts List

Ref.

No. Part No. Description Qty. Ref.

No. Part No. Description Qty.

1741-0598 Hex Flange Bearing, .752 ID 217 01003575 Force Brake Spring 2

200011459 Flat Washer, 1/2 218 01003716 Parking Brake Grip 1

301000371

Hex Cap Screw, 3/8-16 x 3-1/4

119 01008600 Socket Head CapScrew, 5/16-18 x 1.50 1

400012382

Hex Cap Screw, 5/16-18 x 1-1/2

220 01008607 Spacer, .375 OD x .257 ID x .438 1

500012152 LockNut, 1/4-20, Nylon Insert 121 01008886 Brake Rod 1

600022560 Flange Lock Hex Nut, 3/8-16 122 01008889 Parking Brake Mounting Bracket 1

700027279 Nylock Nut, 7/16-14 223 01009561 Brake Arm Assembly 1

800071691

Spacer, Control Rod

124 01009566 Brake Bracket 2

901000393

Washer, .469 ID x .875 OD x .105

425 01009568 Linkage Brake Rod 2

10 01000635 Hex Flange Lock Nut, 5/16-18 426 01009569 Pivot Brake Shaft 1

11 01000897 Self Tapping Screw, 1/4-20 x 1.00 127 01009601 Low Pressure Hose 2

12 01002751 Spacer, .39 x .63 x 1.75 128 01009602 Spacer, .76 ID x 1.0 OD x .75 2

13 01002771

Cotter Pin, .072 x 1.12 Lg

429 00013092

HHCS, 5/16-18 x 1.0

14 01003468 Spacer, .375 x .50 x .75 Lg 130 01000629

Screw, TT, 1/4-20, 0.75, Hex Index Washer

15 01003595 Brake Handle 131 01000723

Flat Washer, .406 ID, 1.0 OD, .105

16 01003574 Neutral Brake Spring 2

GD: 01009516-06/17/05

828

27 27

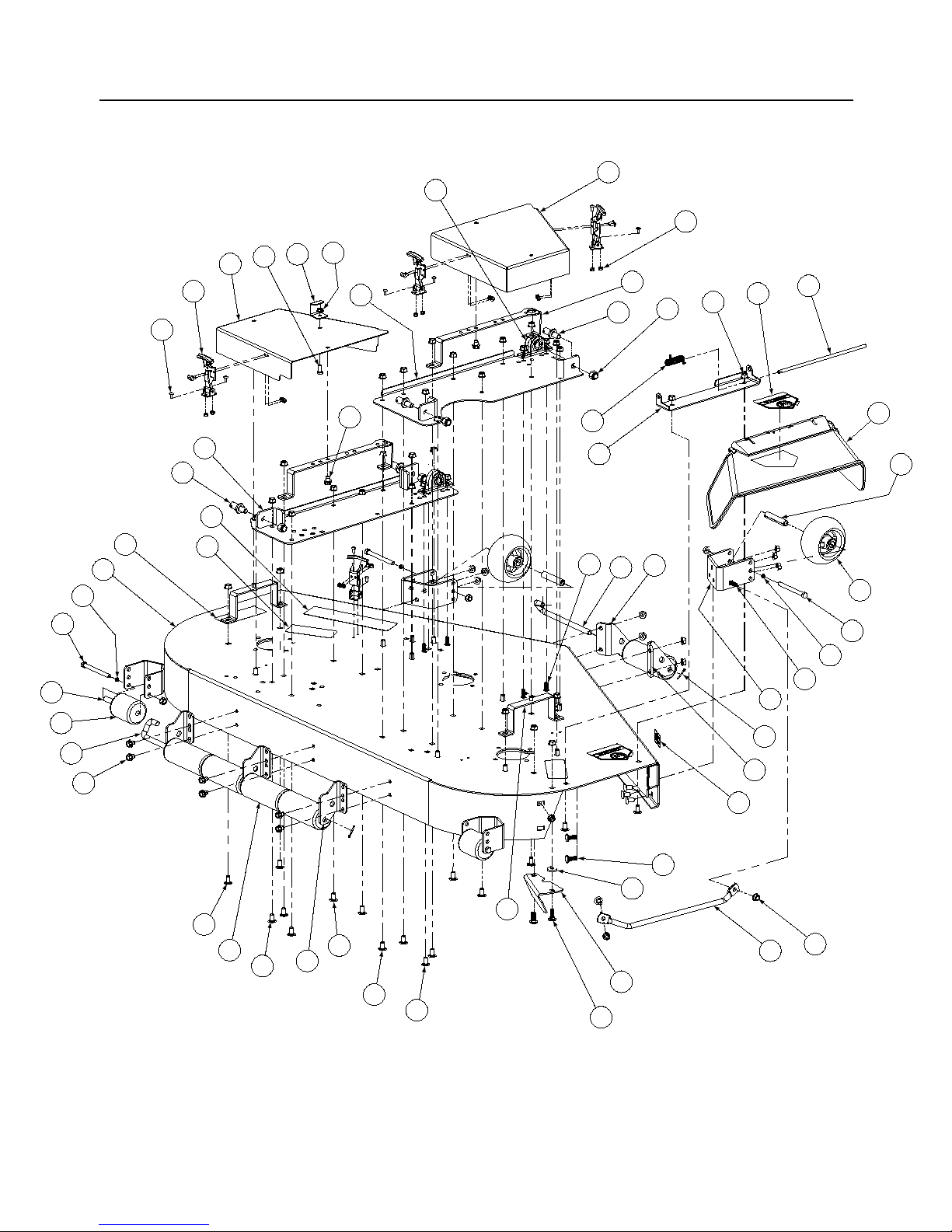

60" Fabricated Cutter Deck - Figure 4

25 6

14 29

469

331

22 46 45

GD: 01009439-11/04/05

60" Fabricated Cutter Deck - Parts List for Figure 4

Ref.

No. Part No. Description Qty.

100003107 Cotter Pin, .125 Dia. x 1.0 2

200011925 Hex Cap Screw, 3/8-16, 3.75 4

301002010

Carriage Screw, 3/8-16 x 1.25

400012428 Lock Nut, Nylon Insert, 1/2-13 4

501002130

Label, 60"

600022560 Flange Lock Hex Nut, 3/8-16 50

700030633

Decal, Rotating Blade

800030635 Decal, Warning Shield Missing 2

901003254 Chute Deflector Rod 1

10 00083192 Idler Washer 1

11 01000343

Complete Wheel, 5.00 Dia.

12 01000372 Carriage Bolt, 3/8-16 x .75 Lg. 35

13 01000375 Roller Pin, 1/2 Dia. x 7.31 Lg. 1

14 01000385 Front Roller 5

15 01000398 Wheel Spacer 2

16 01009808 Spacer, .385 x .50 x 3.045 2

17 01000643 Carriage Bolt, 3/8-16 x 1 7

18 01001745 Pin, 5/8 Dia. x 1.2 Lg. 4

19 01003253 Torsion Spring, 0.4ID x 2.16Lg 1

20 01002166

Decal, Danger Hand and Feet

21 01002635 Roller Pin 1

22 00013406 Hex Cap Screw, 5/16-18 x .75 1

23 01004304 Hex Index Washer Screw, 3/8-16, .5 8

24 01009300 Chute Bracket 1

25 01008644 Finger Guard 1

26 01004685 Belt Cover Support 2

27 01008814 60 Deck Assembly 1

28 01008633 Left Hand Mount Deck Bracket Assembly 1

29 01005364 Deck Roller Mount Bracket 3

30 01005260

Anti-Scalp Wheel Front Mount Bracket

01005256 Left Hand Front Roller Mount Bracket

01005258

Right Hand Front Roller Mount Bracket

33 01008635 Right Hand Deck Bracket Assembly 1

34 01005437 Outer Belt Cover Support Assembly 2

35 01006693 Chute Deflector 1

36 01008226

Chute Deflector Bracket

37 02000448

Right Hand Deck Belt Cover

38 02000447

Left Hand Deck Belt Cover

39 01005869

T-Handle Latch Draw

40 00017778

Phillips Head Screw, 10-32

41 00014608

Lock Nut, Nylon Insert, 10-32

42 01006086

Commercial Mower Label

43 01001169

Grass Catcher Roller

44 02000109

Pillow Block

45 01000635

Nut, 5/16-18, Hex Flange Lock

46 01004109

Stop Bracket

47 00012158

Flat Washer, 3/8

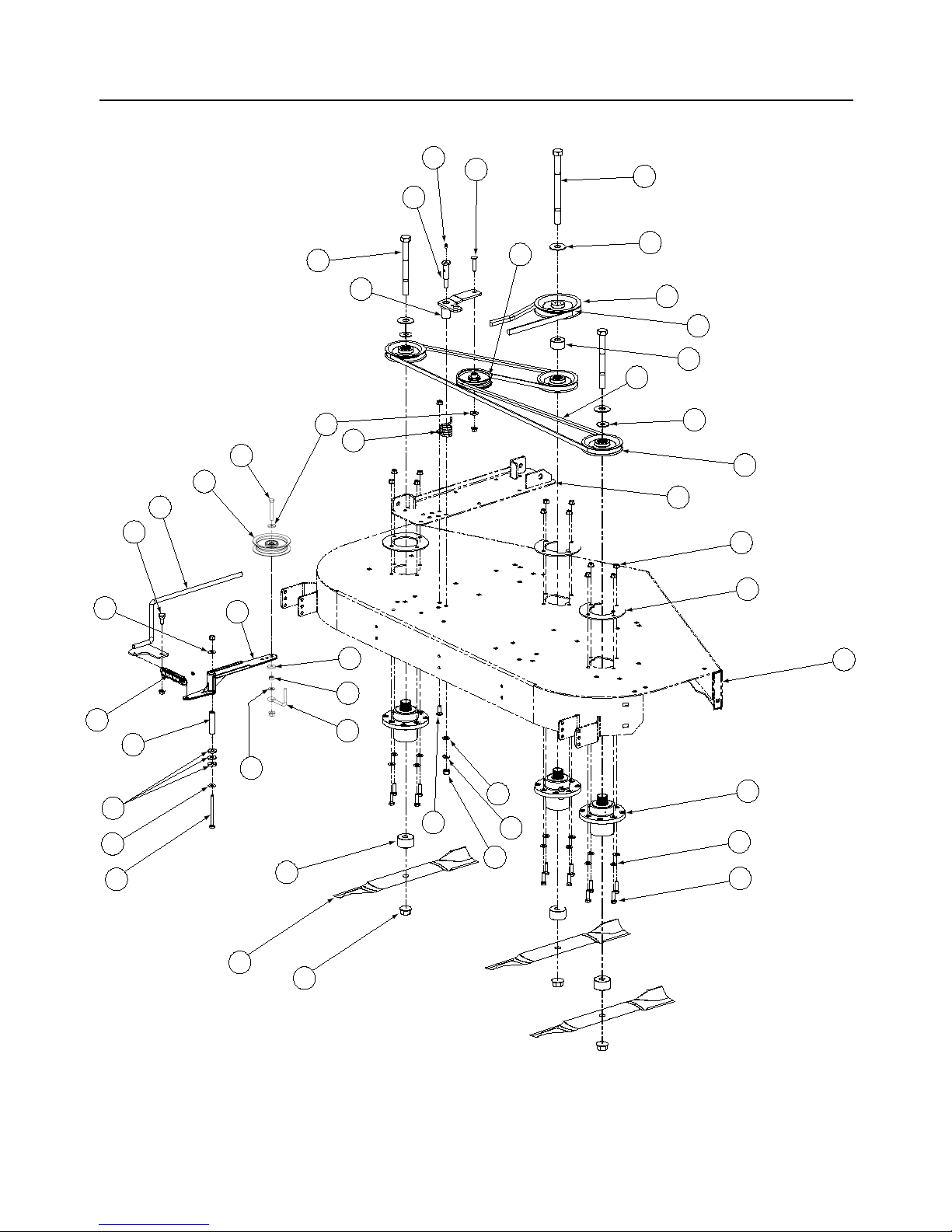

60" Fabricated Deck Spindle Assembly - Figure 5

325

29 12

GD: 01009508-03/20/06

60" Fabricated Deck Spindle Assembly

- Parts List for Figure 5

Ref.

No. Part No. Description Qty.

101000389 Lock Washer, 7/16 1

200011438 Hex Cap Screw, 3/8-16 x 1-1/2 12

300011925

Hex Cap Screw, 3/8-16, 4.00

400012158

Flat Washer, 3/8

501005737 Idler Arm Casting, Deck Spindle 1

01000308 Bearing Sleeve 2

600022560 Flange Lock Hex Nut, 3/8-16 17

700060078 Grease Fitting, 1/4-28 x 3/16 2

800083192 Idler Washer 4

901009635 Extension Spring, .98 x OD x 5.000 1

10 01000302 Shoulder Screw, 7/16-14 1

11 01000364 Hex Carriage Screw, 3/8-16, 1.75 1

12 01000380 Flange Hex Nut, 3/4-16 3

13 01000387

Torsion Idler Spring

14 01000392 Flat Washer, .781 ID 2.00 OD, .105 3

15 01000393 Flat Washer, .469 ID, .875 OD, .105 1

16 01005616

V-Pulley, 5.00 OD

17 01000643

Carriage Bolt, 3/8-16 x 1

18 01000723

Flat Washer, .406 ID, 1.0 OD, .105

19 01003245

Spacer, .39 ID x .625 OD x 2.75

20 01003532 Aluminum Spindle Assembly 3

21 00005763 Hex Nut, 7/16-14 1

22 01004081 Flat Pulley 1

23 01004101

Idler Pulley, 4.06 OD

24 01004118 Shoulder Screw, .50 x .27 Lg., 3/8-16 1

25 01004415 Spacer, .760 ID x 2.00 OD x .925 4

26 01005434

Aluminum Spindle Support Plate

27 01008081 V-Pulley, Cast, 6.360 OD 1

28 01005213 Hex Cap Screw, 3/4-16, 7.00 2

29 01005338 Hi-Lift Blade, 21.0, 0.756 ID 3

30 01003123 Spacer .812 ID x .218 LG 2

31 01005376 V-Belt, A Section x 122.3 1

32 01009583 V-Belt, B Section x 147.4 1

33 01005388

Hex Cap Screw, 3/4-16, 9.00

34 01005690

Spring Tension Rod Assembly

35 02001855

Idler Arm Assembly, Flat Top Bearing

36 00011861

Hex Cap Screw, 3/8-16 x 2.50

37 00006131

Hex Nut, 3/8-16

38 02002356

Belt Guide

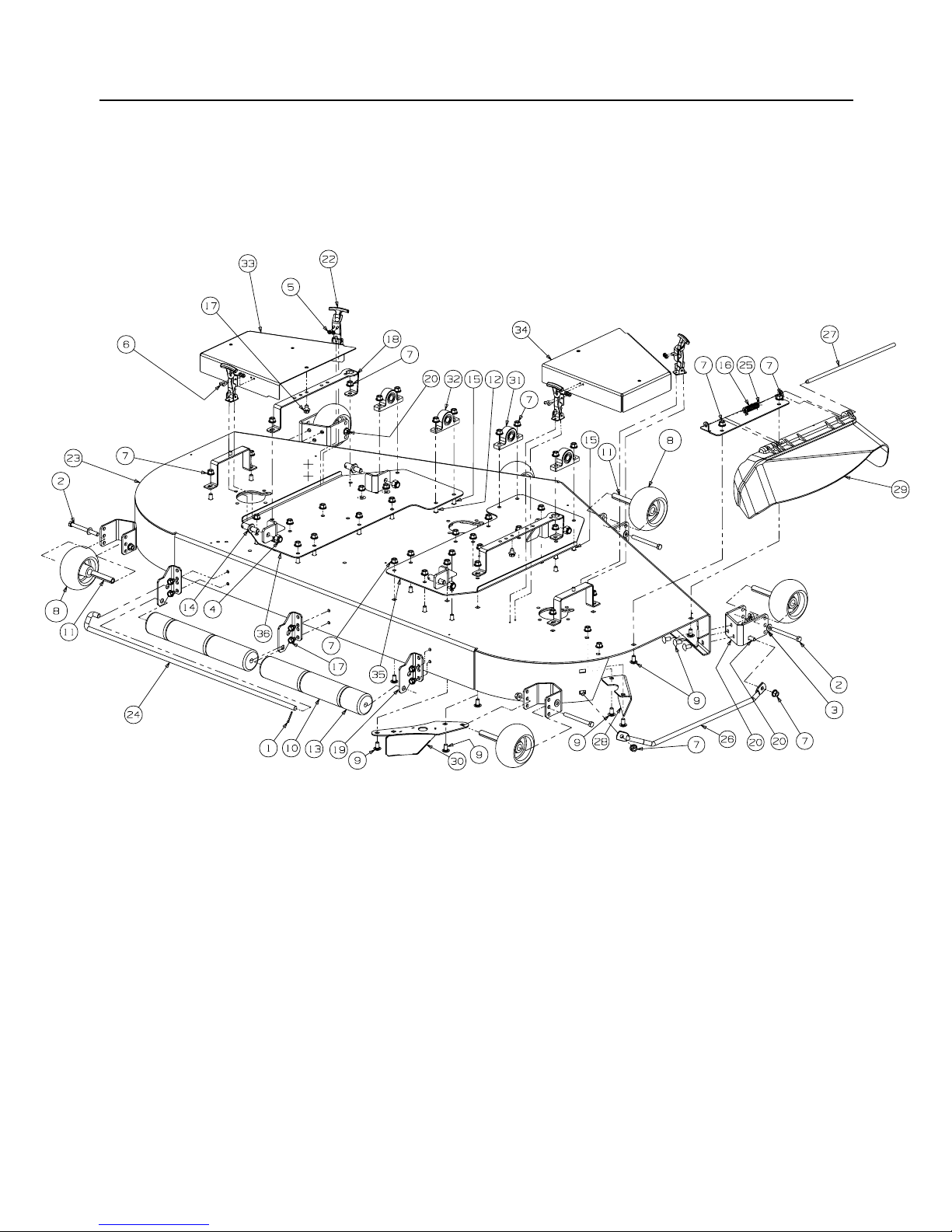

72" Fabricated Cutter Deck - Figure 6

GD: 01008212-05/15/06
