Crestron IM-WCVP
iMedia Wall Plate Computer Center with
Video Control Panel
Operations & Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2006 Crestron Electronics, Inc.
Crestron IM-WCVP iMedia Wall Plate Control Panel
Contents
iMedia Wall Plate Computer Center with Video Control
Panel: IM-WCVP 1
Introduction......................................................................................1
Features and Functions ..........................................................1
Application ............................................................................3
Specifications.........................................................................4
Physical Description ..............................................................5
Industry Compliance..............................................................7
Setup.................................................................................................8
Network Wiring.....................................................................8
Installation .............................................................................8
Hardware Hookup..................................................................9
System Configuration ............................................................9
Operation........................................................................................10
Problem Solving.............................................................................11
Troubleshooting...................................................................11
Reference Documents..........................................................13
Further Inquiries ..................................................................13
Future Updates.....................................................................13
Return and Warranty Policies ........................................................14
Merchandise Returns / Repair Service ................................14
CRESTRON Limited Warranty ..........................................14
Operations & Installation Guide – DOC. 6489 Contents •i
Crestron IM-WCVP iMedia Wall Plate Control Panel
iMedia Wall Plate Computer
Center with Video Control Panel:
IM-WCVP
Introduction
Features and Functions
• Control panel for use with the IM-WCVI iMedia Wall Plate
Computer Center with Video Interface1
• Connects to IM-WCVI to create IM-WCCV-S Wall Plate
Computer Center with Video using CresCAT™-IM iMedia cable
or other high quality CAT5 cable (up to 40 feet) 2
• Controls volume, source selection, and power for iMedia systems
• Mounts in a standard, 2½ inch deep, single-gang electrical box
1. The IM-WCVP is part of the IM-WCCV-S. It must be used with the IM-WCVI.
2. For more information on CresCAT-IM cable, refer to the latest version of the
IM-WCVI guide (Doc. 6488), available from the Crestron website
(www.crestron.com/manuals).
The iMedia Transport
The iMedia transport utilizes a single CAT5e* type cable to transmit
computer RGB, video, and stereo audio signals to a single projector or
plasma display. A typical XGA signal (1024 X 768 pixels at 60Hz) can
be transmitted up to 84 feet using iMedia, while higher resolutions up to
1600 x 1200 can be handled over shorter distances. Composite video
signals can be transmitted up to 218 feet. Audio is transmitted digitally at
Operations & Installation Guide – DOC. 6489 iMedia Wall Plate Control Panel: IM-WCVP •1
iMedia Wall Plate Control Panel Crestron IM-WCVP
20-bit, 48 kHz resolution. Control and power signals are also contained
on the same wire, eliminating the need for separate control or power
cables.
* For iMedia use CresCAT-IM cable, or quality CAT5e/CAT6 cable having a
maximum delay skew of 15ns per 100m.
2-Piece Wall Plate Multimedia Interface
The IM-WCCV-S is an iMedia (IM) transmitter featuring separate wall
plates for interface and control. The interface panel (IM-WCVI) is
designed to install in a standard 2-gang electrical box, providing video,
RGB, and stereo audio inputs for connection to the output of a computer
or AV source. The control panel (IM-WCVP) is a separate 1-gang wall
plate, which may be installed up to 40 feet from the interface panel.
Installing wiring for the IM-WCCV-S is extremely simple using
CRESCAT-IM cable. Up to three IM-WCCV-S's, or other IM
transmitters, may be installed as part of a complete system to provide
multiple input locations within the room.
Foolproof Operation
Every iMedia system is easy and intuitive to use. A simple press of the
VIDEO or PC buttons on the control panel selects the appropriate input,
turns on the projector (or plasma, etc.), lowers the screen or lift, and
routes all the signals where they need to go. The volume control affords
easy adjustment of the audio level, and the entire system can be turned
off at any time by simply holding down either button for five seconds.
For systems having more than one IM transmitter, selecting an input at a
given input location overrides the previously selected input at any other
location. The audio level for each input location is controlled individually
by its respective volume control.
2 •iMedia Wall Plate Control Panel: IM-WCVP Operations & Installation Guide – DOC. 6489
Crestron IM-WCVP iMedia Wall Plate Control Panel
Application
The IM-WCVP is part of the IM-WCCV-S iMedia transmitter. As shown
in the following diagram, iMedia transmitters provide input points for
video and PC sources on an iMedia receiver.
iMedia System Diagram
iMedia Receiver Display Device
iMedia
Transmitter
IM-TCC
IM-WCC
IM-FTCC-B
IM-RXV1
IM-RXV3
CresCAT-IM
Screen/Lift
Room Sensor
IR
Audio Amplifier
or Speakers
LAN
Control
RS-232 Control
IM-TCCV
IM-WCCV
IM-WCCV-S
IM-FTCCV*
Computer
Video
*IM-FTCCV available 3Q 2006
Operations & Installation Guide – DOC. 6489 iMedia Wall Plate Control Panel: IM-WCVP •3
iMedia Wall Plate Control Panel Crestron IM-WCVP
Specifications
Specifications for the IM-WCVP are listed in the following table.
IM-WCVP Specifications
SPECIFICATION DETAILS
Power Requirements Power is provided by the iMedia
receiver via the IM transport
Environmental
Temperature
Humidity
41° to 104°F (5° to 40°C)
10% to 90% RH
(non-condensing)
Enclosure Requires 2.5 inch deep single-
gang electrical box
Dimensions
Height
Width
Depth
4.50 in (11.43 cm)
2.75 in (6.99 cm)
2.70 in (6.86 cm)
Weight 6.2 oz (176 g)
4 •iMedia Wall Plate Control Panel: IM-WCVP Operations & Installation Guide – DOC. 6489
Crestron IM-WCVP iMedia Wall Plate Control Panel
Physical Description
This section provides information on the connections, controls, and
indicators available on your IM-WCVP.
IM-WCVP Physical View
IM-WCVP Overall Dimensions
FRONT REAR
2.10 in.
(5.34 cm)
2.70 in
(6.85 cm)
4.50 in.
(11.43 cm)
2.75 in.
(6.99 cm)
1
2
35
4
Operations & Installation Guide – DOC. 6489 iMedia Wall Plate Control Panel: IM-WCVP •5
iMedia Wall Plate Control Panel Crestron IM-WCVP

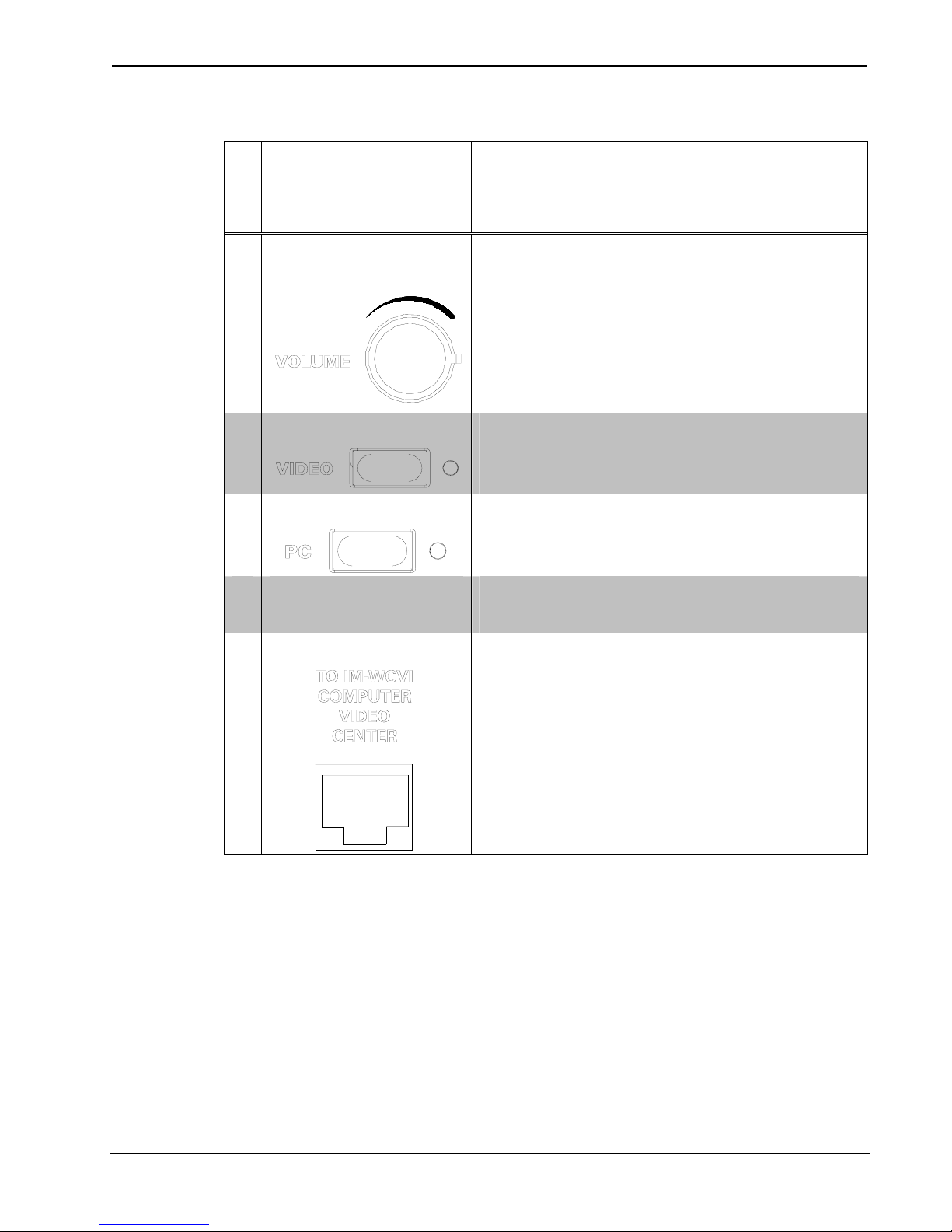

Connectors, Controls, & Indicators
# CONNECTORS,
CONTROLS, &
INDICATORS
DESCRIPTION
1 VOLUME
CONTROL KNOB
Turn clockwise to raise the volume of
the selected input; turn
counterclockwise to lower the volume
of the selected input.
2 VIDEO BUTTON Turns on the system and selects the
source connected to the VIDEO input
of the IM-WCVI.*
3 PC BUTTON
Turns on the system and selects the
source connected to the PC input of
the IM-WCVI.*
4 GROUND WIRE Connect the flying lead to earth
ground.
5 TO IM-WCVI
Female RJ-45 port to connect to
IM-WCVI over CresCAT-IM wire or
other high-quality CAT5 wire (40 feet
maximum).
* Refer to “Operation” on page 10 for more information.
6 •iMedia Wall Plate Control Panel: IM-WCVP Operations & Installation Guide – DOC. 6489
