Crestron TPS-4500IMPC Interface Module

Contents

Interface Module: TPS-4500IMPC 1

Introduction......................................................................................1

Features & Functions.............................................................1

Specifications.........................................................................1

Physical Description ..............................................................2

Industry Compliance..............................................................5

Setup.................................................................................................5

Network Wiring.....................................................................5

Hardware Hookup..................................................................7

Problem Solving...............................................................................8

Troubleshooting.....................................................................8

Further Inquiries ..................................................................10

Future Updates.....................................................................10

Return and Warranty Policies ........................................................11

Merchandise Returns / Repair Service ................................11

CRESTRON Limited Warranty ..........................................11

Operations Guide - DOC. 6163 Contents •i

Crestron TPS-4500IMPC Interface Module

Interface Module: TPS-4500IMPC

Introduction

Features & Functions

The TPS-4500IMPC is an interface module designed for, and included

with the Crestron TPS-4500 and TPS-4500V tilt touchpanels. The sleek

design of the touchpanel base left little room for all the connectors that

define the touchpanel's versatility. Furthermore, since the panel is not a

stationary user interface, it is impractical to have an excessive number of

cable connections directly to the touchpanel. As a result, it was necessary

to connect the touchpanel to an interface module that could offer

additional space for interconnections.

Specifications

The following table provides a summary of specifications for the

TPS-4500IMPC.

Specifications of the TPS-4500IMPC

SPECIFICATION

DETAILS

Optional Power Pack PW-2420RU (24 VDC, 2.0 A, Regulated)

Dimensions & Weight Height: 1.25 in (3.18 cm)

Width: 5.82 in (14.79 cm)

Depth: 3.50 in (8.89 cm)

Weight: 12.4 oz (0.36 kg)

Operations Guide - DOC. 6163 Interface Module: TPS-4500IMPC •1

Interface Module Crestron TPS-4500IMPC

Physical Description

The TPS-4500IMPC, shown in the following diagram, is supplied with

the TPS-4500 and TPS-4500V tilt touchpanels. The module is housed in

a black enclosure with labeling. An AC adapter port, network connector,

and video input connectors are located on one side of the unit. The

opposite side provides a video input signal selector switch, and

network/video connections to the touchpanel. The TPS-4500IMPC also

has mounting feet to secure the unit to a mounting surface.

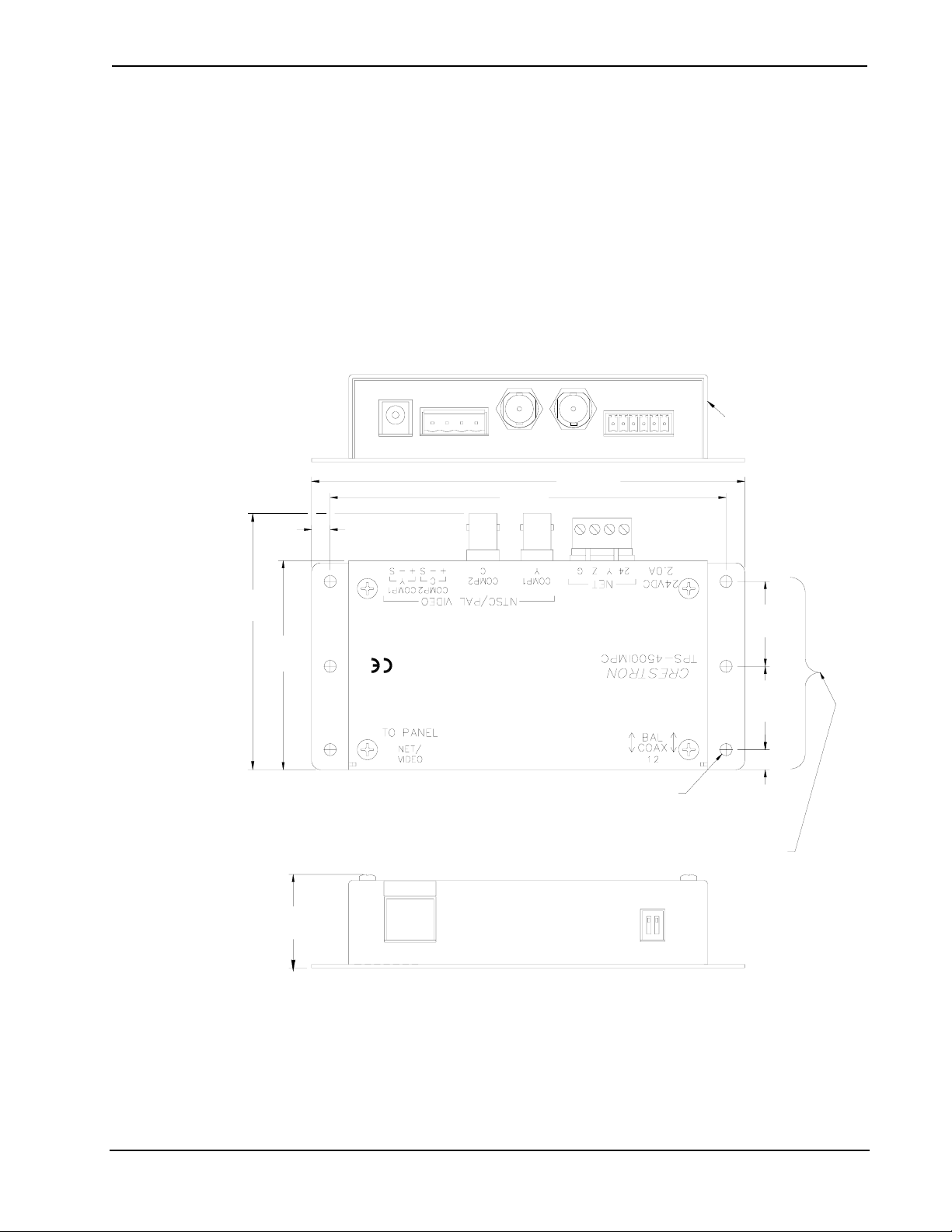

Physical Views of the TPS-4500IMPC

2.81 in

(7.12 cm)

3.50 in

(8.89 cm)

0.25 in

(0.64 cm)

5.32 in

(13.52 cm)

5.82 in

(14.78 cm)

1.14 in

(2.89 cm)

1.12 in

(2.84 cm)

0.27 in

(0.69 cm)

Ø 0.16 in

(0.41 cm)

6 PLACES

FOR BOTH SIDES OF THE UNIT

1.25 in

(3.18 cm)

THESE DIMENSIONS ARE THE SAME

SIDE VIEW

ROTATED 180°

Ports

There are five ports that serve various functions on the TPS-4500IMPC.

Refer to the following diagrams and descriptions of each port.

2 •Interface Module: TPS-4500IMPC Operations Guide - DOC. 6163

Crestron TPS-4500IMPC Interface Module

NTSC/PAL VIDEO

The NTSC/PAL video input consists of three connectors; two BNC

connectors for unbalanced video signals and one 6-pin mini-connector

for twisted pair wiring of balanced video signals. The video signal is

connected to these ports and requires a TPS-4500V or installation of the

TPS-VID-1 or TPS-VID-2 video card in a TPS-4500 touchpanel to

display video. Consult the latest revision of the TPS-4500V & 4500LV

Operations Guide (Doc. 6160), TPS-4500 & 4500L Operations Guide

(Doc. 5891), or TPS-VID-1/2 Operations & Installation Guide (Doc.

6059) for details. Use either the two BNC connectors or the six-pin

connector for twisted pair wiring when connecting a video source.

NOTE: BNC connectors are physically located next to the twisted pair

connectors. Image is for illustration purposes only. Refer to the physical

view of the TPS-4500IMPC on page 2 for actual connector positions.

NOTE: The TPS-4500IMPC allows the use of either balanced or

unbalanced signals for video input. To select the signal type to be used,

the DIP switches located on the opposite side of the device must be set in

the correct position. Refer to “BAL/COAX” on page 5 for more

information.

NET

This four-pin connector is used to connect to a Crestron control system

and other Cresnet peripherals in a system. It also provides network power

to the touchpanel if an external power pack is not used. If making

network connections to a control system or Cresnet peripherals, refer to

“Network Wiring” on page 5.

24 VDC, 2.0A (Power Supply)

24VDC

2.0A

This female connector is used to supply 24 VDC power to the

TPS-4500IMPC and the touchpanel from an optional power pack

(Crestron model PW-2420RU). When power is supplied to the TPS-

4500IMPC through this connector, a Cresnet power connection is not

required to display video on the touchpanel.

CAUTION: Use only Crestron power supplies for Crestron equipment.

Failure to do so could cause equipment damage or void the Crestron

warranty.

Operations Guide - DOC. 6163 Interface Module: TPS-4500IMPC •3

Interface Module Crestron TPS-4500IMPC

CAUTION: If power is provided to the TPS-4500IMPC from the

+24VDC on a Cresnet connector or the PW-2420RU, power must not be

applied to the power input on the touchpanel base.

NOTE: When power is supplied through this connector, Crestron

recommends disconnecting the +24 VDC on the Cresnet connector (if it

is connected).

NOTE: Use care in wiring installations to avoid applying 24 VDC power

to Cresnet wiring from multiple sources.

NET/VIDEO (To Panel)

VIDEO

NET/

This 10-pin RJ-45 connection mates with the TPS-4500 or TPS-4500V

touchpanel. Refer to the descriptions and pinout table that follow this

paragraph. The 10-pin net/video cable assembly to connect the

touchpanel to the TPS-4500IMPC is supplied.

This port provides the Cresnet connection to the touchpanel. This port

also provides composite or S-video input for the built-in video card (with

the purchase of a TPS-4500V or installation of the TPS-VID-1/2 in a

TPS-4500 touchpanel). Consult the latest revision of the TPS-4500V &

4500LV Operations Guide (Doc. 6160), TPS-4500 & 4500L Operations

Guide (Doc. 5891), or TPS-VID-1/2 Operations & Installation Guide

(Doc. 6059) for details.

NET/VIDEO Pinouts

TYPE PIN DESIGNATION DESCRIPTION

1 +24V Power (Network)

2 GND Ground (Network)

3 C+ Chrominance (Positive) /Composite 2

4 C- Chrominance (Negative) /Composite 2

5 Y Data (Network)

6 Z Data (Network)

7 Y+ Luminance (Positive)/Composite 1

8 Y- Luminance (Negative)/Composite 1

9 GND Ground (Network)

10-pin RJ-45

Pin 1 Pin 1

10 +24V Power (Network)

To determine the location of pin 1, hold the cable so that the end of the

10-pin RJ-45 connector is facing away from you, with the clip side down

and the copper side up. The copper connector on the far left is pin 1.

4 •Interface Module: TPS-4500IMPC Operations Guide - DOC. 6163

Crestron TPS-4500IMPC Interface Module

CAUTION: The 10-pin RJ-45 net/video connector cable supplied by

Crestron is a custom cable and is the only one that should be used. The

end of the cable has a metal shield that is required to protect the

equipment. Using non-Crestron cables will result in damage to the

product.

BAL/COAX

While not a port, these DIP switches are used to select which video

connections (balanced or unbalanced) to use when receiving video

signals. When used with a TPS-4500 with TPS-VID-2 installed, each

composite video signal can come in on either the twisted pair (balanced)

or coaxial (unbalanced) connector. When used with a TPS-4500V or

TPS-4500 with TPS-VID-1 installed, the video signal (S-video or

composite) can be received over the twisted pair (balanced) or coaxial

(unbalanced) connectors. As long as a switch is in the appropriate

position, a signal can be connected to either the BNC or twisted-pair

connector.

To select the twisted pair connector for balanced video, the DIP switch

for the respective video source must be in the “UP” position. To use the

coaxial connector(s) for unbalanced video, the DIP switch must be in the

“DOWN” position.

Industry Compliance

As of the date of manufacture, the TPS-4500IMPC has been tested and

found to comply with specifications for CE marking and standards per

EMC and Radiocommunications Compliance Labelling (N11785).

Setup

Network Wiring

CAUTION: Use only Crestron power supplies for Crestron equipment.

Failure to do so could cause equipment damage or void the Crestron

warranty.

Operations Guide - DOC. 6163 Interface Module: TPS-4500IMPC •5

Interface Module Crestron TPS-4500IMPC

CAUTION: Possible equipment damage if miswired.

NOTE: When installing network wiring, refer to the latest revision of the

wiring diagram(s) appropriate to your specific system configuration,

available from the Downloads | Product Manuals | Wiring Diagrams

section of the Crestron website (www.crestron.com).

NOTE: Do not power up system until all wiring is verified. Care should

be taken to ensure data (Y, Z) and power (24, G) connections are not

crossed.

NOTE: All network wiring must consist of two twisted-pairs. One

twisted pair is the +24V conductor and the GND conductor and the other

twisted pair is the Y conductor and the Z conductor.

NOTE: For larger networks (i.e., greater than 28 network devices), it

may be necessary to add a Cresnet Hub/Repeater (CNXHUB) to maintain

signal quality throughout the network. Also, for networks with lengthy

cable runs or varying types of network devices, it may be desirable to add

a hub/repeater after only 20 network devices.

When calculating the wire gauge for a particular network run, the length

of the run and the power factor of each network unit to be connected

must be taken into consideration. If network units are to be daisy-chained

on the run, the power factor of each network unit to be daisy-chained

must be added together to determine the power factor of the entire chain.

The length of the run in feet and the power factor of the run should be

used in the following resistance equation to calculate the value on the

right side of the equation.

Resistance Equation

R = Resistance (refer to table below).

L = Length of run (or chain) in feet.

PF = Power factor of entire run (or chain).

R < L x PF

40,000 Where:

The required wire gauge should be chosen such that the resistance value

is less than the value calculated in the resistance equation. Refer to the

following table.

6 •Interface Module: TPS-4500IMPC Operations Guide - DOC. 6163

Table des matières

Autres manuels Crestron Écran tactile

Crestron

Crestron Isys TPS-15G-QM Manuel utilisateur

Crestron

Crestron TSW-570 Manuel utilisateur

Crestron

Crestron Isys TPMC-4SM Comment utiliser

Crestron

Crestron Lsys TPS 2000L Manuel utilisateur

Crestron

Crestron STX-1600C Manuel utilisateur

Crestron

Crestron Isys TPS-5000 Manuel utilisateur

Crestron

Crestron DualTouch DTT-17 Manuel utilisateur

Crestron

Crestron QM-FTCC-TPS4 Comment utiliser

Crestron

Crestron TSW-560 Dessin dimensionnel

Crestron

Crestron FlipTop FT-TS600 Comment utiliser

Crestron

Crestron TPS-4500IMC Manuel utilisateur

Crestron

Crestron TPMC-10 Manuel utilisateur

Crestron

Crestron TSW-770R Series Manuel utilisateur

Crestron

Crestron TPMC-V12-WALL Manuel utilisateur

Crestron

Crestron TSW-730 Manuel utilisateur

Crestron

Crestron TSW-770-GV Manuel utilisateur

Crestron

Crestron Isys TPS-6000 Manuel utilisateur

Crestron

Crestron TS-1542 Manuel utilisateur

Crestron

Crestron TST-600 Manuel utilisateur

Crestron

Crestron TST-600 Manuel utilisateur

Crestron

Crestron Isys TPMC-12L Manuel utilisateur

Crestron

Crestron Isys TPS-5000L Manuel utilisateur

Crestron

Crestron SmarTouch STX-1700CW Manuel utilisateur

Crestron

Crestron Isys i/O TPMC-15-CH-L Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
