Crestron CT-3000 Manuel utilisateur

CRESTRON

Operations Guide - DOC. 8094B Contents •• i

Contents

Series 3000 Touchpanels 1

Description ..........................................................................................................................1

Functional Description ...........................................................................................1

Physical Description...............................................................................................3

Configuration Differences ...................................................................................... 5

Leading Specifications.........................................................................................................6

Installation/Setup................................................................................................................. 7

Identity Code..........................................................................................................7

Recommended Cleaning.........................................................................................7

Preparation for Use................................................................................................. 7

Hardware Hookup...................................................................................................8

Configuring the Touchpanel...................................................................................9

Programming..................................................................................................................... 15

Reserved Join Numbers ........................................................................................ 15

Workshop Versus SIMPL Windows...................................................................... 15

Problem Solving................................................................................................................. 19

Troubleshooting ................................................................................................... 19

Further Inquiries .................................................................................................. 20

Syntax.................................................................................................................. 20

Return and Warranty Policies............................................................................................. 21

Merchandise Returns / Repair Service .................................................................. 21

CRESTRON Limited Warranty............................................................................ 21

CRESTRON

Operations Guide - DOC. 8094B Series 3000 Touchpanels •• 1

Series 3000 Touchpanels

Description

Functional Description

The Series 3000 Touchpanels are 9.6 inch (23.9 cm) passive matrix touchscreen

control panels for the CRESNET II remote control system (herein referred to as the

CRESNET II system). There are 12 Series 3000 configurations available. Six of the

12 touchpanels offer 256 color display and are commonly known as ColorTouch.

The remaining six touchpanels offer 256 shades of grayscale display and are

commonly known as BriteTouch. ColorTouch and BriteTouch are available in

lectern-mount and adjustable tiltcase configurations. Configuration selection is

based on application requirements. Refer to “Configuration Differences” on page 5

for a more detailed description of each.

The purpose of a ColorTouch and BriteTouch Series 3000 unit is to replace hard-

wired panels in either a CRESNET II or an RS-232 based control system. The

touchpanel is capable of replacing large, complicated panels with a series of simpler

screens, each specific to the control problem at hand. Thus, very large numbers of

functions can be made available to the user without the confusion associated with

hardware panels of that complexity. Series 3000's icons, graphics, and text can

dramatically increase any user's comprehension of the control environment.

Devices, functions, and control zones are quickly organized and more easily

accessed. The Series 3000 Touchpanels offer:

• 256 color display (for ColorTouch only)

• 256 shades of grayscale display (for BriteTouch only)

• pop-up sub panels to reduce memory requirements, providing optimal

speed and performance

• multiple button, slider control, and icon configurations

• up to 999 functions and 96 screens

• imported photographs, drawings, and icons

• support for downloadable fonts - proportional and non-proportional

• foreign language text

CRESTRON

2•• Series 3000 Touchpanels Operations Guide - DOC. 8094B

• RS-232 interface for stand-alone applications (lectern-mount

configurations only)

• optional feature buttons adjacent to touchpanel

• printout of screen designs on standard printer

• Position Lock feature provides durable support of panel at any angle of

inclination between 0 and 70 degrees (tiltcase configurations only).

Software

Have a comment about

Crestron’s software?

Direct software related

suggestions and/or

complaints to Crestron via

([email protected]). Do

not forward any queries to

this address. Instead refer to

“Further Inquiries” on page

20 for assistance.

VisionTools™ for Windows (VTW), a design and programming Windows™-based

software, permits the creation of unlimited control screen variations incorporating

two and three-dimensional graphics and text. A set of pages which make up a

project can be designed for each Series 3000 Touchpanel application. Each page

contains objects such as custom control graphics, two and three-dimensional

buttons, sliders, and digital readouts which allow the user to interface with the

CRESNET II system. The project is uploaded to the touchpanel and programmed

into the flash PROM. The touchpanel uses the programmed project until another set

is uploaded from the PC. The PC may be disconnected from the rack or panel

except during reprogramming. For additional software information, consult the help

file available on the VTW installation disks.

Position Lock Button

The position lock button is centrally located at the front of the base on Series 3000

adjustable tiltcase touchpanels. These touchpanels permit incremental angle

positions indicated by audible clicks. Range of motion is adjustable for user comfort

and can vary from zero inclination to 70 degrees from horizontal. Thus the user can

position the touchscreen to a comfortable angle, just as a microphone can be

repositioned for each speaker. The comfortable angle is herein referred to as user

position. The position lock guarantees that once a user position is established or

locked, the angle will not degrade from repeated presses on the touchscreen.

The touchscreen is free to move up from the horizontal to an incremental angle.

Grasp the touchscreen with a hand at each side and gently tilt up to a comfortable

position. To activate position lock, slightly reverse the motion until the touchpanel

stops moving. Correct hand placement is shown below. The touchscreen is now set

into user position.

Hand Position for Tilting Touchpanel to Vertical

Once in user position, position lock is activated which means the touchscreen can

not be forced to the horizontal position without depressing the position lock button.

The touchscreen is still free to tilt up; a new user position is established at each

increment or audible click.

CRESTRON

Operations Guide - DOC. 8094B Series 3000 Touchpanels •• 3

The position lock button needs to be depressed before the touchscreen can be

returned to the horizontal position. To depress the button, slightly position the

touchscreen in the vertical direction with two hands, avoiding any tilting. The

position lock button can be depressed with one hand; the touchscreen can be tilted

down to the horizontal position with the other, shown below.

Hand Position for Tilting Touchpanel to Horizontal

Feature Buttons

ColorTouch and BriteTouch configurations with the letter “B” in their suffix have

seven feature buttons located to the left of the touchpanel screen. The buttons are

identified with numbers one through seven from top to bottom. These buttons are

hard-coded join numbers that serve as “hot keys” for repetitive functions. For

example, assign a feature button’s join number to a frequently used subpage. Create

the subpage on every page of the project. Thus, the subpage can be recalled with the

touch of a single button regardless of the current page being displayed.

Physical Description

Touchpanels

The 9.6 inch (23.9 cm) touch sensitive viewing screen is located on the front of each

Series 3000 Touchpanel. The electronic hardware is housed in a high impact, black

molded plastic enclosure for the adjustable tiltcase configurations, shown after this

paragraph. These touchpanels are designed to be placed on a counter and possess a

hinged base which can tilt from 0 to 70 degrees. Depress the button located at the

front of the base when pivoting the touchpanel to the horizontal position. A 6-pin,

6-position RJ11 modular jack is located at the rear of the adjustable tiltcase base.

Use the cable assembly (supplied) to connect the touchpanel to the CN-RJ11

(supplied), which attaches directly to the CRESNET II network. Aside from display

color, the only difference between the six tiltcase touchpanels is that configurations

with the letter “B” in their suffix have seven feature buttons on the front panel

adjacent to the touchscreen. The buttons are used as “hot keys” for repetitive

functions. Also, the “/1M” suffix indicates a memory upgrade available on two of

the six tiltcase panels.

CRESTRON

4•• Series 3000 Touchpanels Operations Guide - DOC. 8094B

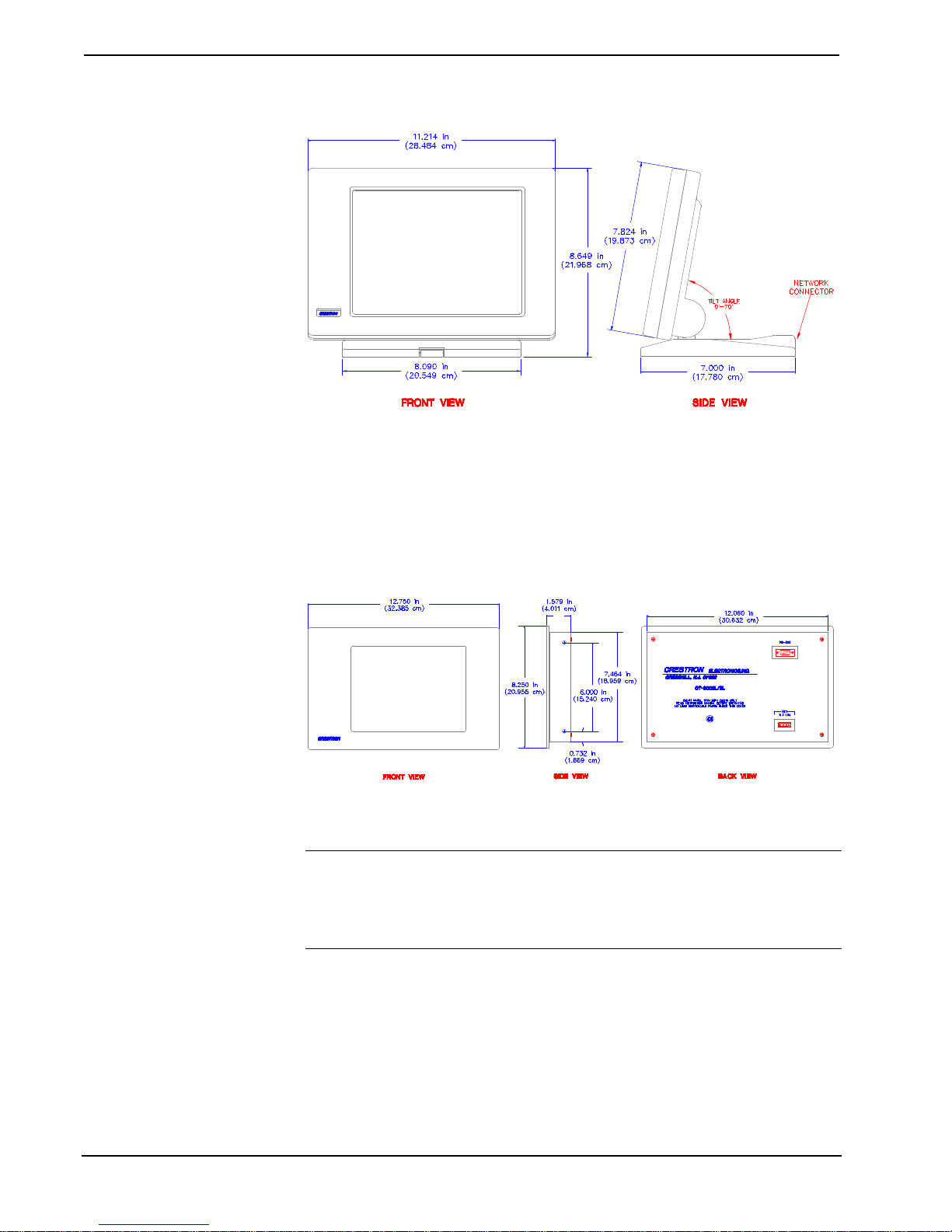

Physical Views of Tiltcase Series 3000 Touchpanels (CN-RJ11 not shown)

The lectern mount configurations, shown below, are denoted with the letter “L” in

their suffix. They are housed in a black metal box topped with a plastic cover. The

four-pin network and nine-pin RS-232 connector ports are located on the rear of the

panel. Aside from display color, the only difference between the six lectern mount

touchpanels is that configurations with the letter “B” in their suffix have seven

feature buttons on the front panel adjacent to the touchscreen. Also, the “/1M”

suffix indicates a memory upgrade available on two of the six lectern panels.

Physical Views of Lectern Series 3000 Touchpanels

Interface Module: CN-RJ11

NOTE: All tiltcase Series 3000 touchpanels are supplied with a cable assembly

that connects to the CN-RJ11 (supplied). Pinout information is provided in this

section of the Operations Guide. If the assembly must be mutilated in any way,

Crestron cannot guarantee the behavior of the touchpanel. The product may not

function accordingly, as stated in this Operations Guide.

CRESTRON’s CN-RJ11 is a network one-to-one converter that interfaces 4-wire

CRESNET and modular devices. The converter is housed in a black enclosure with

silk-screened top panel, shown after this paragraph. A 4-pin network connector is

located on one side of the unit. A 6-position, RJ11 modular telephone jack is located

on the opposite side. At the shorter sides of the CN-RJ11, the enclosure extends to

form feet at a right angle to the side. There are three holes per foot for inserting

screws to further stabilize the unit.

CRESTRON

Operations Guide - DOC. 8094B Series 3000 Touchpanels •• 5

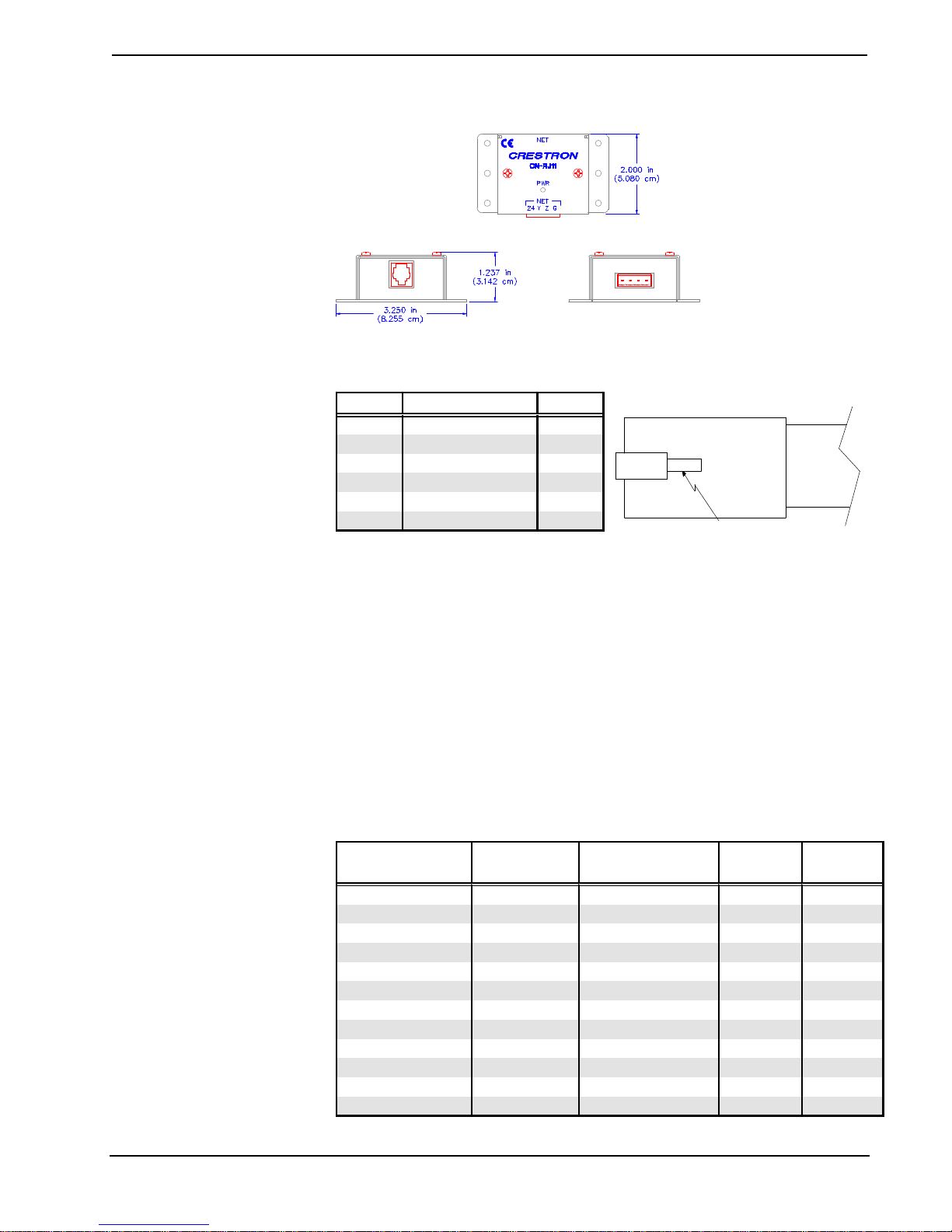

Physical Views of the CN-RJ11

SIDE VIEW (RJ11 CONNECTOR)

TOP VIEW

SIDE VIEW (4-PIN CONNECTOR)

6-Pin Jack Pinout (for CN-RJ11)

PIN # SIGNAL COLOR

1+24 V (Network) WHT

2+24 V (Network) BLK

3Y (Data) RED

4Z (Data) GRN

5GND (Network) YEL

6GND (Network) BLU

TAB (VISIBLE, ON TOP)

Configuration Differences

There are 12 Series 3000 configurations available and selection depends on color

versus grayscale display, type of installation (tiltcase or lectern mount) and whether

physical buttons for repetitive functions are desired. A configuration is defined by

one of two prefixes, CT- or LC-, and one of six suffixes, no suffix, B, BL, L, /1M,

and L/1M. The CT- or LC- prefix identifies the touchpanel as having either a 256

color display or a 256 grayscale display, respectively. No suffix indicates an

adjustable tiltcase configuration; these units are moveable and can tilt. The “B”

suffix identifies the touchpanel as having feature buttons. The "L" suffix identifies

the touchpanel as a lectern mount. The “/1M” suffix identifies the touchpanel as

having its memory upgraded to 1 Mbyte. Refer to the table below for a concise

listing of each Series 3000 configuration.

Series 3000 Touchpanel Configurations

CONFIGURATION DISPLAY INSTALLATION

FEATURE

BUTTONS MEMORY

CT-3000 256 Color Movable and can tilt None 256 Kbytes

CT-3000/1M 256 Color Movable and can tilt None 1 Mbyte

CT-3000B 256 Color Movable and can tilt Seven 256 Kbytes

CT-3000L 256 Color Lectern mount None 256 Kbytes

CT-3000L/1M 256 Color Lectern mount None 1 Mbyte

CT-3000BL 256 Color Lectern mount Seven 256 Kbytes

LC-3000 256 Grayscale Movable and can tilt None 256 Kbytes

LC-3000/1M 256 Grayscale Movable and can tilt None 1 Mbyte

LC-3000B 256 Grayscale Movable and can tilt Seven 256 Kbytes

LC-3000L 256 Grayscale Lectern mount None 256 Kbytes

LC-3000L/1M 256 Grayscale Lectern mount None 1 Mbyte

LC-3000BL 256 Grayscale Lectern mount Seven 256 Kbytes

CRESTRON

6•• Series 3000 Touchpanels Operations Guide - DOC. 8094B

Leading Specifications

The table below provides a summary of leading specifications for the Series 3000

Touchpanels. Dimensions and weight are approximations rounded to the nearest

tenth unit.

Leading Specifications for Series 3000 Touchpanels

SPECIFICATION DETAILS

Power Requirements 12 Watts, 24 VDC 0.5 Amp

CRESNET Power Factor 12 Watts

CRESNET II Workshop Version 4.20.03 or later

CRESNET II Operating System 3.11.18 or later

VisionTools for Windows Version VTW 10.7.1 or later

SIMPL Windows Version 1.0 or later

Memory 256 Kbytes flash memory for CT-3000,

CT-3000B, CT-3000L, CT-3000BL, LC-3000,

LC-3000B, LC-3000L, & LC-3000BL

1 Mbyte flash memory for CT-3000/1M,

CT-3000L/1M, LC-3000/1M, & LC-3000L/1M

CT-3000, CT-3000B, CT-3000/1M, Height: 8.6 in (212.8 cm)

LC-3000, LC-3000B, & LC-3000/1M Width: 11.2 in (28.5 cm)

Dimensions & Weight Depth: 7.0 in (17.8 cm)

(without CN-RJ11) Weight: 5.5 lb (2.5 kg) for CT- configurations

Weight: 5.3 lb (2.4 kg) for LC- configurations

CN-RJ11 Height: 2.0 in (5.0 cm)

Dimensions & Weight Width: 3.3 in (8.3 cm)

Depth: 1.2 in (3.0 cm)

Weight: 0.4 lb (0.2 kg)

CT-3000L, CT-3000BL, CT-3000L/1M, Height: 8.3 in (21.0 cm)

LC-3000L, LC-3000BL, & LC-3000L/1M Width: 12.8 in (32.4 cm)

Dimensions & Weight Depth: 1.6 in (4.0 cm)

Weight: 5.0 lb (2.3 kg) for CT- configurations

Weight: 4.7 lb (2.1 kg) for LC- configurations

View Screen Dimensions Height: 5.8 in (14.7 cm)

Width: 7.7 in (19.6 cm)

View Screen Resolution 640 x 480 pixels

View Screen Display Dual-Scan Passive Matrix LCD

View Screen Illumination Backlit Fluorescent

View Screen Touch Screen Resistive Membrane

As of the date of manufacture, the Series 3000 Touchpanels have been tested and

found to comply with specifications for CE marking.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Crestron Écran tactile

Crestron

Crestron QM-FTCC Comment utiliser

Crestron

Crestron TST-902 Manuel utilisateur

Crestron

Crestron Lsys TPS 2000L Manuel utilisateur

Crestron

Crestron Isys i/O TPMC-4X Manuel utilisateur

Crestron

Crestron V12 Manuel utilisateur

Crestron

Crestron Isys TPS-4000 Manuel utilisateur

Crestron

Crestron Isys TPS-6000 Manuel utilisateur

Crestron

Crestron SmarTouch STX-1700CXP Manuel utilisateur

Crestron

Crestron Isys TPS Series Manuel utilisateur

Crestron

Crestron STX-1600C Manuel utilisateur

Crestron

Crestron CT-1600 Comment utiliser

Crestron

Crestron Isys TPMC-4SM Instructions d'utilisation d'origine

Crestron

Crestron Isys TPS-5000L Manuel utilisateur

Crestron

Crestron DualTouch DTT-15V3 Manuel utilisateur

Crestron

Crestron TSW-730 Manuel utilisateur

Crestron

Crestron TPMC-3X Series Manuel utilisateur

Crestron

Crestron ST-1700CIR Manuel utilisateur

Crestron

Crestron TPS-4500IMPC Manuel utilisateur

Crestron

Crestron TSW-770-GV Manuel utilisateur

Crestron

Crestron TS-1542 Manuel du propriétaire

Crestron

Crestron Isys i/O TPMC-15-CH-L Manuel utilisateur

Crestron

Crestron Isys TPS-3000 Manuel utilisateur

Crestron

Crestron TSW-560 Manuel du propriétaire

Crestron

Crestron SmarTouch STS ST-1550C Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
