Crestron TST-602 Manuel du propriétaire

TST-602

5.7" Wireless Touch Screen

Supplemental Guide

Crestron Electronics, Inc.

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited non-exclusive,

non-transferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron

dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron

website at www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at patents.crestron.com.

Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.

Crestron, the Crestron logo, and Rava are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or

other countries. Wi-Fi is either a trademark or registered trademark of Wi-Fi Alliance in the United States and/or other countries. Other

trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and

names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors

in typography or photography.

This document was written by the Technical Publications department at Crestron.

Supplemental Guide – DOC. 7688A Contents

•

Contents

Access the Setup Screens 1

Configure the TST-602 2

RF Setup................................................................................................................. 2

Audio Setup ............................................................................................................ 3

Display Setup.......................................................................................................... 4

Standby Timeout..................................................................................................... 6

Networking Setup ................................................................................................... 7

LAN Setup ................................................................................................. 8

WiFi Setup ............................................................................................... 10

Diagnostics ........................................................................................................... 13

Keypad Test............................................................................................. 14

Touch Test............................................................................................... 15

Mic Test ................................................................................................... 15

LAN Test.................................................................................................. 16

WiFi Test .................................................................................................. 17

RF Test .................................................................................................... 18

Test Patterns............................................................................................ 19

Rava Test................................................................................................. 20

RTSP Test................................................................................................ 21

Battery Diagnostics .................................................................................. 22

Dock Test ................................................................................................ 23

Suspend Test........................................................................................... 23

About .................................................................................................................... 24

Save & Edit ........................................................................................................... 24

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen

•

TST-602: 5.7" Wireless Touch Screen

Access the Setup Screens

The setup screens enable basic configuration prior to regular operation of the Crestron®

TST-602. If no project is loaded, tap the screen to access the main setup screen. If a

project is running, the main setup screen can be accessed by pressing

HOME

MEDIA

, ,

and (to the left of the touch screen display) in sequence twice (press

HOME

MEDIA

, ,

,

HOME

MEDIA

, , ) within a 5-second period.

The

TST-602 Setup

screen is displayed.

TST-602 Setup Screen

The

TST-602 Setup

screen is composed of buttons for RF setup, audio setup, display

setup, standby timeout, networking setup, and diagnostics. In addition, there is a button to

toggle system messages on or off, an

About

button that provides information about the

touch screen, and a

Save & Exit

button. The functions of each are detailed in the following

pages of this guide.

•

TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A

Configure the TST-602

RF Setup

On the

TST-602 Setup

screen, tap

RF Setup

to display the

RF Setup

screen.

RF Setup Screen

The

RF Setup

screen shows RF signal strength, gateway UID, and gateway name. It also

has controls for acquiring the TST-602, setting the RF ID, RF channel, and RF power,

enabling RF roaming, and selecting the series of the control system.

Before a TST-602 can be used with a Crestron control system, it must first be acquired by a

Crestron Extended Range (RF) Wireless gateway (sold separately). To acquire a TST-602,

perform the following procedure:

1. Use a stylus or other thin-tipped object to press

ACQUIRE

on the gateway to enter

Acquire mode. The accompanying LED illuminates, indicating the unit is ready to

link with the touch screen.

2. On the TST-602’s

RF Setup

screen, tap

Acquire

. The screen displays an “Acquire

in progress” message, and the TST-602 is automatically acquired by the gateway

within two minutes.

3. When the screen displays an “Acquire OK” message, press

ACQUIRE

on the

gateway to exit Acquire mode. The LED turns off.

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen

•

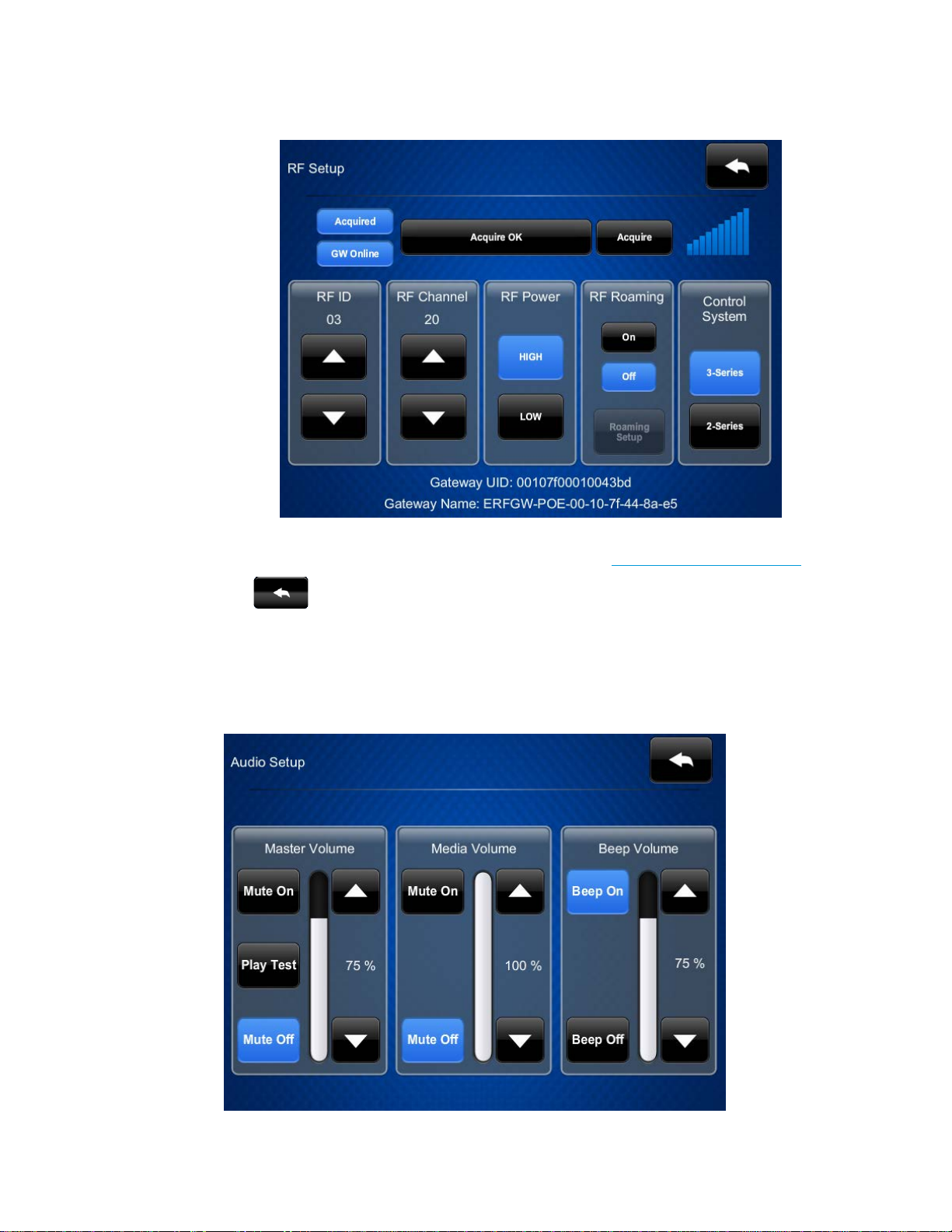

RF Setup – Acquire OK

For installations with multiple gateways, the TST-602 can be set up for RF roaming. For

details, refer to Touch Screen RF Roaming (Doc. 7671) at www.crestron.com/manuals.

Tap to return to the

TST-602 Setup

screen.

Audio Setup

On the

TST-602 Setup

screen, tap

Audio Setup

to display the

Audio Setup

screen.

Audio Setup Screen

•

TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A

The

Audio Setup

screen provides controls for muting or unmuting the audio, and for

adjusting levels for the master volume, media volume, and beep volume. The

Media

Volume

controls adjust the H.264 streaming media level in relation to the

Master Volume

controls.

Tap to return to the

TST-602 Setup

screen.

Display Setup

On the

TST-602 Setup

screen, tap

Display Setup

to enter the

Display Setup

screen.

Display Setup Screen

The

Display Setup

screen provides controls to adjust the screen’s LCD brightness and key

backlight brightness, controls to toggle the hard key backlight on and off, and controls to

enable using a hard key to wake the LCD.

Tap

High, Med, & Low Settings

to display the

Display Setup - High, Med, & Low

Settings

screen.

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen

•

Display Setup - High, Med, & Low Settings Screen

This screen provides access to

Low

Med

, and

High

presets for the screen and the key

backlight, in addition to custom adjustment for each of these.

Tap to return to the

Display Setup

screen.

Tap again to return to the

TST-602 Setup

screen.

•

TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A

Standby Timeout

On the

TST-602 Setup

screen, tap

Standby Timeout

to display the

Standby Timeout

screen.

Standby Timeout Screen

The

Standby Timeout

screen provides controls to adjust standby timeout and power down

for an undocked TST-602, and standby timeout for a docked TST-602. Standby timeouts

can be from 0 to 120 seconds. Power down can be from 0 to 240 seconds.

Tap

Screen Saver Options

to display the

Standby - Screen Saver

screen.

Standby - Screen Saver Screen
