Creality Ender-3 S1 Manuel utilisateur

V1.1

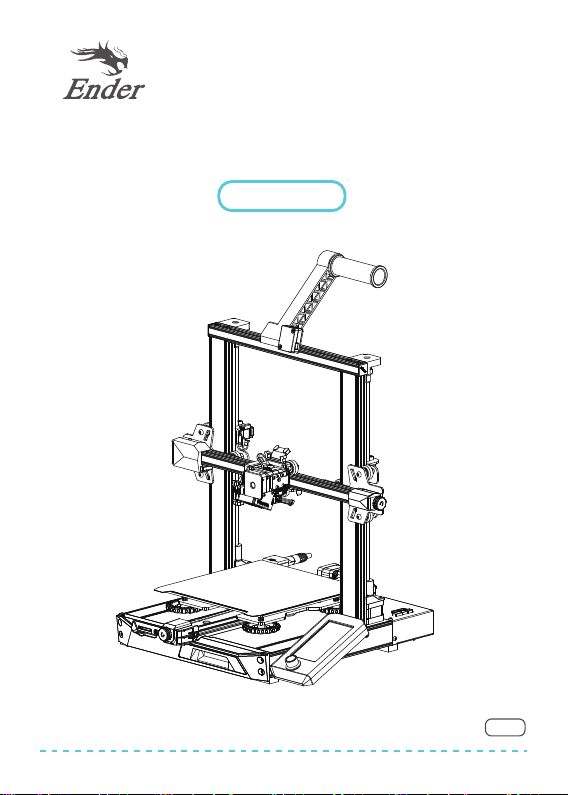

Ender-3 S1

3D Printer Quick Installation Guide

For a better experience in using our product, you can also learn how to use the Printer in the following ways: View

the accompanied instructions and videos in the Storage card.

1Notes

Do not use the printer any way other than described herein in order to avoid personal injury or property damage.

Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by

professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Creality

will not be responsible for any violators' legal liability under any circustance.

This machine is equipped with a security protection mechanism. Do not manually move the nozzle and printing platform mechanism manually while

booting up, otherwise the device will automatically power oﬀ for safety.

Clean the printer frequently. Always turn the power oﬀ when cleaning, and wipe with a dry cloth to remove dust, adhered printing plastics or any other

material oﬀ the frame, guide rails, or wheels. Use glass cleaner or isopropyl alcohol to clean the print surface before every print for consistent results.

When cleaning debris from the printer hotend, always use the provided tools. Do not touch the nozzle directly when heated. This can cause personal

injury.

Do not touch the nozzle or printing surface during operation as they may be hot. Keep hands away from machine while in use to avoid burns or

personal injury.

Before using experimental or exotic ﬁlaments, we suggest using standard ﬁlaments such as ABS or PLA to calibrate and test the machine.

Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.

Do not place the printer near any heat source or ﬂammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment.

3Tool list

Spade X1

9Diagonal Pliers X1

10 Filament X1

11 Wrench and screwdriver

Power Cord X1

13 Nozzle Cleaner X1

14 Storage Card &

Card Reader X1

15 Nozzle X1

2Parts List

Base Frame X1 Nozzle Kit X1 Spool X1

Display X1

Gantry Frame X1

5 6 Screen bracket X1

7Material rack and

ﬁlament sensor X1

2Wire clamp X1

3 4

4 Interface Descriptions

4.1 Description of Mainboard interfaces and Connections

4.2

Description of nozzle interfaces 4.3

Description of Z-axis

Adapter

Tips: the above accessories are for reference only, in kind prevail!

Hexagon socket head

spring washer combination

screw M5x45 X5

17 Hexagon socket ﬂat

round head screw

M4x18 X4

18 Hexagon socket

head cap screw

M3x6 X5

Z-axis motor

interface

Memory card slot

10P Flexible Flat

Cable (FFC)

30P Flexible Flat

Cable (FFC)

Mainboard fan

Type-C interface

Filament Sensor

Interface Z limit interface Touch screen

interface Knob display

interface

Heated Bed

DC 24V

Heated Bed

Thermistor

Fuse

24P Flexible Flat Cable (FFC)

Auto Leveling Interface

Heatsink Fan Interface

Front Print Fan Interface

Hotend Thermistor

Interface

Extrusion motor

interface

Heating pipe

Z-Axis Motor

Interface

Filament Sensor

Interface

+ 24V

- 24V

PWM

Z-axis limit switch

kit x1

5 Product installation

5.1 Nozzle assembly and wire clamp installation

5.2 Gantry frame installation

A. Move the right proﬁle of the bottom component out of the desktop about 35mm, and expose the installation

holes.

B. Place the gantry frame in the slot of the base, and pre-lock with two M5x45 hexagon socket head spring

washer combination screws from the bottom to the top on the hole.

C. Rotate the bottom assembly by 180° to ensure that the proﬁles on both sides are leveled up and down.

Pre-lock with two M5x45 hexagon socket head spring washer combination screws on the left hole, and then

tighten to ﬁx it.

D. Rotate the bottom assembly by 180°, and tighten the screw on the right side.

A. Place the nozzle assembly on the mounting back panel of the extruder, pre-lock with four M3x6 hexagon

socket head cap screw, and then tighten to ﬁx it.

B. Clip the wire clamp to the back panel of the X-axis motor.

When tightening the screws, use the short side of the wrench.

Bottom view

5.5 Equipment wiring

X, Z axis motor interface X axis limit switch

5.4 Material rack installation

A. Find the material pipe accessories, and ﬁx the threaded end on the right end of the material rack.

B. Fit the front slot of the installed material rack to the front slot of the proﬁle, and then press down to

clamp the bottom of the proﬁle.

5.3 Display installation

A. Place the display bracket on the side of the right proﬁle, and tighten it with three M4X18 hexagon ﬂat

round head screws.

B. Align the pins on the back of the display with the large holes of the display bracket and insert them, and

then slide down to tighten it.

1. Connect the nozzle to the 24pin port as shown in the ﬁgure. 2. Connect the X and Z axis stepper motors

according to the yellow label on 6pin (4 wires) port. 3. Connect the X-axis limit switch as indicated by the

yellow label on the 3pin (2 wires) port. 4. Connect 3pin (3 wires) 2.0 port to the keysets, and 3pin (3 wires)

2.54 port to the ﬁlament detector.

Note

●Please ensure the correct position for the power supply switch and mains before supply connection, in order to

avoid damage to the device.

●

If the mains between 200V and 240V, please select the 230V for the power supply switch (default is 230V).

●

If the mains between 100V and 120V, please select the 115V for the power supply switch.

6 Auto Leveling

1. Turn on the equipment and select “Level”.

Default operation: The printer ﬁrst automatically returns to home for automatic calibration of 16 points, and then

returns to home again to complete the leveling.

2. Enter “prepare→Z-oﬀset”, adjust the Z-axis compensation value so that the height from the nozzle to

the printing platform is about the thickness of a piece of A4 paper (0.08-0.1mm), click the knob to

conﬁrm, and complete the setting of Z-axis compensation value.

0.08-0.1MM

(Please use CR-Touch auto-leveling ﬁrst. If CR-Touch is damaged, please install Z-axis limit and manually level

the bed. For details, please refer to the instructions stored in the SD card.)

Filament detector wiring

115V

230V

4. Enter “Prepare→Z-oﬀset”, adjust the Z-axis compensation value so that the height from the nozzle to the

platform is almost the thickness of A4 paper (0.08-0.1mm), click the knob to conﬁrm, and complete the

center point leveling.

2. Enter “Prepare→ Auto Home” and return to the starting position.

7 Auxiliary leveling （When the inclination of the printing platform is larger than 2mm, CR-Touch leveling will fail.

Please use the auxiliary leveling）

1. Enter “Control → Reset conﬁguration” to reset the printer parameters.

3. Enter “Prepare → Move → Move Z”, and clear the value.

5.Enter “Prepare → Disable stepper” to turn oﬀ all enabled motors.

The nozzle is so far away from the platform that the

ﬁlaments can’t attach to the platform.

The nozzle is so close to the platform that the ﬁlaments

are not extruded enough, or even scratch the platform.

Extrude the ﬁlaments evenly to make them attach to the

platform properly.

6. Adjust the knob at the bottom of the hot bed, move the nozzle to the four corners of the printing

platform, so that the height of the nozzle to the printing platform is almost the thickness of A4 paper

(0.08-0.1mm) to ensure that the four corners are leveled.

9 First time Printing Instruction

1. Log in to the oﬃcial website to download

(www.creality.com) or ﬁnd the Creality

software in the memory card and install it.

Creality Slicer

2. Select Preferences in sequence → Conﬁgure Creality

→ Next → Select corresponding language → Next →

Finish to complete the setting.

A.In order to complete the loading smoothly, please trim the end of the ﬁlaments to an inclination of 45°.

B.First pass the ﬁlament through the ﬁlament detector hole, then press the handle of the extruder, and insert the

ﬁlament along the extruder hole until the nozzle position.

C.Preheat the nozzle. When the temperature reaches the set value, you can see that there are ﬁlaments ﬂowing out of

the nozzle, and the loading is completed.

8 Load Filaments

Replace ﬁlaments：

1. In the case of no printing operation：

A. Heat the nozzle to above 185℃ to soften the ﬁlaments in the nozzle. Then press the extrusion handle and pull out the ﬁlaments

quickly to avoid getting stuck in the printer’s pipe;

B. Change the new ﬁlaments to the rack and install that according to step 8.

2. In the case of being printing：

A. Pause printing ﬁrst. When the printer stops working, press the extrusion handle and pull out the ﬁlaments quickly to

avoid getting stuck in the printer’s pipe;

B. Replace the new ﬁlaments to the rack. Thread the ﬁlament through the ﬁlament sensor, press the extrusion handle through the

ﬁlament sensor and insert the ﬁlaments from the feed hole of the extruder into the nozzle. Push the ﬁlaments to remove the

residual ﬁlaments and resume printing after cleaning up.

3. Select Printer (Ender-3 S1) 4. Enter the corresponding parameters → Close

5. Open Creality

Slicer

6. Load File

7. Select File

Creality Slicer

Load

It is important to note ﬁle name within the memory card must

be in Latin letters or numbers. Chinese characters or any other

special symbol cannot be displayed by the printer.

Reminder: Please refer to user manual within the provided

memory card for software operation instructions.

9. Insert Memory Card User the screen

knob to select the menu Select the desire

print ﬁle.

Generate G code → Save to memory card
