Craftsman 919.167783 Manuel utilisateur

Owner’s Manual

Permanently Lubricated

2-Stage

Twin V

Portable

AIR COMPRESSOR

• Safety Guidelines

• Assembly

• Operation

• Maintenance

• Service and Adjustments

• Troubleshooting

• Repair Parts

Model No.

919.167783

CAUTION: Read the Safety Guidelines

and All Instructions Carefully Before

Operating.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

A20361 Rev. 0 10/06/06

2- ENG

A20361

TABLE OF CONTENTS

WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SPECIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

SAFETY GUIDELINES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

DUTY CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14

MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-16

SERVICE AND ADJUSTMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17

STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-21

REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-25

ESPAÑOL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27

NOTES/NOTAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

REPAIR PROTECTION AGREEMENTS . . . . . . . . . . . . . . . . . . . . . . . . . 49

HOW TO ORDER REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . back cover

WARRANTY

ONE YEAR FULL WARRANTY

If this product fails due to a defect in material or workmanship within one year

from the date of purchase, Sears will at its option repair or replace it free of

charge. Contact Sears at 1-800-4-MY-HOME®to arrange for repair, or return it

to the place of purchase for replacement.

If this product is used for commercial or rental purposes, this warranty applies

for only ninety days from the date of purchase.

This warranty gives you speciﬁc legal rights and you may have other rights

which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

3- ENG A20361

SAFETY GUIDELINES - DEFINITIONS

This manual contains information that is important for you to know and understand.

This information relates to protecting YOUR SAFETY and PREVENTING

EQUIPMENT PROBLEMS. To help you recognize this information, we use the

symbols below. Please read the manual and pay attention to these symbols.

Indicates an

imminently hazardous

situation which, if not avoided, will result

in death or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, may result in

minor or moderate injury.

Indicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious injury.

Used without the

safety alert symbol

indicates a potentially hazardous

situation which, if not avoided, may

result in property damage.

IMPORTANT SAFETY INSTRUCTIONS

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains

chemicals known to the State of California to cause cancer, birth defects or

other reproductive harm. Some example of these chemicals are:

• lead from lead-based paints

• crystalline silica from bricks and cement and other masonry products

• arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do this

type of work. To reduce your exposure to these chemicals: work in a well

ventilated area, and work with approved safety equipment, always wear

OSHA/MSHA/NIOSH approved, properly ﬁtting face mask or respirator when

using such tools.

When using air tools, basic safety precautions should always be followed to

reduce the risk of of personal injury.

SPECIFICATION CHART

Model No. 919-167783

Running HP 1.6

Bore 2.375"

Stroke High Pressure .54"

Low Pressure 1.45"

Voltage-Single Phase 120

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

Air Tank Capacity - Gallons 25 ASME

Approximate Cut-in Pressure 145

Approximate Cut-out Pressure 175

Refer to Glossary for abbreviations.

4- ENG

A20361

This product contains chemicals, including lead, known to

the State of California to cause cancer, and birth defects or

other reproductive harm. Wash hands after handling.

IMPORTANT SAFETY INSTRUCTIONS

Do not operate this unit until you read and

understand this instruction manual for safety,

operation and maintenance instructions.

SAVE THESE INSTRUCTIONS

HAZARD

RISK OF EXPLOSION OR FIRE

What can happen How to prevent it

• It is normal for electrical contacts

within the motor and pressure

switch to spark.

• Always operate the compressor in a

well ventilated area free of combus-

tible materials, gasoline, or solvent

vapors.

• If electrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire

or explosion.

• If spraying flammable materials,

locate compressor at least 20 feet

(6.1 m) away from spray area. An

additional length of hose may be

required.

• Store flammable materials in a

secure location away from com-

pressor.

• Restricting any of the compressor

ventilation openings will cause seri-

ous overheating and could cause

fire.

• Never place objects against or on

top of compressor.

• Operate compressor in an open

area at least 12" (30.5 cm) away

from any wall or obstruction that

would restrict the flow of fresh air to

the ventilation openings.

• Operate compressor in a clean, dry

well ventilated area. Do not operate

unit indoors or in any confined area.

• Unattended operation of this prod-

uct could result in personal injury

or property damage. To reduce the

risk of fire, do not allow the com-

pressor to operate unattended.

• Always remain in attendance with

the product when it is operating.

• Always turn off and unplug unit

when not in use.

5- ENG A20361

HAZARD

RISK TO BREATHING (ASPHYXIATION)

What can happen How to prevent it

• The compressed air directly from

your compressor is not safe for

breathing. The air stream may con-

tain carbon monoxide, toxic vapors,

or solid particles from the air tank.

Breathing these contaminant's can

cause serious injury or death.

• Air obtained directly from the com-

pressor should never be used to

supply air for human consumption.

In order to use air produced by this

compressor for breathing, suitable

filters and in-line safety equipment

must be properly installed. In-line

filters and safety equipment used

in conjunction with the compressor

must be capable of treating air to all

applicable local and federal codes

prior to human consumption.

• Sprayed materials such as paint,

paint solvents, paint remover, insec-

ticides, weed killers, may contain

harmful vapors and poisons.

• Work in an area with good cross

ventilation. Read and follow the

safety instructions provided on the

label or safety data sheets for the

materials you are spraying. Always

use certified safety equipment:

OSHA/MSHA/NIOSH respiratory

protection designed for use with

your specific application.

HAZARD

RISK of Bursting

Air Tank: The air tank on your Air Compressor is designed and may be UM coded

(for units with air tanks greater than 6 inch diameter) according to ASME Section VIII,

Div. 1 rules. All pressure vessels should be inspected once every two years. To ﬁnd

your state pressure vessels inspector, look under the Division of Labor and Industries

in the government section of a phone book for assistance.

The following conditions could lead to a weakening of the air tank, and result in a

violent air tank explosion:

What can happen How to prevent it

• Failure to properly drain condensed

water from air tank, causing rust

and thinning of the steel air tank.

• Drain air tank daily or after each

use. If air tank develops a leak,

replace it immediately with a new air

tank or replace the entire compres-

sor.

• Modifications or attempted repairs

to the air tank. • Never drill into, weld, or make any

modifications to the air tank or its

attachments. Never attempt to

repair a damaged or leaking air

tank. Replace with a new air tank.

6- ENG

A20361

• Unauthorized modifications to the

safety valve or any other compo-

nents which control air tank pres-

sure.

• The air tank is designed to with-

stand specific operating pressures.

Never make adjustments or parts

substitutions to alter the factory set

operating pressures.

Attachments & accessories:

• Exceeding the pressure rating of

air tools, spray guns, air operated

accessories, tires, and other inflata-

bles can cause them to explode or

fly apart, and could result in serious

injury.

• Follow the equipment manufactur-

ers recommendation and never

exceed the maximum allowable

pressure rating of attachments.

Never use compressor to inflate

small low pressure objects such as

children’s toys, footballs, basket-

balls, etc.

HAZARD

RISK OF ELECTRICAL SHOCK

What can happen How to prevent it

• Your air compressor is powered by

electricity. Like any other electrically

powered device, If it is not used

properly it may cause electric

shock.

• Never operate the compressor

outdoors when it is raining or in wet

conditions.

• Never operate compressor with

protective covers removed or

damaged.

• Repairs attempted by unqualified

personnel can result in serious

injury or death by electrocution.

• Any electrical wiring or repairs

required on this product should be

performed by an authorized service

center in accordance with national

and local electrical codes.

• Electrical Grounding: Failure to

provide adequate grounding to

this product could result in serious

injury or death from electrocution.

See Grounding Instructions under

"Installation".

• Make certain that the electrical

circuit to which the compressor

is connected provides proper

electrical grounding, correct voltage

and adequate fuse protection.

7- ENG A20361

HAZARD

RISK FROM FLYING OBJECTS

What can happen How to prevent it

• The compressed air stream can

cause soft tissue damage to

exposed skin and can propel dirt,

chips, loose particles, and small

objects at high speed, resulting in

property damage or personal injury.

• Always wear certified safety equip-

ment: ANSI Z87.1 eye protection

(CAN/CSA Z94.3) with side shields

when using the compressor.

• Never point any nozzle or sprayer

toward any part of the body or at

other people or animals.

• Always turn the compressor off

and bleed pressure from the air

hose and air tank before attempt-

ing maintenance, attaching tools or

accessories.

HAZARD

RISK OF HOT SURFACES

What can happen How to prevent it

• Touching exposed metal such as

the compressor head, engine head,

engine exhaust or outlet tubes, can

result in serious burns.

• Never touch any exposed metal

parts on compressor during or

immediately after operation.

Compressor will remain hot for

several minutes after operation.

• Do not reach around protective

shrouds or attempt maintenance

until unit has been allowed to cool.

HAZARD

RISK FROM MOVING PARTS

What can happen How to prevent it

• Moving parts such as the pulley, fly-

wheel, and belt can cause serious

injury if they come into contact with

you or your clothing.

• Never operate the compressor with

guards or covers which are dam-

aged or removed.

• Keep your hair, clothing, and gloves

away from moving parts. Loose

clothes, jewelry, or long hair can be

caught in moving parts.

• Air vents may cover moving parts

and should be avoided as well.

• Attempting to operate compressor

with damaged or missing parts or

attempting to repair compressor

with protective shrouds removed

can expose you to moving parts

and can result in serious injury.

• Any repairs required on this product

should be performed by an autho-

rized service center.

8- ENG

A20361

HAZARD

RISK OF UNSAFE OPERATION

What can happen How to prevent it

• Unsafe operation of your air com-

pressor could lead to serious injury

or death to you or others.

• Review and understand all instruc-

tions and warnings in this manual.

• Become familiar with the operation

and controls of the air compressor.

• Keep operating area clear of all per-

sons, pets, and obstacles.

• Keep children away from the air

compressor at all times.

• Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all

times.

• Never defeat the safety features of

this product.

• Equip area of operation with a fire

extinguisher.

• Do not operate machine with miss-

ing, broken, or unauthorized parts.

•

Never stand on the compressor

HAZARD

RISK OF FALLING

What can happen How to prevent it

• A portable compressor can fall from

a table, workbench or roof caus-

ing damage to the compressor

and could result in serious injury or

death to the operator.

• Always operate compressor in a

stable secure position to prevent

accidental movement of the unit.

Never operate compressor on a

roof or other elevated position. Use

additional air hose to reach high

locations.

HAZARD

RISK FROM NOISE

What can happen How to prevent it

• Under some conditions and dura-

tion of use, noise from this product

may contribute to hearing loss.

• Always wear certified safety equip-

ment: ANSI S12.6 (S3.19) hearing

protection.

SAVE THESE INSTRUCTIONS

FOR FUTURE USE

9- ENG A20361

GLOSSARY

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per min-

ute; a unit of measure of air delivery.

PSIG: Pounds per square inch gauge;

a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Underwriters

Laboratories Standards for Safety.

Cut-In Pressure: While the motor is

off, air tank pressure drops as you

continue to use your accessory. When

the tank pressure drops to a certain

low level the motor will restart auto-

matically. The low pressure at which

the motor automatically restarts is

called "cut-in" pressure.

Cut-Out Pressure: When an air

compressor is turned on and begins

to run, air pressure in the air tank

begins to build. It builds to a certain

high pressure before the motor auto-

matically shuts off - protecting your

air tank from pressure higher than its

capacity. The high pressure at which

the motor shuts off is called "cut-out"

pressure.

Branch Circuit: Circuit carrying elec-

tricity from electrical panel to outlet.

DUTY CYCLE

This air compressor pump is capable

of running continuously. However, to

prolong the life of your air compressor,

it is recommended that a 50%-75%

average duty cycle be maintained; that

is, the air compressor pump should

not run more than 30-45 minutes in

any given hour.

Accessories for this unit are available at the store the unit was purchased.

ACCESSORIES

This unit is capable of powering the following Accessories. The accessories are

available through the current Power and Hand Tool Catalog or full-line Sears

stores.

Accessories

• In Line Filter

• Tire Air Chuck

• Quick Connector Sets (various

sizes)

• Air Pressure Regulators

• Oil Fog Lubricators

• Air Hose: 1/4", 3/8" or 1/2" I.D. in

various lengths

Refer to the selection chart located on

the unit to select the tools this unit is

capable of powering.

The use of any

other accessory

not recommended for use with

this tool could be hazardous. Use

only accessories rated equal to

or higher than the rating of the air

compressor.

10- ENG

A20361

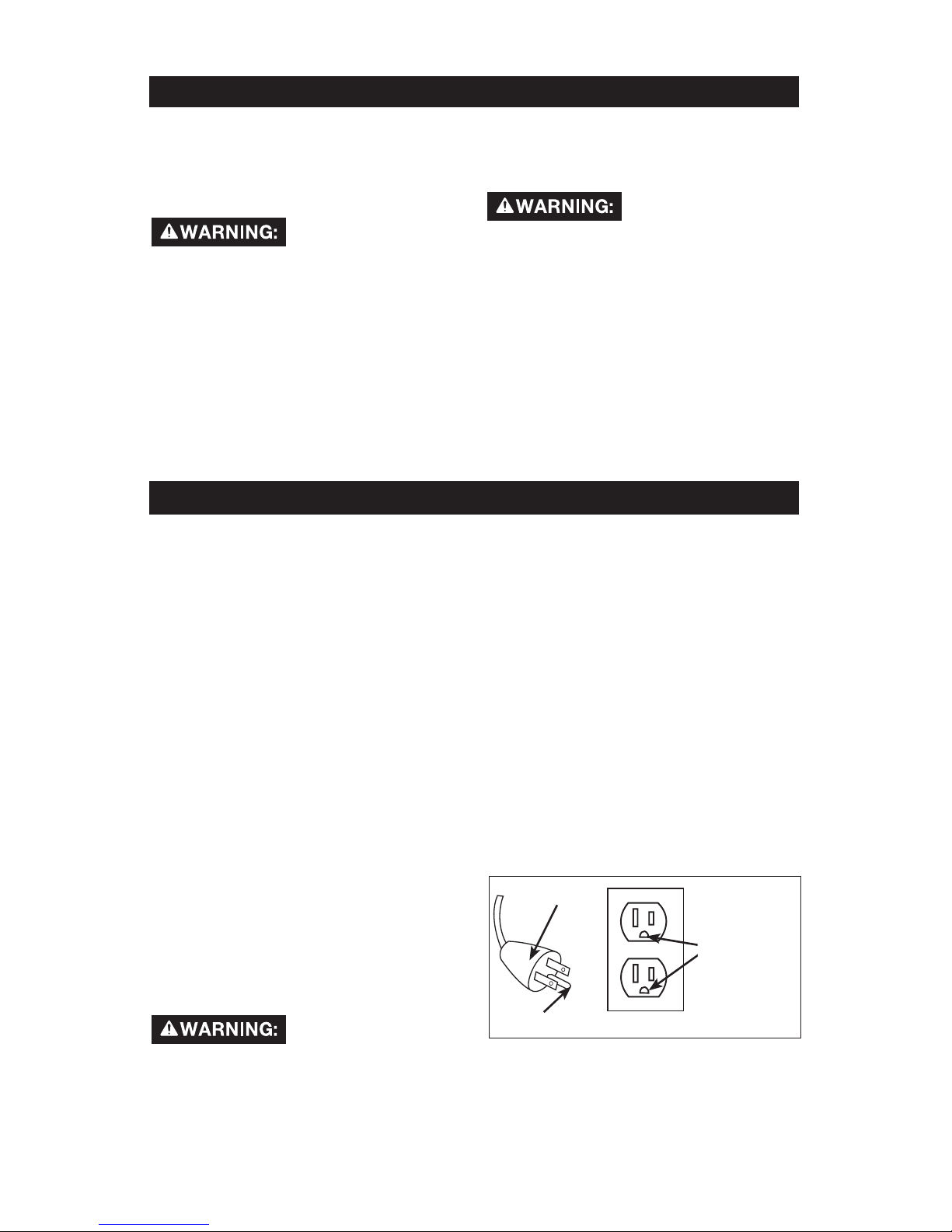

The portable air compressor is

equipped with a cord having a

grounding wire with an appropriate

grounding plug (see following illustra-

tions).

1. The cord set and plug with this

unit contains a grounding pin.

This plug MUST be used with a

grounded outlet.

IMPORTANT: The outlet being used

must be installed and grounded in

accordance with all local codes and

ordinances.

2. Make sure the outlet being used

has the same configuration as the

grounded plug. DO NOT USE AN

ADAPTER. See illustration.

Grounding Pin

Grounded

Outlets

Plug

3. Inspect the plug and cord before

each use. Do not use if there are

signs of damage.

INSTALLATION

HOW TO SET UP YOUR UNIT

Location of the Air Compressor

• Locate the air compressor in a

clean, dry and well ventilated

area.

• The air compressor should be

located at least 12" (304.8 mm)

away from the wall or other

obstructions that will interfere

with the flow of air.

• Place the air compressor on a flat

level surface in the vertical posi-

tion resting on the rubber bum-

pers and wheels

• The air compressor pump and

shroud are designed to allow for

proper cooling. The ventilation

openings on the compressor are

necessary to maintain proper

operating temperature. Do not

place rags or other containers on

or near these openings.

GROUNDING INSTRUCTIONS

Risk of Electrical

Shock. In the event

of a short circuit, grounding reduces

the risk of shock by providing an

escape wire for the electric current.

This air compressor must be

properly grounded.

ASSEMBLY

Unpacking

1. Remove unit from carton and dis-

card all packaging.

Installing Air hoses

Risk of unsafe

operation. Firmly

grasp air hose in hand when

installing or disconnecting to

prevent hose whip.

1. Pull the regulator knob out and

turn counterclockwise to set the

outlet pressure to zero.

2. Grasp the air hose at the Quick

Connect plug and push the plug

into the Quick Connect body.

Coupler will snap into place.

3. Grasp the air hose and pull to

ensure coupler is seated.

Disconnecting Air hoses

Risk of unsafe

operation. Firmly

grasp air hose in hand when

installing or disconnecting to

prevent hose whip.

1. Pull the regulator knob out and

turn counterclockwise to set the

outlet pressure to zero.

2. Pull coupler on Quick Connect

body back to release Quick

Connect plug on air hose.

Autres manuels pour 919.167783

Table des matières

Langues :

Autres manuels Craftsman Compresseur d'air

Craftsman

Craftsman 919.155730 Manuel utilisateur

Craftsman

Craftsman AIR COMPRESSOR 919.724701 Manuel utilisateur

Craftsman

Craftsman 919.152163 Manuel utilisateur

Craftsman

Craftsman MG-OILLUBE Air compressor Mode d’emploi

Craftsman

Craftsman 107.16575 Manuel utilisateur

Craftsman

Craftsman 919.152144 Manuel utilisateur

Craftsman

Craftsman 921.16472 Manuel utilisateur

Craftsman

Craftsman 919.184191 Manuel utilisateur

Craftsman

Craftsman 919.16724 Manuel utilisateur

Craftsman

Craftsman 226.165290 Manuel utilisateur

Craftsman

Craftsman 921.1531 Manuel utilisateur

Craftsman

Craftsman 919.72458 Manuel utilisateur

Craftsman

Craftsman 107.16575 Manuel utilisateur

Craftsman

Craftsman 919.167311 Manuel utilisateur

Craftsman

Craftsman 919.167370 Manuel utilisateur

Craftsman

Craftsman 919.165330 Manuel utilisateur

Craftsman

Craftsman 919.167770 Manuel utilisateur

Craftsman

Craftsman 919.7247 Manuel utilisateur

Craftsman

Craftsman 921.153101 Manuel utilisateur

Craftsman

Craftsman 919.167280 Manuel utilisateur

Craftsman

Craftsman 919.157251 Manuel utilisateur

Craftsman

Craftsman 919.724571 Manuel utilisateur

Craftsman

Craftsman 921.166370 Manuel utilisateur

Craftsman

Craftsman 921.16476 Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
