Craftsman 919.152144 Manuel utilisateur

Owner's Manual

ICRRFTglVlRN°I

Permanently Lubricated

Tank Mounted

AiR COMPRESSOR

Model No.

919.152144

=Safety Guidelines

=Assembly

= Operation

=Maintenance

=Service and Adjustments

=Troubleshooting

=Repair Parts

CAUTION: Read the Safety Guidelines

and All Instructions Carefully Before

Operating.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

A02265 Rev. 3 9/1/04

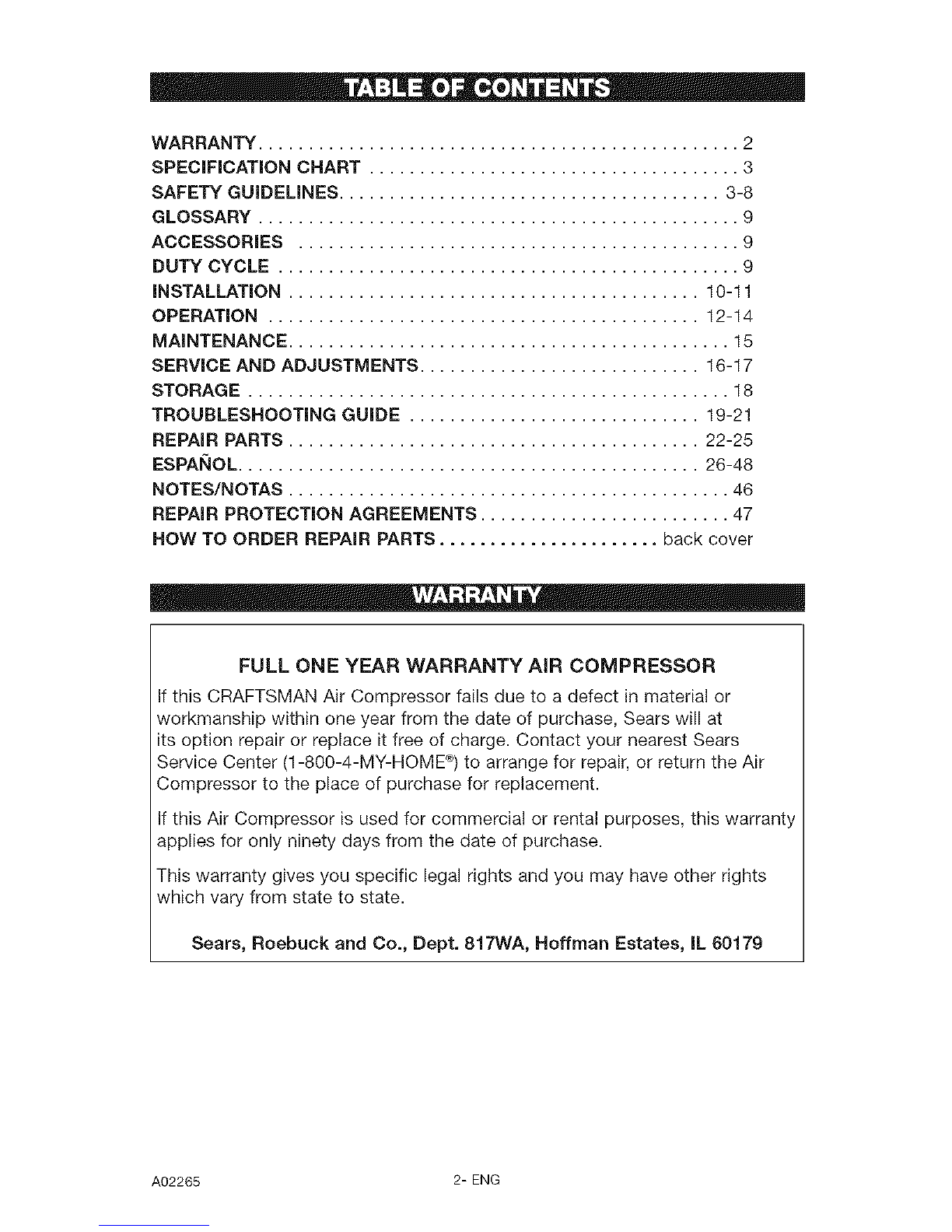

WARRANTY ................................................ 2

SPECiFiCATiON CHART ..................................... 3

SAFETY GUiDELiNES ...................................... 3-8

GLOSSARY ................................................ 9

ACCESSORIES ............................................ 9

DUTY CYCLE .............................................. 9

iNSTALLATiON ......................................... 10-11

OPERATION ........................................... 12-14

MAINTENANCE ............................................ 15

SERVICE AND ADJUSTMENTS ............................ 16-17

STORAGE ................................................ 18

TROUBLESHOOTING GUIDE ............................. 19-21

REPAIR PARTS ......................................... 22-25

ESPAI_IOL .............................................. 26-48

NOTES/NOTAS ............................................ 46

REPAIR PROTECTION AGREEMENTS ......................... 47

HOW TO ORDER REPAIR PARTS ...................... back cover

FULL ONE YEAR WARRANTY AiR COMPRESSOR

If this CRAFTSMAN Air Compressor fails due to a defect in material or

workmanship within one year from the date of purchase, Sears will at

its option repair or replace it free of charge. Contact your nearest Sears

Service Center (1-800-4-MY-HOME _) to arrange for repair, or return the Air

Compressor to the place of purchase for replacement.

If this Air Compressor is used for commercial or rental purposes, this warranty

applies for only ninety days from the date of purchase.

This warranty gives you specific legal rights and you may have other rights

which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

A02265 2-ENG

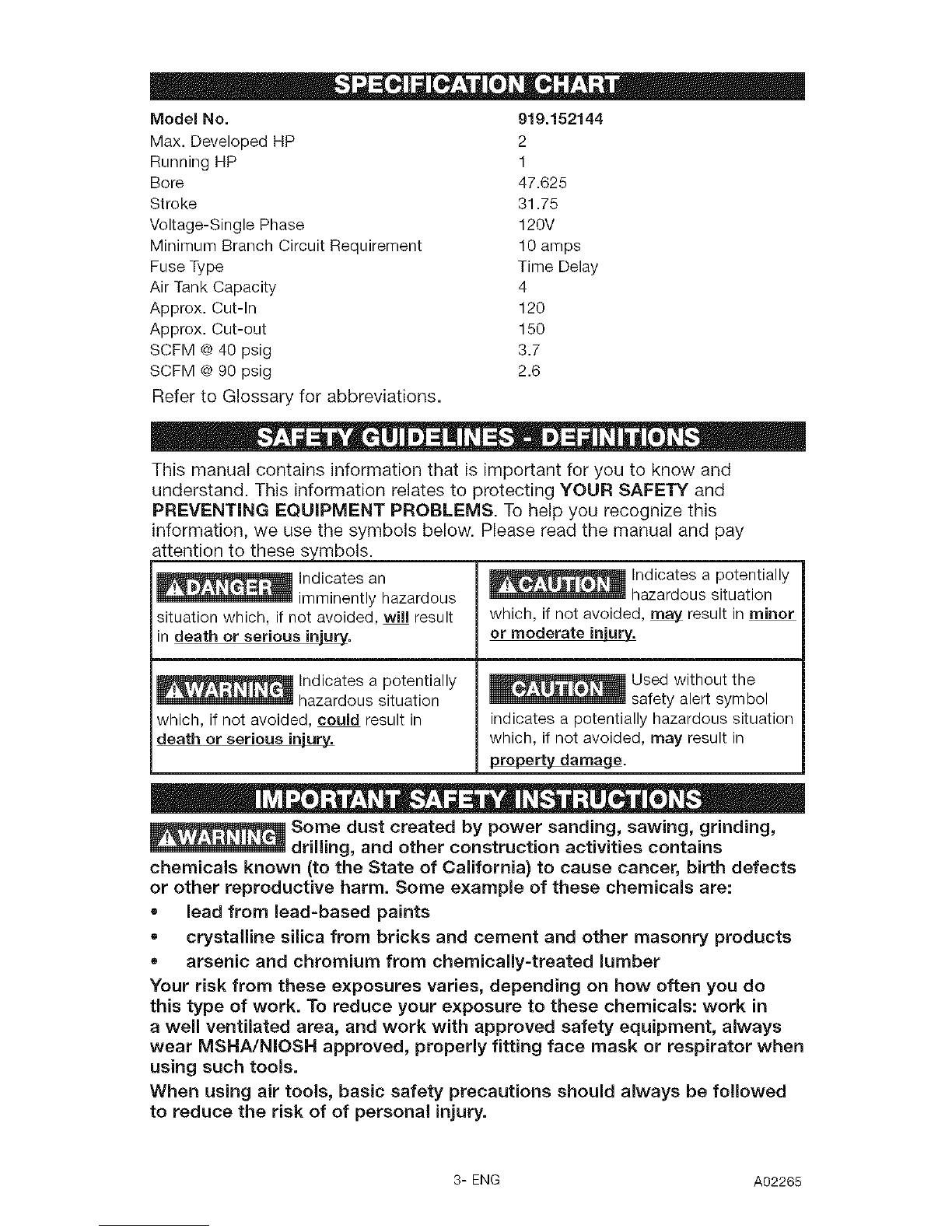

Model No. 919,152144

Max. Developed HP 2

Running HP 1

Bore 47.625

Stroke 31.75

Voltage-Single Phase 120V

Minimum Branch Circuit Requirement 10 amps

Fuse Type Time Delay

Air Tank Capacity 4

Approx. Cut-In 120

Approx. Cut-out 150

SCFM @ 40 psig 3.7

SCFM @ 90 psig 2.6

Refer to Glossary for abbreviations.

This manual contains information that is important for you to know and

understand. This information relates to protecting YOUR SAFETY and

PREVENTING EQUIPMENT PROBLEMS. To help you recognize this

information, we use the symbols below. Please read the manual and pay

attention to these symbols.

_ Indicates an

imminently hazardous

situation which, if not avoided, will result

in death or serious injury.

_ Indicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious in'_

_ Indicates a potentially

hazardous situation

which, if not avoided, _ result in miner

or moderate injury,

_Used without the

safety alert symbol

indicates a potentially hazardous situation

which, if not avoided, may result in

property damage.

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains

chemicals known (to the State of California) to cause cancer, birth defects

or other reproductive harm. Some example of these chemicals are:

• lead from lead-based paints

• crystalline silica from bricks and cement and other masonry products

arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on hew often you do

this type of work. To reduce your exposure to these chemicals: work in

a well ventilated area, and work with approved safety equipment, always

wear MSNA/NIOSN approved, properly fitting face mask or respirator when

using such tools.

When using air tools, basic safety precautions should always be followed

to reduce the risk of of personal injury.

3-ENG A02265

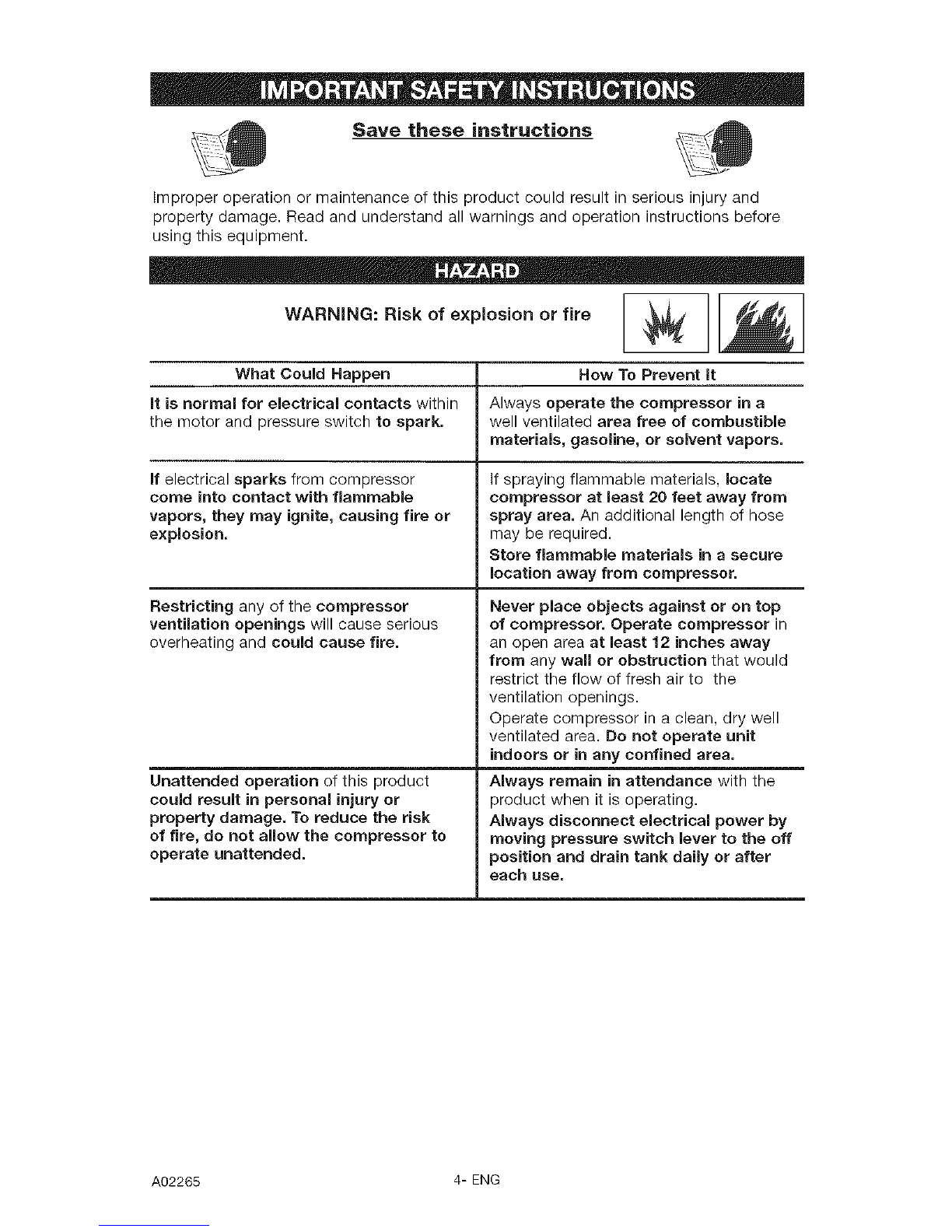

Save these instructions

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

WARNING: Risk of explosion or fire ,_,i

What Could Happen Hew To Prevent it

it is normal for electrical contacts within Always operate the compressor in a

the motor and pressure switch to spark, well ventilated area free of combustible

materials, gasoline, or solvent vapors.

If electrical sparks from compressor If spraying flammable materials, locate

come into contact with flammable compressor at least 20 feet away from

vapors, they may ignite, causing fire or spray area. An additional length of hose

explosion, may be required.

Store flammable materials in a secure

location away from compressor.

Restricting any of the compressor

ventilation openings will cause serious

overheating and could cause fire.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the risk

of fire, do not allow the compressor to

operate unattended.

Never place objects against or on top

of compressor. Operate compressor in

an open area at least 12 inches away

from any wall or obstruction that would

restrict the flow of fresh air to the

ventilation openings.

Operate compressor in a clean, dry well

ventilated area. Do not operate unit

indoors or in any confined area.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by

moving pressure switch lever to the off

position and drain tank daily or after

each use.

A02265 4-ENG

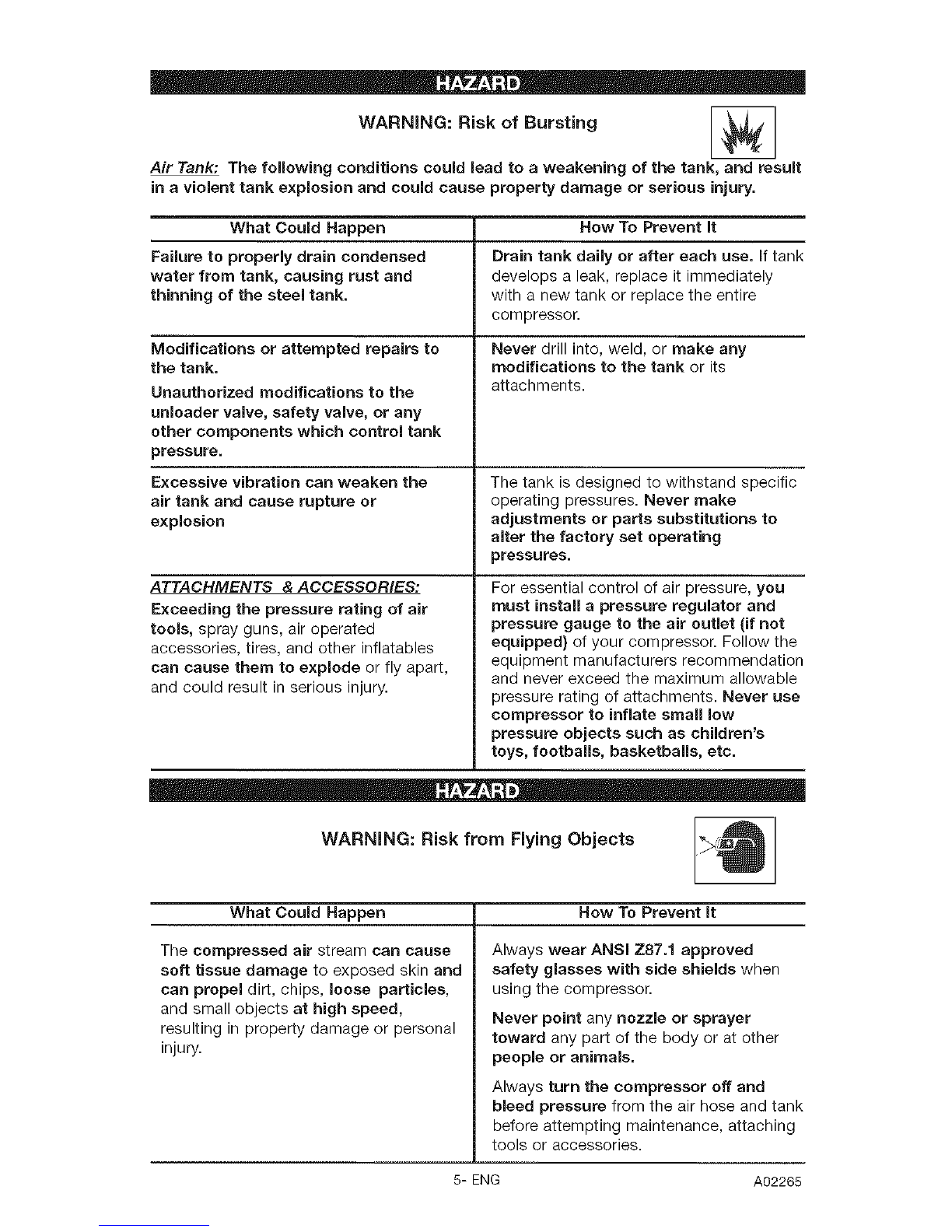

WARNING: Risk of Bursting I_1

Air Tank: The following conditions could lead to a weakening of the tank, and result

in a violent tank explosion and could cause property damage or serious injury.

What Could Happen Now To Prevent It

Failure to properly drain condensed Drain tank daily or after each use. If tank

water from tank, causing rust and develops a leak, replace it immediately

thinning of the steel tank. with a new tank or replace the entire

compressor.

Modifications or attempted repairs to

the tank.

Unauthorized modifications to the

unloader valve, safety valve, or any

other components which control tank

pressure.

Excessive vibration can weaken the

air tank and cause rupture or

explosion

ATTACHMENTS & ACCESSORIES:

Exceeding the pressure rating of air

tools, spray guns, air operated

accessories, tires, and other inflatables

can cause them to explode or fly apart,

and could result in serious injury.

Never drill into, weld, or make any

modifications to the tank or its

attachments.

The tank is designed to withstand specific

operating pressures. Never make

adjustments or parts substitutions to

alter the factory set operating

pressures.

For essential control of air pressure, you

must install a pressure regulator and

pressure gauge to the air outlet (if net

equipped) of your compressor. Follow the

equipment manufacturers recommendation

and never exceed the maximum allowable

pressure rating of attachments. Never use

compressor to inflate small low

pressure objects such as children's

toys, footballs, basketballs, etc.

WARNING: Risk from Flying Objects

What Could Happen How To Prevent It

The compressed air stream can cause

soft tissue damage to exposed skin and

can propel dirt, chips, loose particles,

and small objects at high speed,

resulting in property damage or personal

injury.

Always wear ANSI Z87.1 approved

safety glasses with side shields when

using the compressor.

Never point any nozzle or sprayer

toward any part of the body or at other

people or animals.

Always turn the compressor off and

bleed pressure from the air hose and tank

before attempting maintenance, attaching

tools or accessories.

5-ENG A02265

WARNING: Risk of Electrical Shock

How To Prevent it

What Could Happen

Your air compressor is powered by

electricity. Like any other electrically

powered device, if it is not used

properly it may cause electric shock.

Never operate the compressor outdoors

when it is raining or in wet conditions.

Never operate compressor with

protective covers removed or damaged.

Repairs attempted by unqualified Any electrical wiring or repairs required

personnel can result in serious injury on this product should be performed by

or death by electrocution, authorized service center personnel in

accordance with national and local

electrical codes.

Electrical Grounding: Failure to provide Make certain that the electrical circuit

adequate grounding to this product to which the compressor is connected

could result in serious injury or death provides proper electrical grounding,

from electrocution, correct voltage and adequate fuse

See grounding instructions, protection.

WARNING: Risk to Breathing

What Could _en How To Prevent it

The compressed air directly from your

compressor is not safe for breathing.

The air stream may contain carbon

monoxide, toxic vapors, or solid

particles from the tank. Breathing these

contaminants can cause serious injury

or death.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful

vapors and poisons.

Air obtained directly from the compressor

should never be used to supply air for

human consumption. In order to use air

produced by this compressor for

breathing, suitable filters and in-line

safety equipment must be properly

installed. In-line filters and safety

equipment used in conjunction with the

compressor must be capable of treating

air to all applicable local and federal

codes prior te human consumption.

Work in an area with good cross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials

you are spraying. Use a NIOSH/MSHA

approved respirator designed for use

with your specific application.

A02265 6-ENG

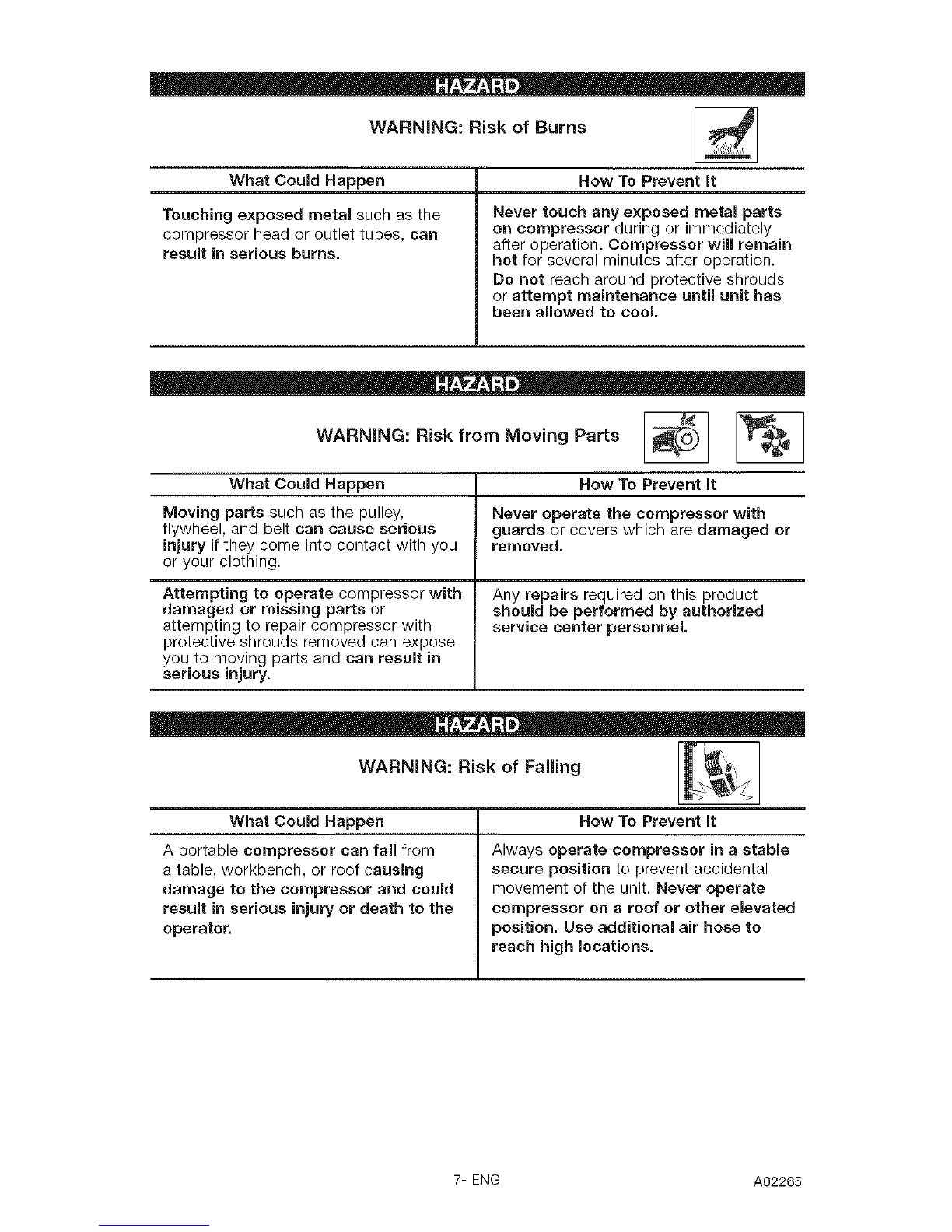

WARNING: Risk of Burns I_1

What Could Happen How To Prevent it

Touching exposed metal such as the

compressor head or outlet tubes, can

result in serious burns.

Never touch any exposed metal parts

on compressor during or immediately

after operation. Compressor will remain

hot for several minutes after operation.

De net reach around protective shrouds

or attempt maintenance until unit has

been allowed to cool.

WARNING: Risk from Moving Parts _

What Could Happen How To Prevent It

Moving parts such as the pulley, Never operate the compressor with

flywheel, and belt can cause serious guards or covers which are damaged or

injury if they come into contact with you removed.

or your clothing.

Attempting to operate compressor with Any repairs required on this product

damaged or missing parts or should be performed by authorized

attempting to repair compressor with service center personnel.

protective shrouds removed can expose

you to moving parts and can result in

serious injury.

WARNING: Risk of Falling

What Could Happen

A portable compressor can fall from

a table, workbench, or roof causing

damage to the compressor and could

result in serious injury or death to the

operator.

How To Prevent It

Always operate compressor in a stable

secure position to prevent accidental

movement of the unit. Never operate

compressor on aroof or other elevated

position. Use additional air hose to

reach high locations.

7-ENG A02265

WARNING: Risk of Electrical Shock

How To Prevent it

What Could Happen

Your air compressor is powered by

electricity. Like any other electrically

powered device, if it is not used

properly it may cause electric shock.

Never operate the compressor outdoors

when it is raining or in wet conditions.

Never operate compressor with

protective covers removed or damaged.

Repairs attempted by unqualified Any electrical wiring or repairs required

personnel can result in serious injury on this product should be performed by

or death by electrocution, authorized service center personnel in

accordance with national and local

electrical codes.

Electrical Grounding: Failure to provide Make certain that the electrical circuit

adequate grounding to this product to which the compressor is connected

could result in serious injury or death provides proper electrical grounding,

from electrocution, correct voltage and adequate fuse

See grounding instructions, protection.

WARNING: Risk to Breathing

What Could _en How To Prevent it

The compressed air directly from your

compressor is not safe for breathing.

The air stream may contain carbon

monoxide, toxic vapors, or solid

particles from the tank. Breathing these

contaminants can cause serious injury

or death.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful

vapors and poisons.

Air obtained directly from the compressor

should never be used to supply air for

human consumption. In order to use air

produced by this compressor for

breathing, suitable filters and in-line

safety equipment must be properly

installed. In-line filters and safety

equipment used in conjunction with the

compressor must be capable of treating

air to all applicable local and federal

codes prior te human consumption.

Work in an area with good cross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials

you are spraying. Use a NIOSH/MSHA

approved respirator designed for use

with your specific application.

A02265 8-ENG

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per

minute; a unit of measure of air

delivery.

PSIG: Pounds per square inch

gauge; a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Underwriters

Laboratories Standards for Safety.

Cut-in Pressure: While the motor

is off, air tank pressure drops as

you continue to use your accessory.

When the tank pressure drops to a

certain low level the motor will restart

automatically. The low pressure

at which the motor automatically

restarts is called "cut-in" pressure.

Cut-Out Pressure: When an air

compressor is turned on and begins

to run, air pressure in the air tank

begins to build. It builds to a certain

high pressure before the motor

automatically shuts off, protecting

your air tank from pressure higher

than its capacity. The high pressure

at which the motor shuts off is called

"cut-out" pressure.

Branch Circuit: Circuit carrying

electricity from electrical panel to

outlet.

This unit is capable of powering the following accessories. The accessories are

available through the current Power and Hand Tool Catalog or full-line Sears

stores.

Accessories

• In Line Filter

Tire Air Chuck

Quick Connector Sets

(various sizes)

Air Pressure Regulators

Oil Fog Lubricators

Air Hose:l/4", 3/8" OR 1/2" I.D. in

various lengths

Refer to the selection chart located

on the unit to select the tools this unit

is capable of powering.

This air compressor pump is

capable of running continuously.

However, to prolong the life of your

air compressor, it is recommended

that a 50%-75% average duty

cycle be maintained; that is, the air

compressor pump should not run

more than 30-45 minutes in any given

hour.

9-ENG A02265

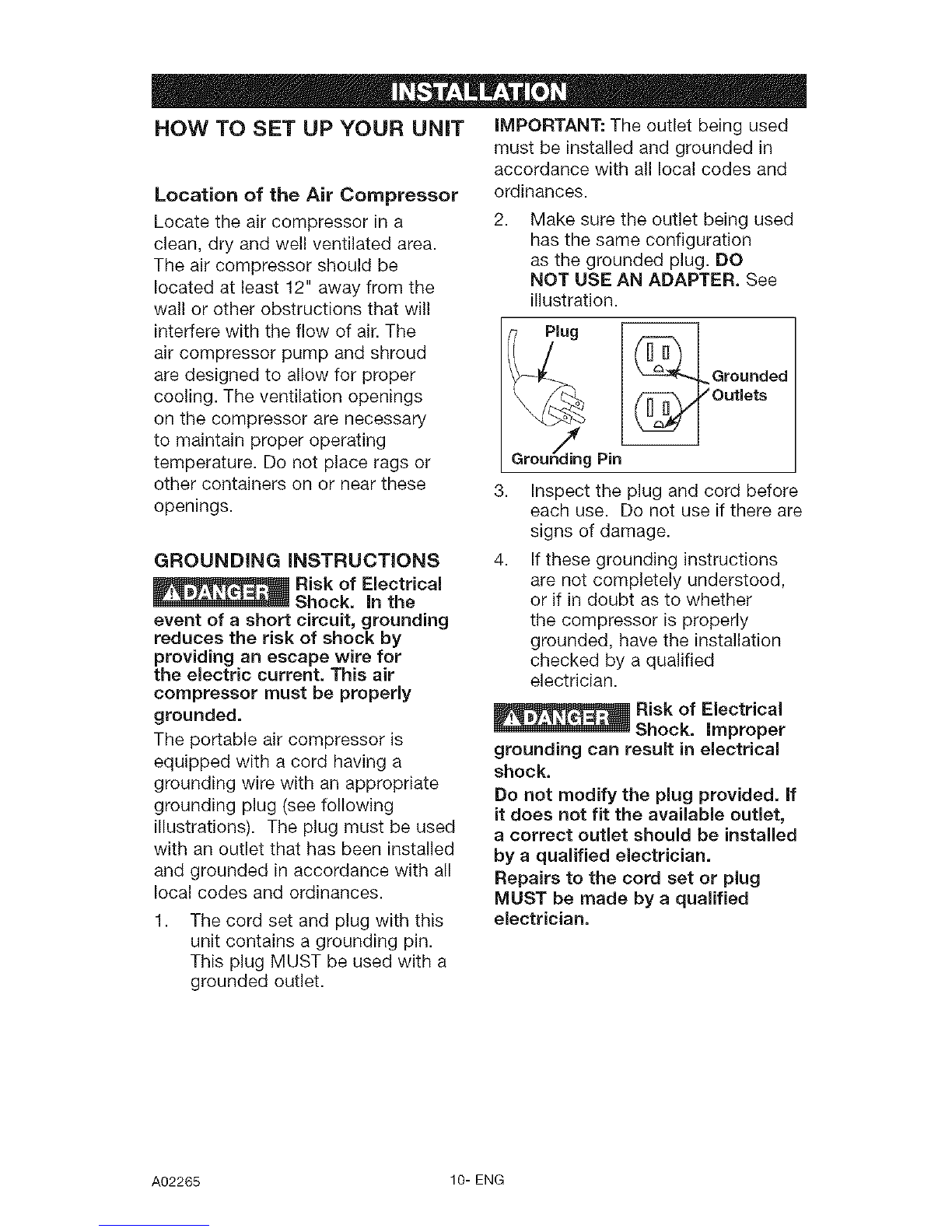

HOW TO SET UP YOUR UNiT iMPORTANT: The outlet being used

Location of the Air Compressor

Locate the air compressor in a

clean, dry and well ventilated area.

The air compressor should be

located at least 12" away from the

wall or other obstructions that will

interfere with the flow of air. The

air compressor pump and shroud

are designed to allow for proper

cooling. The ventilation openings

on the compressor are necessary

to maintain proper operating

temperature. Do not place rags or

other containers on or near these

openings.

GROUNDING iNSTRUCTIONS

_Risk of Electrical

Shock. in the

event of a short circuit, grounding

reduces the risk of shock by

providing an escape wire for

the electric current. This air

compressor must be properly

grounded.

The portable air compressor is

equipped with a cord having a

grounding wire with an appropriate

grounding plug (see following

illustrations). The plug must be used

with an outlet that has been installed

and grounded in accordance with all

local codes and ordinances.

1. The cord set and plug with this

unit contains a grounding pin.

This plug MUST be used with a

grounded outlet.

must be installed and grounded in

accordance with all local codes and

ordinances.

2, Make sure the outlet being used

has the same configuration

as the grounded plug. DO

NOT USE AN ADAPTER. See

illustration.

_Grounded

I_gPin Outlets

Inspect the plug and cord before

each use. Do not use if there are

signs of damage.

If these grounding instructions

are not completely understood,

or if in doubt as to whether

the compressor is properly

grounded, have the installation

checked by a qualified

electrician.

Risk of Electrical

Shock. improper

grounding can result in electrical

shock.

Do not modify the plug provided. If

it does not fit the available outlet,

acorrect outlet should be installed

by a qualified electrician.

Repairs to the cord set or plug

MUST be made by a qualified

electrician.

A02265 10-ENG

Autres manuels pour 919.152144

Table des matières

Langues :

Autres manuels Craftsman Compresseur d'air

Craftsman

Craftsman 919.166701 Manuel utilisateur

Craftsman

Craftsman 919.153210 Manuel utilisateur

Craftsman

Craftsman 919.176980 Manuel utilisateur

Craftsman

Craftsman 921.166380 Manuel utilisateur

Craftsman

Craftsman 919.168700 Manuel utilisateur

Craftsman

Craftsman 919.174212 Manuel utilisateur

Craftsman

Craftsman 919.165510 Manuel utilisateur

Craftsman

Craftsman 919.167780 Manuel utilisateur

Craftsman

Craftsman 919.195413 Manuel utilisateur

Craftsman

Craftsman 919.195413 Manuel utilisateur

Craftsman

Craftsman 919.724321 Manuel utilisateur

Craftsman

Craftsman 919.184190 Manuel utilisateur

Craftsman

Craftsman 919.724572 Manuel utilisateur

Craftsman

Craftsman 921.153101 Manuel utilisateur

Craftsman

Craftsman 919.166440 Manuel utilisateur

Craftsman

Craftsman 919.155730 Manuel utilisateur

Craftsman

Craftsman 919.727570 Manuel utilisateur

Craftsman

Craftsman 919.167320 Manuel utilisateur

Craftsman

Craftsman 16636 - 5 Gal. Air Compressor Manuel utilisateur

Craftsman

Craftsman 919.165190 Manuel utilisateur

Craftsman

Craftsman 15201 Manuel utilisateur

Craftsman

Craftsman 919.727340 Manuel utilisateur

Craftsman

Craftsman 919.724322 Manuel utilisateur

Craftsman

Craftsman 919.165611 Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
