Cooper Lighting RFR Series Manuel utilisateur

Catalog #

Project

Comments

Prepared by

Type

Date

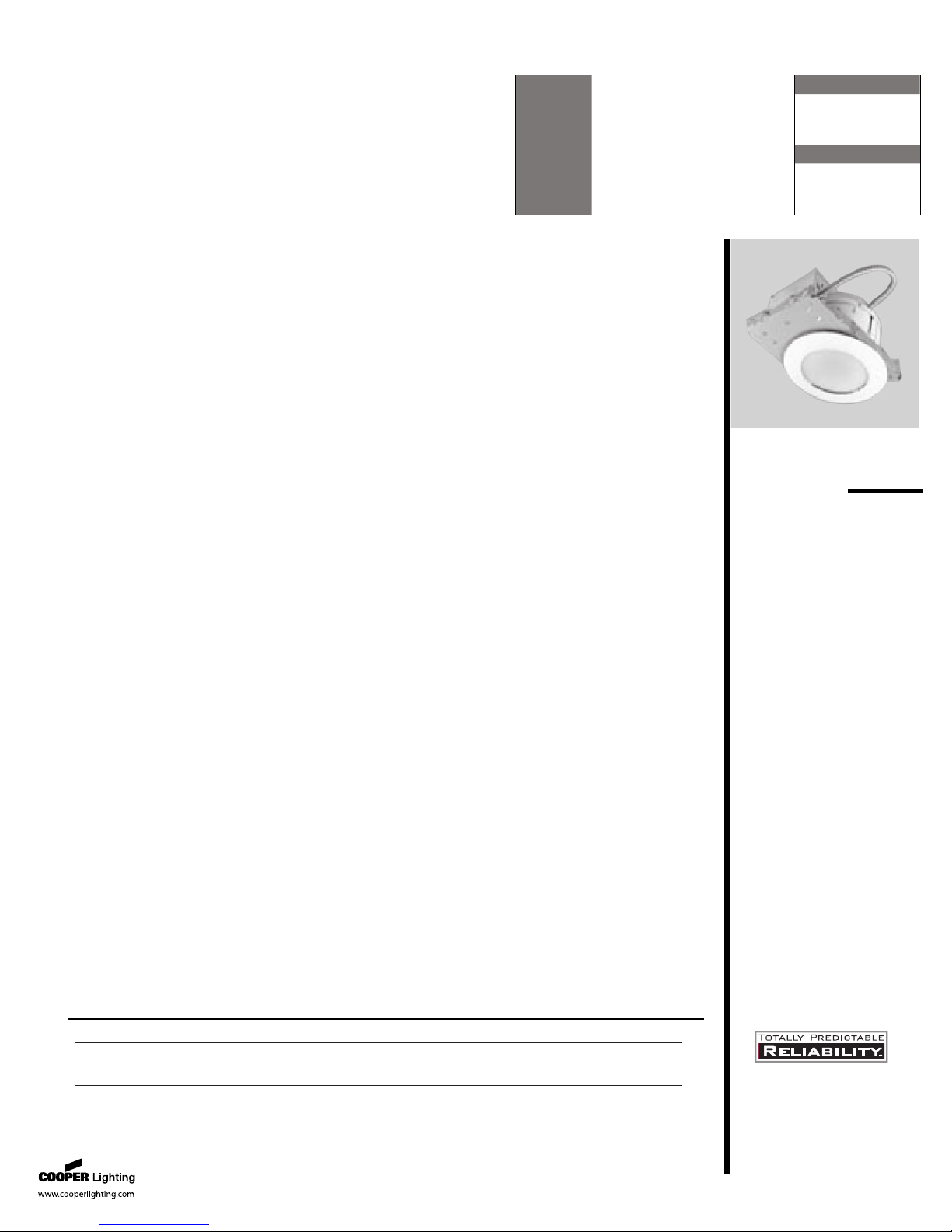

SPECIFICATION FEATURES

05/19/2008 3:52:01 PM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADX041231

ORDERING INFORMATION

GFR

Electrical

- 6V or 12V DC Input Voltage

RFR

Electrical

- 6V or 12V DC Input Voltage

RFR

Construction

- 20-gauge die-stamped steel

housing with white baked enamel

finish

- Shallow 5 1/2" housing

accommodates 2x6 construction

- Housing adjusts in plaster frame

1 3/8" to accommodate different

ceiling thickness

- Bar hangers included for fast,

easy installation

- White painted trim ring with

5 1/8" diameter flat albalite

lens

- Junction box provided for wiring

terminations

RFR

Code Compliance

- UL Damp Location Listed

RFR

Warranty

- Unit: 1-year

RFR

Lamp Data

- 6 Volt Incandescent Double

Contact Bayonet Base

- 12 Volt Incandescent Double

Contact Bayonet Base

- Consult factory for other lamp

types (See Technical Information

Section)

RFR SERIES

ROUND SPECIALTY

REMOTES

CSA Certified

Emergency Lighting

ENERGY DATA

Power Consumption is equal

to lamp wattage.

RFR Series

.oNpmaLsttaWstloVepyTpmaLhsiniF.oNgolataC

RFR153 White Trim Incandescent DC Bayonet Base 12 7.5 029-53

Alternate Lamps: Consult Cooper Lighting Representative

Other Finishes Available: Cooper Lighting Representative

COOPER LIGHTING - SURE-LITES®

Sure-Lites • Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • TEL 770.486.4800 • FAX 770.486.4801 05/19/2008 3:52:01 PM

Specifications and Dimensions subject to change without notice.

ADX041231

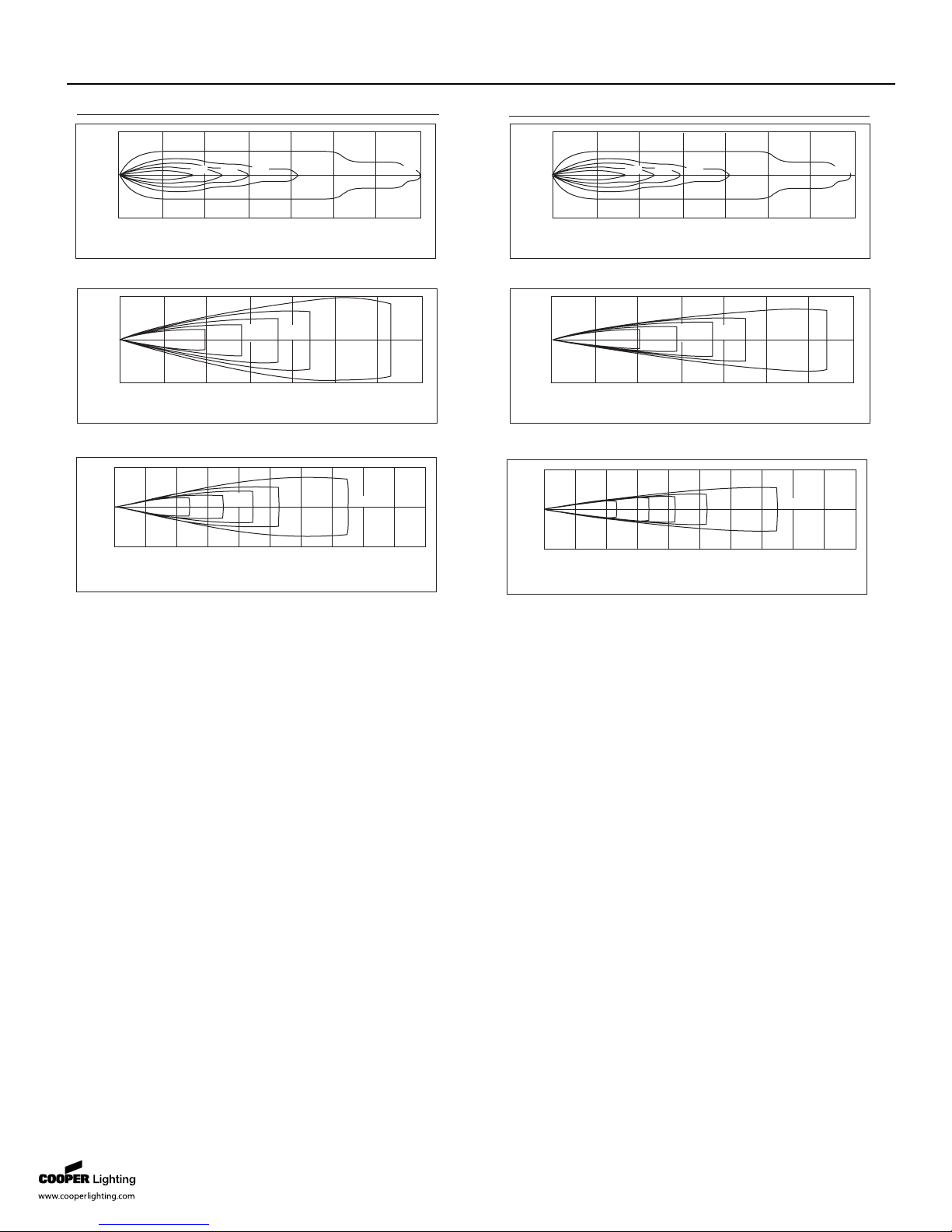

PHOTOMETRICS

SERIES

RFR

LAMP

AXIS

FEET

LEFT

FEET

RIGHT

0 10 20 30 40 50 60

FEET FROM LAMP (Measured on axis)

1FC 0.5 0.3 0.2 0.1

0LAMP

AXIS

FEET

LEFT

FEET

RIGHT

0 10 20 30 40 50 60

FEET FROM LAMP (Measured on axis)

1FC 0.5 0.3 0.2 0.1

Horizontal Distribution Vertical Distribution

Diagram No. 3 Lamp No. 029-03 @ 108 Initial Lumens

LAMP

AXIS

FEET

LEFT

FEET

RIGHT

0 10 20 30 40 50 60

FEET FROM LAMP (Measured on axis)

01FC 0.5 0.3 0.2 0.1 LAMP

AXIS

FEET

LEFT

FEET

RIGHT

0 10 20 30 40 50 60

FEET FROM LAMP (Measured on axis)

01FC 0.5 0.3 0.2 0.1

Diagram No. 12 Lamp No. 029-121 @ 75 Initial Lumens

Diagram No. 3 Lamp No. 029-03

Diagram No. 12 Lamp No. 029-121

0 20 50 100

FEET

LEFT

FEET

RIGHT

FEET FROM LAMP (Measured on axis)

10 4030 90807060

0.5 0.3 0.2 0.1

1FC LAMP

AXIS

0 20 50 100

FEET

LEFT

FEET

RIGHT

FEET FROM LAMP (Measured on axis)

10 4030 90807060

0.5 0.3 0.2 0.1

1FC

0LAMP

AXIS

Diagram No. 6 Lamp No. 029-16 @ 155 Initial Lumens Diagram No. 6 Lamp No. 029-16
