Cooper Lighting Iris 50W MR16 Manuel utilisateur

Catalog #

Project

Comments

Prepared by

Type

Date

SPECIFICATION FEATURES

02/29/2008 2:16:39 PM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADI060724

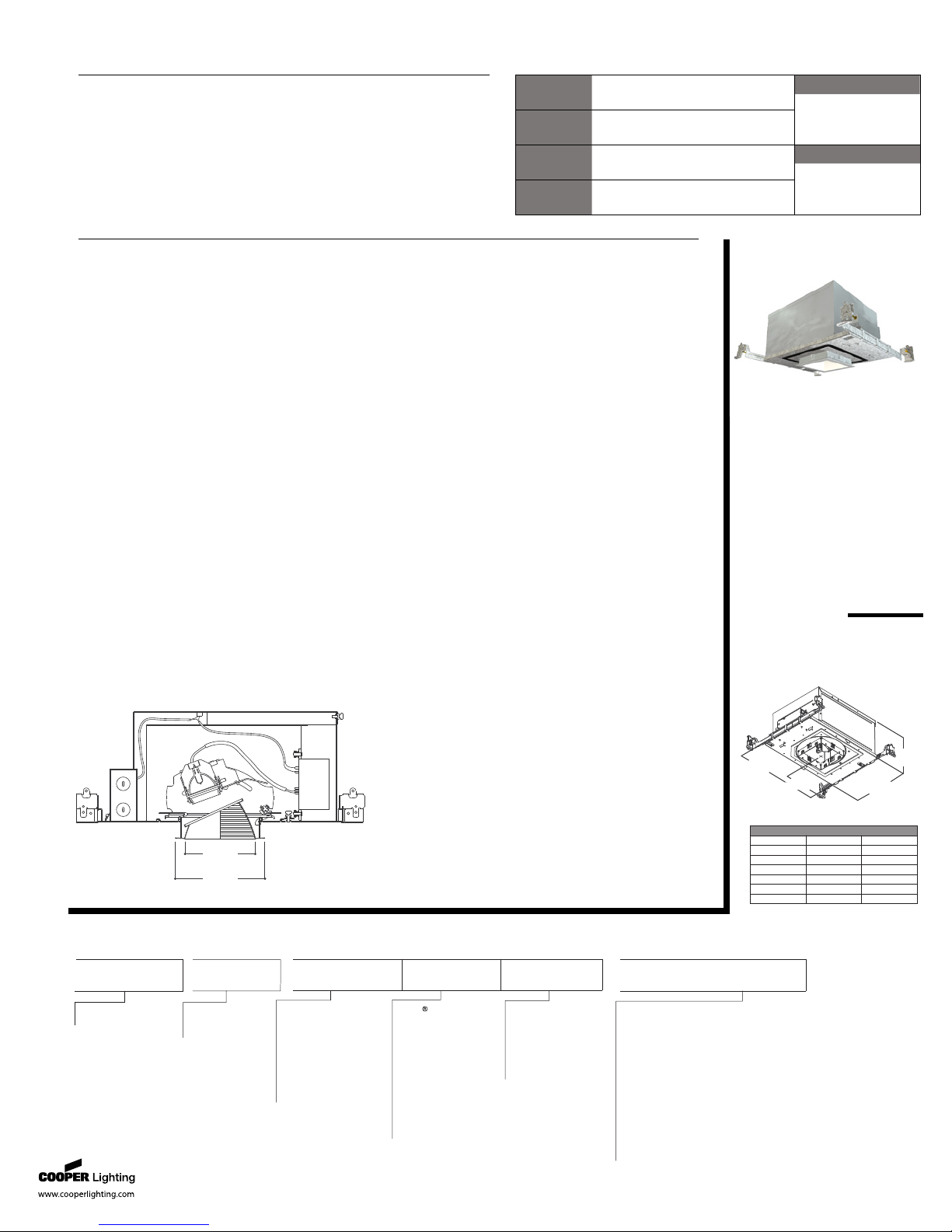

DESCRIPTION

Recessed lens directional luminaire with 4 inch square aperture utilizing a

low voltage MR16 tungsten-halogen lamp. Modular platform can be

reconfigured from below the ceiling to accept a broad range of lamp

modules and optical elements. Platform is suitable for direct contact with

insulation and 2x8 residential construction. Platform + module + element

combination supports various lamp beam spreads for desired optical

distribution with excellent light control and low aperture brightness.

Frame

Galvanized steel plaster frame with

integral bar hanger receivers. Set-

screws provide positive horizontal

locking.

Collar

Matte black steel collar adjusts

vertically for 1/2" - 1" thick ceilings

and can be rotated +/- 7.5° thru the

aperture. Integral gun sights facili-

tate the use of guide strings or

laser lines. Shipped with a paint

overspray protector installed in the

collar.

Lamp Module

Installed or removed thru the

aperture or from the top at 0°, 90°,

180° and 270° positions. Hot

aiming rotates 365°, tilts 45° and

locks in position using #2 Philips

screwdriver. Translating center

beam optics aligns axis of lamp

with aperture as lamp translates

from nadar thru 45°.

Housing

Double wall aluminum housing

painted matte black for a visually

dark interior. Removable hinged

top allows for top access. All

fasteners are captive.

Gaskets

Closed cell gaskets achieve

restrictive airflow requirements

without additional caulking.

Optical Element

Mousetrap type springs pull flange

tight to ceiling. Light trap elimi-

nates spill light at edge of flange

and reflector. Available in self-

flanged or metal trim ring versions.

Bar Hangers

Captive preinstalled bar hangers

adjusts from 8-1/2" to 24" wide;

pass thru feature allows shortening

without removal. Captive nail

penetrates standard and engi-

neered lumber. Mounting flange

levels platform with ceiling. Inte-

gral clip attaches directly to t-bar.

Lower Reflector

Aluminum angle cut parabolic

shielding prismatoid with clear

lens is available in a wide range of

semi specular Alzak(tm) finishes.

Corrugated Baffle: An optional

embossed pattern that extends

through the flange adding a subtle

design element and reduces

aperture brightness.

Junction Box

(7) 1/2" trade size pry outs, (3)

integral clamps for non-metallic

cable. Rated for (4) #12 thru branch

circuits. Wago® type push wire

connectors for field connections.

Thermal Protector

Self-resetting thermal protector

protects against improper lamping.

Transformer

Integral dual output toroidal

magnetic transformer, 120V

50/60Hz input, 12V nominal 75VA

maximum output. Separate output

for circuits controlled by dim-

mers compensates for losses in

dimmers, improves color

temperature and lumen output.

Lamp Capsule

Ceramic GX5.3 lamp holder

mounts to an aluminum heat sink

to dissipate heat. Connects to the

transformer with electrical quick

connects. Accepts 2 lenses or

filters.

Code Compliance

Thermally protected, IP labeled,

cULus listed for wet locations and

ASTM-E283 AIRTITE(tm). Suitable

for direct contact with insulation.

P408ICAT

MA4MR

E4AASR

E4AASRCB

50W MR16

Tungsten-Halogen

4 Inch Square Lens Directional

4-1/2”

(114mm)

5-3/4”

(146mm)

ENERGY DATA

Lamp Wattage Input Power Input Current

(Nominal) (Watts) (Amps)

20 21 0.17

35 37 .031

37 39 0.32

42 44 0.37

50 53 0.44

15-3/4”

(400mm)

10”

(254mm)

7-1/16”

(180mm)

Cutout=5-3/16”

(132mm)

7-7/8”

(200mm)

ORDERING INFORMATION: C o m p l e t e u n i t c o n s i s t s o f p l a t f o r m , l a m p m o d u l e a n d o p t i c a l e l e m e n t .

P408ICAT = 4” Square

Aperture IC Housing

MA4MR = MR16

Directional Lamp

Module, 120V Input

E4AASR = 4" Square

Aperture Angle Cut

Lower Shielding

Prismatoid, Lens

E4AASRCB = 4" Square

Aperture Corrugated

Angle Cut Lower

Shielding Prismatoid,

Lens

Finish

Optical Element

Platform Lamp Module Flange

P408ICAT MA4MR

Accessories

Alzak Finishes

H= Clear Haze

WMH = Warm Haze

WHH = Wheat Haze

Painted Finishes

MW = Matte White

MB = Matte Black

BH = Black Haze

KH = Cognac Haze

GPH = Graphite Haze

CTH = Cobalt Haze

CCH = Chocolate Haze

L4X4LNR = Skytek linear spread lens

L4x4SF = Solite soft focus lens

L4x4SPD = Crystal #73 prismatic spread lens

MTR4MW = Metal trim ring, matte white

MTR4MB = Metal trim ring, matte black

MTR4SN = Metal trim ring, satin nickel

MTR4AC = Metal trim ring, antique copper

MTR4TBZ = Metal trim ring, tuscan bronze

EDC4x42 = Extended depth collar for

1-1/2 - 2” thick ceilings

EDC4x41 = Extended depth collar for

1” - 1-1/2“ thick ceilings

L Series - Filter Media For MR16 lamps

(See Accessories specification sheet)

[Blank] = Metal Trim

Ring, Matte White

SF = Self Flanged

SFWF = Self Flanged,

Matte White Flange

(SFWF not available

with corrugated baffle)

IRIS®

IRiS • Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • TEL 770.486.4800 • FAX 770.486.4801 02/29/2008 2:16:39 PM

Specifications and Dimensions subject to change without notice.

ADI060724

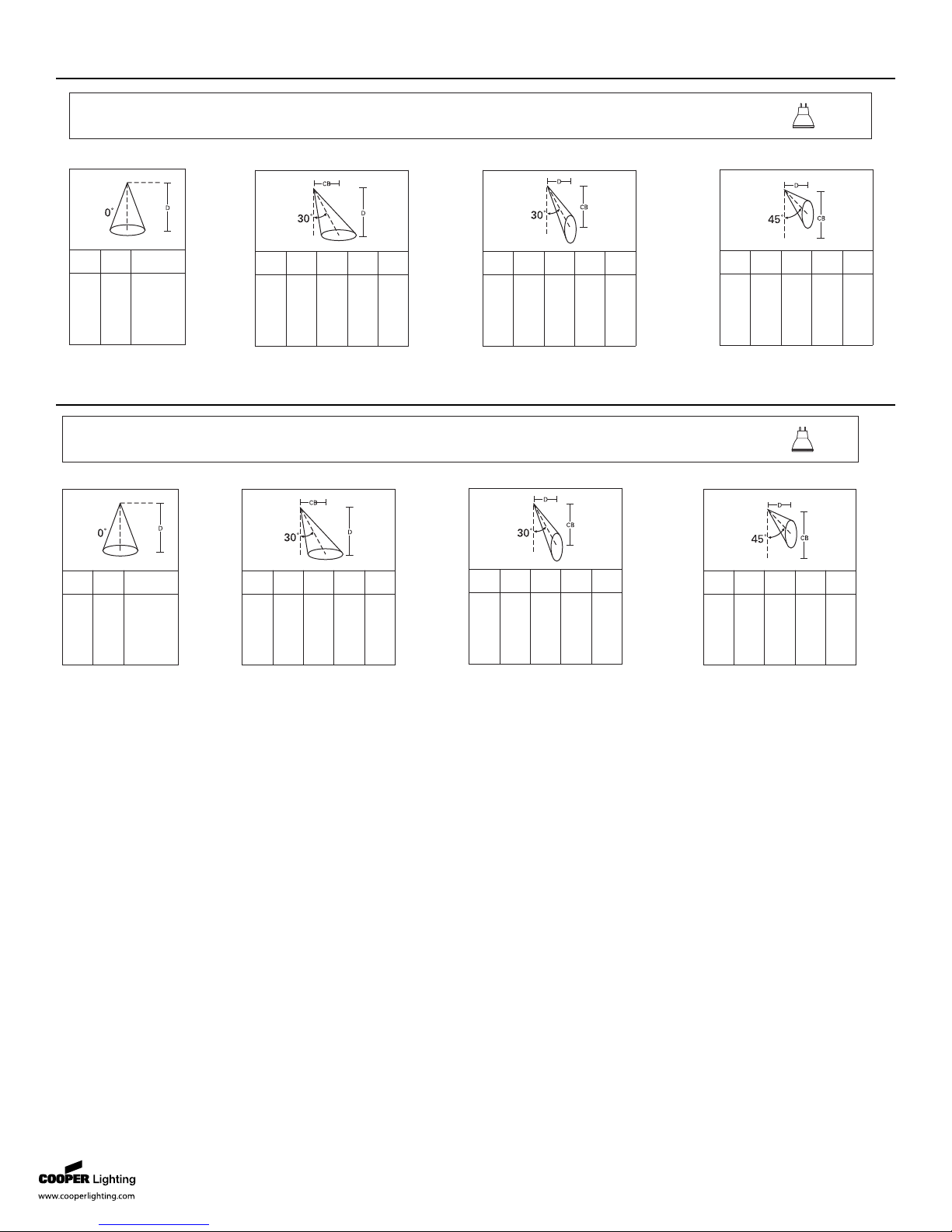

PHOTOMETRICS

P408ICAT MA4MR E4AASR

0° Horizontal Aiming 30° Horizontal Footcandles

D FC Beam Dia

8'0"

9'0"

10'0"

13'0"

15'0"

113

1.1

1.2

1.3

1.8

2.0

D FC L W CB

8'0"

9'0"

10'0"

13'0"

15'0"

1.7

1.9

2.1

2.7

3.1

1.2

1.3

1.5

1.9

2.2

4.6

5.2

5.8

7.5

8.7

30° Vertical Footcandles

D FC L W CB

2'0"

3'0"

4'0"

5'0"

6'0"

262

116

1.1

1.6

2.1

2.7

3.2

0.6

0.8

1.1

1.4

1.7

3.5

5.2

6.9

8.7

10.4

45° Vertical Footcandles

D FC L W CB

2'0"

3'0"

4'0"

5'0"

6'0"

704

313

176

113

0.6

0.9

1.2

1.5

1.8

0.4

0.6

0.8

0.9

1.1

Trim: E4AASRH

Lamp: 42MR16VNSP9

0° Horizontal Aiming 30° Horizontal Footcandles

D FC Beam Dia

8'0"

9'0"

10'0"

13'0"

15'0"

163

129

105

1.3

1.5

1.6

2.1

2.5

D FC L W CB

8'0"

9'0"

10'0"

13'0"

15'0"

2.0

2.2

2.5

3.2

3.7

1.7

1.9

2.1

2.7

3.1

4.6

5.2

5.8

7.5

8.7

30° Vertical Footcandles

D FC L W CB

2'0"

3'0"

4'0"

5'0"

6'0"

348

155

1.3

1.9

2.5

3.2

3.8

0.7

1.0

1.4

1.7

2.0

3.5

5.2

6.9

8.7

10.4

45° Vertical Footcandles

D FC L W CB

2'0"

3'0"

4'0"

5'0"

6'0"

861

383

215

138

0.7

1.1

1.4

1.8

2.1

0.5

0.8

1.1

1.3

1.6

Trim: E4AASRH

Lamp: 50WMR16 IR SP10
