Cooper Lighting NEO-Ray 23X Manuel utilisateur

The Possibilities of Light

STRAIGHT & NARROW

product overview . . . . . . . . . . . . . . . .3-4

22 series. . . . . . . . . . . . . . . . . . . . . . .5-6

23 series. . . . . . . . . . . . . . . . . . . . . . .7-8

23X wall wash . . . . . . . . . . . . . . . . .9-10

features . . . . . . . . . . . . . . . . . . . . .11-12

mounting . . . . . . . . . . . . . . . . . . . .13-14

applications . . . . . . . . . . . . . . . . . . . . 15

gallery. . . . . . . . . . . . . . . . . . . . . . . . . 16

photometrics . . . . . . . . . . . . . . . . .17-18

STRAIGHT & NARROW

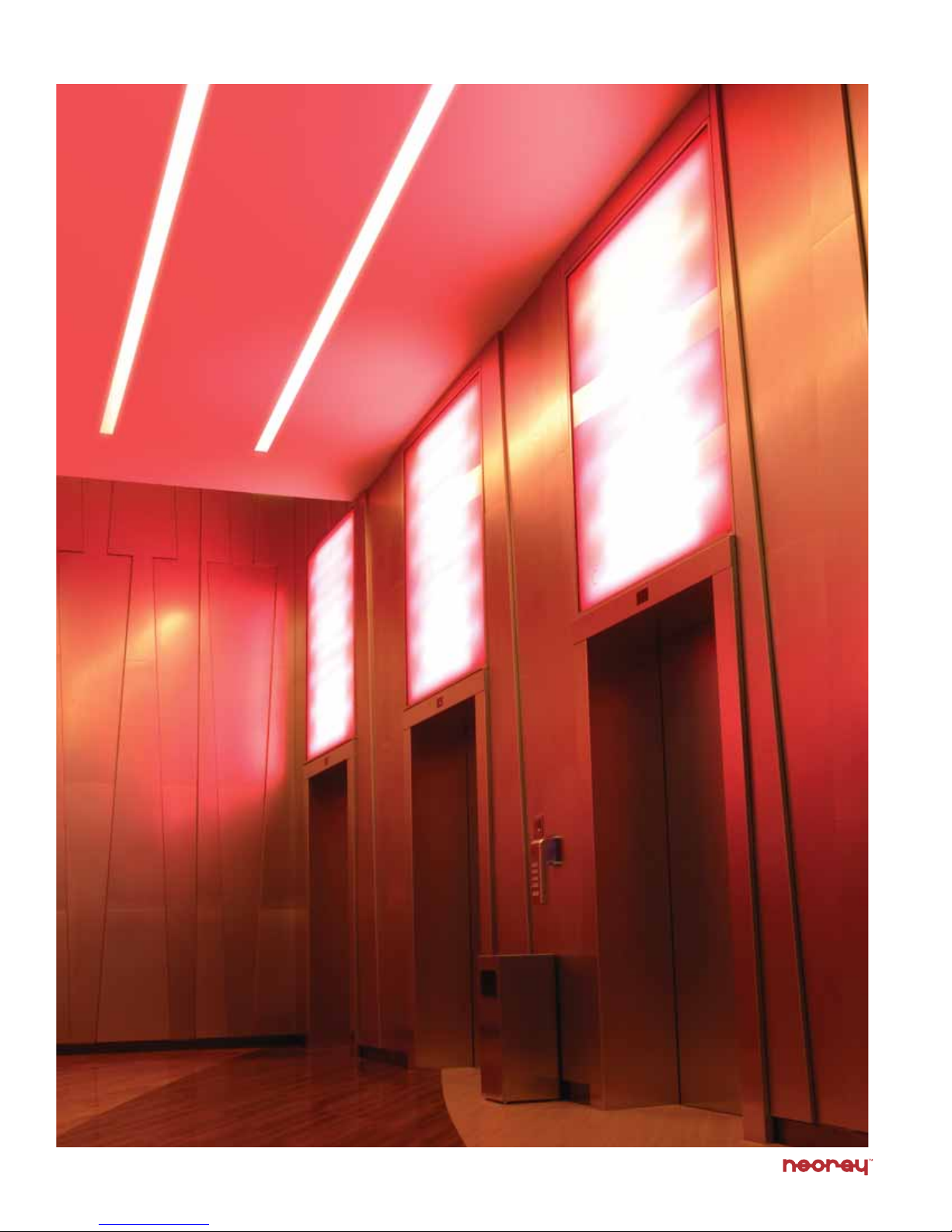

VERSATILE MINIMALISM. The 23DR shown above with satin white lens.

STRAIGHT & NARROW

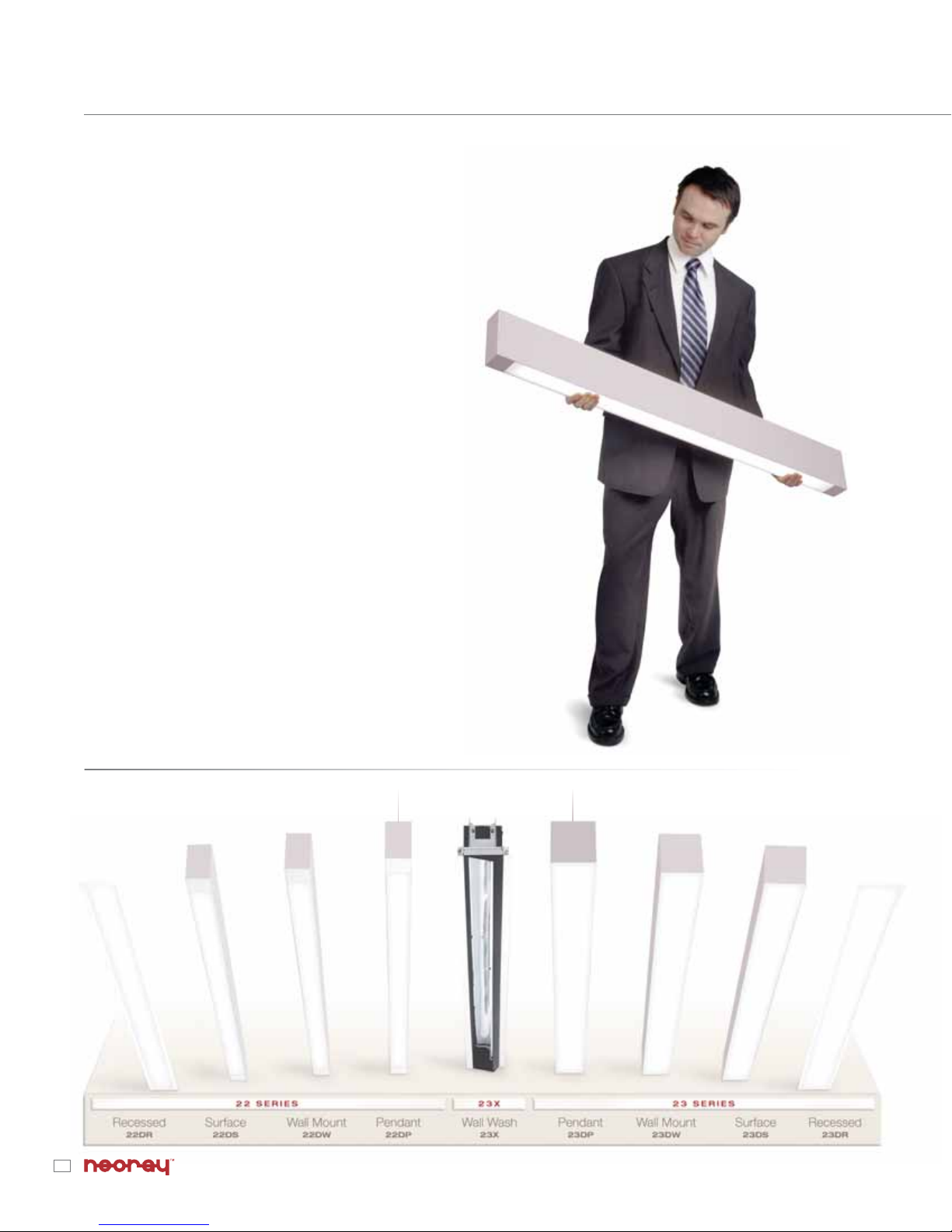

PRODUCT OFFERING

Starting at just over 2” wide the STRAIGHT & NARROW

series provides unlimited ﬂexibility by adapting to

the architecture of the space. Offered in recessed,

suspended, surface, wall mount and in-wall conﬁgurations

with a selection of up to (7) shielding and reﬂector systems

for symmetrical and asymmetrical, direct or indirect

applications.

Available in T5, T5HO and T8 lamping conﬁgurations

with optional MR16 point source modules. STRAIGHT

& NARROW’s extruded form allows for precise custom

lengths to create beautiful bands of illumination.

A return to simplicity, elegance and minimalism.

Slender lines of light set in an architectural environment

are the essence of STRAIGHT & NARROW.

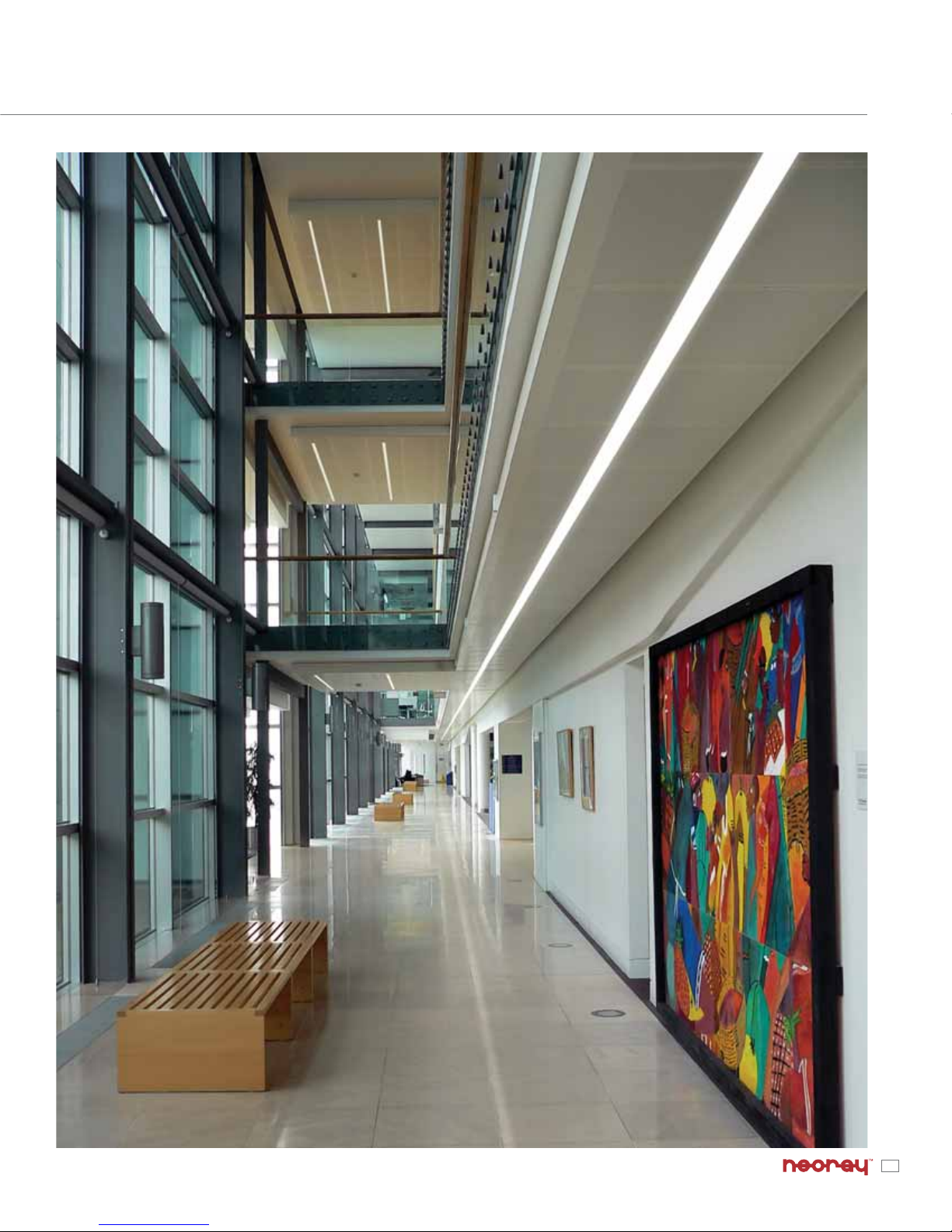

The 22DR with high performance louver blends style with function to illuminate this ofﬁce corridor.

STRAIGHT & NARROW 22 SERIES

Satin White Lens High Performance

Louver

White Louver Continuous Line Corner Unit

CONFIGURATIONS / OPTIONS

22DIP with louver

22DP with lens 22DP with louver

4” 4”

2-3/8” 2-3/8”

4”

2-3/8”

5-5/8”

2-3/8”

Direct / Indirect

(top view)

•Standard or custom

ﬁxture lengths

(standard 3’, 4’, 6’ and

8’ individual lengths)

•Fits Sheet Rock, ETG

and STG applications

without interference

•“In Wall” for highlighting

and wayﬁnding

applications

•Continuous runs in 1’

increments available

(other custom lengths

can be conﬁgured per

application)

•Flanged or Flangeless

trims optional

•90 degree and T Corner

capability

•Standard ﬁnish is White

(optional Silver, Black

or RAL color matches

available)

•Shielding options:

■Flush Satin Lens

■High Performance

Louver

■White Louver

■Louvers available

with Acrylic overlay

Recessed

22DR with lens

(1) LAMP T5 and T5HO

The 22DR with satin white lens adds clean and sophisticated linear appeal to all three ﬂoors.

STRAIGHT & NARROW 23 SERIES

Continuous Line Corner UnitSatin White Lens High Performance

Louver

Recessed Regressed Lens

with MR16

Staggered Lamps

4”

4” 4”

5-5/8”

4” 4-5/8”4”

White Louver

•Standard or custom ﬁxture

lengths (standard 3’, 4’, 6’ and 8’

individual lengths)

•Fits Sheet Rock, ETG and STG

applications without interference

•“In Wall” for highlighting and

wayﬁnding applications

•Continuous runs in 1’ increments

available (other custom lengths

can be conﬁgured per application)

•Flanged or Flangeless Trim

optional

•Shielding options:

■Flush Satin Lens

■High Performance Louver

■White Louver

■Louvers available with

Acrylic overlay

•Regressed trim with Satin Lens

provided in 3’ and 4’ lengths

•Continuous runs provided in 3’,

4’, 6’ and 8’ sections

•Optional 90 degree and T Corner

capability

•Optional adjustable or ﬁxed

MR16 modules for highlighting

applications

•Available lamp staggering:

– 6” T5 and T5HO

– 3” T8

•Standard ﬁnish is White

(optional Silver, Black or RAL color

matches available)

23DIP with lens23DP with louver 23DP with lens 23DR with lens

(1) or (2) LAMP T5 and T5HO or T8

CONFIGURATIONS / OPTIONS

The 23DS adapts to the architecture of any ceiling layout.

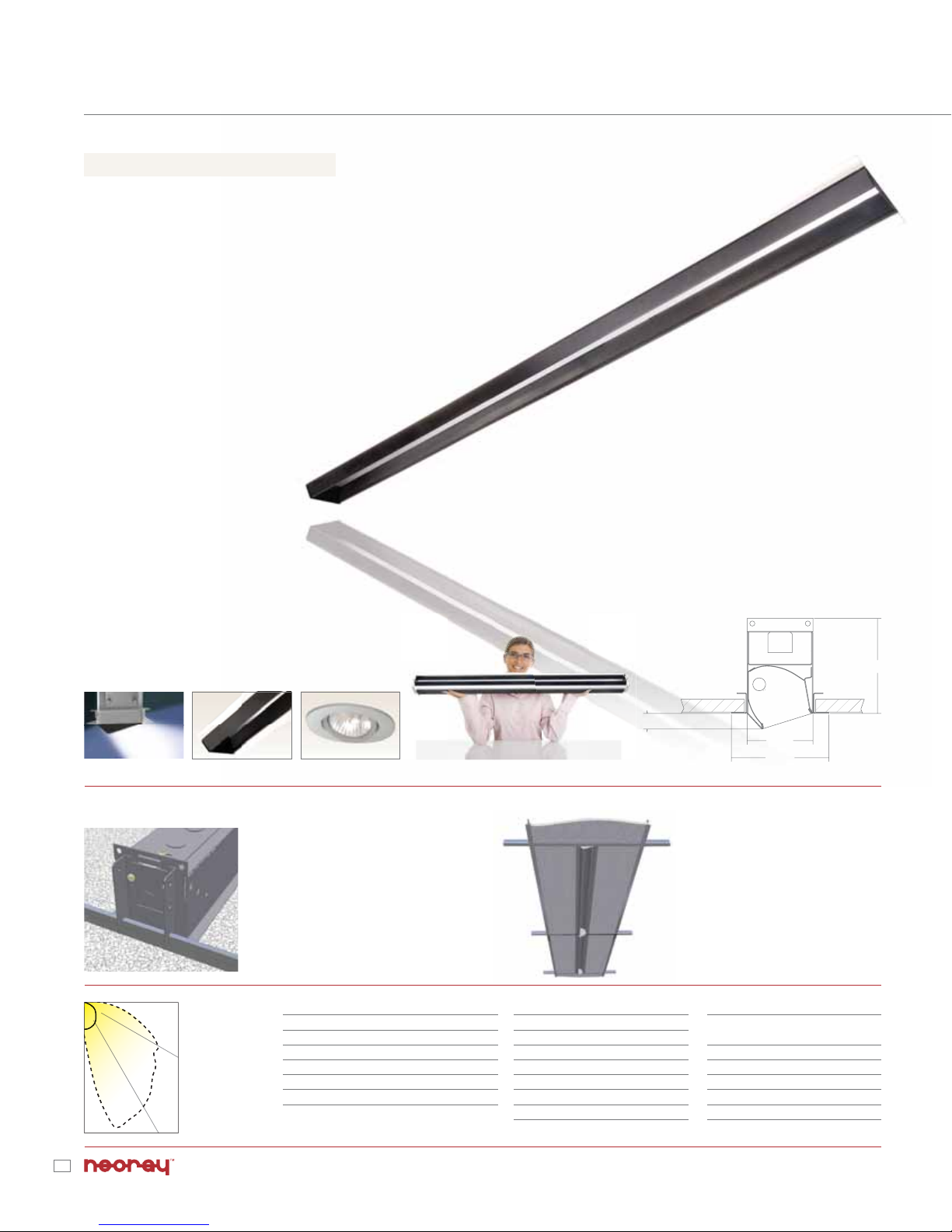

STRAIGHT & NARROW 23X WALL WASH

Recommended distance from ﬁxture

longitudinal axis and wall is 1’ to 3’.

Optimum performance distance is 2’.

Not recommended for use outside

this range. Fixture housing lengths are

3’, 4’ and 5’ mounted individually in

grid ceilings and in sheet rock. Can

be mounted in continuous rows.

Patent pending adjustable

ceiling mounting system. Adjusts

to various ceiling grid types

and enables end installation

precise ﬁt for integrated ceiling

appearance. Access plate and

pre-wired assembly allows for

easy wiring.

MOUNTING INFORMATION

4-5/8”

3-1/4”

3/4”

4-3/4”

Fig. 1 Fig 2

23X

1T5HO lamp

Efﬁciency 61.7%

Test#168P236

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 650 13.0 21.1

0-40 1146 22.9 37.1

0-60 2174 43.5 70.4

0-90 3068 61.4 99.4

0-180 3086 61.7 100.0

Total Luminaire Efﬁciency = 61.7%

Candela Distribution

0 45 90

0 417 417 417

5 883 734 417

15 1999 1698 403

25 1912 1873 374

35 1768 1692 330

45 1530 1475 272

0 45 90

55 1344 1189 204

65 1143 968 132

75 746 661 63

85 419 310 9

90 222 144 2

95 46 6 2

•Provides soft and uniform ceiling

to ﬂoor illumination ideal for

wash applications

•95% reﬂective Miro Grade

material used to maximize

uniform light output and

eliminate unwanted spill light

(see ﬁgure 1)

•Heavy Wall Matte Black

Perforated Kick Shield

eliminates glare for comfortable

illumination (see ﬁgure 2)

•Optional adjustable or ﬁxed

MR16 modules in 3’, 4’ and

5’ lengths for highlighting

applications (see ﬁgure 3)

•Optional Bafﬂe

•Standard or custom ﬁxture

lengths (standard 3’, 4’ and 5’

individual lengths)

•Fits Sheet Rock, Exposed T Grid

and Slot T Grid applications

•Flanged or Flangeless Trim

optional

Fig 3

(1) LAMP T5 and T5HO

One piece unit is easy to install
