CommScope FOSC-OC-6 Manuel utilisateur

FOSC-OC-6

INSTALLATION INSTRUCTION

US FOSC tray (A size) with integrated splitter

1 Kit content

2 Installation in FOSC closures

2.1 The first tray is secured against the tray tower. When necessary,

replace the appropriate tray by the splitter tray.

To remove this tray, loosen the screws and remove the bracket.

Alternatively, the splitter tray can be mounted on top of the already

installed trays.

Note: in a European FOSC A or FOSC B closure always install the

FOSC-OC-6 at the top of the installed trays.

2.2 Use a screwdriver to bend one of the legs and remove the tray

out of the tower.

All manuals and user guides at all-guides.com

2.7 Mark the transportation tube(s) 15 mm from the tray edge

(to the inside). Carefully remove the tube overlength from the mark

(longitudinal slits first, then circumferential).

Note: depending the manner of identification, the tube can be removed

with only a circumferential cut. Make sure not to lose ID.

2.4 Re-install the bracket.

2.5 Install a splicing tray in the second slot.

2.6 Route the tranportation tubes to the appropriate tray(s) as

shown.

2.3 The tray can be inserted in the tray tower by aligning the tray

pins (on the tray legs) with holes in the tray tower. Squeeze the tray legs

and slip the tray into the tray tower.

All manuals and user guides at all-guides.com

3 Identification

Identification can be done by means of

• colored fibers

• colored tubes

• marked tubes

• colored tapes

• flags.

Make sure not to lose ID.

2.8 Secure the transportation tube with two tie-wraps.

3.1 At the end of each fiber, a flag can be attached with the

identification of the fiber.

The identification is as follows

Ix.y: I = Incoming fiber of the splitter

x = splitter number

y = splitter port

Ox.y: O = Outgoing fiber of the splitter

x = splitter number

y = splitter port

3.2 Select the appropriate fiber to be spliced, cut the identification

flag when available and do all necessary steps till the splice protector is

installed.

Note: make sure not to lose fiber identification.

The fiber end can be deformed to create higher Return Loss on the

unused fibers.

Make sure to cut the fiber end (50 mm, 2” or behind the ID flag) before

starting with the splicing steps.

3.3 Proceed with the storage of the splices and fibers according to

the installation instruction delivered with the enclosure or tray kit.

Note: make sure the splice protector has cooled down before storing.

All manuals and user guides at all-guides.com

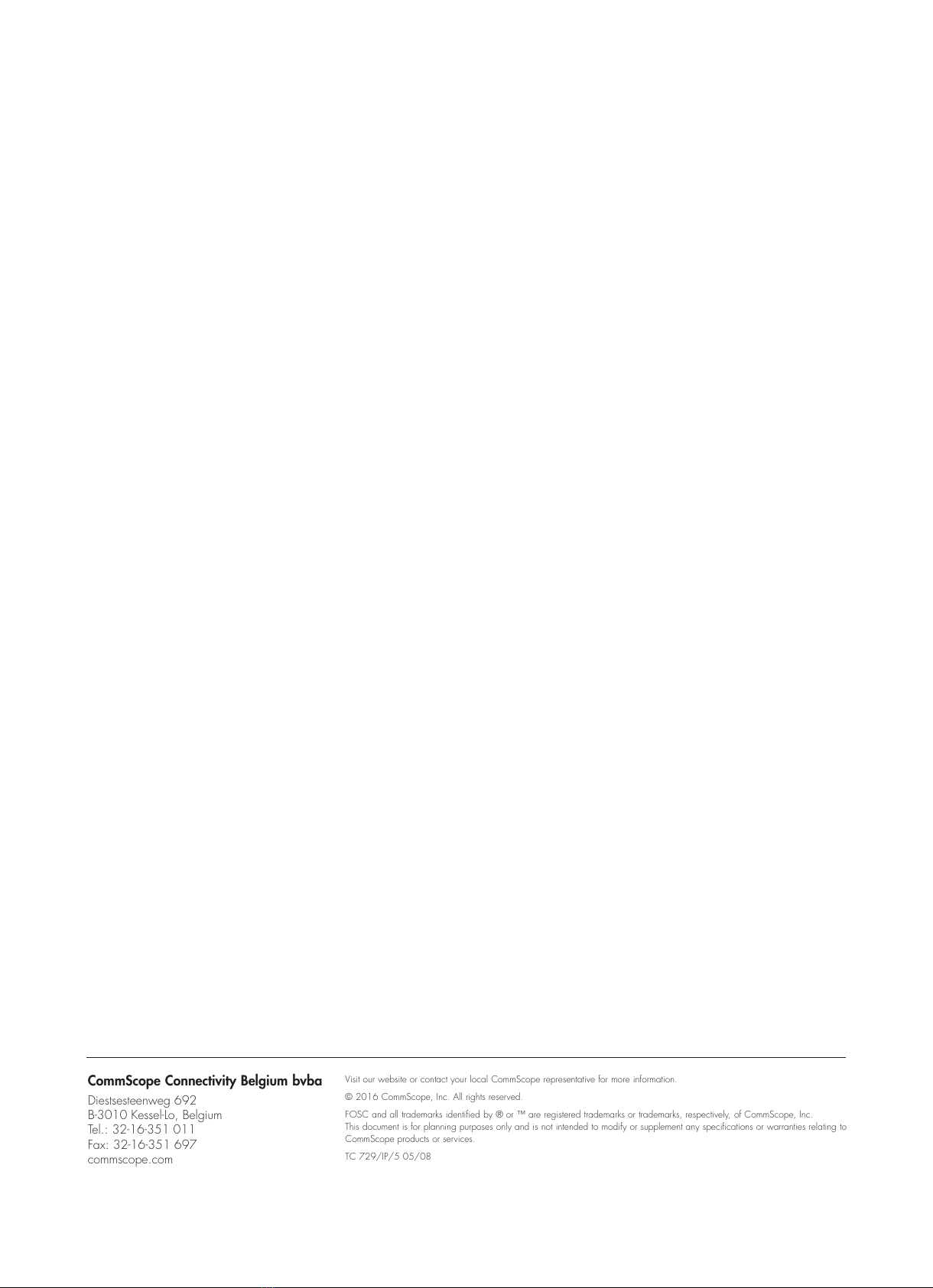

CommScope Connectivity Belgium bvba

Diestsesteenweg 692

B-3010 Kessel-Lo, Belgium

Tel.: 32-16-351 011

Fax: 32-16-351 697

commscope.com

Visit our website or contact your local CommScope representative for more information.

FOSC and all trademarks identiﬁed by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc.

This document is for planning purposes only and is not intended to modify or supplement any speciﬁcations or warranties relating to

CommScope products or services.

TC 729/IP/5 05/08
