Commell HS-874P Manuel utilisateur

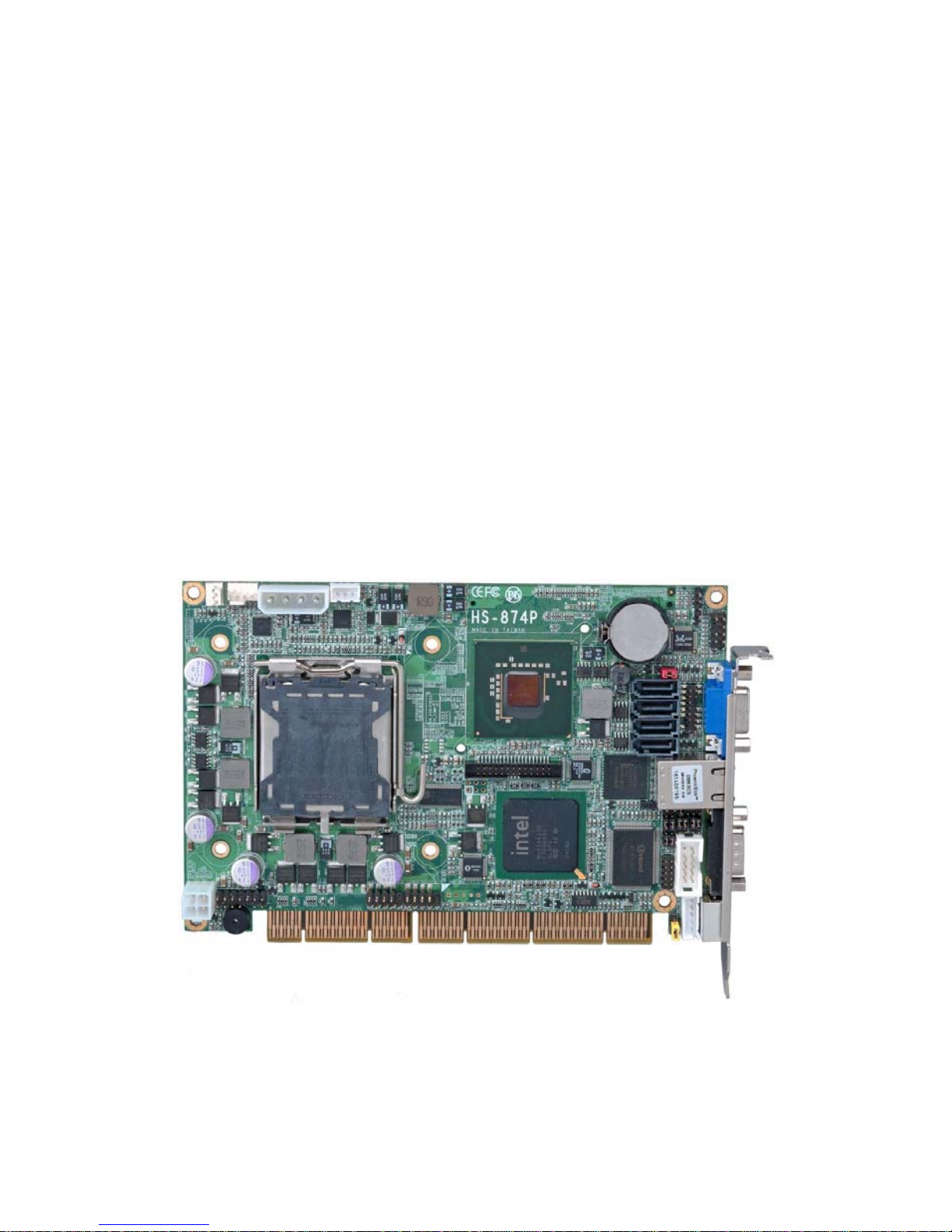

HS-874P

Half-size PISA CPU Card

User’s Manual

Edition: 1.0

2008/06/10

HS-874P User’s Manual

reserved. The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

HS-874P User’s Manual

Packing List:

Please check the package material before you install the system.

Hardware:

HS-874P Single Board Computer x 1

Cable Kit:

4-pin to 3-pin ATX Cable x 1

USB Cable x 2

DB9 Cable x 1

Printed Matters:

Driver CD x 1 (Including User’s Manual)

SATACable x 2

RAID driver Disk for Windows XP

and Windows Server 2003

PS/2 Keyboard & Mouse Cable

SATAPower Cable x 1

Audio Port Cable x 1

DVI module with bracket x 1

COMPORT x 1

HS-874P User’s Manual

Index

Chapter 1 <Introduction>................................................6

1.1 <Product Overview> ..............................................................................6

1.2 <Product Specification>........................................................................7

1.3 < Mechanical Drawing > ........................................................................9

1.4 <Block Diagram>.................................................................................. 11

Chapter 2 <Hardware Setup>.......................................13

2.1.1 <Connector Location>......................................................................13

2.2 <Connector Reference>.......................................................................15

2.2.1 <Internal Connector>..........................................................................................15

2.2.2 <External Connector>.........................................................................................15

2.3 <Jumper Reference>............................................................................16

2.4 <CPU and Memory Setup> ..................................................................18

2.4.1 <CPU installation>.........................................................................................18

2.4.2 <Memory Setup>................................................................................................19

2.5 <CMOS Setup> .....................................................................................20

2.6 <Serial ATA interface>..........................................................................21

2.7 <LAN Interface>....................................................................................21

2.8.1 <Analog VGA Interface>..............................................................................22

2.8.2 <LVDS Display> (HS-874PX only)............................................................23

2.9 <Onboard Audio Interface>.................................................................28

2.10 <USB2.0 Interface> ............................................................................29

2.11 <Serial Port Jumper Setting >...........................................................31

2.12 <Power and Fan Installation> ...........................................................32

2.12.1 <Power connectors>..........................................................................................32

2.12.2 <Fan Connectors>.............................................................................................33

2.14 <Switch and Indicator>......................................................................35

Chapter 3 <System Configuration>.............................37

3.1 <SATA configuration>..........................................................................37

HS-874P User’s Manual

3.2 <SATA RAID Configuration> ...............................................................38

3.3 <Audio Configuration> ........................................................................42

3.4 <Video Memory Setup>........................................................................43

Chapter 4 <BIOS Setup>...............................................45

(This Page is Left for Blank)..........................................................46

A.1 <Serial ATA Port>.................................................................................47

A.2 <Serial Port>.........................................................................................47

A.4 <LAN Port>...........................................................................................48

A.5 <AT Keyboard Port>............................................................................48

A.6 <PS/2 Keyboard & Mouse Port>.........................................................48

Appendix B <Flash BIOS>............................................50

B.1 BIOS Auto Flash Tool....................................................................50

B.2 Flash Method.................................................................................50

Appendix C <System Resources>...............................51

Appendix D <Programming GPIO’s>...........................55

Appendix E <Watch Dog timer Setting >.....................56

Contact Information ......................................................58

HS-874P User’s Manual Introduction

Product Overview 6

Chapter 1 <Introduction>

1.1 <Product Overview>

The HS-874P is an all-in-one single board computer with PISA bus supporting Intel Core2

Quad/ Core 2 Duo processor for 800/1066/1333 MHz front side bus, Intel Q35 and ICH9DO

chipset, integrated GMA3100 graphics, DDR2 SO-DIMM memory, Realtek ALC888 HD

Audio, Serial ATA and one Intel 82573L Gigabit LAN.

Intel LGA775 Processor

The board supports Intel Core 2 Quad/ Core 2 Duo processor with 800/1066/1333 MHz

front side bus, 8MB L2 cache, to provide more powerful performance than before.

New features for Intel Q35 chipset

The board integrates Intel Q35 and ICH9DO chipset, to provide new supports Intel

GMA3100 graphics, DDR2 667/800 memory, built-in high speed mass storage interface of

serial ATA, HD Audio with 2 channels surrounding sound.

All in One multimedia solution

Based on Intel Q35 and ICH9DO chipset, the board provides high performance onboard

graphics, 24-bit Dual channel LVDS interface or DVI and 2 channels HD Audio to meet the

every requirement of the multimedia application.

HS-874P User’s Manual Introduction

Product Specification 7

1.2 <Product Specification>

General Specification

Form Factor Half size PISA bus CPU card

CPU Support Intel® Core 2 Quad/ Core 2 Duo processor

Package type: LGA775

Front side bus: 800/1066/1333MHz

Memory DDRII 667/800 MHz SO-DIMM up to 2GB

Chipset Intel® Q35 and ICH9DO

BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min.

of timeout value

Real Time Clock Chipset integrated RTC with onboard lithium battery

Serial ATA Intel® ICH9DO built-in 4 x Serial ATAII interface up to 300MB/s

Support RAID 0, 1, 5, 10 and Intel Matrix Storage Technology.

Multi-I/O Port

Chipset Intel® ICH9DO with Winbond® W83627DHG controller

Serial Port One RS232 and one jumper selectable RS232/422/485/IR

USB Port 4 x Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse PS/2 keyboard and mouse port on bracket

GPIO One 12-pin Digital I/O connector with 8-bit programmable

Smart Fan One CPU fan connectors for fan speed controllable

VGA Display Interface

Chipset Intel® Q35 & ICH9DO

Memory Up to 384MB shared with system memory

Display Type CRT, LCD monitor with analog display, DVI or LVDS

Connector External DB15 female connector on bracket

Onboard 40-Pin LVDS connector (HS-874PX Only)

Onboard 26-Pin DVI connector (HS-874PD Only)

Ethernet Interface

Chipset Intel 82573L Gigabit Ethernet controller

Type Triple speed 10/100/1000Base-T

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector External one RJ45 connector with LED on bracket

ISA Interface

ISA Bridge Winbond W83628GA & W83629GA

Function I/O & IRQ supported only, no support DMA & bus mastering

HS-874P User’s Manual Introduction

Product Specification 8

Audio Interface

Chipset Intel® ICH9DO with Realtek ALC888 HD Audio

Intel High Definition Audio compliance

Interface 2 channels sound output

Connector Internal 10-pin header for line-in/-out, MIC-in, 4-pin header for CD-IN

Power and Environment

Power

Requirement +5V, +12V power required, optional 5USB for ATX

Dimension 185 (L) x 127 (H) mm

Temperature Operating within 0 ~ 60P

PC (32 ~ 140P

PF)

Storage within -20 ~ 85P

PC (-4 ~ 185P

PF)

Ordering Code

HS-874PD Support Intel Core 2 Quad/Core 2 Duo processor

Onboard VGA, Intel Gigabit LAN, 4 x USB2.0, 2 x serial port

Realtek ALC888 HD Audio, 4 x SATA, 1 x IrDA, DVI Interface

HS-874PX Support Intel Core 2 Quad/ Core 2 Duo processor

Onboard VGA, Intel Gigabit LAN, 4 x USB2.0, 2 x serial port

Realtek ALC888 HD Audio, 4 x SATA, 1 x IrDA, 18/24-bits LVDS

Interface

HS-874P User’s Manual Introduction

Mechanical Drawing 9

1.3 < Mechanical Drawing >

‘

HS-874P User’s Manual Introduction

Block Diagram

127 mm

28.6 mm

185 mm
