CBP-6P3X2

PICMG1.3 Half-size Backplane

User’s Manual

Edition 1.0

2014/08/15

CBP-6P3X2 User’s Manual

-1-

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular

purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

CBP-6P3X2 User’s Manual

-2-

General Specification

Form Factor PICMG1.3 Half size Backplane

Extended Interface 1 x PCIe x16 slot, 1 x PCIe x 1 slot, 3 x PCI slot

Power Requirement Standard 24-pin ATX power supply

Dimension 176 x 142 mm

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

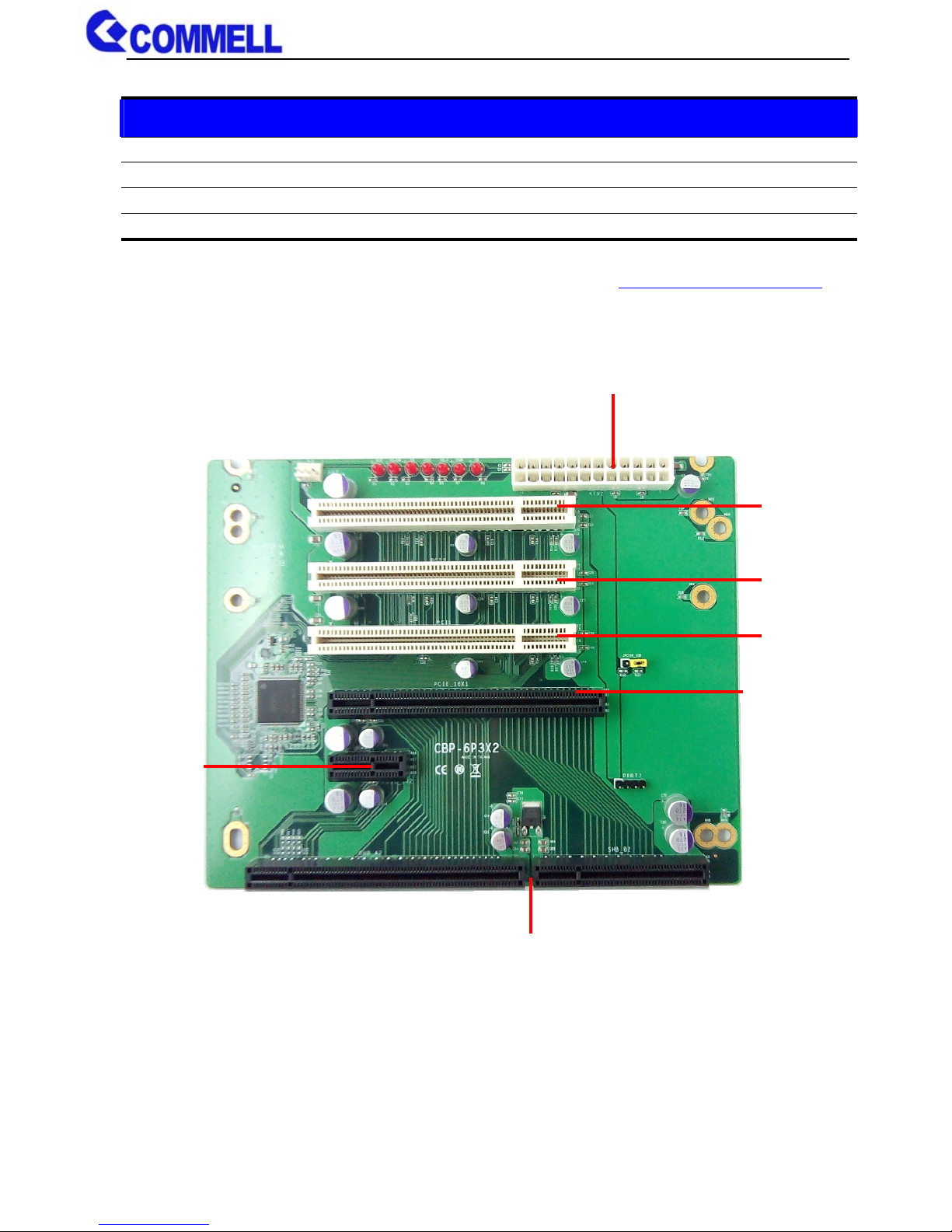

ATX

PCI3

PCI2

PCI1

PCIe x16

SHB Express

PCIe x1

CBP-6P3X2 User’s Manual

-3-

CBP-6P3X2 User’s Manual

-4-

PRBT2 Mode

1-2 PWRBTN

3-4 RESET

JPCI66_33M Mode

1-2 Enable the PCI Interface for 66-MHz operation

2-3 The PCI Interface for 33-MHz operation

Default setting: 2-3

JPCI33_66M

PRBT2

CBP-6P3X2 User’s Manual

-5-

Contact Information

Any advice or comment about our products and service, or

anything we can help you please don’t hesitate to contact with us.

We will do our best to support you for your products, projects and

business.

Taiwan Commate Computer Inc.

Address 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City

22102, Taiwan

TEL +886-2-26963909

FAX +886-2-26963911

Website TUhttp://www.commell.com.twUT

E-Mail TU[email protected]UT (General Information)

TU[email protected]UT (Technical Support)

Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899

Twitter https://twitter.com/Taiwan_Commate

Commell is a brand name of Taiwan commate computer Inc.
