Clevertronics CLP CWSQLED Series Manuel

1949209

V1.0

21 August 2020

Clevertest and Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.

After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red

flashing for a period up to 2 minutes.

The diffuser will require removal to gain access to the Test/Status Switch and LED.

Maintained fittings (CWSQLEDM-yy-zz) cannot be scanned with a camera using the Clevertest Plus App

as the maintained light source interferes with the camera scanning function. To register the fitting

manually enter the serial number from the QR code and visually read the test result and enter manually

into Clevertest Plus App.

Zoneworks, HIVE and DATA Monitored Options

Fittings with part numbers -ZW, -HVG, -DATA are fitted with Zoneworks communications modules

(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power

cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated

data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also

be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,

coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a

single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides

a multifunction indication of the status of the fitting during testing and normal operation:

Option

State

LED Operation

ZW, HVG, DATA

Commissioned

LED on Solid (Green)

ZW, DATA Un-commissioned Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HVG Un-commissioned

With network connectivity

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HVG Un-commissioned

Without network connectivity

Batt plugged-in: yellow 250mS, green

250mS, yellow 250mS, green 250mS,

green 1s

Batt unplugged: red 250mS, off 250mS,

red 250mS,off 250mS, off 1s

ZW, DATA

Emergency Light Test In Progress

LED flashes at yellow 5s , 0ff 1s

HVG

Emergency Light Test In Progress

LED flashes at yellow 1s , 0ff 1s

In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to

the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of

a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA

version)

DALI EM Option

Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate connection

and integration to 3rd Party Lighting Control Systems. Before installing the -DALI fitting please confirm

that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI

fitting will be addressed and configured into the control system by the Lighting Control System

Commissioning Technicians and not Clevertronics.

State

LED Operation

Commissioned/ Un-commissioned LED on Solid (Green)

Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off

“IDENTIFY COMMAND” Fitting goes into emergency mode for 10 seconds

A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network. DALI

connections are marked as Da Da.

CLP™ Argonaut Square LED Emergency Light

Installation & Maintenance Instruction Leaflet

NOTE: Standard product codes with this symbol

are enabled with Clevertest Plus capability. Please refer to

the operation guide supplied with the product for details.

Australia (Head Office)

Website: www.clevertronics.com.au

Email: info@clevertronics.com.au

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

UK OFFICE

362 Stockley Close

West Drayton UB7 9BL

Phone: 01895 430 255

Models:

CWSQLEDx-uu-yy-zz-vv

Testing:

Options:

Manual Test

zz = Blank

Non-Maintained

x = N

Zoneworks

zz = ZW

Maintained

x = M

Z/W DATA

zz = DATA

Microwave Sensor Hi/Lo Control

yy = MS-HL

DALI REG

zz = DALI

Microwave Sensor Control

yy = MS

ZW Hive

zz = HVG

Low Output

uu = LO

Black Body

vv = BLK

Spare Parts:

1550290

BATT: LP 6.4V 3.2Ah.200mm lead.Stick.Brkt

1190320

Sensor: M/Wave Motion, SK-503L DC

(for -MS-HL)

1330120

LED Driver – GDY250, 26W 42VDC 610mA

1330039

25W DALI Driver - Programmed to 250mA - 32mA

(for -LO)

8002840

PCA: SQ LED Array, 215mm, 400K, 3020 LED

UKM02370050001

CCPLED-3W-CKIT, LED Power Pack, 3W, LP, OWC

UKM02870130001

CCPLED-3W-CKIT-HVGEXT, LED Power Pack, 3W, HVG, LP, OWC

1190325

SENSOR:M/Wave Motion, SK-601 On/Off

(for -MS)

Important:

It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant British Standards.

1949209

V1.0

21 August 2020

Installation:

The CLP Argonaut Square (CWSQLEDx) can be installed either Ceiling or Wall Mounted.

•Remove the four (4) screws holding the diffuser to the base.

•Remove the four (4) screws holding the gear tray to the base.

•Determine the cable access point. There are 2 locations on opposite sides of the fitting for cable

gland/conduit entry. Entry can also be from the back of the base. Drill out the desired cable entry

point.

•Drill out 4 of the mounting points in the base (see image below).

•Using the base as a guide, mark the 4 holes for mounting and one for mains access if using back

cable entry.

•Mount the base using appropriate fixings and seal these fixings with silicone (fill any additional entry

points with silicone also)

•Route the power inside the base.

•Connect the 240VAC (,LSW, LEM, N) supply to the terminal block of the gear tray.

•Install the gear tray to the base.

•Apply power to the fitting and test per the instructions.

•If the CTP capabilities are activated, please affix the CTP status label to a visible surface and Four

Segment Marking on the product will include an ‘’F’’ in third segment block.

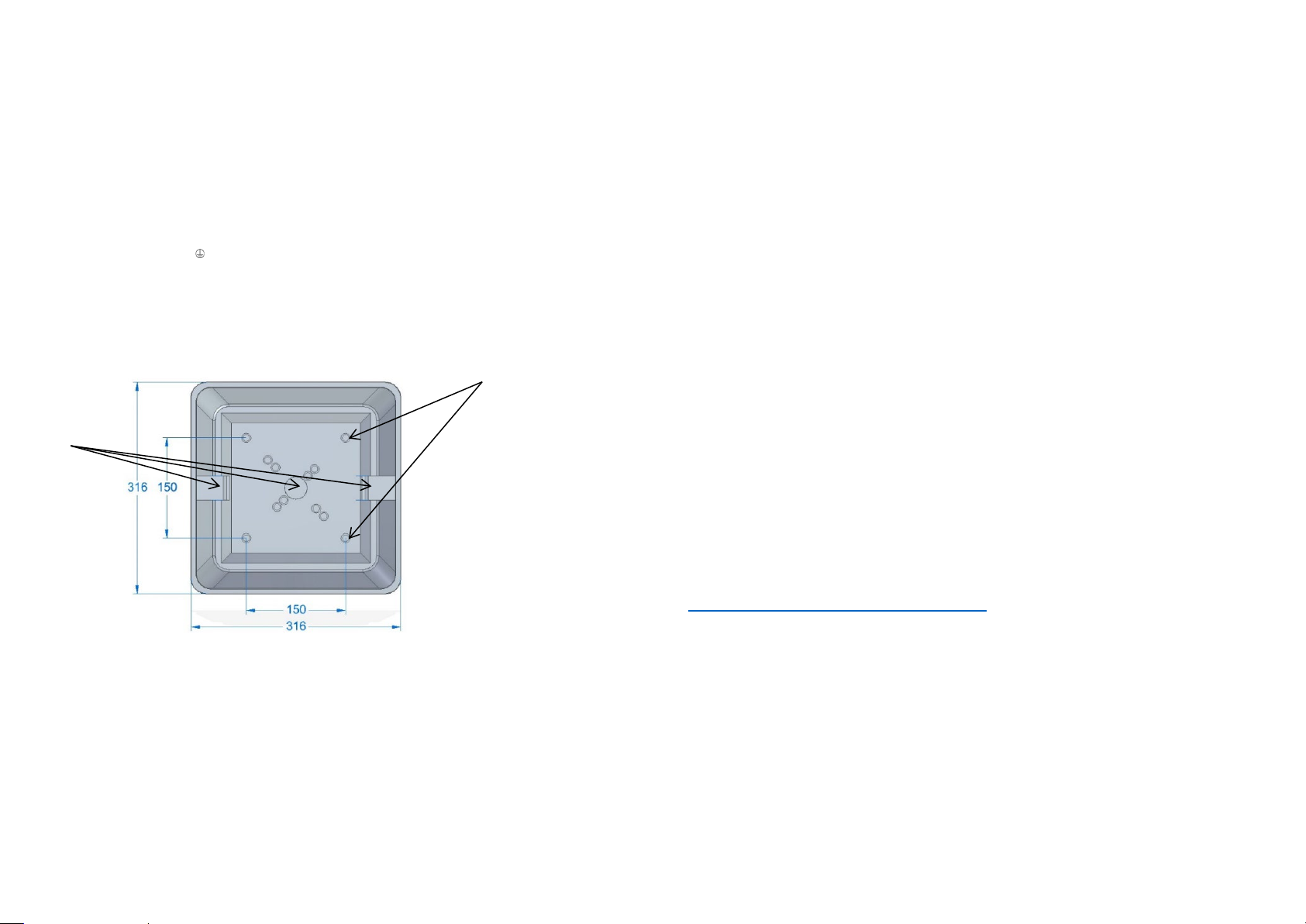

Dimensions:

Note:

This luminaire (with reinforced insulation between control/LED terminal and AC supply) contains non-

user replaceable light source and battery - to be replaced (if required, refer installation instructions for

battery replacement) by Clevertronics service personnel/agents or a registered electrician.

Battery Replacement:

1. Prior to any work, isolate the power to the luminaire that requires battery replacement

2. Open the fitting by removing the securing screws holding the diffuser, support diffuser doing this.

3. Remove gear tray by removing screws, support gear tray during this process.

4. Remove the Battery Connector from the Emergency Driver.

5. Remove the battery from the gear tray by removing mounting screws.

6. Replace battery, re-install screws and connect to Emergency Driver.

7. Reinstall the Gear Tray.

8. Refit the diffuser, ensure diffuser is aligned to maintain the weatherproof seal.

Testing:

Once connected to the 240V mains supply, the unit must be allowed to charge the battery for at least 24

hours. Conduct the following tests with the Maintained Mode Off:

•The emergency lamp must illuminate for at least 180 min after disconnection from the mains. If the

unit fails to illuminate for the requisite time, remedial action must be taken to repair the situation

and once completed, the unit must pass a subsequent test.

•Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.

•Release the Test Button or Switch On Mains Supply, check that the emergency lamp is Off (Non-

maintained operation)..

Trouble Shooting:

Below are a list of common problems and their possible causes.

Fault: The Green LED Test Switch indicator is not illuminated.

Check: A.C. is connected and is turned on.

Battery is connected

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

Battery is connected

Fault: Lamp illuminates in emergency mode, but only stays on for a short period.

Check: Battery has been allowed to charge for at least 24 hours.

Battery for damage.

Caution:

On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during

construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries

discharged or “cycled”. The Li-ion battery in the luminaire has been selected to give excellent long life

performance in a controlled IEC 60598-2-22 testing environment. Excessive battery cycling will reduce

through-life performance and may lead to premature battery failure. Battery warranty claims, as a result

of such abuse, are specifically EXCLUDED from Clevertronics warranty terms.

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

https://clevertronics.co.uk/product-warranty-statement/

Mounting Holes

Cable Entry
