Clevertronics L10 Weatherproof Jumbo LED Exit Instructions d'installation et d'utilisation

1947282

V1.2

4 October 2022

UK Instruction Sheet Template –V1.3 –Updated: 20/01/2022

Clevertest and Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.

After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red flashing

for a period up to 2 minutes.

Zoneworks, HIVE and DATA Monitored Options

Fittings with part numbers -ZW, -HVG, -DATAare fitted with Zoneworks communicationsmodules (nodes). These

fittings are monitored using either Powerline Carrier Technology that utilize the power cable to provide data

communication, RF transceiver modules operating inthe ISM band or a dedicated data cable to/from data routers

installed on a dedicated data trunk connected to a central Server (can also be connected via

Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor, coordinate testing and collate test

data from eachfitting. Zoneworks Fittings can be commissioned by a single push of the test switch or by scanning

the supplied barcode. The LED Test Switch indicator provides a multifunction indication of the status of the fitting

during testing and normal operation:

Option

State

LED Operation

ZW, HVG, DATA

Commissioned

LED on Solid (Green)

ZW, DATA

Un-commissioned

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HVG

Un-commissioned

With network connectivity

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HVG

Un-commissioned

Without network connectivity

Batt plugged-in: yellow 250mS, green

250mS, yellow 250mS, green 250mS,

green 1s

Batt unplugged: red 250mS, off 250mS,

red 250mS,off 250mS, off 1s

ZW, DATA

Emergency Light Test In Progress

LED flashes at yellow 5s , 0ff 1s

HVG

Emergency Light Test In Progress

LED flashes at yellow 1s , 0ff 1s

In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to the

DATA network via a multi-drop bus (daisy chain connection). For further information of installation of a

Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA version)

DALI EM Option

Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate connection and

integration to 3rd Party Lighting Control Systems. Before installing the -DALI fitting please confirm that the

Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI fitting will be

addressed and configured into the control system by the Lighting Control System Commissioning Technicians

and not Clevertronics

State

LED Operation

Commissioned/ Un-commissioned

LED on Solid (Green)

Emergency Light Test in progress

LED flashes at 1s On (Yellow) & 1s Off

“IDENTIFY COMMAND”

Lamp and Status LED Flash for 30 seconds

A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network OR a 5/6way

“structured wiring system” lead and plug facilitating the power and DALI connection. DALI connections are

marked as Da Da.

Caution:

On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during

construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries discharged or

“cycled”. The Li-ion battery in the Exit & Emergency Unit has been selected to give excellent long life

performance in a controlled IEC 60598-2-22 testing environment. Excessive battery cycling will reduce through-

life performance and may lead to premature battery failure. Battery warranty claims, as a result of such abuse,

are specifically EXCLUDED from Clevertronics warranty terms.

L10™ Weatherproof Jumbo LED Exit

One Box Solution

Installation & Maintenance Instruction Leaflet

Dimensions: 570mm x 117mm x 340mm Weight 5.6KG

Australia (Head Office)

Website: www.clevertronics.com.au

Email: info@clevertronics.com.au

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

UK OFFICE

Website: www.clevertronics.co.uk

362 Stockley Close

West Drayton UB7 9BL

Phone: 01895 430 255

NOTE: Standard product codes with this symbol are enabled

with Clevertest Plus capability. Please refer to the operation guide

supplied with the product for details.

IP65

Models:

LJWELED-50-xx-yy-uu-ww

Testing:

Options:

Manual Test

xx = Blank

Tamperproof

yy=TP

Zoneworks

xx = ZW

Uninterrupted Power Supply

ww=UPS

Z/W DATA

xx = DATA

Black Colour

uu=BLK

Zoneworks HIVE

xx = HVG

DALI Registered.

xx = DALI

Spare Parts:

1530231

Replacement Battery (L10)

8050640

Replacement Emergency LED Board

UKM01370170001

Replacement Emergency Driver

Important:

It is illegal for anyone, exceptfor a licensedelectrician to install or maintainthis product. Before installation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant British Standards.

1947282

V1.2

4 October 2022

UK Instruction Sheet Template –V1.3 –Updated: 20/01/2022

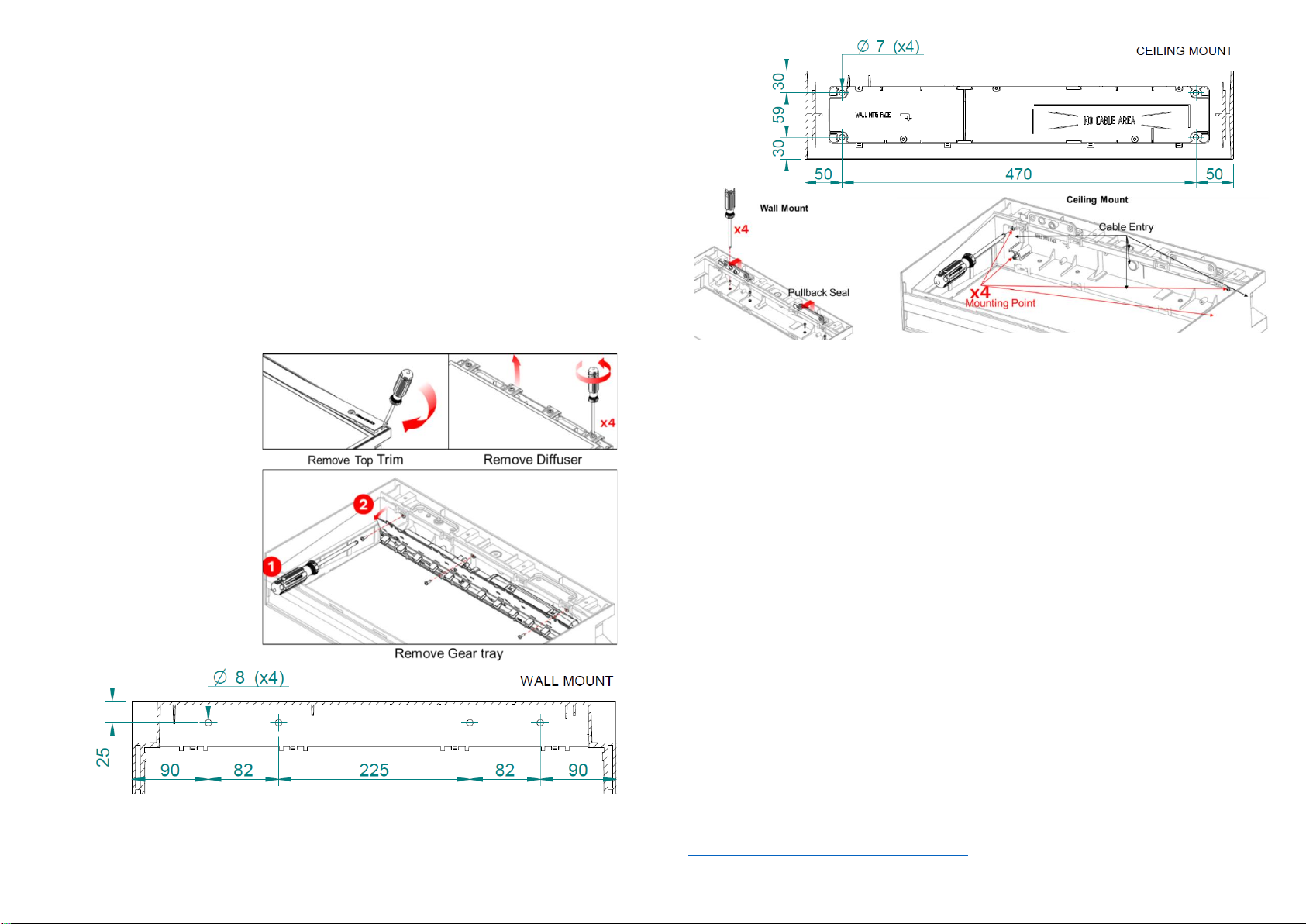

Installation:

•Locate the installation position.

•Remove the front trim piece, by levering one of the corners up and pulling off. (Figure A)

•Remove the front Diffuser by undoing the 4 holding screws then lever it out. (Figure A)

•Remove Gear Tray by undoing the 3 retaining screws using a suitable screwdriver. (Figure B)

•Position the product in the wall or ceiling mount position & pre-drill mounting holes (Figure C).

•Wall Mount pull back the Seal Tab to expose mounting holes. Feed your screwdriver through front facing holes to

access fixing screws (Figure C).

•Mount product using suitable fixings (including consideration of maintaining the IP rating).

•Drill suitable entry points for supply cables either on the top, rear, or sides of the base using a suitable tool for

polycarbonate plastic. (Figure C)

•The product is designed to take a Maximum M25 Cable Gland/ conduit adaptor. A suitable round cable diameter

will need to be selected when Cable Gland used, consult Manufacturer datasheet.

•Seal Cable entry and Mounting holes appropriately to maintain the IP Rating stated on the Technical Label.

•Terminate the supply cables to the unswitched Live, Neutral & Earth terminals (in the case of the –DALI or –

DATA fittings terminate the cable to the polarity free terminals marked Da Da or DATA).

•Ensure the Battery is connected. Push the gear tray back into position, make sure that the clips on the back are

properly engaged, and secure in place using the three screws.

•Attach the diffuser panel by inserting the base into the channel on the body of the exit sign, taking care to verify

the seal is in place and the clips are properly engaged, and then fold the panel up to position the locking screws.

Tighten the diffuser screws and fit the front trim. (All screws need to be firm before the front trim can be fitted.)

•If the CTP self-test capabilities are activated, please affix the CTP status label to a visible surface and add the

letter “F” to the 3rd square in the Four Segment Marking on the product

Dimensions:

Note:

This luminaire (with reinforced insulation between control/LED terminal and AC supply) contains non-user

replaceable light source and battery - to be replaced (if required, refer installation instructions for battery

replacement) by Clevertronics service personnel/agents or a registered electrician.

Battery Replacement:

1. Prior to any work, isolate the power to the luminaire that requires battery replacement

2. Follow Installation section to remove Gear tray.

3. Disconnect Battery from EM Driver and remove Cable ties & Battery

4. Replace Battery, secure using cable ties and connect to Emergency Driver.

5. Follow Installation section to reassemble luminaire

Testing Procedure:

When the unit is connected to the un-switched active, it must be allowed to charge the battery for at least 24

hours. The emergency lamp only illuminates during a power fail. Conduct the following tests:

•The emergency lamp must illuminate for at least 180 min after disconnection from the mains. If the unit

fails to illuminate for the requisite time, remedial action must be taken to repair the situation and once

completed, the unit must pass a subsequent test.

•Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.

•Release the Test Button or Switch On Mains Supply, check that the emergency lamp is Off (Non-

maintained operation).

Trouble Shooting:

Below are a list of common problems and their possible causes.

Fault: The Green LED Test Switch indicator is not illuminated.

Check: A.C. is connected and is turned on.

Battery is connected

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

Battery is connected

Fault: Lamp illuminates in emergency mode, but only stays on for a short period.

Check: Battery has been allowed to charge for at least 24 hours.

Battery for damage.

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

https://clevertronics.co.uk/product-warranty-statement/

Figure A

Figure B
