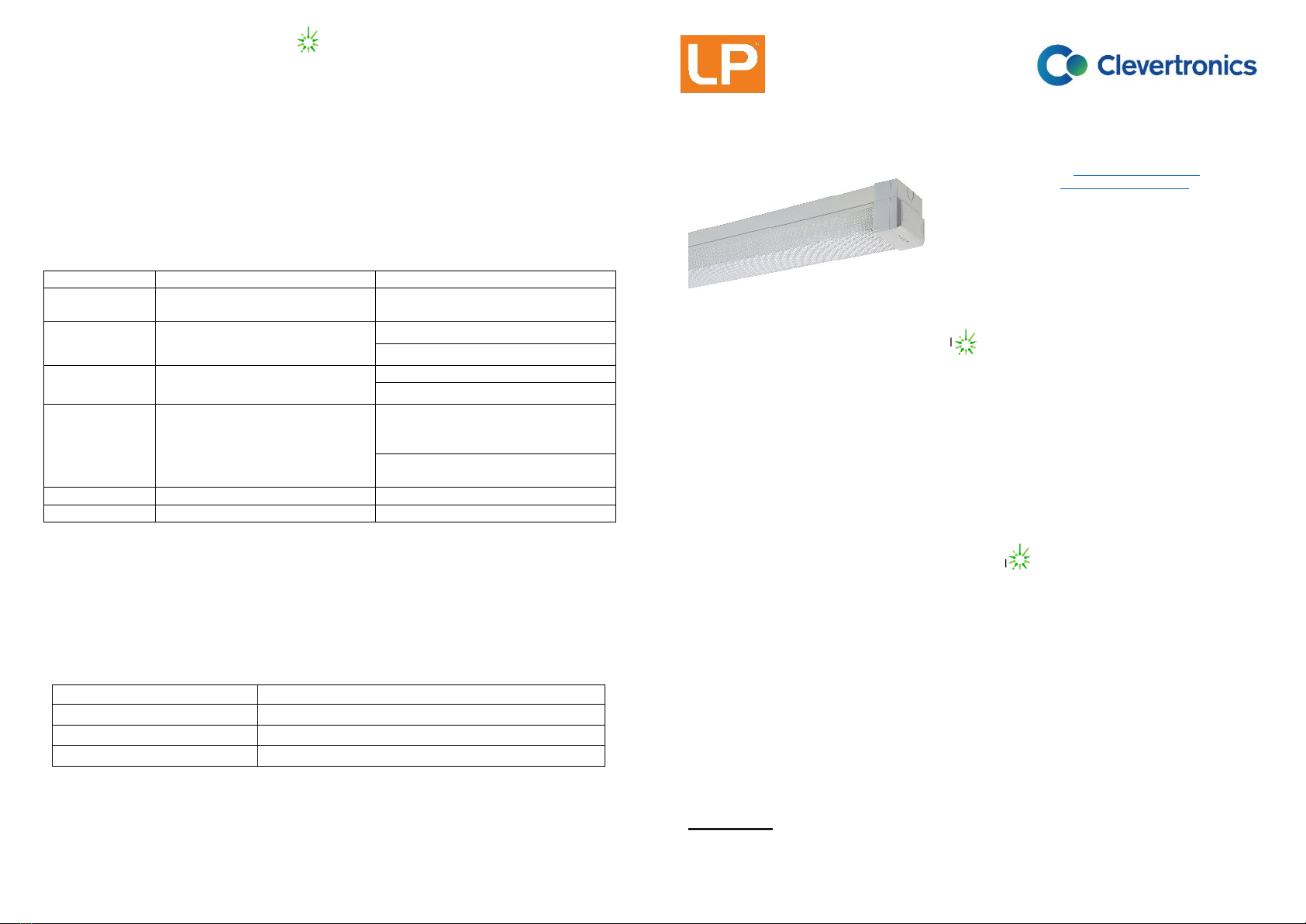

Clevertronics LP CBS4LEDS DIF Series Caractéristiques techniques

1948768

V1.8

19 May 2022

Instruction Sheet Template - V1.3 – Updated 20/01/2022

Clevertest and Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.

After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red

flashing for a period up to 2 minutes.

Zoneworks, HIVE (HV/HVG) and DATA Monitored Options

Fittings with part numbers -ZW, -HV, -HVG, -DATA are fitted with Zoneworks communications modules

(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power

cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated

data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also

be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,

coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a

single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides

a multifunction indication of the status of the fitting during testing and normal operation:

Option

State

LED Operation

ZW, HV, HVG,

DATA

Commissioned LED on Solid (Green)

ZW, DATA Un-commissioned

Batt plugged-in:

yellow 1s, green 1s

Batt unplugged:

red 1s, off 1s

HV, HVG Un-commissioned

With network connectivity

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HV, HVG Un-commissioned

Without network connectivity

Batt plugged-in: yellow 250mS, green

250mS, yellow 250mS, green 250mS,

green 1s

Batt unplugged: red 250mS, off

250mS, red 250mS,off 250mS, off 1s

ZW, DATA

Emergency Light Test In Progress

LED flashes at yellow 5s , 0ff 1s

HV, HVG

Emergency Light Test In Progress

LED flashes at yellow 1s , 0ff 1s

In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to

the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of

a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA

version)

DALI EM Option

Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate connection

and integration to 3rd Party Lighting Control Systems. Before installing the -DALI luminaire, please confirm

that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI

fitting will be addressed and configured into the control system by the Lighting Control System

Commissioning Technicians and not Clevertronics.

State

LED Operation

Commissioned/ Un-commissioned

LED on Solid (Green)

Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off

“IDENTIFY COMMAND” Lamp and Status LED Flash for 30 seconds

A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network. DALI

connections are marked as Da Da. .

LP™ Sustained Emergency LED Battens

Installation & Maintenance Instruction Leaflet

Victoria (Head Office & Manufacturing)

Website: www.clevertronics.com.au

Email: info@clevertronics.com.au

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

New South Wales

Phone: +61 2 8805 6400

Fax: +61 2 8805 6444

Queensland

Phone: +61 7 3442 9700

Fax: +61 7 3442 9777

South Australia/Northern Territory

Phone: +61 8 8301 8800

Fax: +61 8 8351 8286

Western Australia

Phone: +61 8 9207 0000

Fax: +61 8 9207 0088

New Zealand

Phone: +64 800 548 448

Designed in Australia to comply with the

requirements of AS2293.3: 2005 and AS/NZS

CISPR15: 2017

NOTE: Standard product codes with this symbol are

enabled with Clevertest Plus capability. Please refer to

the operation guide supplied with the product for details.

Models: CBS4LEDS-xx-DIF-zz-yy-vv-xx

Testing:

Manual Test

xx = Blank

Options:

Low Output

xx = LO

Zoneworks

xx = ZW

Hi-LO Sensor Control

zz=MS-HL

Z/W DATA

xx = DATA

DALI Driver

zz=DD

Zoneworks HIVE

xx = HV/HVG

Black Colour

xx = BLK

DALI Registered.

xx = DALI

4 Hour Battery

vv = 4HR

Clevertest

xx = CT

(NOTE: -CT Products supplied with the Clevertest Plus Symbol are activated with Clevertest PLUS capability.

Please refer to the operation guide supplied with the product for details).

Spare Parts:

1550050

Replacement Battery

1100635

Replacement Emergency LED Board

1100641

Replacement Emergency LED Board (-4HR)

8002695

Replacement 240V LED Strip

AUM02370170001

Replacement Emergency Driver

AUM02270170002

Replacement Emergency Driver (-DALI)

AUM02870100001

Replacement Emergency Driver (-HV)

AUM02970060001

Replacement Emergency Driver (-HVG)

AUM02370080001

Replacement Emergency Driver (-4HR)

1330059

Replacement 240V Driver

1330023

Replacement 240V Driver (-LO)

1330056

Replacement 240V Driver (-DD)

1330070

Replacement 240V Driver (-MS-HL)

1190118

Replacement Microwave Sensor

Important:

It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant Australian and International Standards.

1948768

V1.8

19 May 2022

Instruction Sheet Template - V1.3 – Updated 20/01/2022

Installation:

This LP Emergency batten can be wall or ceiling mounted.

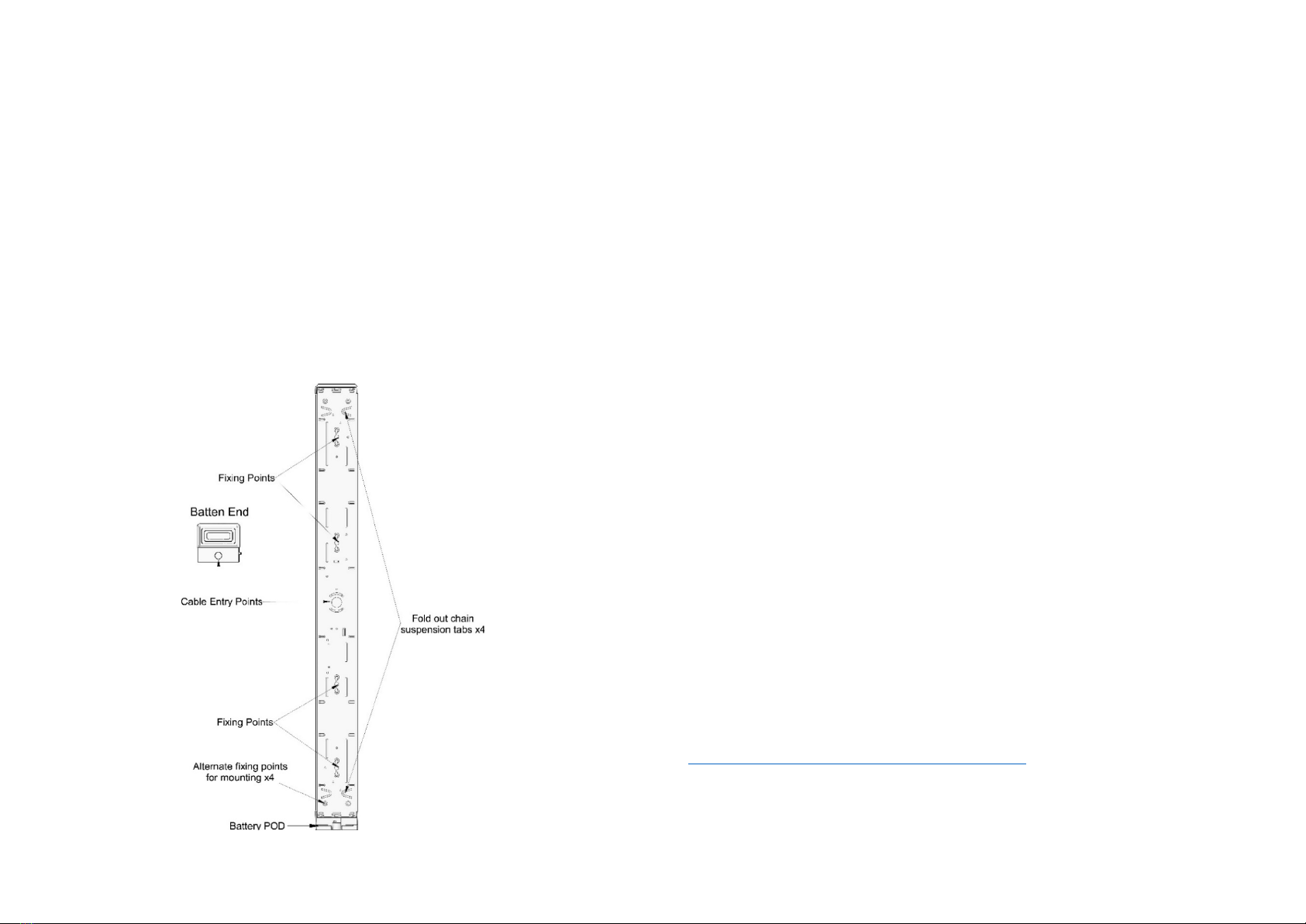

•Refer Images below for the mounting hole, cable access and other dimensions.

•Remove the diffuser.

•Remove the cover plate and disconnect the LED strip connector. Unhook the lanyard

•Position the batten in the desired location.

•Mark out the fixing points on the mounting surface.

•Install appropriate fixing hardware.

•Route power supply cables through the access hole at the rear of the fitting or the ends if using

surface conduit (punch out the knock-outs in the plastic end caps)

•Fasten the batten to the surface.

•Terminate the supply cable to the terminals marked AEM, N, ASW and E (240V AC/50Hz)

•Attach the cover plate to lanyard, Re-connect the LED strip connector and Re-attach the cover

plate onto the body of the batten.

•Re-install the diffuser

•If the CTP capabilities are activated, please affix the CTP status label to a visible surface and Four

Segment Marking on the product will include an ‘’F’’ in third segment block.

Dimensions:

Testing:

When the LP batten unit is connected to the un-switched active, it must be allowed to charge the battery

for at least 24 hours. The emergency lamp only illuminates during a power fail. Conduct the following

tests:

•The emergency lamp must illuminate for at least 2 hours after disconnection from the mains. The

results of all tests are required to be recorded in a service logbook, which is to be kept on-site at all

times. If the unit fails to illuminate for the requisite time, remedial action must be taken to repair the

situation and once completed, the unit must pass a subsequent test.

•Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.

•Release the Test Button or Switch On Mains Supply, check that the emergency lamp is Off (Non-

maintained operation).

Trouble Shooting:

Below are a list of common problems and their possible causes.

Fault: The Green LED Test Switch indicator is not illuminated.

Check: A.C. is connected and is turned on.

Battery is connected

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

Battery is connected

Fault: Lamp illuminates in emergency mode, but only stays on for a short period.

Check: Battery has been allowed to charge for at least 24 hours.

Battery for damage.

Rated Emergency Lumen Output in accordance with AS2293.1, not applicable

for –TH (theatre) version (refer to spacing tables for installation positions):

Refer to the Technical Label for classification information.

Caution:

On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during

construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries

discharged or “cycled”. The battery in this fitting has been selected to give excellent long-life

performance in a controlled AS2293 testing environment. Excessive battery cycling will reduce through-

life performance and may lead to premature battery failure. Battery warranty claims, as a result of such

abuse, are specifically EXCLUDED from Clevertronics warranty terms.

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

http://clevertronics.com.au/terms-conditions-sale-australia-nz/
