Clearaudio Concept wood Manuel utilisateur

concept

concept wood

User manual

Bedienungsanleitung

www.clearaudio.de

www.analogshop.de

User manual 2 - 7

Bedienungsanleitung 8 - 13

Dear Clearaudio customer,

Thank you for purchasing the Clearaudio

concept

concept wood

turntable package.

The Clearaudio

concept

is equipped with the innovative

concept

tonearm featuring friction-free magnetic

bearing technology.

A high quality moving magnet or moving coil cartridge completes the package.

All parameters have been pre-adjusted at the Clearaudio factory, including the tracking and Anti-skating

force.

Please read this instruction manual carefully to ensure correct and easy setup, avoid any potential damage

and hence voiding of your warranty, and discover how to car for your

concept

conept wood

turntable so

that it gives you many years of musical enjoyment and pleasure.

This section must be read before any connection to the mains power supply.

CE-MARKING

EQUIPMENT MAINS SETTING

Your Clearaudio product has been prepared to comply with the household power and safety requirements

that exist in your area. This product can be connected to INPUT:

100 V – 240 V ~/ 50 – 60 Hz / 150 mA; OUTPUT: 12 V= / 450 mA

Recording und playback of any sound material may require the consent of the creator.

Please acknowledge the information given in the

- Copyright Act 1956,

- Dramatic and Musical Performers Act 1958,

- Performers Protection Acts 1963 and 1972,

- Any more recent legal regulations.

The Clearaudio

concept

meets the regulations concerning electromagnetic disturbance (EMC)

and low-voltage appliances.

concept

Contents Page

1. Packaging overview 4

2. List of components 4

3. Setup 5

4. Important notes 6

5. Service 7

6. Technical data 14

Warranty information 15

concept

1. Packaging overview

Clearaudio has developed a special secure packaging for your

concept

turntable which ensures safe

transportation.

Please keep the original packaging as it will be required if you need to ship the turntable.

2. List of components

1.) Turntable chassis with tonearm, cartridge and drive belt on sub-platter.

2.) Turntable platter

3.) Accessories: Level gauge, allen key (size 2), drive belt, power supply (inlcuding adaptors for EU, UK,

US), bearing oil, user manual, Clearaudio return delivery note, warranty card.

First layer:

concept

turntable chassis

including integrated motor unit

and tonearm with cartridge.

Second layer:

Turntable platter

Accessories box, user

manual, Clearaudio return

delivery note, warranty card.

concept

3. Setup

Setting up the

concept

turntable is easy. The turntable chassis, tonearm an cartridge are already assembled

and all key parameters have been pre-adjusted and tested at the Clearaudio factory.

The

concept

turntable requires a place for set-up location of at least 17 inch x 14 inch.

1.)

First take the

concept

turntable chassis out of the package

and place it on a suitable surface.

Then remove the drive belt from the plastic bag.

2.)

Place the drive belt around the sub-platter and around the

motor pulley.

3.)

Take the platter out of the package and carefully place it

with both hands onto the shaft.

4.)

Carefully remove the adhesive security tape and further

security materials from the tonearm and the cartridge.

5.)

As all key parameters have been adjusted at the

Clearaudio factory, all you need to do is to level the

turntable using the level gauge provided.

to 1.)

to 4.)

to 5.)

to 3.)

concept

4. Important notes

Adjustment of the tracking force

Never check or adjust the tracking force when there is a record on the platter. Always remove the record rst.

The pre-adjusted and recommended tracking for the Clearaudio

concept

MM cartridge and for the

Clearaudio

concept

MC cartridge 2.2 g (+/- 0.2 g).

Adjustment of the tonearm height

As everything on the turntable is pre-assembled and tested,

including tonearm and cartridge, there is usually no need to

change any parameters on the

concept

turntable. If you want

to change the height of your tonearm please refer to your

nearest qualied dealer or service personnel.

Your dealer can make the height adjustment by loosening the locking screw on the side of the tonearm base

of your turntable.

Clearaudio assumes no liability for incorrect handling or any damage caused, if non qualied persons

attempt these adjustments.

6.)

If your

concept

turntable is not in a perfectly level position,

as indicated by the bubble of the level gauge not being

positioned in the centre of the black circle, you can adjust

the turntable‘s feet by turning them clockwise or anti-clock-

wise until you reach a perfectly level position. You can then

lock in the ideal position of the spikes using the lock screw.

You will only get the best sound from your

concept

turntable

if the turntable is in a perfectly level position.

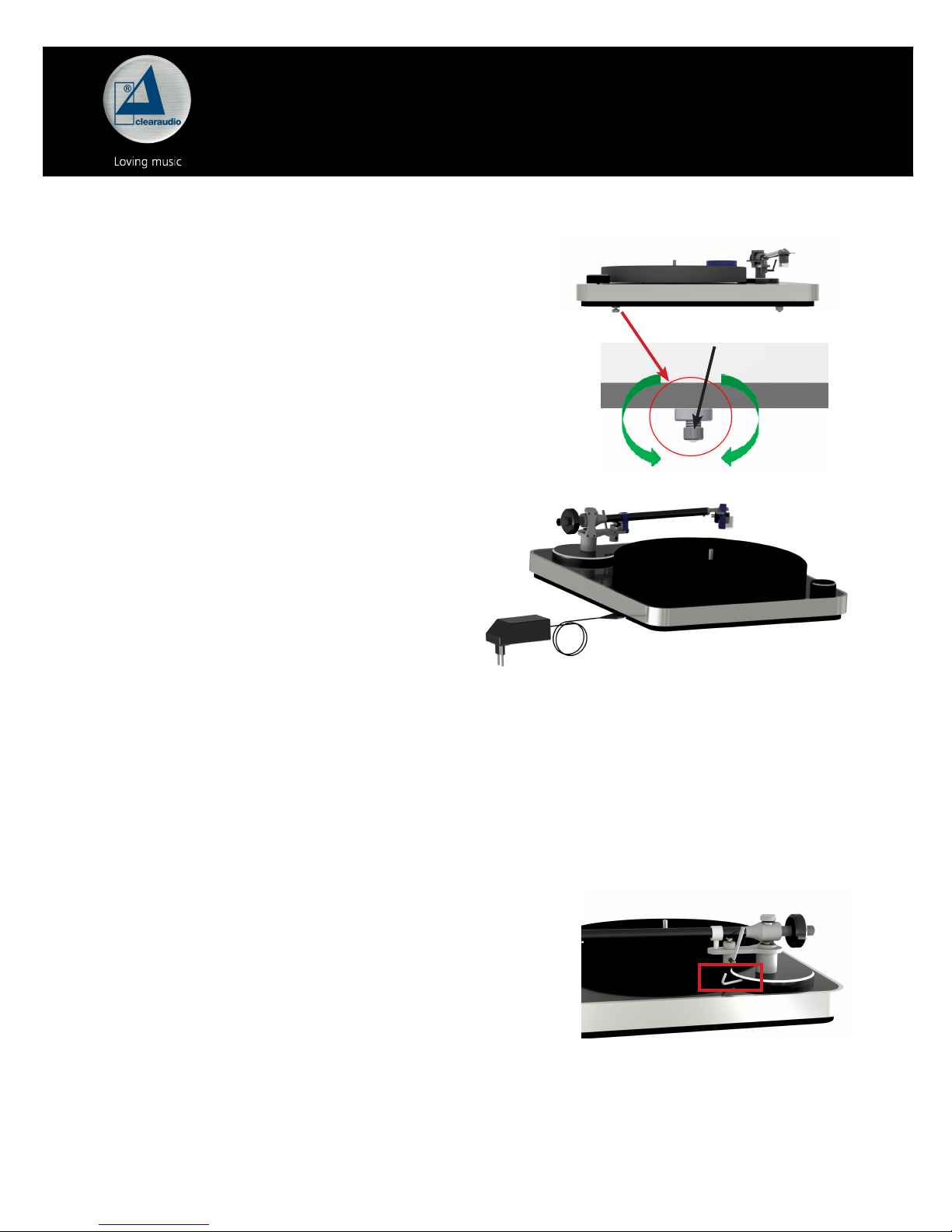

7.)

Connect one end of the external power supply provided to

the socket on the rear of the

concept

turntable, and the

other end to a live AC outlet. Then connect the tonearm

cable to your phonostage.

Your

concept

turntale is now fully set up and ready to play.

We wish yo a lot of listening pleasure!

to 6.)

to 7.)

pic. to no. 4

to 6.)

Lock screw

concept

Adjustment of the Anti-skating force

Again, as everything on the turntable is pre-assembled and tested,

including tonearm and cartridge, there is usually no need to change

any of the

concept

turntable parameters. If you want to change your

cartridge and to adjust the Anti-skating force please refer to your

nearest qualied dealer or service personnel. Your dealer will nd the

Anti-skating adjuster on the underside of the turntable.

Again, Clearaudio assumes no liability for incorrect handling or any damage caused if non-qualied

persons attempt the above adjustments.

IMPORTANT:

For any transportation of the

concept

turntable, please ensure that

the platter is packed with the upper surface facing downwards into

the packaging. Please also ensure that you fully retract the turntable

feet.

Further transportation advice:

For any transportation of the

concept

turntable, please always

remove the turntable platter (see above) and x the tape holding the

sub-platter as well as the tonearm and the cartridge stylus

protection. Otherwise serious damage can occur.

Clearaudio assumes no liability for any damage that may occur due to incorrect packing.



5. Service

If any servicing or repair on a Clearaudio product is necessary, please contact your dealer / distributor or

contact Clearaudio directly. We can advise you of your nearest service location.

PLEASE RETAIN ALL ORIGINAL PACKAGING. You will need it if your turntable needs to be transported and/or

shipped. Any further questions you may have about this turntable should be directed to your dealer /

distributor or directly to Clearaudio at:

Clearaudio electronic GmbH www.clearaudio.de

Spardorfer Straße 150 www.analogshop.de

91054 Erlangen info@clearaudio.de

Germany

Phone: +49 9131 40300 100 Fax: +49 9131 40300 119

pic. to no. 4

concept

Sehr verehrte clearaudio – Kundin, sehr verehrter clearaudio – Kunde,

Mit dem clearaudio

concept

oder

concept wood

Plattenspieler beginnt der Aufbruch in eine neue Ära im

Plattenspielerbau.

Der

concept

Plattenspieler zeichnet sich durch hervorragende Verarbeitungsqualität Made in Germany,

fortschrittliche Technologien und Materialien sowie zeitlosem Design aus. Der

concept

verfügt über einen

innovativen Tonarm mit reibungsfreier Magnetlagerung. Abgerundet wird dieses Komplettpaket durch einen

hochwertigen clearaudio Moving Magnet oder Moving Coil Tonabnehmer. Der

concept

ist werksseitig

komplett eingestellt und spielbereit. Sogar die Auagekraft des Tonabnehmers und das Antiskating sind

einjustiert. Das originelle und zeitlos moderne Design garantiert Spielfreude für Jahrzehnte!

CONCEPT = Innovatives Konzept zum attraktivem Preis-Qualitäts-Verhältnis!

Um die volle Qualität des

concept

oder

concept wood

Laufwerkes nutzen zu können, lesen Sie bitte diese

Bedienungsanleitung aufmerksam durch. Alle Hinweise dienen dazu, Ihnen viele Jahre Musikgenuss zu

bereiten und Fehlbedienungen zu vermeiden.

Wir bedanken uns bei Ihnen für Ihr Vertrauen und wünschen Ihnen viel Freude mit Ihrem neuen clearaudio

concept

Laufwerk.

clearaudio electronic GmbH

Lesen Sie diesen Abschnitt in jedem Fall, bevor Sie das Gerät an das Stromnetz anschließen.

CE-MARKING

GERÄTENETZEINSTELLUNG

Ihr clearaudio Produkt wurde so konstruiert, dass es der Haushaltsleistung und den

Sicherheitsbestimmungen in Ihrer Region genügt.

INPUT: 100 V – 240 V ~/ 50 – 60 Hz / 150 mA; OUTPUT: 12 V= / 450 mA

URHEBERRECHT

Aufnahme und Wiedergabe jeglichen Tonmaterials kann die Zustimmung des Urhebers erfordern.

Beachten Sie dazu folgende Informationsschriften.

- Copyright Act 1956 (Urheberrechtsgesetz 1956)

- Dramatic and Musical Performers Act 1958 (Gesetz über dramatische und musikalische

Aufführungsrechte, 1958)

- Performers Protection Acts 1963 and 1972 (Künstlerschutzgesetze von 1963 und 1972)

- Sämtliche nachfolgende gesetzliche Verfügungen und Bestimmungen.

Der clearaudio

concept

entspricht den Bestimmungen über elektromagnetische Störfreiheit

(EMC) und denen über Niederspannungsgeräte.

concept

Inhaltsverzeichnis Seite

1. Verpackungsübersicht 10

2. Lieferumfang 10

3. Aufbau und Inbetriebnahme 11

4. Wichtige Informationen 12

5. Service 13

6. Technische Daten 14

Garantie-Informationen 15

concept

1. Verpackungsübersicht

Clearaudio hat eine spezielle Verpackung für Ihr

concept

Laufwerk entwickelt, welche einen sicheren

Transport gewährleistet.

Bitte heben Sie diese Verpackung für eventuelle Transporte auf.

2. Lieferumfang

1.) Laufwerkskörper, Tonarm und Tonabnehmer, Riemen am Sub-Teller

2.) Plattenteller

3.) Zubehörbox: Wasserwaage, Inbusschlüssel (Größe 2), Netzteil (inkl. Adapter: EU, UK, US),

Bedienungsanleitung, clearaudio Rücklieferschein, Garantiekarte.

Obere Verpackungsebene

concept

Laufwerkskörper mit

eingesetztem Sub-Teller und

integrierter Motoreinheit, Teller-

xierung, Transportsicherung

Tonarm und Tonabnehmer.

Untere Verpackungsebene

Zubehörbox,

Bedienungsanleitung,

clearaudio Rücklieferschein,

Garantiekarte.

concept

Table des matières

Langues :

Autres manuels Clearaudio Platine

Clearaudio

Clearaudio TT1 MI Manuel utilisateur

Clearaudio

Clearaudio Smart Matrix Manuel utilisateur

Clearaudio

Clearaudio Smart matrix professional Manuel utilisateur

Clearaudio

Clearaudio CMB-Bearing Manuel utilisateur

Clearaudio

Clearaudio Charisma V2 MM Manuel utilisateur

Clearaudio

Clearaudio Perfomance SE Manuel utilisateur

Clearaudio

Clearaudio Clarify Manuel utilisateur

Clearaudio

Clearaudio Concept Manuel utilisateur

Clearaudio

Clearaudio Innovation Compact Manuel utilisateur

Clearaudio

Clearaudio concept V2 Manuel utilisateur

Clearaudio

Clearaudio Concept Manuel utilisateur

Clearaudio

Clearaudio Master Innovation Manuel utilisateur

Clearaudio

Clearaudio Magnify Manuel utilisateur

Clearaudio

Clearaudio Pulley extractor device Manuel utilisateur

Clearaudio

Clearaudio Emotion SE Manuel utilisateur

Clearaudio

Clearaudio Emotion Manuel utilisateur

Clearaudio

Clearaudio Statement Manuel utilisateur

Clearaudio

Clearaudio Statement TT1 Manuel utilisateur

Clearaudio

Clearaudio Avantgarde Manuel utilisateur

Clearaudio

Clearaudio Emotion SE Manuel utilisateur

Clearaudio

Clearaudio Jubilee MM Manuel utilisateur

Clearaudio

Clearaudio Jubilee MM Manuel utilisateur

Clearaudio

Clearaudio Double Matrix Professional Manuel utilisateur

Clearaudio

Clearaudio Master-TQ-I Manuel utilisateur

Manuels Platine populaires d'autres marques

Gemini

Gemini CDT-05 MKII Manuel utilisateur

Rotel

Rotel RP-820 Manuel utilisateur

Shuman

Shuman MC-250BT Manuel utilisateur

Stanton

Stanton STR8-150 Manuel utilisateur

Audio Technica

Audio Technica AT-LPW40WN Manuel utilisateur

Crosley

Crosley McQueen CR7011-GY Manuel utilisateur

Reloop

Reloop SMP-1 Manuel utilisateur

auna

auna TT-Classic Plus Manuel utilisateur

COMO AUDIO

COMO AUDIO Turntable Analog Manuel utilisateur

Dual

Dual 1009 F Manuel utilisateur

REED

REED Muse3C Manuel utilisateur

AXIOMTEK

AXIOMTEK OPS883-H Series Manuel utilisateur

Pioneer

Pioneer PL-71 Manuel utilisateur

Vestax

Vestax PDX-a1 Manuel utilisateur

Denon

Denon DP-400 Manuel utilisateur

Dual

Dual 504 Manuel utilisateur

Audio-Techica

Audio-Techica AT-LP60XBT Manuel utilisateur

Goldring

Goldring G99 Manuel utilisateur

Clearaudio concept wood Manuel utilisateur

Manuels Platine populaires d'autres marques
