OPERATION & MAINTENANCE

INSTRUCTIONS

GC0819 - ISS 1

ORIGINAL INSTRUCTIONS

MULTISTAGE SUBMERSIBLE PUMP

MODEL NO: CSD4

PART NO: 7239250

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE submersible pump.

The pump is designed for domestic use, such as drying out basements and

garages subject to flooding, and for pumping drainage wells, rainwater

collecting traps etc.

Due to its compact shape, it is also used as a portable pump for emergency

situations such as for drawing water from tanks or rivers, draining swimming

pools and fountains, excavations or underpasses. Also suitable for gardening

and general hobby activity.

This pump should not be used in swimming pools, ponds or hot tubs where

people are present, or for pumping hydrocarbons (petrol, diesel fuel,

combustible oils, solvents, etc) in accordance with the accident-prevention

regulations in force.

It is not designed for continuous use, but for occasional use over a limited

period and should be cleaned before putting away in storage. See the

section “Maintenance”.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SPECIFICATIONS

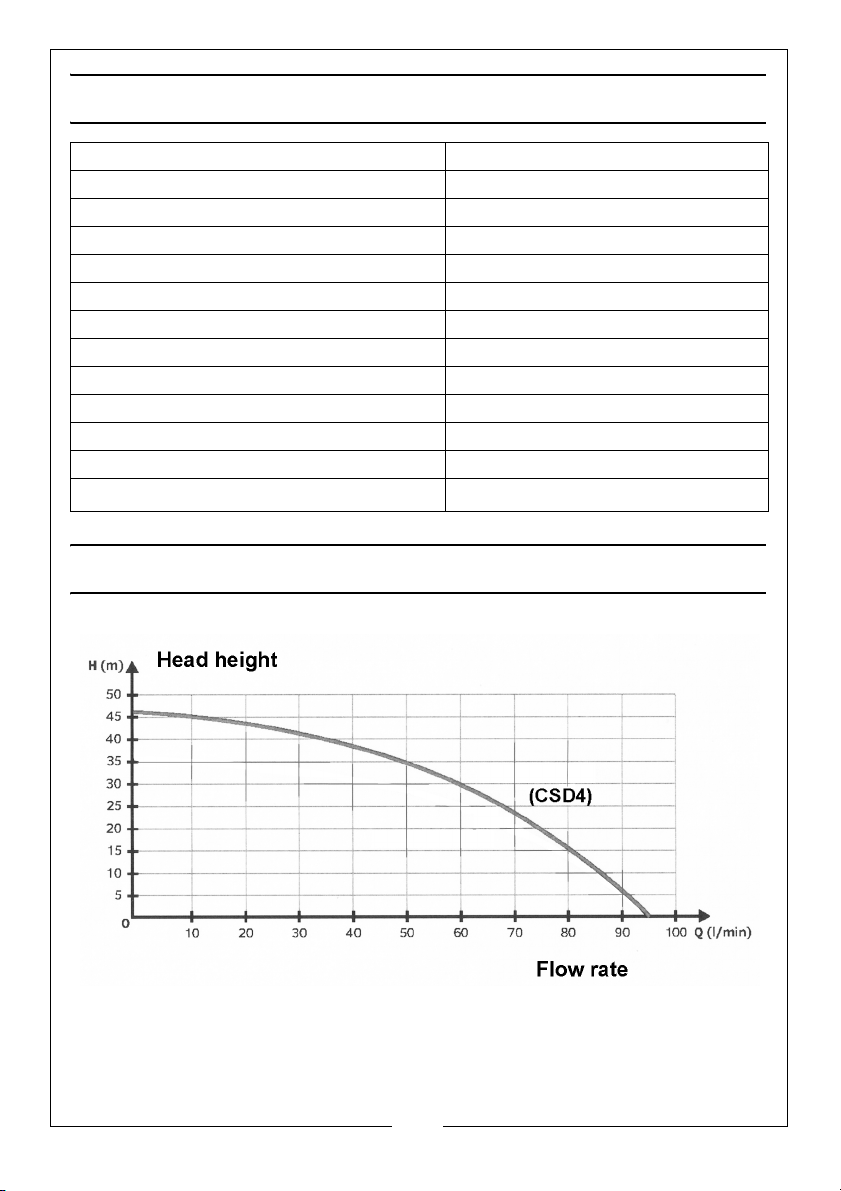

PUMP PERFORMANCE CURVE

Dimensions (D x H) 148 mm (major diameter) x 400 mm

Weight 9.35 kg

Cable Length 15 m

Power Supply 230V ~ 50Hz

Ingress Protection IPX8

Outlet Thread Diameter 1”BSP

Rated Power 1100 W

Maximum Head Height 48 m

Maximum Flow 95 l/min

Lowest Residual Water 12 mm

Water classification Clean

Maximum Particle Size 1 mm

Maximum Water Temperature 35oC

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY INSTRUCTIONS

GENERAL

1. Read all these instructions before use and save them for future reference.

2. An approved residual current device (RCD) which has a tripping current of

less then 30 mA MUST be used for all operations.

3. The electrical supply must be the same as that on the rating plate.

4. ALWAYS make sure that your hands are dry when connecting or

disconnecting from the mains supply.

5. NEVER pull the mains lead to disconnect the pump from the mains socket.

6. The mains plug must be kept away from the water at all times.

7. DO NOT allow children or unauthorised people to touch the pump, cables

or connections.

8. Disconnect the pump from the mains supply when not in use.

9. If necessary have the pump repaired by a qualified person.

10. Keep the mains lead away from heat, oil and sharp edges.

11. If you have to use an extension lead with this product, it must be designed

for outdoor use and incorporate a cable suitable for use with Class I

appliances.

12. Disconnect the pump from the electrical supply and wear gloves during

servicing or maintenance.

PUMP SPECIFIC

1. DO NOT pump explosive / flammable liquids or chemicals.

2. NEVER allow the pump to run dry or operate out of the water.

3. Submersible pumps should always be submerged and stored vertically.

4. Disconnect the pump from the mains supply before placing it into or

removing it from the water.

5. ALWAYS check the plug, and all cables for damage before use.

6. NEVER carry or lower the pump by the power cable. Always use the handle

or a rope tied securely to the handle.

7. DO NOT use the pump if the water is liable to freeze, as this can cause

damage to the pump. Remove the pump from the water and store it in a

frost free location. NEVER insert your fingers into the pump whilst it is

connected to the mains.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

8. NEVER use the submersible pump in a swimming pool when there are

people or animals in the pool.

9. Keep the pump clear of any sediment by standing it on a platform or brick

or suspending it at a suitable depth.

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply

through an approved 13 amp BS 1363 plug or a suitably fused isolator switch.

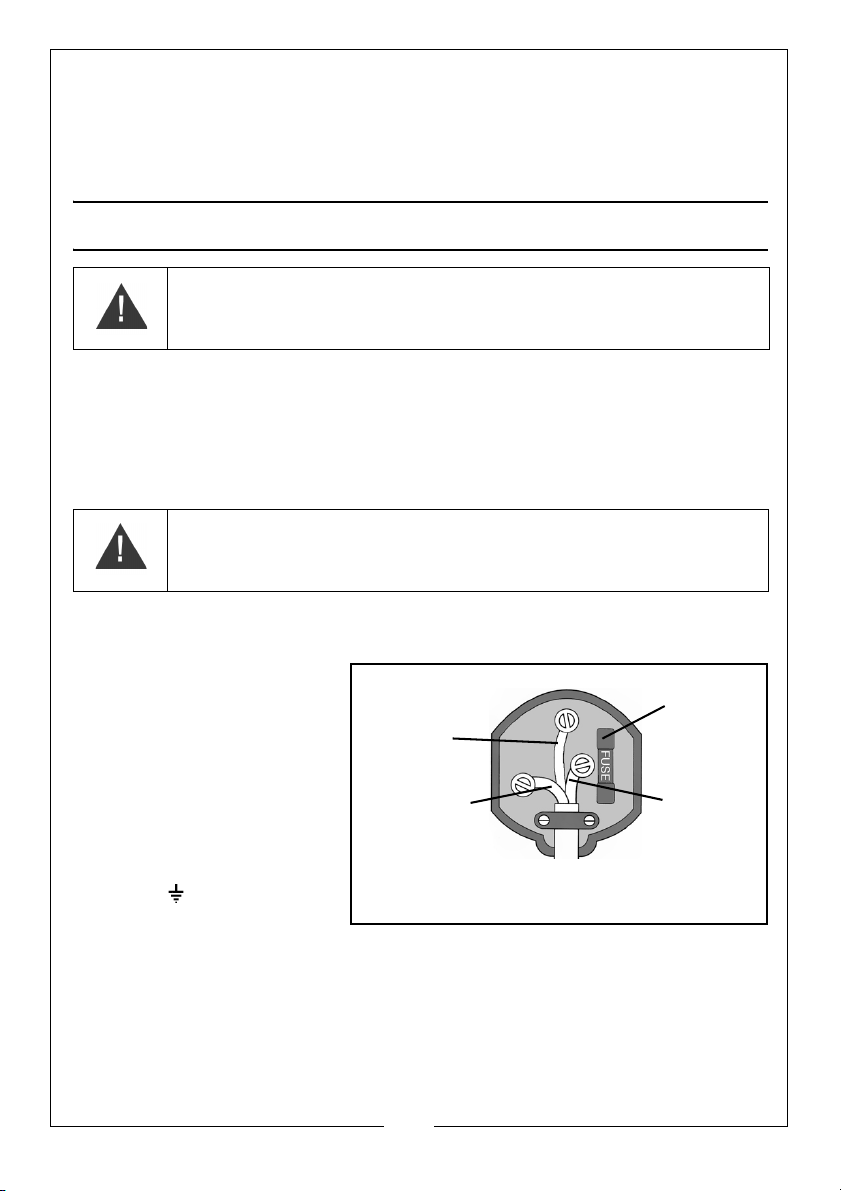

If the plug has to be changed because it is not suitable for your socket, or

because of damage, it must be removed and a replacement fitted, following

the wiring instructions shown below. The old plug must be discarded safely, as

insertion into a power socket could cause an electrical hazard.

If the colours of the wires in the power cable do not agree with the markings

on the plug.

• Connect the BLUE wire

to the terminal

marked N.

• Connect the BROWN

wire to the terminal

marked L.

•ConnecttheYELLOW

AND GREEN wire to

the terminal marked E

or .

AN APPROVED RESIDUAL CURRENT DEVICE (RCD) WHICH HAS A TRIPPING

CURRENT OF LESS THAN 30 mA MUST BE USED.

If you are not sure, consult a qualified electrician. DO NOT try to do any

repairs.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INSTALLING THE PUMP

Remove all packaging and make sure that the pump has no visible damage.

Dispose of all packaging appropriately.

FITTING THE STEPPED ADAPTER

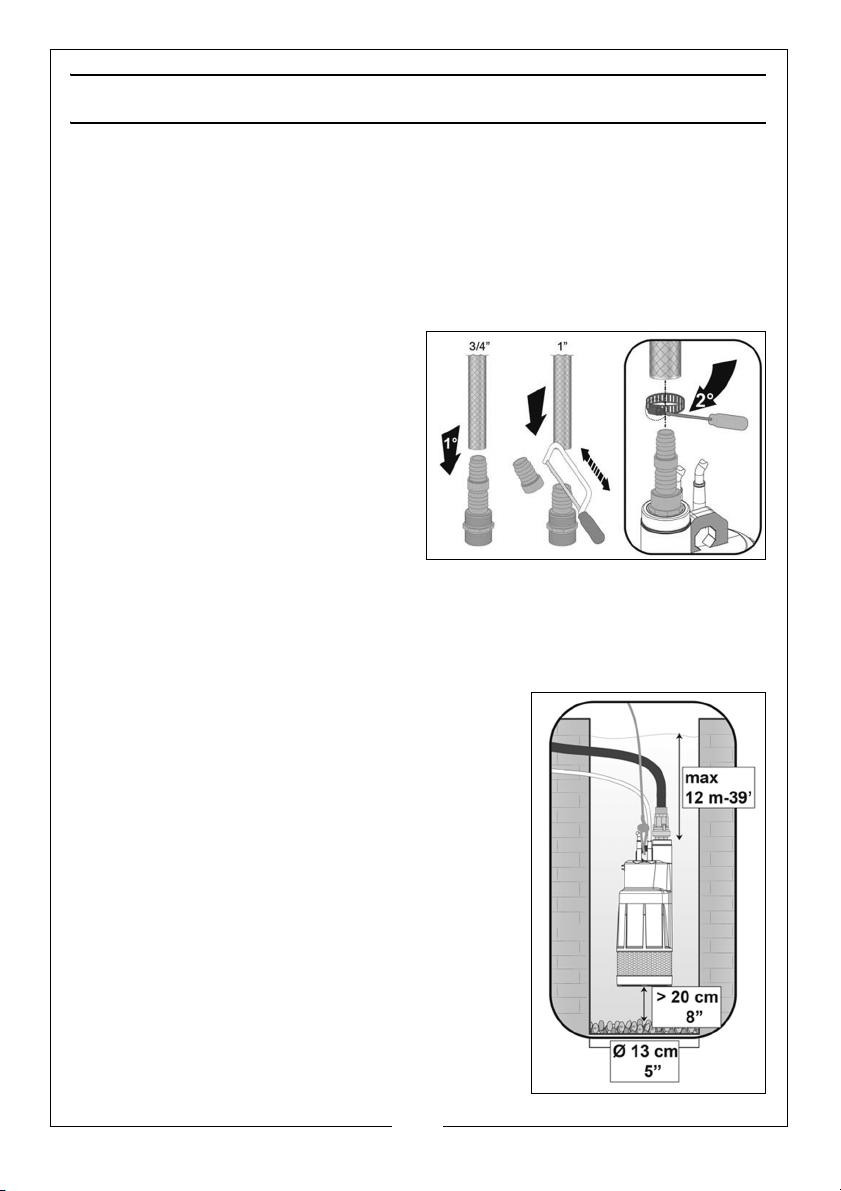

The stepped hose adaptor supplied is designed to be used for either screw

type hose connection or push fit.

• Stepped adapter 1" (25mm) / ¾”(20mm) hose

1. Screw the adaptor to the

discharge port and connect a

suitable hose (not supplied) to

either the screwed end or push-fit.

• Suitable hoses are available

from your local CLARKE dealer.

• The stepped adaptor can be

cut off with a hacksaw if a

larger hose is to be used.

2. Trim the adaptor to size if required.

• Reducing the hose diameter will affect the maximum flow rate.

3. When push fitting the hose to the adaptor use a jubilee clip to secure it. Do

not overtighten.

POSITIONING THE PUMP

1. Stand the pump upright on a flat surface in

the water that you want to drain.

2. If there is sediment in the pool or pond, place

the pump on blocks, to avoid blocking the

water inlet.

3. Ensure the pump is positioned with adequate

space around the inlet and to the maximum

depth of installation shown.

• The pump is supplied with 15 metres of

power cable.

4. Always raise and lower the pump using the

lifting handle and a rope attached to it if

required. Never lift or lower the pump using

the power cable.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The water inlet must be fully submerged before the pump is switched on

and the pump be standing upright.

5. Connect the power cable to a high sensitivity residual current device

(RCD) which has a tripping current of less then 30mA.

OPERATING THE PUMP

1. Switch the mains power supply on.

• The pump will begin to drain water until it reaches the 12 mm limit.

2. When finished, disconnect the pump from the power supply.

• The pump is fitted with a thermal overload switch. If the pump overheats

for any reason, it will automatically switch the pump OFF. Once the

pump has cooled (at least 5-10 minutes), it will automatically restart.

AFTER USE

If the temperature is expected to be lower than 0°C, ensure there is no residual

water in the pump which could freeze and damage the pump.

If the pump has been used with substances that tend to form a deposit, or

with water containing chlorine, rinse it after use with a powerful jet of water in

order to avoid the formation of deposits which would reduce the

performance of the pump.

WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE

PUMP IF IT IS DAMAGED IN ANY WAY.

CAUTION: DO NOT ALLOW THE PUMP TO RUN DRY

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

This pump should require no maintenance

other than regular cleaning. If the pump

shows signs of wear or damage contact

your CLARKE dealer for advice.

GENERAL CLEANING

Check the pump regularly to ensure the

water inlet is clear of leaves or other debris.

If foreign material has been drawn into the

pump inlet, further cleaning may be

required by back-flushing the pump with

water pressure from a hose.

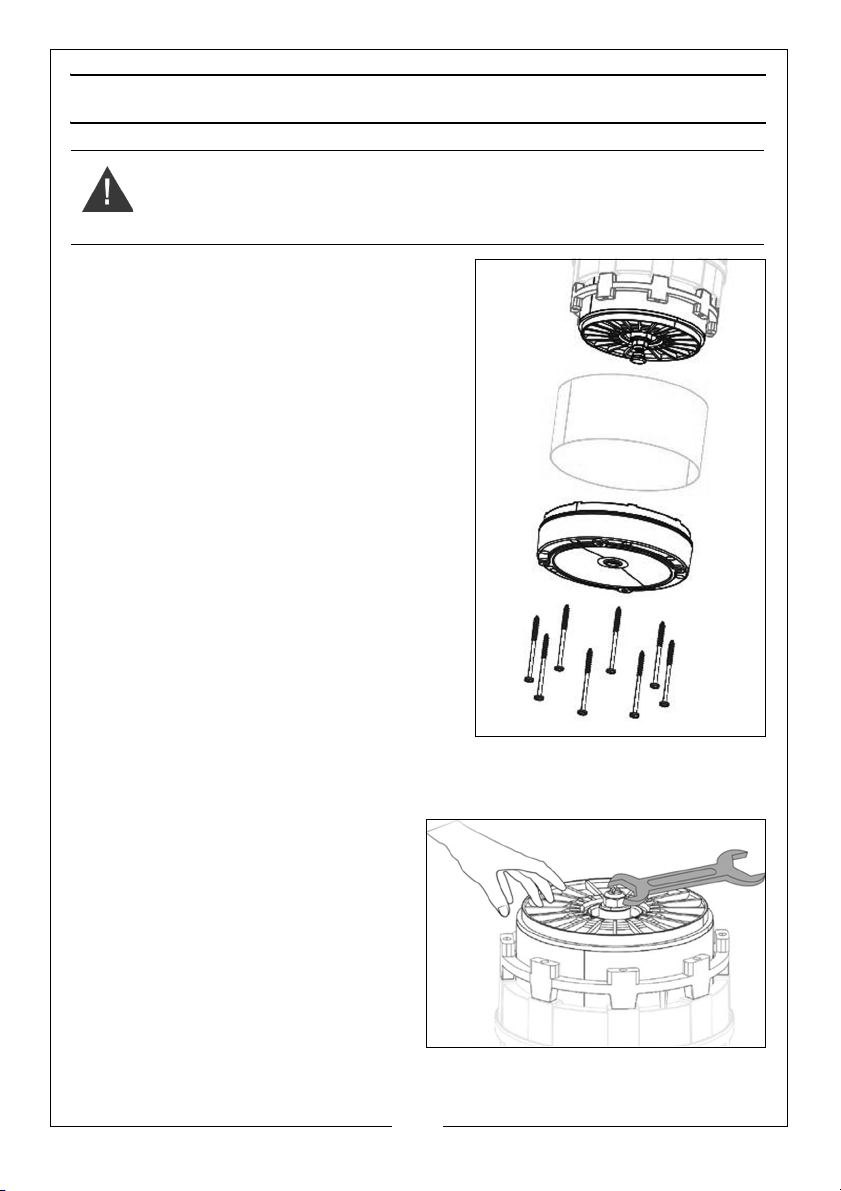

CLEANING THE IMPELLER

1. Switch off the electric power supply to

the pump and drain the pump.

2. Unscrew the 8 retaining screws on the

base of the filter shown.

3. Remove the base and the filter.

4. Holding the impeller and unscrew the

nut as shown.

5. Take out the impeller, the diffuser, the ring and the O-ring.

6. Repeat for all the impellers.

7. Wash the pump with clean water

to remove any contamination

between the motor and the

pump jacket.

8. Clean the impellers and check

that they can all turn freely.

9. Assemble the parts, proceeding in

inverse order to disassembly.

WARNING: BEFORE CHECKING THE CONDITION OF THE PUMP, ENSURE IT

IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED,

ENSURE THE CIRCUIT BREAKER IS OPEN.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

If this does not solve your problem, please contact the CLARKE service

department. Do not attempt to repair the pump yourself. Repairs must be

carried out by your CLARKE dealer.

PROBLEM SOLUTION

PUMP WILL

NOT START

1. Make sure that the power is switched on.

2. Check fuse (consult an electrician if in doubt).

3. If extension lead is used, check connections (consult an

electrician if in doubt).

4. Internal thermal cut-out has not re-set. Leave for 5-10

minutes and try again.

5. The impeller may be jammed. Disconnect from the mains

supply and remove any objects that may be obstructing

the impeller.

6. If the pump still fails to start, consult your CLARKE dealer

for advice.

PUMP WILL

START BUT NOT

PUMP

1. Check that the inlet is not blocked.

2. Check that the discharge tube is not clogged or

obstructed.

3. The head may be too great, i.e. you are trying to lift the

water too great a distance for the pump to cope with

Specifications on page 3.

4. Air bubble in the pump, produced during the plunge.

Plunge the pump again, at an angle, and shake it whilst

lowering to remove any air trapped in the system.

5. Impeller may be damaged - Consult your CLARKE dealer.

PUMP STOPS

RUNNING

1. Thermal overload has operated. Leave for 5-10 minutes

and try again.

2. A foreign object has jammed the impeller.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

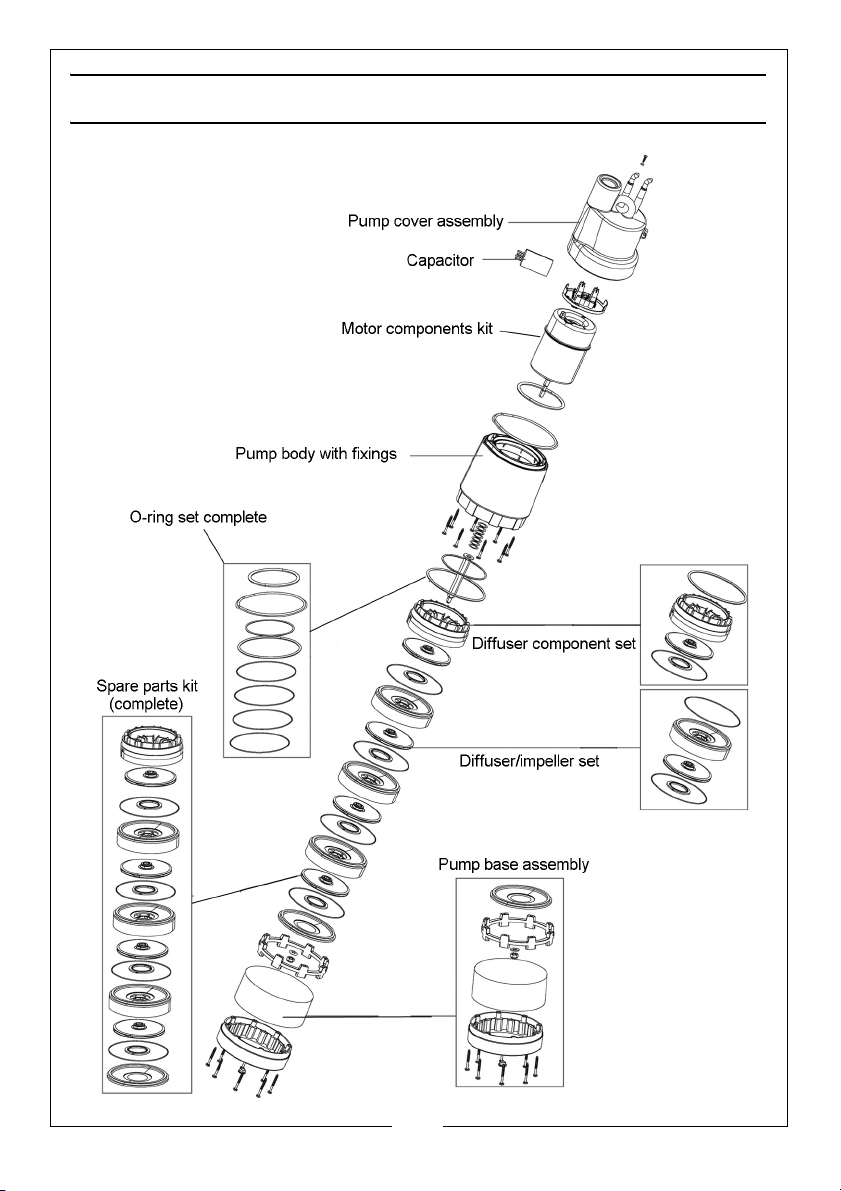

COMPONENT PART KITS

Table des matières

Autres manuels Clarke Pompe à eau

Clarke

Clarke SPE800 Mode d’emploi

Clarke

Clarke ECP15A1 Mode d’emploi

Clarke

Clarke CS85S Manuel d'installation et d'exploitation

Clarke

Clarke PSP195 Mode d’emploi

Clarke

Clarke CPE30A1 Mode d’emploi

Clarke

Clarke CVPW Guide rapide

Clarke

Clarke CSV4A Mode d’emploi

Clarke

Clarke MSP12 Manuel utilisateur

Clarke

Clarke CEB103 Mode d’emploi

Clarke

Clarke CBM100SS Mode d’emploi

Clarke

Clarke ECP20A3 Mode d’emploi

Clarke

Clarke IVP13A Manuel d'installation et d'exploitation

Clarke

Clarke DW50 Mode d’emploi

Clarke

Clarke HSEC651A Mode d’emploi

Clarke

Clarke CDDFTP Manuel utilisateur

Clarke

Clarke CSE400A Mode d’emploi

Clarke

Clarke FP150 Manuel utilisateur

Clarke

Clarke HSE RANGE Mode d’emploi

Clarke

Clarke CHF2 Manuel d'installation et d'exploitation

Clarke

Clarke PW50 Mode d’emploi

Clarke

Clarke PSV1A Mode d’emploi

Clarke

Clarke PSV5A Mode d’emploi

Clarke

Clarke CPE20A1 Mode d’emploi

Clarke

Clarke PW2 Manuel d'installation et d'exploitation

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
