Clarke PSV5A Mode d’emploi

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0917 iss 3

ORIGINAL INSTRUCTIONS

750W SUBMERSIBLE PUMP WITH BUILT-IN

FLOAT SWITCH

MODEL NO: PSV5A

PART NO: 7236046

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE 750W Submersible pump with built-in

float switch.

This pump is designed for pumping clean water and water containing solid

bodies (max 35mm in diameter). It is NOT designed for pumping slurry, sludge,

mud or heavily polluted water, or any water containing chemicals or other

acidic contaminants including salt water.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

OVERLOAD SWITCH

These pumps are fitted with a thermal overload switch. If the pump overheats

for any reason, it will automatically switch the pump OFF. Once the pump has

cooled (at least 5-10 minutes), the pump will automatically restart.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY INSTRUCTIONS

GENERAL

1. Read all instructions before use

and save these instructions for

future use.

2. An approved residual current

device (RCD) which has a

tripping current of less then 30mA

MUST be used for all operations.

3. The electrical supply must be the

same as that on the rating plate.

4. Always make sure that your

hands are dry when connecting

or disconnecting from the mains

supply.

5. Never pull the mains lead to

disconnect the pump from the

mains socket.

6. The mains plug must be kept

away from the water at all times.

7. Do not allow children or

unauthorised people to touch the

pump, cables or connections.

8. Disconnect the pump from the

mains supply when not in use.

9. If necessary have the pump

repaired by a qualified person.

10. Keep the mains lead away from

heat, oil and sharp edges.

11. If you have to use an extension

lead with this product, it must be

designed for outdoor use and

incorporate a cable suitable for

use with Class I appliances.

12. Disconnect the pump from the

electrical supply and wear gloves

during servicing or maintenance.

PUMP SPECIFIC

1. Do not pump explosive /

flammable liquids or chemicals.

2. Never allow the pump to run dry

or operate out of the water.

3. Submersible pumps should always

be submerged and stored

vertically.

4. Disconnect the pump from the

mains supply before placing it

into or removing it from the water.

5. Always check the plug, and all

cables for damage before use.

6. Do not use the pump if

damaged. Refer to qualified

service personnel for repair.

7. Never carry or lower the pump by

the power cable always use the

handle or a rope tied securely to

the handle.

8. Never insert your fingers into the

pump whilst it is connected to the

mains.

9. Never use the submersible pump

in a swimming pool when there

are people or animals in the pool.

10. Keep the pump clear of any

sediment by standing it on a

platform or brick or suspending it

at a suitable depth.

11. Do not use the pump if the water

is liable to freeze, as this can

cause damage to the pump.

Remove the pump from the

water and store it in a frost free

location.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply

through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or

because of damage, it must be removed and a replacement fitted, following

the wiring instructions shown below. The old plug must be discarded safely, as

insertion into a power socket could cause an electrical hazard.

If the colours of the wires in the power cable do not agree with the markings

on the plug.

• The BLUE wire must be

connected to the

terminal which is

marked N or coloured

black.

• The BROWN wire must

be connected to the

terminal which is

marked L or coloured

red.

• The YELLOW AND

GREEN wire must be

connected to the terminal which is marked E or or coloured green.

AN APPROVED RESIDUAL CURRENT DEVICE (RCD) WHICH HAS A TRIPPING

CURRENT OF LESS THAN 30 mA MUST BE USED.

If you are not sure, consult a qualified electrician. DO NOT try to do any

repairs.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ASSEMBLY

Remove all packaging and make sure that the unit has no visible damage.

Dispose of all packaging appropriately.

FITTING THE ELBOW

1. Screw the elbow into the outlet

port as shown.

2. Connect a suitable hose (not

supplied) to the pump outlet.

• Suitable hoses are available

from your local Clarke dealer.

FITTING THE HOSE ADAPTOR

A 4 step adaptor is supplied.

The hose adaptor can be screwed

onto the elbow if required.

1. Trim the adaptor to the required

size.

• Reducing the hose diameter

will effect the maximum flow

rate.

2. Connect a suitable hose (not

supplied) to the pump outlet.

• Suitable hoses are available from your local Clarke dealer.

SETTING UP THE PUMP

POSITIONING THE PUMP

1. Place the pump on a flat surface in the area that you want to drain.

• If there is sediment in the operating area, the pump should be placed

vertically on house bricks, or similar.

• ALWAYS raise and lower the pump using a rope attached to the lifting

handle.

• Take all necessary precautions as described on page 3.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

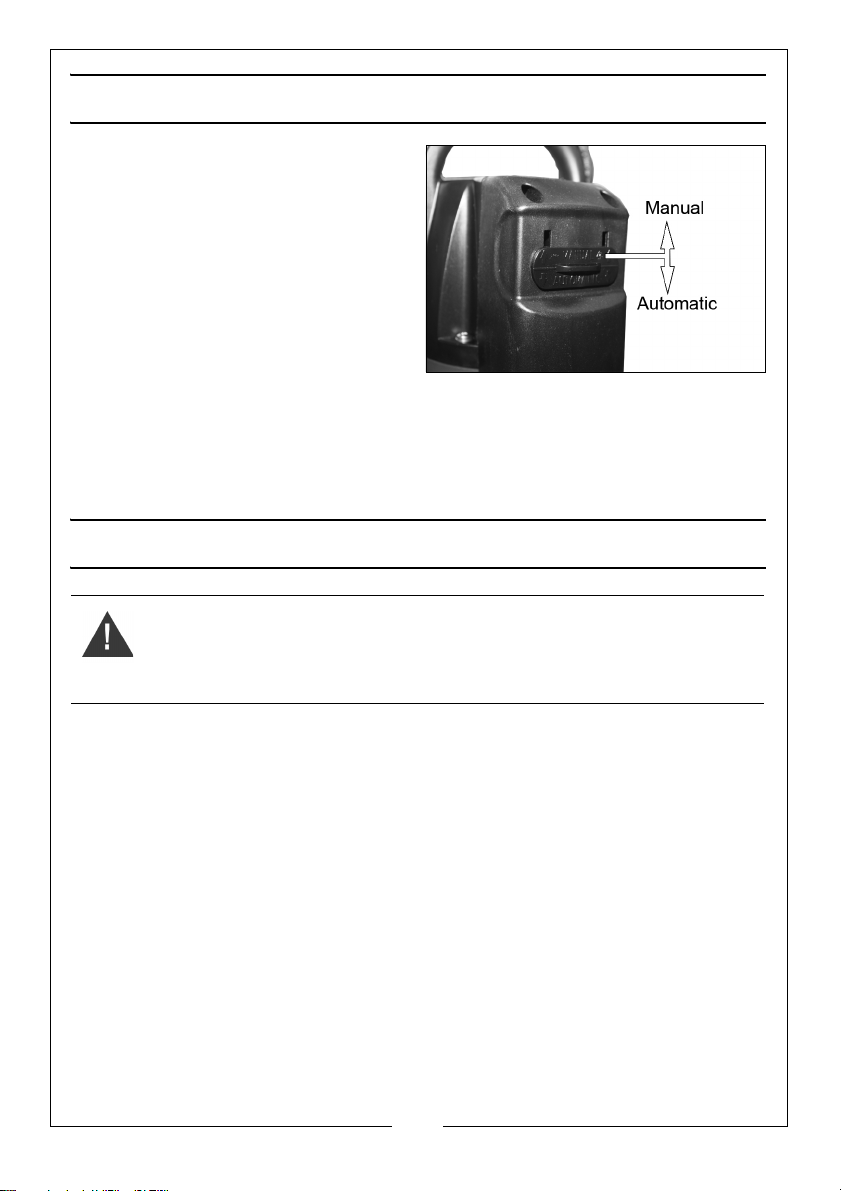

OPERATING MODES

Set the mode switch to either

Automatic (Down) or Manual (Up)

AUTOMATIC OPERATION

The internal float switch will switch the

pump on when the water level

reaches approximately 165 mm and

switch off when the water level drops

to approximately 90 mm.

MANUAL OPERATION

The pump will run continuously.

NOTE: Keep watch and do not allow the pump to run dry

USING THE PUMP

1. Connect the mains plug to the mains supply.

• Always use a high sensitivity residual current device (RCD) which has a

tripping current of less then 30 mA.

2. Switch the mains power supply on.

• The pump will begin to drain water.

• In Automatic mode, the internal float switch will turn off the pump when

the water level drops to approximately 90 mm.

3. When pumping is finished, disconnect the pump from the mains power

supply.

IMPORTANT: Do not allow the pump to run dry.

WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE

PUMP IF IT IS DAMAGED IN ANY WAY.

WARNING: THE WATER BEING PUMPED WILL BE POLLUTED IF THIS PUMP

BECOMES DAMAGED AND LUBRICANT WITHIN THE PUMP ESCAPES.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

This pump should require no maintenance other than regular cleaning.

If the pump starts to show signs of wear or damage, contact your CLARKE

dealer for advice.

CLEANING

1. Check the pump installation regularly to ensure the water inlet is clear of

leaves or other debris.

2. Take extra care to remove any debris from around the impeller.

NOTE: Do not attempt to repair the pump yourself, as you may damage the

waterproof seal and invalidate your guarantee. Repairs must be

carried out by your CLARKE dealer, or contact the CLARKE Service

Department, on 020 8988 7400.

STORAGE

When the pump is not being used for extended periods, clean and dry it

thoroughly and store in indoors. if the pump is left in water, it must be run at

least once a week to prevent it from seizing up.

SPECIFICATIONS

WARNING: BEFORE CHECKING THE CONDITION OF THE PUMP, ENSURE IT

IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED,

ENSURE THE CIRCUIT BREAKER IS OPEN.

Voltage 230V~50Hz

Outlet Thread Diameter 1½“BSP

Power 750W

Maximum Head Height 8 m

Maximum Depth 7 m

Maximum Flow 217 l/min.

Maximum Water Temperature 35oC

Maximum Particle Size 35 mm

Weight 5.1 kg

Cable Length 10 m

Dimensions (D x W x H) 157 x 203 x 351 mm

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

If this does not solve your problem, please contact the Clarke service

department.

PROBLEM SOLUTION

PUMP WILL

NOT START

1. Make sure that the power is switched on.

2. Check fuse (consult an electrician if in doubt).

3. If an extension lead is fitted, check connections (consult

an electrician if in doubt).

4. Internal thermal cut-out has not re-set. Leave for 5-10

minutes and try again.

5. The impeller may be jammed. Disconnect from the mains

supply and remove any objects that may be obstructing

the impeller.

6. If the pump still fails to start, consult your CLARKE dealer

for advice.

7. Water level has dropped below the minimum of 90mm.

PUMP WILL

START BUT NOT

PUMP

1. Check that the inlet is not blocked.

2. Check that the outlet is not clogged or obstructed.

3. The head may be too great, i.e. you are trying to lift the

water too great a distance for the pump to cope with.

(“Specifications” on page 7).

4. Air bubble in the pump, produced during immersion.

immerse the pump again, at an angle, and shake it whilst

lowering to remove any air trapped in the system.

5. Impeller may be damaged - Consult your CLARKE dealer.

PUMP WILL

NOT STOP

1. Pump set to manual mode.

2. Internal float switch may be faulty. Consult your CLARKE

dealer for advice.

PUMP STOPS

RUNNING

1. Thermal overload has operated. Leave for 5-10 minutes

and try again.

2. Pump has run dry, or internal float switch has cut in.

3. A foreign object has jammed the impeller.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

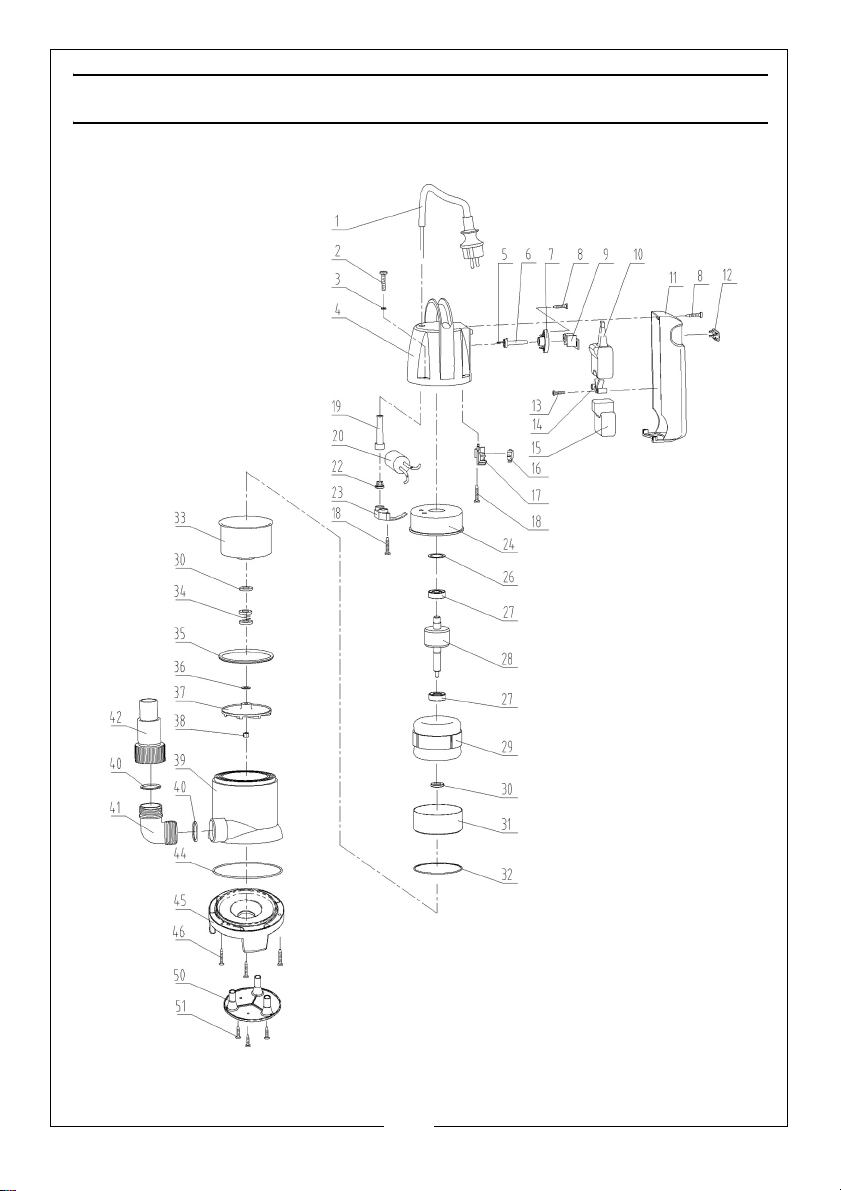

PARTS LIST & DIAGRAM

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PARTS LIST

Part number = (DHPSV5A + the number of the part)

1 Power Cable and Plug 26 Wave Washer

2 Self Tapping Screw 27 Bearing

3 Gasket 28 Rotor

4 Rear Pump Housing 29 Stator

5 Deflector Rod 30 Skeleton Seal

6 Deflector Rod Sheath 31 Front Bushing

7 Deflector Rod Guide 32 O-Ring

8 Self Tapping Screw 33 Front Cover

9 Rear Deflector Rod 34 Mechanical Seal

10 Float 35 O-Ring

11 Shield 36 Adjustable Washer

12 Dial Block 37 Impeller

13 Self Tapping Screw 38 Nut

14 Lever 39 Main Pump Housing

15 Small Float 40 O-Ring

16 Micro Switch 41 Elbow

17 Switch Frame 42 Outlet Connector

18 Self Tapping Screw 44 O-Ring

19 Cable Sheath 45 Pump Base

20 8uf Capacitor 46 Self Tapping Screw

22 Cable Gland 50 Base Plate

23 Cable Block 51 Self Tapping Screw

24 Rear Cover

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Clarke Pompe à eau

Clarke

Clarke PW2 Manuel d'installation et d'exploitation

Clarke

Clarke CS85S Manuel d'installation et d'exploitation

Clarke

Clarke ECP20A1 Mode d’emploi

Clarke

Clarke CFT230 Manuel

Clarke

Clarke psp125b Mode d’emploi

Clarke

Clarke CBM100SS Mode d’emploi

Clarke

Clarke HSE Series Manuel d'installation et d'exploitation

Clarke

Clarke Hippo 2A Manuel

Clarke

Clarke ISP11A Manuel

Clarke

Clarke CPE20A1 Mode d’emploi

Clarke

Clarke GSE1 Mode d’emploi

Clarke

Clarke PTP100 Mode d’emploi

Clarke

Clarke IVP13A Manuel d'installation et d'exploitation

Clarke

Clarke CWP1000A Mode d’emploi

Clarke

Clarke C10 Manuel

Clarke

Clarke CM1 Manuel d'installation et d'exploitation

Clarke

Clarke CPE30A1 Mode d’emploi

Clarke

Clarke ISP10A Manuel d'installation et d'exploitation

Clarke

Clarke CHHDP830 Mode d’emploi

Clarke

Clarke CHF2 Manuel d'installation et d'exploitation

Clarke

Clarke CSV1A Mode d’emploi

Clarke

Clarke SPE800 Manuel d'installation et d'exploitation

Clarke

Clarke PSP105 Mode d’emploi

Clarke

Clarke PSV3A Manuel d'installation et d'exploitation

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
