OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0922 - rev 1

1” WATER PUMP

MODEL NO: SPE800

PART NO: 7237000

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this Clarke Water Pump.

The SPE800 is a centrifugal, horizontal electric pump with a self-priming

capability and venturi system, suitable for pumping water from a depth of up

to 8 m.

It are designed to operate with clean water only, at a max temp of 35°C.

Operating with contaminated or salt water should be avoided. The pump inlet

is higher than the impeller inlet so that it can start operating when only the

pump body is filled with water.

Upon receipt, any damage or deficiency should be reported to your CLARKE

dealer immediately.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service..

Your CLARKE water pump has been designed to give long and trouble free

service. If, however, having followed the instructions in this booklet carefully,

you encounter problems, take the unit to your local Clarke dealer.

Please keep these instructions in a safe place for future reference.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

WARNING: THIS SYMBOL IS USED THROUGHOUT THE USER GUIDE

WHENEVER THERE IS A RISK OF PERSONAL INJURY. ENSURE THAT

THESE WARNINGS ARE READ AND UNDERSTOOD AT ALL TIMES.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY PRECAUTIONS

Before using this product it is in your own interest to read and pay attention to

the following safety rules.

1. NEVER use for pumping flammable liquids or corrosive chemicals. This

pump is designed to pump clean water only.

2. ALWAYS keep the working area clean and well lit. Floors should always be

kept clear. Cluttered or dark areas invite accidents.

3. NEVER over-reach. Keep your proper footing and balance at all times

when installing or maintaining the pump.

4. NEVER direct any water discharge towards electrical wiring or equipment.

5. ALWAYS thoroughly familiarise yourself with this pump & its operation, and

follow all instructions in this manual. Never allow persons unfamiliar with

these instructions to instal or operate the pump.

6. ALWAYS ensure that the pump is properly installed to prevent it from moving

during operation, and that the immediate area surrounding the pump is

kept clear.

7. ALWAYS maintain the pump with care and keep it clean for best / safest

performance.

8. NEVER use this product if any part is damaged. Have it inspected and

repaired by your local Clarke dealer. Always turn the pump off before

carrying out any maintenance.

9. NEVER modify this pump in any way. Use it ONLY for the purpose for which it

is designed.

10. ALWAYS have the pump serviced by your local Clarke dealer, using only

identical replacement parts. This will ensure the safety of the pump is

maintained. The use of non standard parts could be hazardous.

11. NEVER allow the pump to run dry.

WARNING: ALWAYS CONNECT THE PUMP TO AN EARTHED POWER SUPPLY

VIA AN RCD.

CAUTION: THIS PUMP IS NOT A SUBMERSIBLE PUMP. ON NO ACCOUNT

SHOULD IT EVER BE IMMERSED IN WATER.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Before switching the product on make sure that the voltage of your electricity

supply is the same as that indicated on the rating plate. This product is

designed to operate on 230VAC 50Hz. Connecting it to any other power

source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to

change the fuse in the plug, the fuse cover must be refitted. If the fuse cover

becomes lost or damaged, the plug must not be used until a suitable

replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due

to damage, it should be cut off and a replacement fitted, following the wiring

instructions shown below. The old plug must be disposed of safely, as insertion

into a mains socket could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond

with the markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal

which is marked Nor coloured Black.

• The wire which is coloured Brown must be connected to the terminal

which is marked Lor coloured Red.

• The wire which is coloured Yellow and Green must be connected to

the terminal which is marked E or or coloured Green.

We strongly recommend that this machine is connected to the mains supply

via a Residual Current Device (RCD). If in any doubt, consult a qualified

electrician. DO NOT attempt any repairs yourself. If in any doubt, consult a

qualified electrician. DO NOT attempt any electrical repairs yourself.

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE

MAINS SUPPLY.

Plug must be BS1363/A approved.

Always fit a 5 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

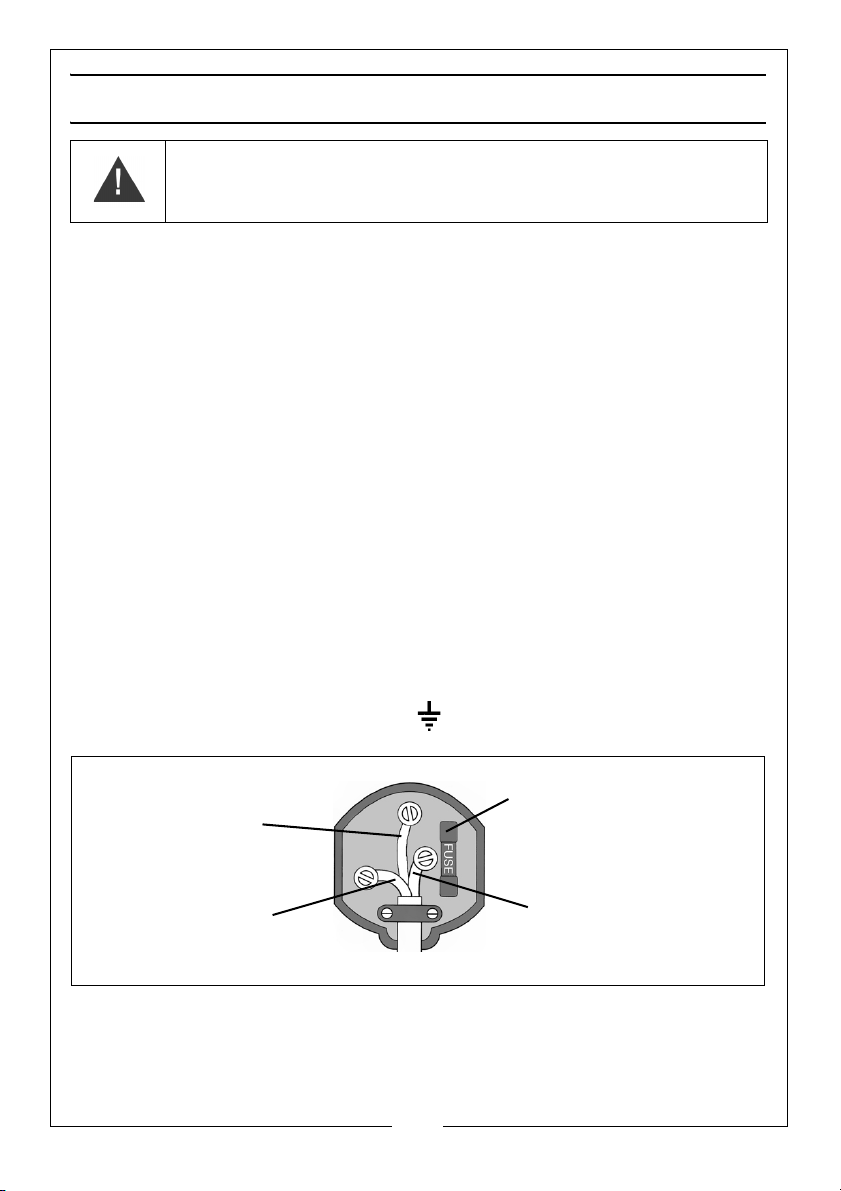

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PREPARATION FOR USE

Because of the variety of possible installations, no plumbing accessories are

supplied with your pump, however accessories designed specifically for this

range of pumps are available from your nearest CLARKE dealer. Contact your

CLARKE dealer for further information.

IMPORTANT: The pump MUST NOT be connected to the mains power supply

until all hose/pipe installation is completed.

POSITIONING THE PUMP

A typical installation of the pump is shown in Fig 1. Connect the suction and

discharge hoses to the pump housing to achieve an air-tight seal. Ensure there

is no damage to the hoses which must be well protected and supported.

The pump must always be installed

and operated in a horizontal position

i.e. with the outlet port facing

vertically upwards. The fixing holes in

the base should be used to secure

the pump firmly in its operating

position. Always ensure there is

adequate air circulation around the

motor.

Avoid situations where the pump

could become drenched with water.

Neither the motor or terminal box are designed to be waterproof.

Position the pump as near to the water source as

possible.

Ensure there is adequate drainage and there is no

risk of damage to property as a result of water

being discharged.

A foot valve/filter should be fitted to the lower end

of the suction hose, as illustrated in Fig 2, in order to

retain water in the suction system and more

importantly, to prevent the possibility of large

objects entering the pump body.

The performance of your pump will be affected by

the diameter of the inletpipe - any restriction will

greatly reduce the flow. We strongly recommend

that you use a pipe diameter as large as practical.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

A gate valve may be installed in-line on the delivery side (outlet port) of the

pump which can be adjusted as required to regulate the flow of water, and

can assist in priming the pump.

CAUTION: DO NOT PLACE ANY SUCH OBSTRUCTION ON THE SUCTION (INLET) SIDE

OF THE PUMP UNLESS IT IS AN ISOLATOR VALVE IN A GRAVITY FED SYSTEM. THESE

PUMPS SHOULD NOT BE OPERATED WITH THE DELIVERY VALVE COMPLETELY

CLOSED.

To prevent unnecessary strain or possible distortion to the pump, ensure that

adequate support is provided to the hoses and or pipes. They will be

considerably heavier when filled with water.

Should contaminants come into contact with the pump, flush through with

cold water as soon as possible to prevent damage to the pump.

Protect the pump and pipework from freezing. The formation of ice may

cause serious damage.

Where the pump is to be a permanent fixture, the connections to the pump

MUST be flexible, i.e. a short piece of hose should be inserted between the

rigid pipework and the pump.

IMPORTANT: An air leak in the suction line will inhibit priming and reduce the

capacity of the pump.

Pay particular attention to the following:

• Keep all hoses as short and straight as possible and avoid sharp

bends.

• Ensure there is adequate drainage for the discharged water.

• If a flexible hose must be laid across a roadway, protect it with

planking.

(Instantaneous shut off pressure, applied when a vehicle runs across an

unprotected hose, could cause “hydraulic shock”, which can damage the

pump and/or the hose).

CONNECTING A FOOT VALVE/FILTER

1. Attach a foot valve/filter to the end of the suction hose to prevent stones

etc, from being drawn up, which could cause damage to the pump. Keep

the strainer clean. If it is likely to clog with dirt or debris, proceed by either:

• Preparing a bed of stones on which to rest the strainer.

• Tying the strainer so that it stays clear of the bottom of the pit, pond

or excavation.

• Tie the strainer inside a basket or bucket.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PRIMING THE PUMP

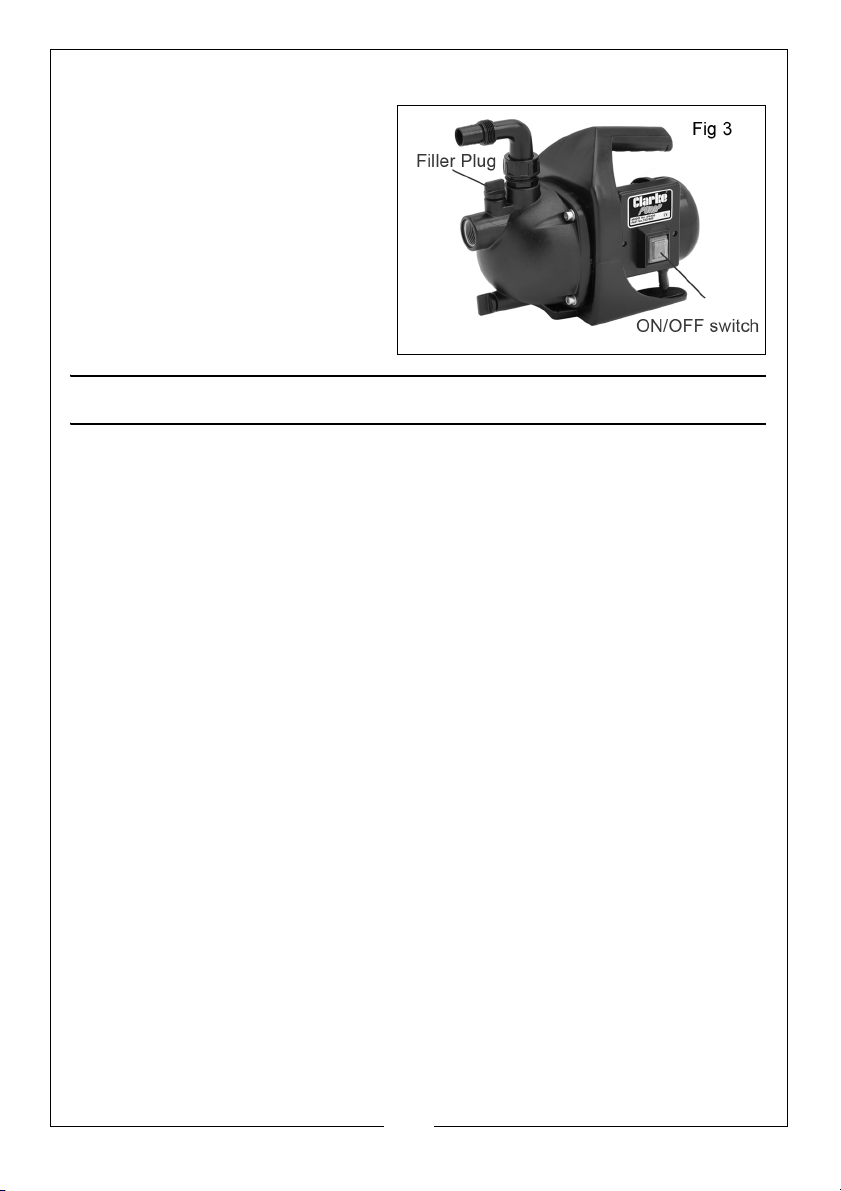

Remove the filler plug on top of

the pump case and prime the

pump by filling completely with

water, leaving no air gap.

Remember the pump is self-

priming only when filled, after

which, it will re-prime itself without

refilling. Refilling is necessary only if

the pump has been drained, or if

all the water has been lost.

OPERATION

1. Open any valves in the pipeline.

2. Connect the power supply and switch the pump ON.

3. Wait for the pump to prime.

4. If the motor fails to start or the pump does not deliver water refer to

TROUBLESHOOTING.

NOTE: Filling the suction pipe with water will speed up the priming

process, and it is recommended that a non-return valve be fitted

to the end of the suction pipe.

In the event of blockages, where debris has entered the suction chamber, the

chamber can be taken off and cleaned out as described under

Maintenance.

5. Periodically, check the level of the water being removed and never allow

the pump to run dry.

6. Stop the pump by switching the pump the OFF (O) position.

ADDITIONAL CONSIDERATIONS

• Strain caused by vibration can be reduced by connecting a short

flexible hose between any rigid pipework and the pump.

• Any restriction in the pipeline will greatly reduce the flow.

• Ensure that the hoses and pipes are supported along their entire

length. They will be considerably heavier when filled with water.

• We recommend that you install isolation valves either side of the

pump in order to isolate the pump during maintenance/removal.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• A gate valve may be installed in-line on the delivery side of the

pump which can be adjusted as required to regulate the flow of

water and can assist in priming the pump.

7. If there is a chance of freezing, protect the pump and pipework with

suitable lagging. The formation of ice may cause serious damage.

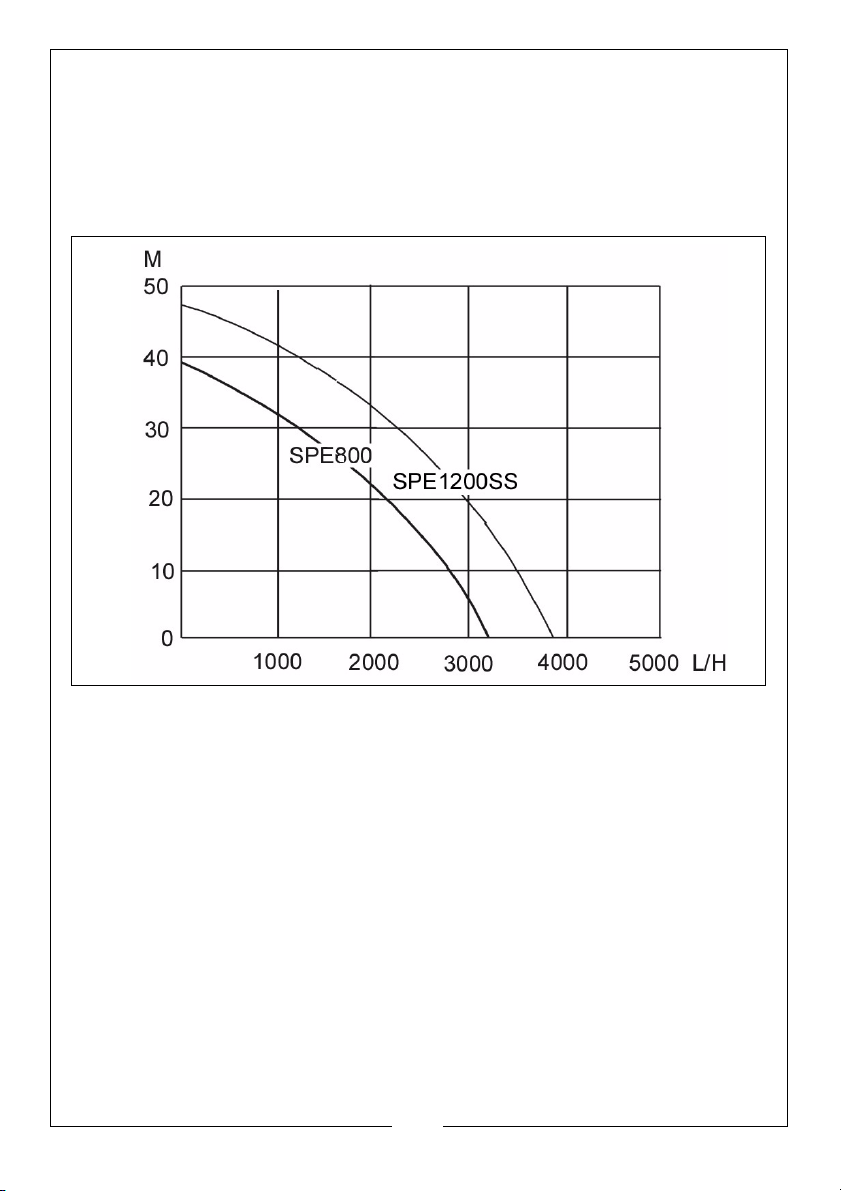

SPE PUMP PERFORMANCE

AFTER USE

After use, and if the pump will not be used over the winter period, or if there is

danger of freezing, always drain the pump body.

If the pump has been used with contaminated or salty water, it should be

thoroughly flushed with clean water following use, both inside and out. It

should then be drained and covered over, if not already sheltered from the

weather.

If the pump is seized following a period of inactivity, it may be possible to free

it off. Ensure the pump power supply is turned off before by inserting a

screwdriver into either the infeed or discharge port and dislodging a jammed

impeller. If this is not successful it may be necessary to remove the relevant

mounting bolts to separate the pump body and clean away any incrustation.

Re-prime the pump when returning to service.

In the event that overhaul of the pump or motor is necessary, contact your

Clarke service department.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

The only maintenance required is a

regular inspection to ensure that

leaves and other debris is not

blocking the passage of water

through the pump.

If you suspect the pump is blocked

by mud, silt, leaves etc, disconnect it

from the mains supply and backflush

to clear any blockage though the

drain plug.

Always keep the pump in a clean

condition, checking regularly for

loose bolts or a damaged power

cable etc.

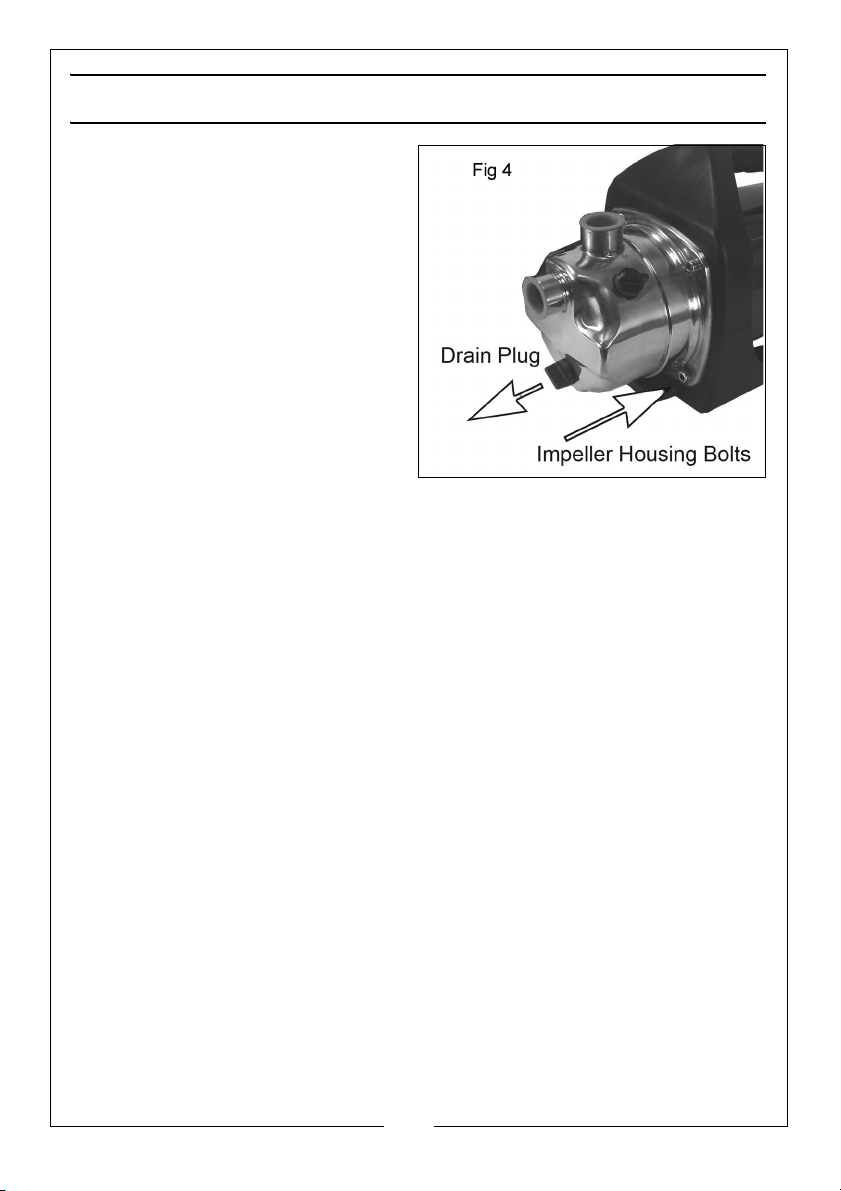

If the pump has been used under arduous conditions leading to internal

fouling or damage, the impeller housing can be removed by undoing the four

socket-headed impeller housing bolts shown in Fig 4.

The impeller can then be inspected for damage.

• Note that the pump also includes a 13mm hexagonal connector

used to extend the bolts between pump & motor housing.

STORAGE

After use, drain the pump body whenever there is danger of freezing. If the

pump has been used with contaminated or salty water, it should be

thoroughly flushed with clean water following use, both inside and out. It

should then be drained before replacing the drain plug and storing in a clean

dry environment not exposed to the weather.

In the event that dismantling and overhaul of the pump is necessary, contact

your CLARKE International Service Department on 020-8988-7400.

ACCESSORIES

A wide range of accessories is available, including Filters, Foot Valves, Hoses,

Couplings and 90° Hose Adaptors, etc. Contact your Clarke dealer for further

information or Clarke International Sales Department on 01992 565333.

These pumps are supplied with a 1” male 90° hose adaptor.

The use of parts other than genuine Clarke replacement parts may result in

possible safety hazards or decreased machine performance, and will

invalidate your warranty.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

Problem Cause Solution

Pump does not run. Thermal protection has

been activated.

If the motor has over-

heated, wait for it to cool

before trying again

Faulty power connection Insert plug securely.

No power supply Check power supply and

circuit breaker

Impeller seized/blocked Disconnect pump from

power supply.

Investigate cause and

clear blockage

Pump fails to prime Air leaks through suction

hose joints (damaged

hose, broken clamp,

damaged.

Repair connections/

replace hose as neces-

sary.

Blocked inlet hose Check pipeline for block-

age. Check any inlet

valve fitted is fully open.

Pump runs but gives poor

output

Congested material

inside pump

Clean out & backflush

pump.

Suction or delivery line

obstructed.

Remove obstruction and

ensure there are no kinks

in delivery line.

Inlet pipe leakage. Check inlet pipe and

connector for leaks.

Tighten as required.

Air leaks through

damaged seal.

Renew seal.

Impeller damaged and

making poor seal.

Return to your Clarke

dealer for repair

Impeller / mechanical

seal is badly worn.

Return to your Clarke

dealer for repair.

High friction losses in the

suction line.

Avoid unnecessary curves

restrictions or valves

Pump badly sited result-

ing in suction lift too high

Set pump as close as pos-

sible to the level of the

water to be pumped

Autres manuels pour SPE800

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Clarke Pompe à eau

Clarke

Clarke CWP200 Mode d’emploi

Clarke

Clarke PSV1A Mode d’emploi

Clarke

Clarke BIP1500 Mode d’emploi

Clarke

Clarke DFT230 Mode d’emploi

Clarke

Clarke psp125b Mode d’emploi

Clarke

Clarke PW2 Manuel d'installation et d'exploitation

Clarke

Clarke CU150 Manuel d'installation et d'exploitation

Clarke

Clarke CSV4A Mode d’emploi

Clarke

Clarke MSP12 Manuel utilisateur

Clarke

Clarke CPE Series Mode d’emploi

Clarke

Clarke CHF2 Manuel d'installation et d'exploitation

Clarke

Clarke PSV6A Mode d’emploi

Clarke

Clarke HSE120 Manuel d'installation et d'exploitation

Clarke

Clarke CVP1000 Guide rapide

Clarke

Clarke CPE20A3 Mode d’emploi

Clarke

Clarke CPE30A1 Mode d’emploi

Clarke

Clarke CSE400A Mode d’emploi

Clarke

Clarke PS75A Mode d’emploi

Clarke

Clarke CS85S Manuel d'installation et d'exploitation

Clarke

Clarke HIPPO 2 Mode d’emploi

Clarke

Clarke PSV5A Mode d’emploi

Clarke

Clarke PSV3A Manuel d'installation et d'exploitation

Clarke

Clarke DWP400A Mode d’emploi

Clarke

Clarke BIP1000 Mode d’emploi

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
