OPERATING & MAINTENANCE

INSTRUCTIONS

GC04/15

GREASE GUN

MODEL NO: CAT33B

PART NO: 3110433

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Grease Gun.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

SPECIFICATION

Model Numbers CAT33B

Part Numbers 3110433

Maximum Operating Pressure 90 psi (6.2 bar)

Air Consumption 1 cfm

Capacity 400 gram cartridge

Air Inlet Size 1/4” BSP thread

Vibration Levels <2.5m/s2

Weight 1.5 kg

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair

out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

4. Keep the air supply hose away from heat, oil and sharp edges.

5. Do not fit the tool to any stand or clamping device that may damage it.

USE

1. Stay alert and use common sense - do not operate this tool when you are

tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using air tools. Eye protectors must

provide protection from flying particles from the front and the side.

3. Do not overreach - Keep proper footing and balance at all times.

4. Never use oxygen, CO2, combustible gasses, or any bottled gas, as a

source of power for the grease gun. This product should only be used with

a suitably rated compressed air supply.

5. Do not connect the airline with your finger on the trigger of the gun.

6. Do not exceed the maximum pressure for the gun of 90 psi / 6.2 bar.

7. Check hoses for leaks or excessive wear before use, and ensure that all

connections are secure.

8. Do not use the tool for any other purpose than described in this manual.

9. Do not carry out any alterations or modifications to the tool.

10. Always disconnect from the air supply when:

• Performing any maintenance.

• The tool is not in use.

• The tool will be left unattended.

• Moving to another work area.

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN

PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• Passing the tool to another person.

• Never use the tool if it is defective or operating abnormally.

11. This tool should be serviced regularly by qualified service personnel.

12. Avoid damaging the tool for example by applying excessive force.

13. Always maintain the tool. Keep it clean for the safest performance.

14. Do not force or misuse the tool. It will do a better and safer job at the rate

for which it was designed.

TRANSPORTATION

1. Never carry an air tool by the air supply hose.

2. Never carry an air tool with your finger on the trigger.

OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Nozzle 5 Air Inlet

2 Air Vent Valve 6 Plunger Handle

3 Trigger 7 Plunger Release Tab

4 Grease Container 8 Grease Inlet Valve

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMPRESSED AIR REQUIREMENTS

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the tool must comply with the appropriate

European Community Safety Directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the tool. ensure any moisture is drained from

the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required, (over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

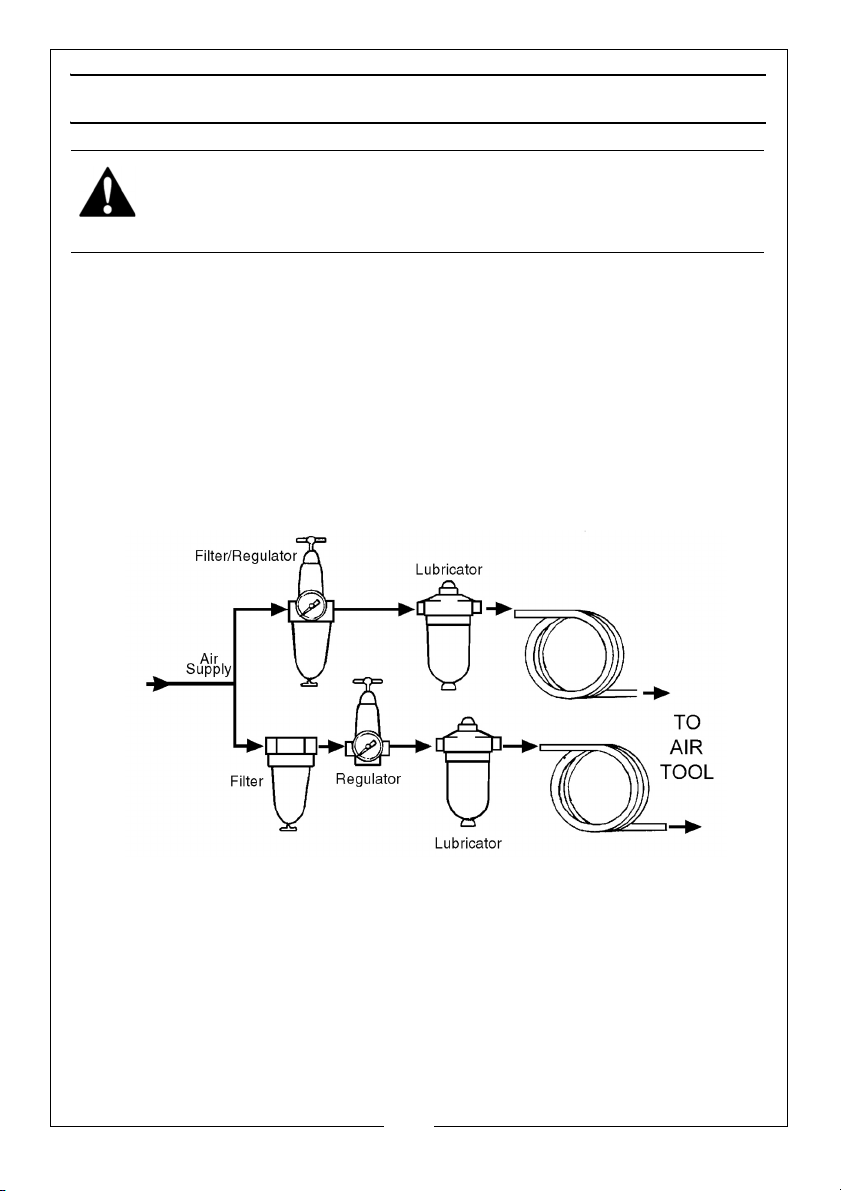

• A typical air line layout is shown above. If an automatic in-line filter/

regulator is used, it will keep the tool in good condition, but should

be regularly checked & topped up with oil. Clarke air-line oil should

be used, and the lubricator adjusted to approx 2 drops per minute.

• Never exceed the maximum operating pressure for the tool. It is

recommended that air pressure to this tool does not exceed 90 psi

at the tool when running. Higher pressures and unclean air will

shorten the life of the tool due to faster wear and is a possible safety

hazard.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND A COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

BEFORE USE

NOTE: Ensure the compressor is turned off.

1. If required, connect an in-line mini oiler to the tool.

• A mini oiler helps to prolong the life of the air tool.

2. If a mini-oiler is not being used, run a few drops of oil through the tool

before use. It can be entered through the inlet connector or via the hose

at the nearest connection to the air supply.

3. Connect a suitable hose as shown.

4. Connect the other end of the hose

to the compressor.

5. Turn on the air supply and check

for air leaks. Rectify any found

before proceeding. PTFE tape may

be helpful for sealing threaded

connections.

6. Your air tool is now ready for use.

You can fit a whip hose with a quick fit coupling if required (available from

your Clarke dealer).

LOADING WITH GREASE

This air driven grease gun is designed to be loaded in one of three ways:

• Using a standard 400 gram grease cartridge.

• Loading the container with a filler pump.

• Loading the container by bulk filling.

CARTRIDGE LOADING

1. Unscrew the container from the

head of the grease gun.

2. Pull the plunger handle on the

container completely out.

3. Remove any seal or end cap from

the end of the grease cartridge.

4. Insert the grease cartridge all the

way into the container.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

5. Re-fit the container to the head of the grease gun.

6. Press the handle release tab to release the plunger handle.

7. Press the air vent valve to release any excess air trapped inside the gun.

LOADING USING A FILLER PUMP (IF AVAILABLE)

1. Pull the plunger handle on the container completely out.

2. Fit the filler pump to the grease gun inlet valve.

3. Fill the container by pumping the filler pump handle.

4. Disconnect the grease gun inlet valve from the filler pump.

5. Press the handle release tab to release the plunger handle.

6. Press the air vent valve to release any excess air trapped inside the gun.

BULK FILL LOADING

1. Remove the container from the head of the grease gun.

2. Pull the plunger handle on the container completely out.

3. Fill the container with bulk grease.

4. Re-fit the container to the grease gun.

5. Press the handle release tab to release the plunger handle.

6. Press the air vent valve to release any excess air trapped inside.

OPERATING THE GREASE GUN

1. Connect the gun to the air hose.

NOTE: It is recommended that a whip hose with a swivel (not included)

be used to prevent twisting, kinking and resultant wear to the air

hose.

2. Squeeze the trigger completely to operate the grease gun.

• The grease is applied in shots, not in a continuous flow.

3. Release the trigger after each shot.

DISCONNECTING THE AIR SUPPLY

Do not disconnect the air supply hose until the compressor has been shut

down and the compressed air released.

1. Refer to the compressor instruction manual for the procedure to shut down

and release the compressed air.

2. Once the pressure has been released, disconnect the air supply hose from

the air tool.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

DAILY

1. Before use, drain water from the air-line and compressor.

2. This air tool should be lubricated before use. Turn the tool upside down and

pour 1-2 drops of Clarke air-line oil into the air inlet. This should be carried

out regardless of whether or not an in-line mini oiler is used. If an in-line mini

oiler is not used, this procedure should be repeated after every two to

three hours of constant use.

CLEANING

1. Keep the body and nozzle of the tool clean.

2. Deposits in the tool may also reduce efficiency. This can be corrected by

cleaning the air inlet and flushing out the tool with gum solvent oil, or failing

this, the tool should be disassembled, thoroughly cleaned, dried and

reassembled.

3. If the tool becomes inefficient and the air supply is of good quality, it may

be necessary to replace worn or damaged parts. You may prefer to take

the tool to your Clarke dealer if internal maintenance is required.

Your Clarke air tool has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the unit to your local Clarke dealer.

PERFORMANCE

Please note that factors other than the tool may effect its operation and

efficiency such as reduced compressor output, excessive drain on the airline,

moisture or restrictions in the air-line, or the use of connectors of improper size

or poor condition which will reduce air supply.

**Clarke Air-line Oil (part no. 3050825) is available from your Clarke dealer.

STORAGE

If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of

Clarke air-line oil into the air inlet, and depress the trigger in order to lubricate

the internal parts.

WARNING: MAKE SURE THAT THE AIR TOOL IS DISCONNECTED FROM THE

AIR SUPPLY BEFORE STARTING ANY CLEANING, OR MAINTENANCE

PROCEDURES.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

When not in use, disconnect from air supply, clean and store in a safe, dry

place.

ACCESSORIES

Multi-purpose grease (high melting point Lithium based), 400g cartridge;- part

no 3050875 is available from your Clarke dealer.

A wide range of airline accessories is available including filter/regulators,

lubricators, high-pressure hoses (5 to 50 metres) etc.

Contact your Clarke dealer for further information or Clarke International

Service Department on 01992 565333.

TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION

Grease gun fails to work

or is slow.

Air pockets in the gun Draw back the plunger

handle fully and release by

pressing the handle

release. Repeat several

times. This will help to move

the rubber ring into the car-

tridge tube, which essential

for the grease gun to work.

Push the plunger handle all

the way in.

Press the air vent valve

several times to free the air.

Air hose leaks. Tighten and seal hose

fittings with teflon tape.

Low air pressure. Adjust compressor

regulator to 90 psi.

Plunger is sticking. Lubricate plunger.

Cartridge is empty Refill the container tube.

Grease gun is too cold. The gun needs to be at

room temperature(65-80oF)

Gun will not shut off. O-rings damaged or ill-

fitting in seat.

Return to Clarke dealer for

repair.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

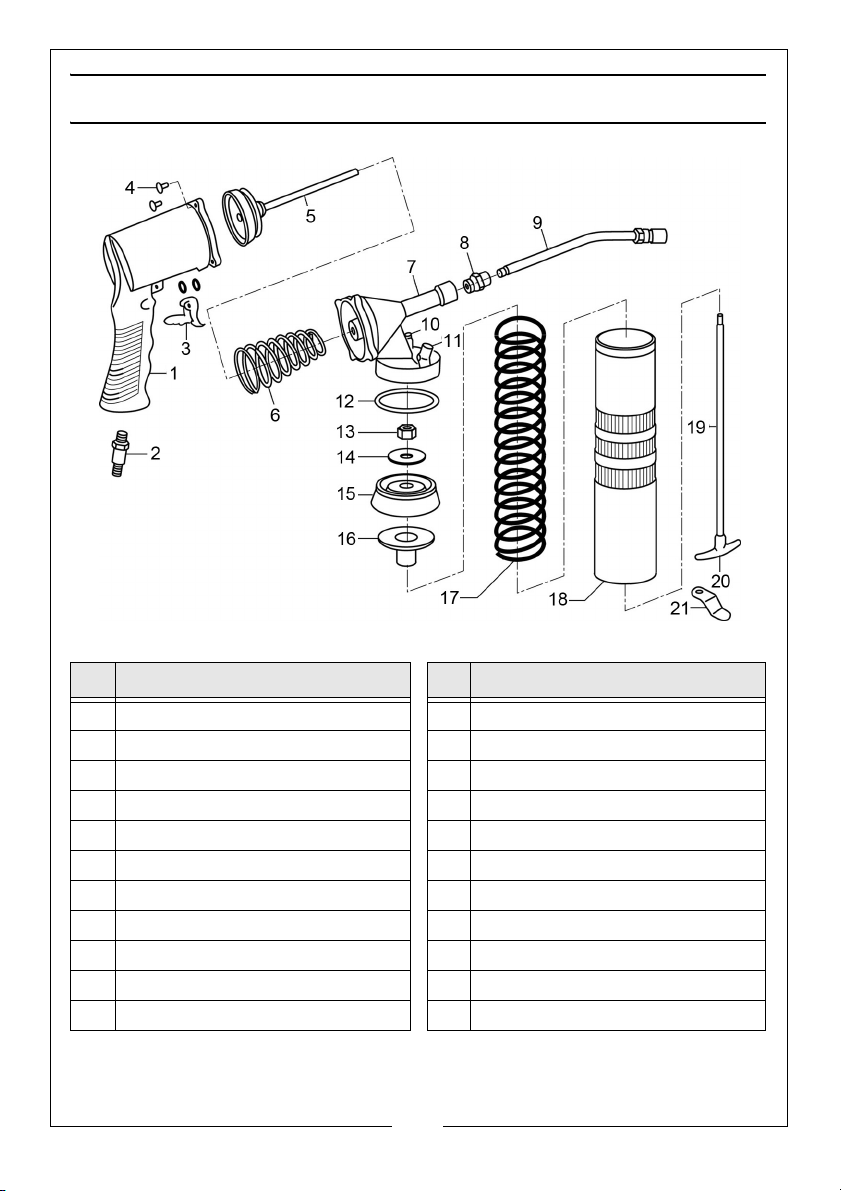

PARTS LIST & DIAGRAM

No Description No Description

1 Gun Body 12 Gasket

2 Air Connector 13 Nut

3Trigger 14FlatWasher

4Screw 15Piston

5 Air Plunger 16 Piston Support

6 Short Spring Kit 17 Long Spring Kit

7 Body Cap 18 Grease Chamber

8 Adaptor 19 Piston Rod

9 Extension with nozzle 20 Plunger Handle

10 Air Vent Valve 21 Plate

11 Plug

Autres manuels pour CAT33B

Table des matières

Autres manuels Clarke Outils

Clarke

Clarke SBR760 Mode d’emploi

Clarke

Clarke SBR305 Mode d’emploi

Clarke

Clarke CEA150 Manuel d'installation et d'exploitation

Clarke

Clarke CAT29B Manuel d'installation et d'exploitation

Clarke

Clarke CAT33B Manuel d'installation et d'exploitation

Clarke

Clarke CAT125 Manuel d'installation et d'exploitation

Clarke

Clarke CAR8P Manuel utilisateur

Clarke

Clarke CONTRACTOR CHJ110 Mode d’emploi

Clarke

Clarke CHT706 Manuel utilisateur

Clarke

Clarke Strong-Arm CFB600 Manuel utilisateur

Clarke

Clarke CONTRACTOR CWJ700 Mode d’emploi

Clarke

Clarke CAT151 Manuel d'installation et d'exploitation

Clarke

Clarke CAT114 Mode d’emploi

Clarke

Clarke CHT 141 Manuel utilisateur

Clarke

Clarke CMC36B Manuel utilisateur

Clarke

Clarke Strong-Arm CLL500 Manuel

Clarke

Clarke CHT204 Manuel utilisateur

Clarke

Clarke CSB20B Manuel utilisateur

Clarke

Clarke CHT403 Manuel utilisateur

Clarke

Clarke CAT138 Manuel d'installation et d'exploitation

Clarke

Clarke CHT697 Guide d'installation

Clarke

Clarke PC108 Instructions de montage

Clarke

Clarke CONTRACTOR CLJ120 Mode d’emploi

Clarke

Clarke METALWORKER CMSSCS Manuel utilisateur

Manuels Outils populaires d'autres marques

Martor

Martor SECUNORM 175 Manuel utilisateur

ERKCO

ERKCO 1000 Manuel utilisateur

jbc

jbc N4473 Manuel utilisateur

FEINMETALL

FEINMETALL FZWZ-SET-001 Manuel utilisateur

Worx Professional

Worx Professional Sonicrafter WU676 Manuel utilisateur

Gage Bilt

Gage Bilt GB713SH Manuel utilisateur

Hilti

Hilti DX 9-ENP Manuel utilisateur

norbar

norbar NORTRONIC 34399 Manuel utilisateur

BGS technic

BGS technic 8578 Manuel utilisateur

Makita

Makita DHR241 Manuel utilisateur

Motor Guard

Motor Guard JMB-1250 Manuel utilisateur

Power Adhesives

Power Adhesives 805-12 Manuel utilisateur

Clemco

Clemco 24189 Manuel utilisateur

VVG

VVG VNG 903 Series Manuel utilisateur

Hilti

Hilti FX 3-A Manuel utilisateur

Grizzly

Grizzly H6472 Manuel utilisateur

axing

axing BWZ 5-02 Manuel utilisateur

Dh-Robotics

Dh-Robotics RGI-100 Comment utiliser
